LCDA03
THRU
LCDA24
Technical Data
Data Sheet N0284, Rev. A
LCDA03 THRU LCDA24 TVS ARRAY SERIES
Description
The LCDAXX series of TVS array are designed to
protect sensitive electronics from damage or latch-
up due to ESD and other voltage-induced transient
events. Each device will protect two high-speed
lines. They are bi-directed devices and may be used
on lines where the signal polarities are above and
below ground
SO-8

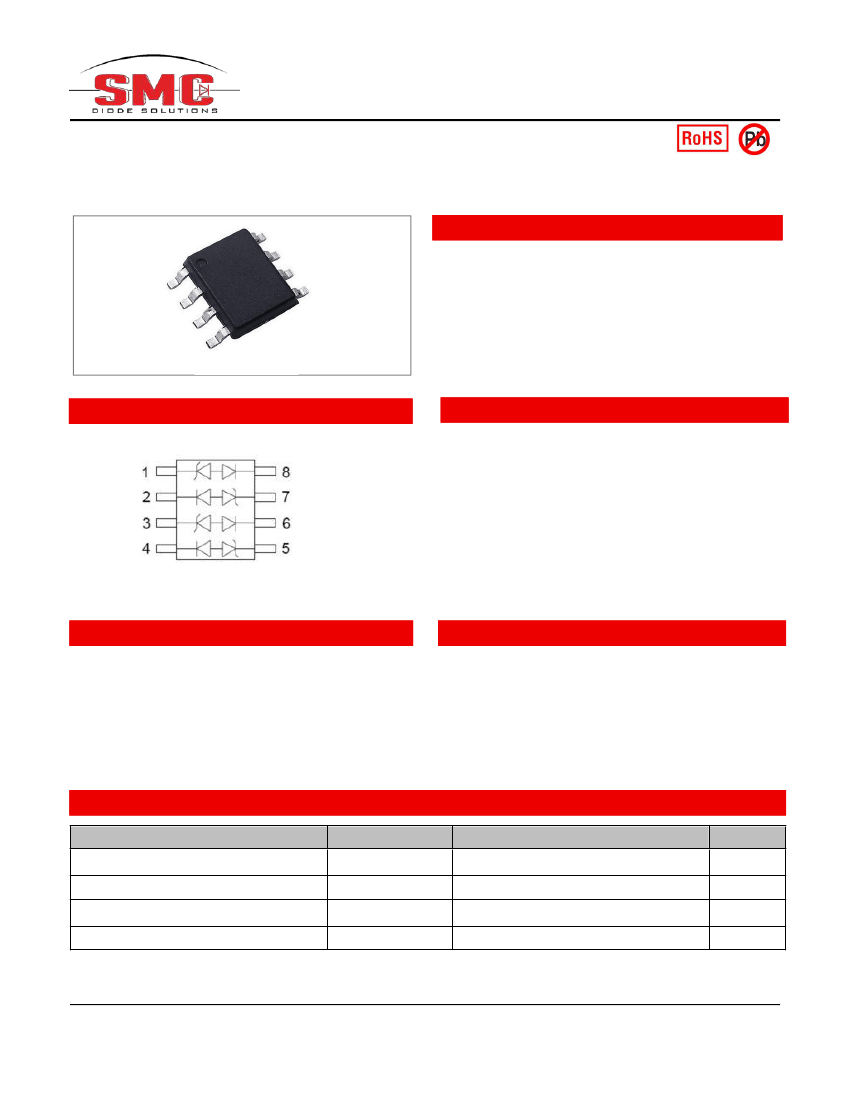

Schematic & Pin Configuration
Features
Protects 3.3, 5, 12, 15, 24 V Components
Bidirectional
Low capacitance for high-speed date lines
300 W @ 8/20 us
Protect 2 I/O Lines
SO-8 Packaging
Solid-state silicon avalanche technology
“-A” is an AEC-Q101 qualified device
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Mechanical Characteristics
SO-8 Surface Mount Package
Approximate Weight: 0.1 grams
PIN #1 Indicator: DOT on top of package
Packaging: Tubes or Tape & Reel per EIA
Standard 481
Application
High-Speed Data Lines
Microprocessor Based Equipment
Universal Serial Bus(USB) Port Protection
Notebooks, Desktops, & Servers
Instrumentation
LAN/WAN Equipment
Peripherals
Absolute Maximum Ratings:
Parameter
Peak Pulse Power, 8/20 μs Wave shape
Operating Temperature
Storage Temperature
Lead Soldering Temperature
Symbol
P
T
J
T
stg
T
L
Value
300
-55 to +125
-55 to +150
260 (10 Sec.)
Units
W
C
C
C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
LCDA03
THRU
LCDA24
Technical Data
Data Sheet N0284, Rev. A
Electrical Characteristics
@25°C
Stand-off
Voltage
Vwm
(V)
Max
3.3
5.0
12.0
15.0
24.0
Breakdown
Voltage
V
BR
@1mA
(V)
Min
4
6
13.3
16.7
26.7
Clamping
Voltage
Vc
@1A
(V)
Max
7
9.8
19
24
43
Leakage
Current
I
R
@ Vwm
(uA)
Max
200
20
1
1
1
Capacitance
(f = 1MHz)
C
@ 0V
(pF)
Max
5
5
5
5
5
Temperature
Coefficient of
V
BR
a(V
BR)
mv/°C
Max
-5
1
8
11
28
Part Number
LCDA03
LCDA05
LCDA12
LCDA15
LCDA24

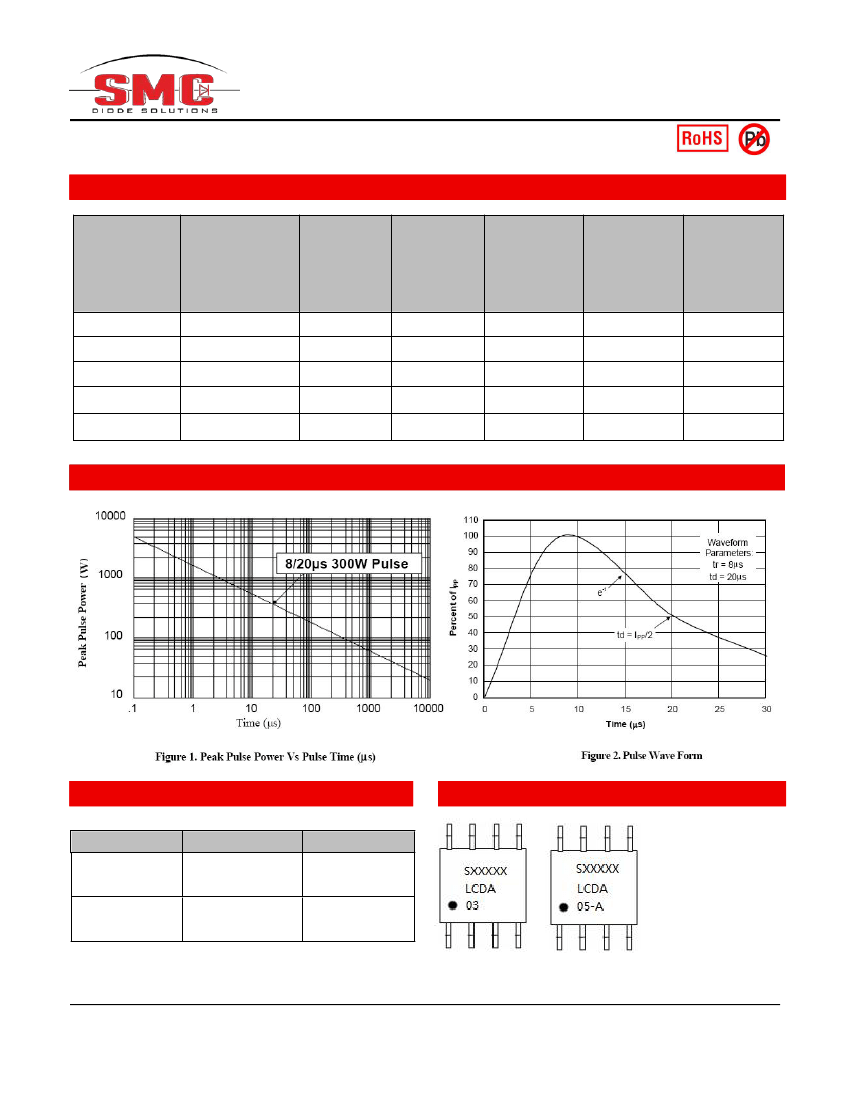

Ratings and Characteristics Curves
Ordering Information
Device
LCDA03
THRU
LCDA24
LCDA03TR
THRU
LCDA24TR
Package
SO-8 (Pb-Free)
SO-8 (Pb-Free)
Shipping
2500pcs / reel
2500pcs / reel
Marking Diagram
Where XXXXX is YYWWL
LCDA03 = Part Name
-A
= AEC-Q101
S
YY
WW
L
=S
= Year
= Weak
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
LCDA03
THRU
LCDA24
Technical Data
Data Sheet N0284, Rev. A

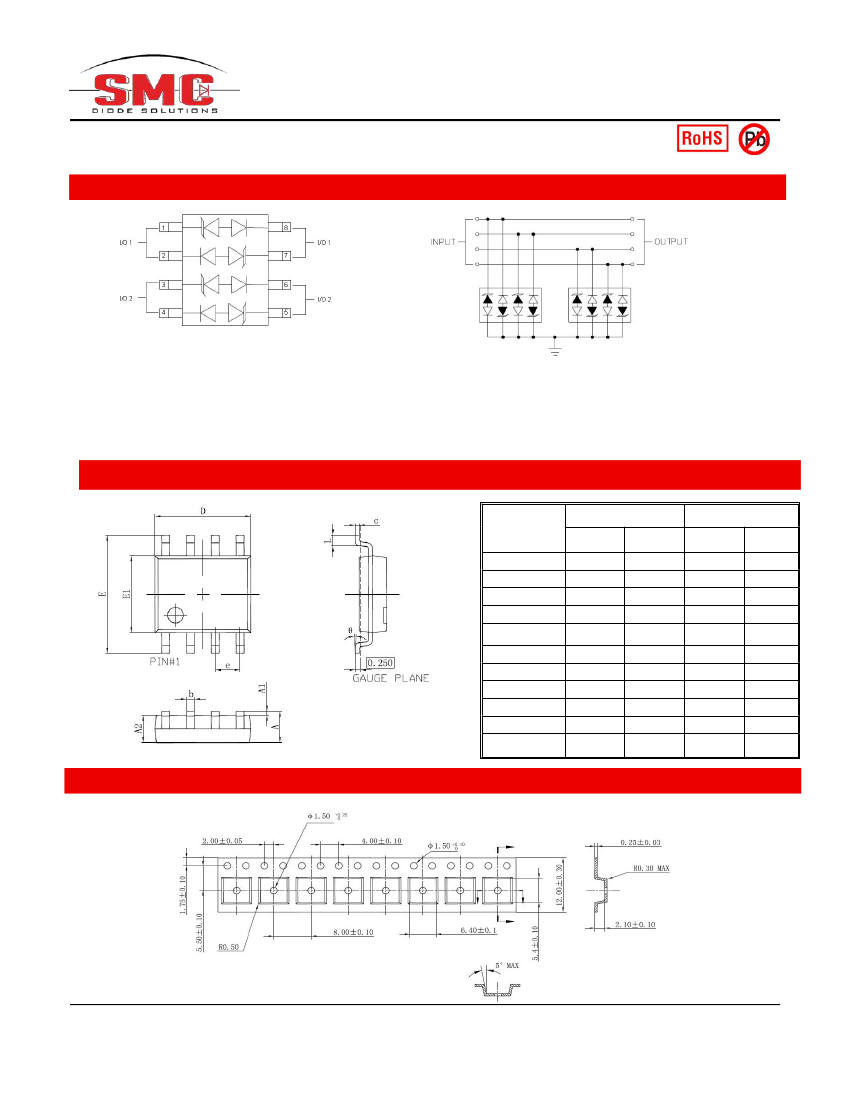

Circuit Diagram
The devices are connected as follows:
✔
Pins 1 and 2 are tied together and pins 7 and 8 are tied together providing the protection circuit for one I/O line. Pins 3
and 4 are tied together and pins 5 and 6 are tied together providing the protection circuit for the second I/O line. Since the
device is electrically symmetrical, either side of the connected pairs may be used to protect the lines. The other side of
the pair is used to make the ground connection. The ground connections should be made directly to the ground plane for
best results. The path length is kept as short as possible to reduce the effects of parasitic inductance in the board traces.
short as possible to reduce the effects of parasitic inductance in the board traces.
Mechanical Dimensions SO-8
SYMBOL
A
A1
A2
b
c
D
e
E
E1
L
θ
Millimeters
MIN.
1.350
0.100
1.350
0.306
0.150
4.720
1.140
5.700
3.750
0.300
0°
MAX.
1.800
0.250
1.750
0.510
0.300
5.120
1.400
6.300
4.150
1.270
8°
Inches
MIN.
0.053
0.004
0.053
0.012
0.006
0.186
0.045
0.224
0.148
0.012
0°
MAX.
0.071
0.010
0.069
0.020
0.012
0.202
0.055
0.248
0.163
0.050
8°
Carrier Tape Specification SO-8
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
LCDA03
THRU
LCDA24
Technical Data
Data Sheet N0284, Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
