TSM971/72/73/82/84
Ultra-Low-Power, Open-Drain Single/Dual-Supply Comparators
FEATURES
♦
Alternate source for:
MAX971/MAX972/MAX973/MAX982/MAX984
♦
Ultra-Low Quiescent Current Over Temperature
TSM971 Single+Reference: 4μA (max)
TSM972: Dual Comparator Only: 4μA (max)
TSM973/TSM982 Dual+Reference: 6μA (max)
TSM984 Quad+Reference: 8.5μA (max)
♦
Single or Dual Power Supplies:
Single: +2.5V to +11V
Dual: ±1.25V to ±5.5V
♦
Input Voltage Range Includes Negative Supply
♦
12μs Propagation Delay at 10mV Overdrive
♦
Open-drain Output Stages for Wired-OR
Applications
♦
Internal 1.182V±1% Reference: TSM971/TSM973
♦
Internal 1.182V±2% Reference: TSM982/TSM984
♦
Adjustable Hysteresis: TSM971/TSM973/TSM982
♦
Separate Output GND Pin: TSM971/TSM984
DESCRIPTION
The
TSM971/972/973/982/984
family
of
single/dual/quad, low-voltage, micropower analog
comparators is electrically and form-factor identical to
the MAX971/972/973/982/984 family of analog
comparators. Ideal for 3V or 5V single-supply
applications, this comparator family can operate from
single +2.5V to +11V supplies or from ±1.25V to
±5.5V dual supplies. The single TSM971 and the dual
TSM972 draw less than 4μA (max) supply current
over temperature. The TSM973/TSM982 duals and
the quad TSM984 draw less than 3μA per comparator
over temperature.
All comparators in this family exhibit an input voltage
range from the negative supply rail to within 1.3V of
the positive supply. Wired-OR applications are
enabled as the comparators’ output stages are open-
drain. A 1.182V reference is internal to the
TSM971/TSM973 (±1%) and the TSM982/TSM984
(±2%). Without complicated feedback configurations
and only requiring two additional resistors, adding
external hysteresis is available on the TSM971,
TSM973, and the TSM982.
APPLICATIONS
Threshold Detectors
Window Comparator
Level Translators
Oscillator Circuits
Battery-Powered Systems
TYPICAL APPLICATION CIRCUIT

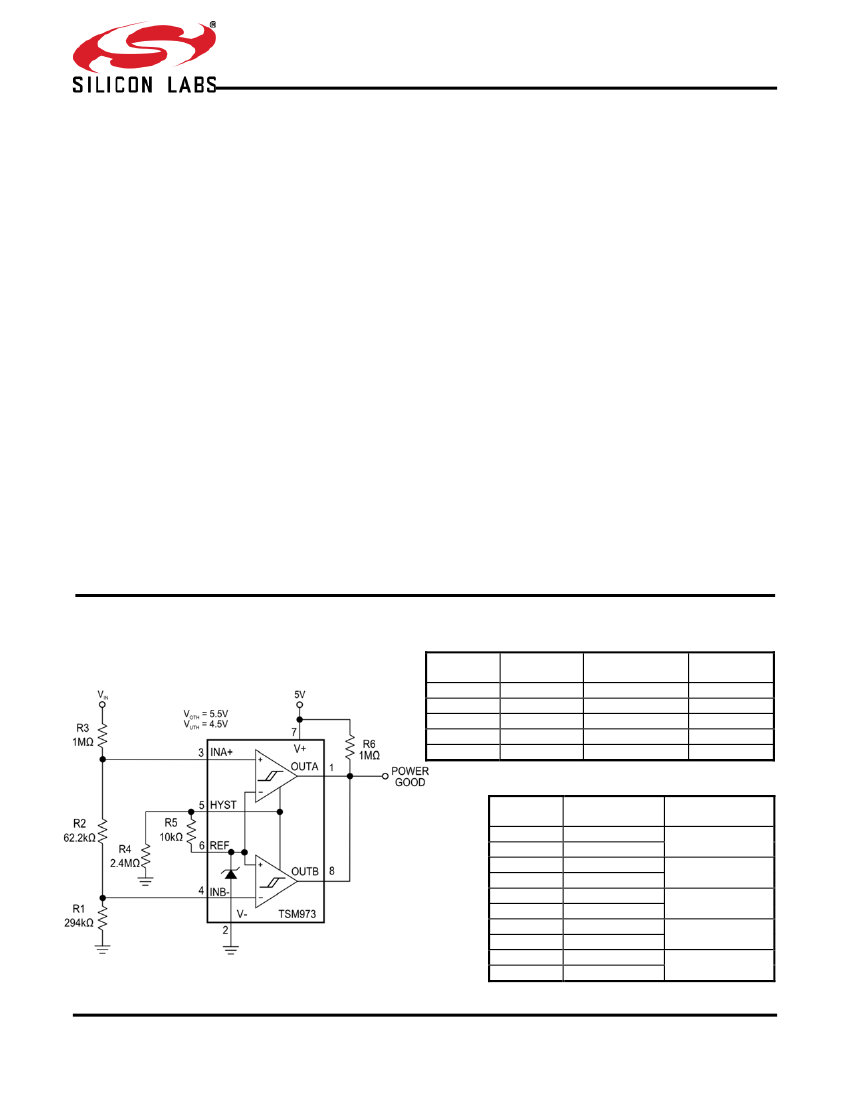

A 5V, Low-Parts-Count Window Detector
PART
TSM971
TSM972
TSM973
TSM982
TSM984
INTERNAL COMPARATORS INTERNAL
REFERENCE PER PACKAGE HYSTERESIS
Yes, ±1%
1
Yes
No
2
No
Yes, ±1%
2
Yes
Yes, ±2%
2
Yes
Yes, ±2%
4
No
PART
TSM971C
TSM971E
TSM972C
TSM972E
TSM973C
TSM973E
TSM982C
TSM982E
TSM984C
TSM984E
TEMPERATURE
RANGE
0ºC to 70ºC
-40ºC to 85ºC
0ºC to 70ºC
-40ºC to 85ºC
0ºC to 70ºC
-40ºC to 85ºC
0ºC to 70ºC
-40ºC to 85ºC
0ºC to 70ºC
-40ºC to 85ºC
PACKAGE
8-Pin MSOP/SOIC
8-Pin MSOP/SOIC
8-Pin MSOP/SOIC
8-Pin MSOP/SOIC
16-Pin SOIC
Page 1
© 2014 Silicon Laboratories, Inc. All rights reserved.
TSM971/72/73/82/84
ABSOLUTE MAXIMUM RATINGS
Supply Voltage (V+ to V-, V+ to GND, GND to V-)......-0.3V, +12V
Voltage Inputs
(IN+, IN-)..............................................(V+ + 0.3V) to (V- - 0.3V)
HYST…………………………………….(REF + 5V) to (V- - 0.3V)
Output Voltage
REF..................................................... (V+ + 0.3V) to (V- - 0.3V)
OUT (TSM971, TSM984).................(V+ + 0.3V) to (GND - 0.3V)
OUT (TSM972/73, TSM982/84).... ......(V+ + 0.3V) to (V- - 0.3V)
Input Current (IN+, IN-, HYST)..............................................20mA
Output Current
REF…………………………………………………………….20mA
OUT…………………………………………………………….50mA
Output Short-Circuit Duration (V+
≤
5.5V) ...................Continuous
Continuous Power Dissipation (T
A
= +70°C)
8-Pin MSOP (derate 4.1mW/°C above +70°C) .................330mW
8-Pin SOIC (derate 5.88mW/°C above +70°C)..................471mW
16-Pin SOIC (8.7mW/°C above +70°C) ............................696mW
Operating Temperature Range
TSM97xC..................................................................0°C to +70°C
TSM98xE...............................................................-40°C to +85°C
Storage Temperature Range .................................-65°C to +150°C
Lead Temperature (soldering, 10s) ......................................+300°C
Electrical and thermal stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other condition beyond those indicated in the operational sections
of the specifications is not implied. Exposure to any absolute maximum rating conditions for extended periods may affect device reliability and
lifetime.

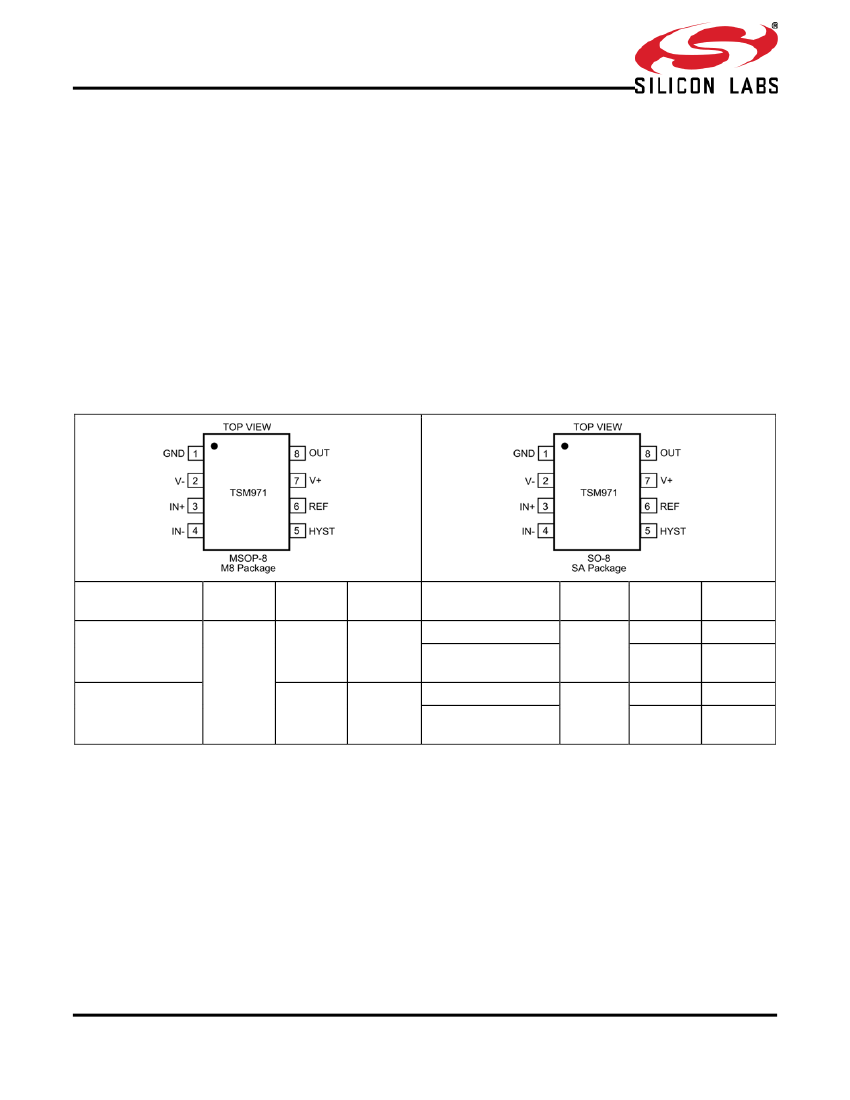

PACKAGE/ORDERING INFORMATION
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
Tube
TAAZ
50
ORDER NUMBER
TSM971CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS971
Tape
& Reel
Tube
TS971E
Tape
& Reel
97
2500
97
2500
TSM971CUA+
TSM971CSA+T
TSM971ESA+
TSM971CUA+T
Tape
& Reel
2500
TSM971ESA+T
Page 2
TSM971/72/73/82/84 Rev. 1.0
TSM971/72/73/82/84

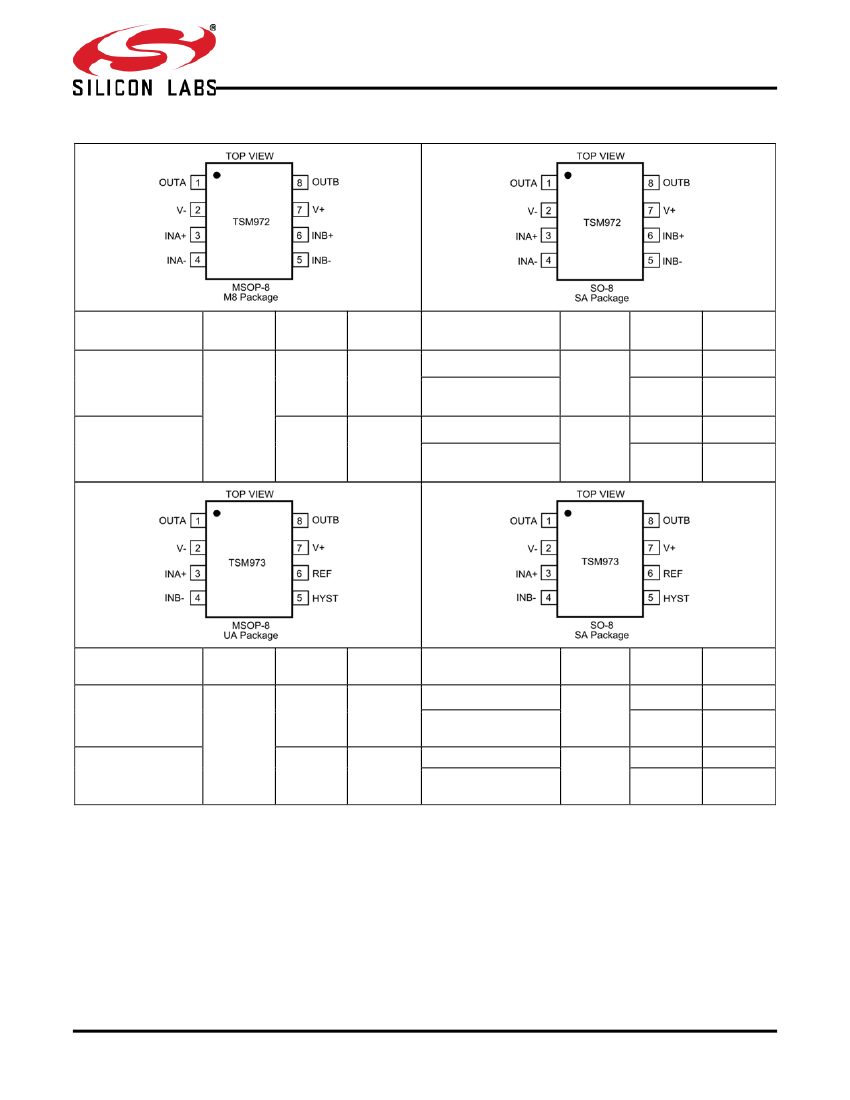

PACKAGE/ORDERING INFORMATION
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
Tube
TABJ
50
ORDER NUMBER
TSM972CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS972
Tape
& Reel
Tube
TS972E
Tape
& Reel
97
2500
97
2500
TSM972CUA+
TSM972CSA+T
Tape
& Reel
TSM972ESA+
2500
TSM972ESA+T
TSM972CUA+T
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
Tube
TABE
50
ORDER NUMBER
TSM973CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS973
Tape
& Reel
Tube
TS973E
Tape
& Reel
97
2500
97
2500
TSM973CUA+
TSM973CSA+T
TSM973ESA+
TSM973CUA+T
Tape
& Reel
2500
TSM973ESA+T
TSM971/72/73/82/84 Rev. 1.0
Page 3
TSM971/72/73/82/84

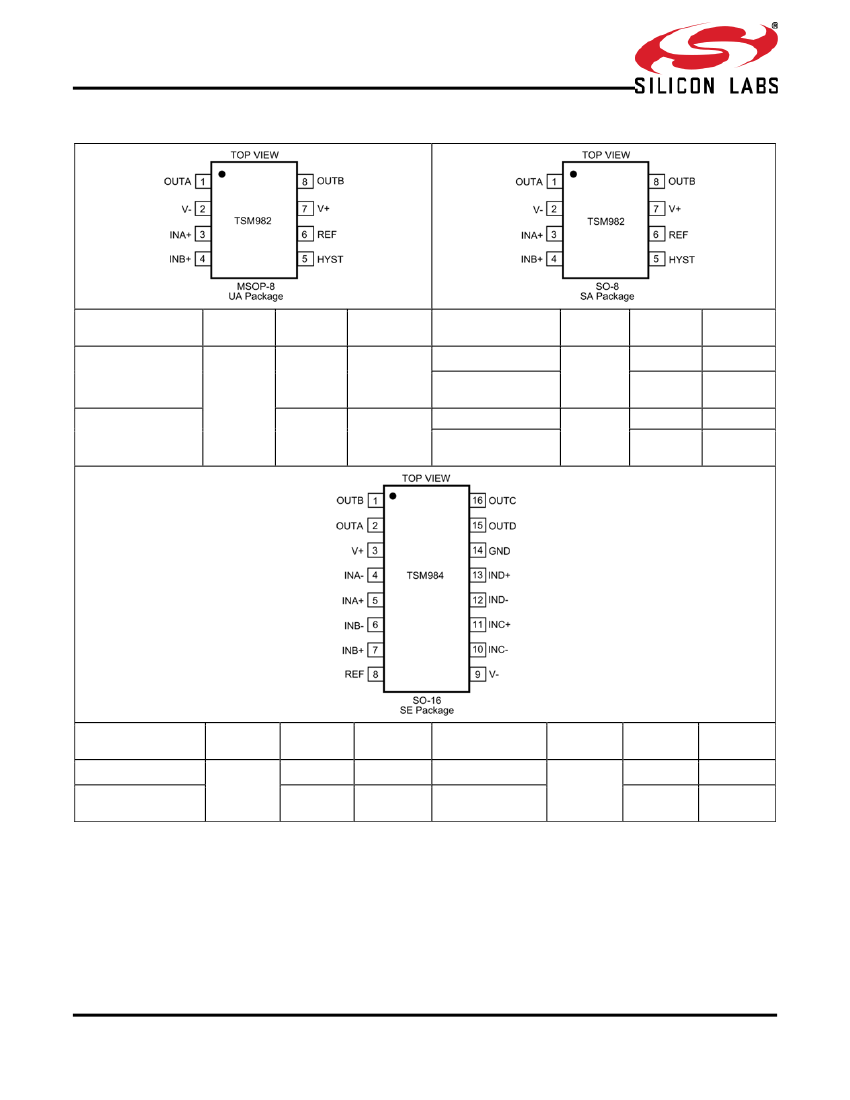

PACKAGE/ORDERING INFORMATION
ORDER NUMBER
PART
CARRIER QUANTITY
MARKING
Tube
TABK
50
ORDER NUMBER
TSM982CSA+
PART
CARRIER QUANTITY
MARKING
Tube
TS982
Tape
& Reel
Tube
TS982E
Tape
& Reel
97
2500
97
2500
TSM982CUA+
TSM982CSA+T
TSM982ESA+
TSM982CUA+T
Tape
& Reel
2500
TSM982ESA+T
ORDER NUMBER
TSM984CSE+
TSM984CSE+T
PART
CARRIER QUANTITY
MARKING
Tube
TS984
Tape
& Reel
48
2500
ORDER
NUMBER
TSM984ESE+
TSM984ESE+T
PART
CARRIER QUANTITY
MARKING
Tube
TS984E
Tape
& Reel
48
2500
Lead-free Program:
Silicon Labs supplies only lead-free packaging.
Consult Silicon Labs for products specified with wider operating temperature ranges.
Page 4
TSM971/72/73/82/84 Rev. 1.0
TSM971/72/73/82/84
ELECTRICAL CHARACTERISTICS – 5V OPERATION
V+ = 5V, V- = GND = 0V; T
A
= -40ºC to +85ºC, unless otherwise noted. Typical values are at T
A
= +25ºC. See Note 1.
PARAMETER
POWER REQUIREMENTS
Supply Voltage Range
Output Voltage Range
CONDITIONS
See Note 2
TSM971;
HYST = REF
TSM972
Supply Current
IN+ = IN- + 100mV
TSM973
TSM982;
HYST = REF
TSM984
COMPARATOR
Input Offset Voltage
Input Leakage Current (IN-, IN+)
Input Leakage Current (at HYST Pin)
Input Common-Mode Voltage Range
Common-Mode Rejection Ratio
Power-Supply Rejection Ratio
Voltage Noise
Hysteresis Input Voltage Range
Response Time
(High-to-Low Transition)
Response Time
(Low-to-High Transition)
Output Low Voltage
Output Leakage Current
REFERENCE
Reference Voltage
TSM982, TSM984
Source Current
Sink Current
Voltage Noise
100Hz to 100kHz
T
A
= +25°C
T
A
= -40°C to +85°C
T
A
= +25°C
T
A
= -40°C to +85°C
T
A
= +25°C
T
A
= -40°C to +85°C
T
A
= +25°C
T
A
= -40°C to +85°C
5.5
MIN
2.5
0
2.5
2.5
3.1
TYP
TSM
11
11
3.2
4
3.2
4
4.5
6
6.5
8.5
±10
±5
V+ – 1.3V
1.0
1.0
REF
12
4
300
V- + 0.4
GND + 0.4
100
1.170
1.158
1.158
1.147
15
6
8
4
1.182
1.182
25
15
100
1.194
1.206
1.206
1.217
mV
nA
nA
V
mV/V
mV/V
μV
RMS
V
μs
μs
V
nA
V
V
V
V
μA
μA
μV
RMS
UNITS
V
V
μA
V
CM
= 2.5V
IN+ = IN- = 2.5V
C/E temp ranges
TSM971, TSM973, TSM982
V-
V- to (V+ – 1.3V)
V+ = 2.5V to 11V
100Hz to 100kHz
TSM971, TSM973, TSM982
Overdrive = 10 mV
T
A
= +25°C; 100pF load;
1MΩ Pullup to V+
Overdrive = 100 mV
T
A
= +25°C; 100pF load; 1MΩ Pullup to V+. See Note 3
TSM9x2, TSM973
TSM971, TSM984
V
OUT
= 11V
TSM971, TSM973
I
OUT
= 1.8mA
I
OUT
= 1.8mA
±0.01
±0.02
0.1
0.1
20
REF- 0.05V
T
A
= 0°C to +70°C, 1%
T
A
= -40°C to +85°C, 2%
T
A
= 0°C to +70°C, 2%
T
A
= -40°C to +85°C, 3%
T
A
= +25°C
T
A
= -40°C to +85°C
T
A
= +25°C
T
A
= -40°C to +85°C
TSM971/72/73/82/84 Rev. 1.0
Page 5
