7/16-8346-0141: DescriptionRF 7/16 DIN Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack; CategoryThe connector The connector; File Size214KB，2 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric View All

7/16-8346-0141 Overview

RF 7/16 DIN Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack

7/16-8346-0141 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ROHS COMPLIANT
subject depth	0.847 inch
Body/casing type	JACK
Cable type	SEMI-RIGID
Characteristic impedance	50 Ω
Connector type	RF 7/16 DIN CONNECTOR
Contact point gender	FEMALE
Contact resistance	1.5 mΩ
Contact style	COAX
Coupling type	THREADED
Dielectric withstand voltage	5600VAC V
Durability	500 Cycles
Insulation resistance	10000000000 Ω
insulator material	TEFLON
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	7.5 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Termination type	SOLDER LUG
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

7/16-8346-0141

GASKET

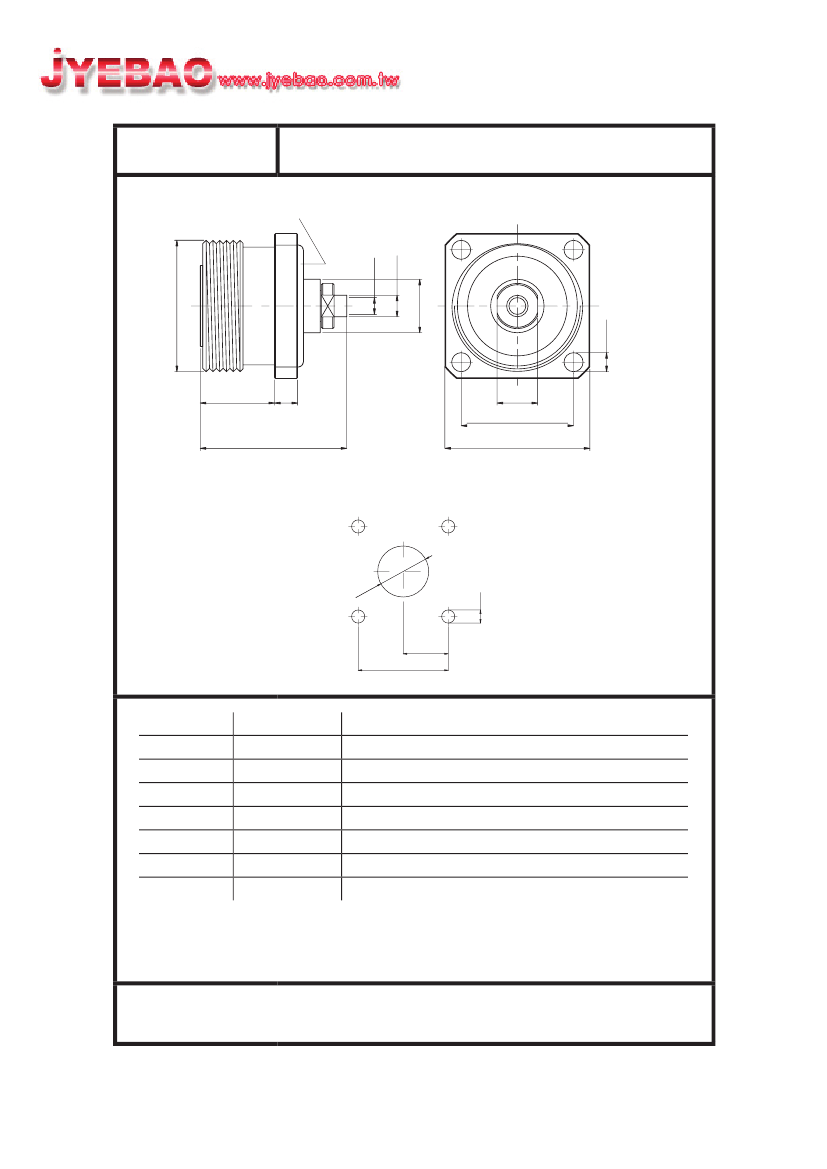

7/16 Jack Solder For Panel Receptacle

50Ω

ø3.7

(ø.146)

M29x1.5

ø4.75

(ø.187)

ø11.8

(ø.465)

16.4

(.646)

5.1

(.201)

8.95

(.352)

24.8

(.976)

32 S.Q.

(1.260 S.Q.)

32.35

(1.274)

MOUNTING HOLE:

12.35

(.486)

24.7

(.972)

Parts

Contact Body

Gasket

Solder Ferrule

Nut

Contact Pin

Insulator

Body

Material

Brass

Silicon

Brass

Phorsphor Bronze

Teﬂon

Brass

Plating(Micro-inch)

Tin-Zinc-Copper-Alloy 100 Over Copper 50

Gold 5 Over Nickel 50 Over Copper 50

Tin-Zinc-Copper-Alloy 100 Over Copper 50

Silver 150 Over Copper 50

Tin-Zinc-Copper-Alloy 100 Over Copper 50

Weight: 91.87 g

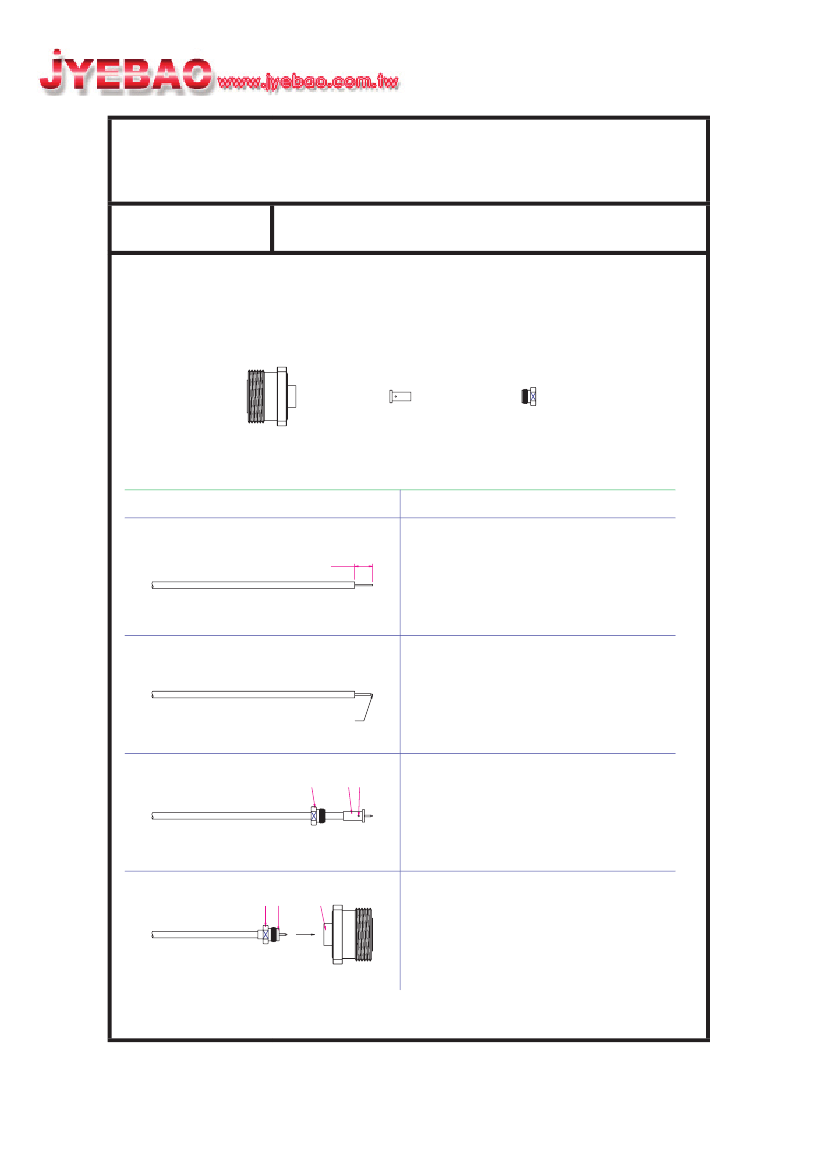

Suitable Cables: Semi-rigid.141

This part number complies with RoHS.

Notice: JYEBAO reserves the right to make modiﬁcations deemed appropriate.

ø3.6

ø(.142)

2

ø1

)

72

(.4

ø

ø4.2*4

(ø.165*4)
