5536511-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5536511-9

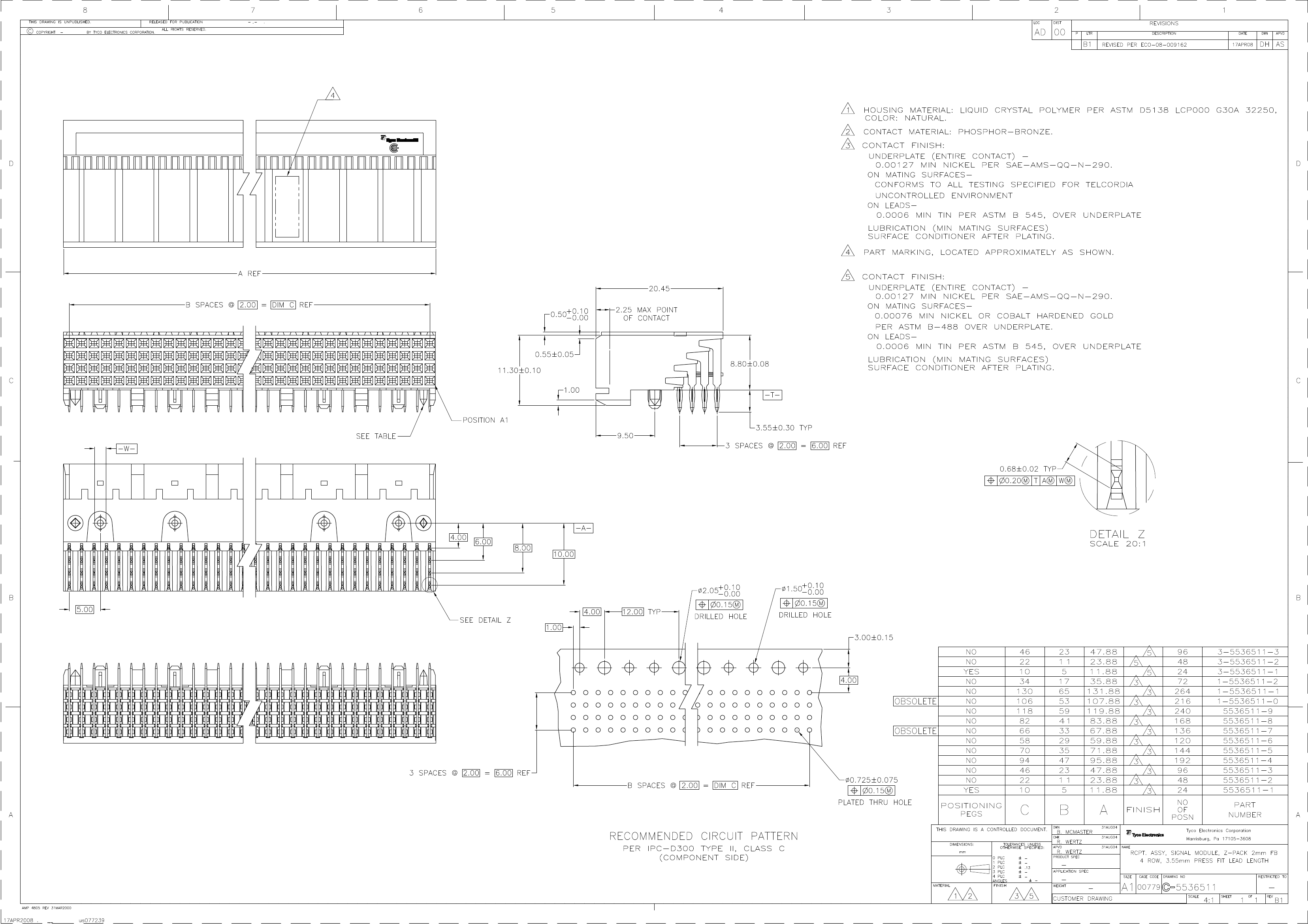

5536511-9: Description240 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE; CategoryThe connector The connector; File Size202KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5536511-9 Overview

240 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE

5536511-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2061701379
Reach Compliance Code	unknown
Other features	Z-PACK
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5536511
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	240

Preview

Download Datasheet

View All

5536511-9 Related Products

	5536511-9	5536511-8	3-5536511-1	3-5536511-2	3-5536511-3	5536511-7	EMCL12N2J-129.000M	EMCL22G2J-218.000M	1-5536511-2
Description	240 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE	HEADER CONNECTOR,PCB MNT,RECEPT,168 CONTACTS,SKT,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING,NATURAL	24 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE	48 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE	96 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE	CONNECTOR, 136 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE	CRYSTAL OSCILLATOR, CLOCK, 129MHz, LVPECL OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN	CRYSTAL OSCILLATOR, CLOCK, 218MHz, LVPECL OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN	HEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,SKT,0.079 PITCH,COMPLIANT FIT TERMINAL,LOCKING,NATURAL
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	compliant	compliant	compliant
Manufacturer's serial number	5536511	5536511	5536511	5536511	5536511	5536511	EMCL12	EMCL22	5536511
Is it Rohs certified?	conform to	conform to	conform to	-	-	-	conform to	conform to	conform to
Objectid	2061701379	306274303	1790921229	-	-	1790921275	1265372776	1265375446	306274302
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	GOLD OVER NICKEL (50)/NICKEL (30)	GOLD OVER NICKEL (50)/NICKEL (30)	NOT SPECIFIED	-	-	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE
DIN compliance	NO	-	NO	NO	NO	NO	-	-	-
Filter function	NO	-	NO	NO	NO	NO	-	-	-
IEC compliance	NO	-	NO	NO	NO	NO	-	-	-
MIL compliance	NO	-	NO	NO	NO	NO	-	-	-
Mixed contacts	NO	-	NO	NO	NO	NO	-	-	-
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	BOARD
Number of rows loaded	4	4	4	4	4	4	-	-	4
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-
Terminal pitch	2 mm	2.0066 mm	2 mm	2 mm	2 mm	2 mm	-	-	2.0066 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-	-	PRESS FIT
Total number of contacts	240	168	24	48	96	136	-	-	72
Contact completed and terminated	-	TIN OVER NICKEL	-	TIN (24) OVER NICKEL (50)	TIN (24) OVER NICKEL (50)	TIN (24) OVER NICKEL (50)	-	-	TIN OVER NICKEL
JESD-609 code	-	-	-	e3	e3	e3	e4	e4	-
