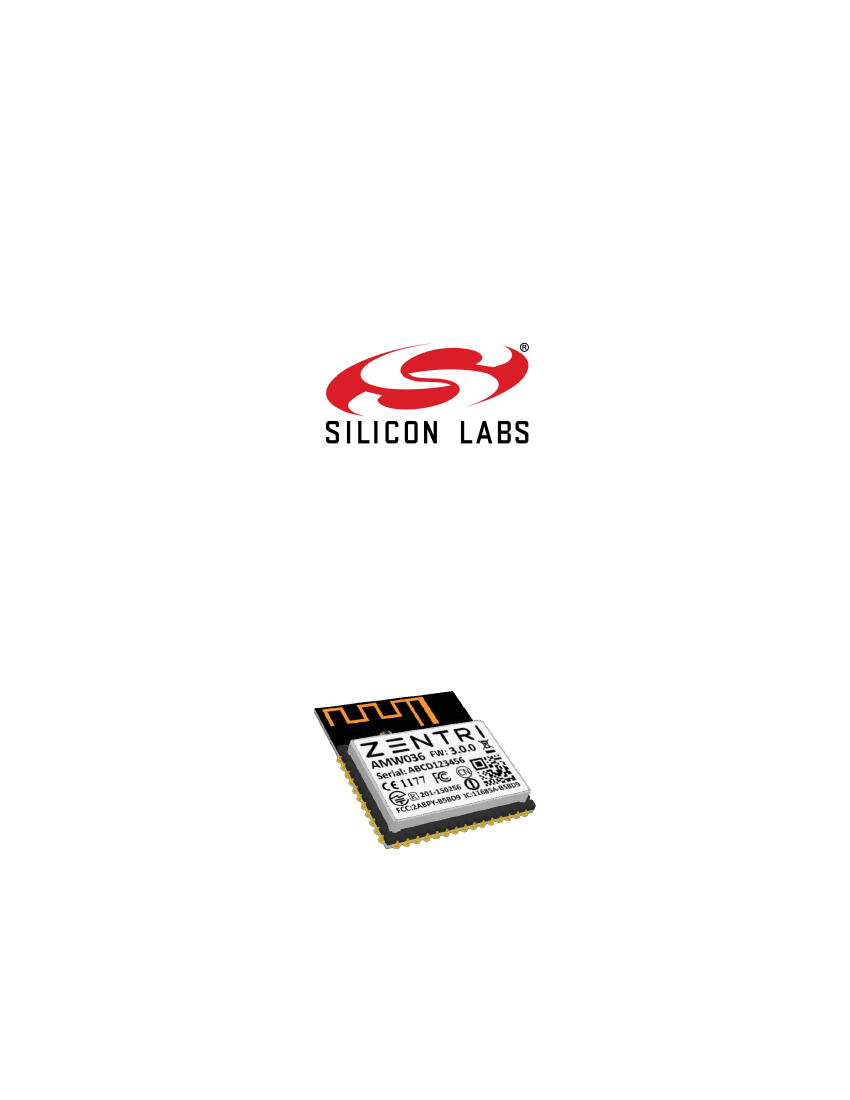

Zentri AMW036 / AMW136

Data Sheet

AMWx36 Datasheet

Disclaimer

While the information provided in this document is

believed to be accurate, it is under development and

Zentri reserves the right to make changes without

further notice to the product described herein to

improve reliability, function, or design, and makes no

guarantee or warranty concerning the accuracy of said

information, nor shall it be responsible for any loss or

damage of whatever nature resulting from the use of,

or reliance upon, such information. Zentri makes no

warranties of any kind, whether express, implied or

arising by custom or course of trade or performance,

and specifically disclaims the implied warranties of title,

non-infringement, merchantability, or fitness for a

particular purpose.

No part of this document may be copied, reproduced,

stored in a retrieval system, or transmitted, in any form

or by any means, electronic, mechanical, photographic,

or otherwise, or used as the basis for manufacture or

sale of any items without the prior written consent of

Zentri.

Contact

https://www.silabs.com/about-us/contact-us

About this User Guide

This document provides information on the

AMWx36 802.11b/g/n Wi-Fi networking module from

Zentri.

Modules covered by this datasheet include:

AMWx36 Rev 2

Further information about ZentriOS is available from:

http://docs.zentri.com

Organization

This document is organized into the following sections:

General Description .............................................. 1

Block Diagram ....................................................... 2

Electrical Specifications ......................................... 3

WLAN RF Specifications......................................... 5

Pinout and Signal Descriptions.............................. 7

Design Guidelines .................................................. 9

Regulatory Certification ......................................13

Packaging, Handling and Storage, RoHS .............19

Ordering Information ..........................................21

Revision History & Glossary .........................22

References ...................................................22

Trademarks

Zentri and the Zentri logo are trademarks of Zentri.

Other trademarks in this document belong to their

respective owners.

Document Number: ADS-MWx36-101R

Release Date: August 29, 2017

ADS-MWx36-101R

•

AMWx36 Datasheet

Page |ii

August 29, 2017

AMWx36 Datasheet

General Features



Self-contained ultra-low power Wi-Fi module with

microcontroller and support for ZentriOS-W

firmware (AMW036/AMW136) and ZentriOS-WZ

firmware (AMW136), including industry standard

SSL/TLS secure TCP/IP network stack.



Integrated SPI-serial flash for software upgrades

and user accessible read/write file system

Wi-Fi



Broadcom single band 2.4GHz IEEE 802.11b/g/n 1x1

Wi-Fi transceiver



Includes support for all Wi-Fi security modes

including Open, WEP, WPA, and WPA2-PSK

Microprocessor



ARM Cortex® M4 based microprocessor



AMW036: operates up to 84MHz core frequency



AMW136: operates up to 100MHz core frequency

RAM



AMW036: 96 KB



AMW136: 128 KB

Interfaces*



UART: 2 x 4-wire up to 10.5Mbit/s



SPI : SPI-Master (42Mbit/s), SPI-Slave (21Mbit/s)



GPIO: Up to 21 GPIOs (overlaid with peripherals)



A/D converter: 9 channel input, 12-bit resolution,

2.4MSPS sampling in single-shot or scan mode



PWM: Up to 14 PWM outputs



Wake-up: Wake pin for ultra-low power operation



Built in PCB trace antenna

Operational & Radio



Single operating voltage : 3.3V (typical)

All I/O pins are +5V tolerant

Operational Temperature Range: -30°C to +85°C

Size : 20.3 x 22.9 x 3.4mm (0.80” x 0.90” x 0.13”)

Weight : 0.07 oz (2g)

Current consumption @ 3.3V, 25°C

VBAT : 0.97µA (with 32k RTC)

Standby : 2.8µA (3.8uA with 32k RTC)

Stop : 10µA with RAM retention (113µs wake)

Wi-Fi Powersave : 0.77mA (DTIM = 3)

Active receive : 5.7mA @ 1Mbit/s UDP

Active transmit : 11.4mA @ 1Mbit/s UDP

Maximum RF transmit power

802.11b/g : +18 dBm

802.11n : +14 dBm

Minimum Receive sensitivity

802.11b/g : -94 dBm

802.11n : -86 dBm

Sustained TCP throughput : 10 Mbit/s



Applications



Industrial, M2M and Home Automation

Environmental monitoring

Energy monitoring

Wireless sensing, remote data logging

HVAC, power, light, & thermostat control

Appliance control



Security

Cameras, Doors/Window monitoring

Alarms, Smoke Detectors

Door and entry control



Health & Fitness

Fitness Equipment

Home health monitoring e.g. weight scales



Consumer

Audio, Toys, Robots

Some interfaces share module pins

ADS-MWx36-101R

•

AMWx36 Datasheet

Page |iii

August 29, 2017

AMWx36 Datasheet

ZentriOS-W/ZentriOS-WZ Firmware Features

The ZentriOS-W/ZentriOS-WZ firmware supplied with

the AMWx36 provides a wide range of features beyond

the underlying hardware, and supports application

development via its command API.

For complete documentation of ZentriOS-W, see:

https://docs.zentri.com/zentrios/w/latest/

The AMW136 supports ZentriOS-WZ firmware, which

adds support for developing ZentriOS apps (ZAPs).

For complete documentation of ZentriOS-WZ, see:

https://docs.zentri.com/zentrios/wz/latest/

Software APIs



Servers



Clients



TCP/TLS, UDP, NTP, Secure-SMTP, DHCP, DNS

HTTP(S) client

Websocket client

TCP/TLS, UDP, HTTP(S), DHCP, DNS

HTTP(S) Server with RESTful API and

Websockets

Fully customizable mobile responsive Web

application with JavaScript and Python libraries

ZentriOS-W command API

ZentriOS-WZ command API

ZentriOS-WZ SDK and native API

Setup



Multiple Wi-Fi setup options, including via serial

command and Web setup with SoftAP

Peripherals and Sensors



GPIOs for control, indication and monitoring

I2C-master API for interfacing to external

peripherals

SPI-master API for interfacing to external

peripherals

Automated broadcast and streaming of sensor

data

Local caching of sensor data

Update and Recovery

Wireless OTA (Over-the-Air) update to remote

manage firmware using the Zentri DMS (Device

Management Service)

System Management

System configuration and monitoring via setting

and getting a wide range of variables



Configurable power states

Sleep/wake timers

File System



Read/write file system with appendable log

files

Storage of large files

Optional additional bulk serial flash

HTTP download to file system, HTTP upload

from file system



Interfaces

Serial (UART, remote terminal)

SoftAP and WLAN client (concurrent)

I2C master

SPI master

ADS-MWx36-101R

•

AMWx36 Datasheet

Page |iv

August 29, 2017

AMWx36 Datasheet

Contents

General Description .............................................. 1

Block Diagram ....................................................... 2

Electrical Specifications......................................... 3

3.1

3.2

Absolute Maximum Ratings ................... 3

Recommended Operating Conditions ... 3

3.2.1

3.2.2

3.3

3.4

DC Operating Conditions ................ 3

Environmental Conditions.............. 4

7.6

7.3.1

Labeling and User Information

Requirements..............................................15

7.3.2

Further Information .....................16

7.4 .......................................................................16

7.5

Europe ..................................................17

7.5.1

Labeling and User Information

Requirements..............................................17

7.5.2

Further Information .....................17

Australia ...............................................18

7.6.1

Further Information .....................18

Power Consumption .............................. 4

32kHz Crystal ......................................... 4

7.7

New Zealand ........................................18

7.7.1

Further Information .....................18

WLAN RF Specifications ........................................ 5

4.1

4.2

4.3

Summary WLAN Specifications .............. 5

WLAN Receiver Specifications ............... 5

WLAN Transmitter Specifications .......... 6

7.8

Japan ....................................................18

Packaging, Handling and Storage, RoHS .............19

8.1

8.2

8.3

8.4

Packaging .............................................19

Handling & Storage ..............................19

RoHS Directive .....................................19

Tape and Reel Specifications ...............20

Pinout and Signal Descriptions ............................. 7

5.1

5.2

Pinout..................................................... 7

Pin Description ....................................... 7

Design Guidelines.................................................. 9

6.1

6.2

6.3

6.4

6.5

6.6

Dimensions ............................................ 9

Recommended PCB Footprint ............. 10

Routing Recommendations ................. 10

Soldering Information .......................... 11

Module Photograph ............................. 12

Application Examples ........................... 12

6.6.1

Operation using ZentriOS Serial

Interface...................................................... 12

Ordering Information ..........................................21

9.1

Ordering

Version 21

Unspecified

ZentriOS

9.2

Ordering a Specific ZentriOS Version or a

Custom Firmware Version ..................................21

9.3

10.1

10.2

ZentriOS Version History ......................22

Revision History & Glossary .........................22

Revision History ...................................22

Glossary ................................................22

References ...................................................22

Regulatory Certification ...................................... 13

7.1

United States ....................................... 13

7.1.1

Labeling and User Information

Requirements ............................................. 13

7.1.2

7.1.3

7.3

RF Exposure .................................. 14

Further Information ..................... 14

Canada ................................................. 15

ADS-MWx36-101R

•

AMWx36 Datasheet

Page |v

August 29, 2017

Recommended Resources

Anti-shake circuit for operating switch

Type ADXL05 monolithic acceleration sensor circuit with signal conditioning ±1g to ±5g

Overvoltage protection circuit diagram composed of transistors, etc.

High-efficiency boost output power supply MAX848 circuit diagram

PLL frequency synthesizer circuit

Computer motherboard circuit diagram 815 4_01

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

1600RGG300132DB
51706-31908800B0LF
EC3D-S-4.999M-CL175
SP3232BEN/TR
FTR-119-55-S-D-LC-P-TR
NSL158N-W1ML-7A
P-0805D2000DSWP
177-710-5-51-2CS4J7-18FXN
1SMA5923_R2_00001
P6KE43A_AY_10001
C3962H-2P-BK
MTB111-34S
