3212010119: DescriptionDry Reed Relay, SPST, Momentary, 0.012A (Coil), 12VDC (Coil), 144mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size111KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3212010119 Overview

Dry Reed Relay, SPST, Momentary, 0.012A (Coil), 12VDC (Coil), 144mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3212010119 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7 mm
body height	7.5 mm
Body length or diameter	19.3 mm
Maximum coil current (DC)	0.012 A
Coil operating voltage (DC)	8.4 V
Coil power	144 mW
Coil release voltage (DC)	1.8 V
Coil resistance	1100 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@200VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@200VDC
Maximum contact voltage (AC)	200 V
Maximum contact voltage (DC)	200 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3212010119
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
physical size	19.3mm x 7mm x 7.5mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	0.1 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

3212010119

Item:

DIP12-1B72-19D

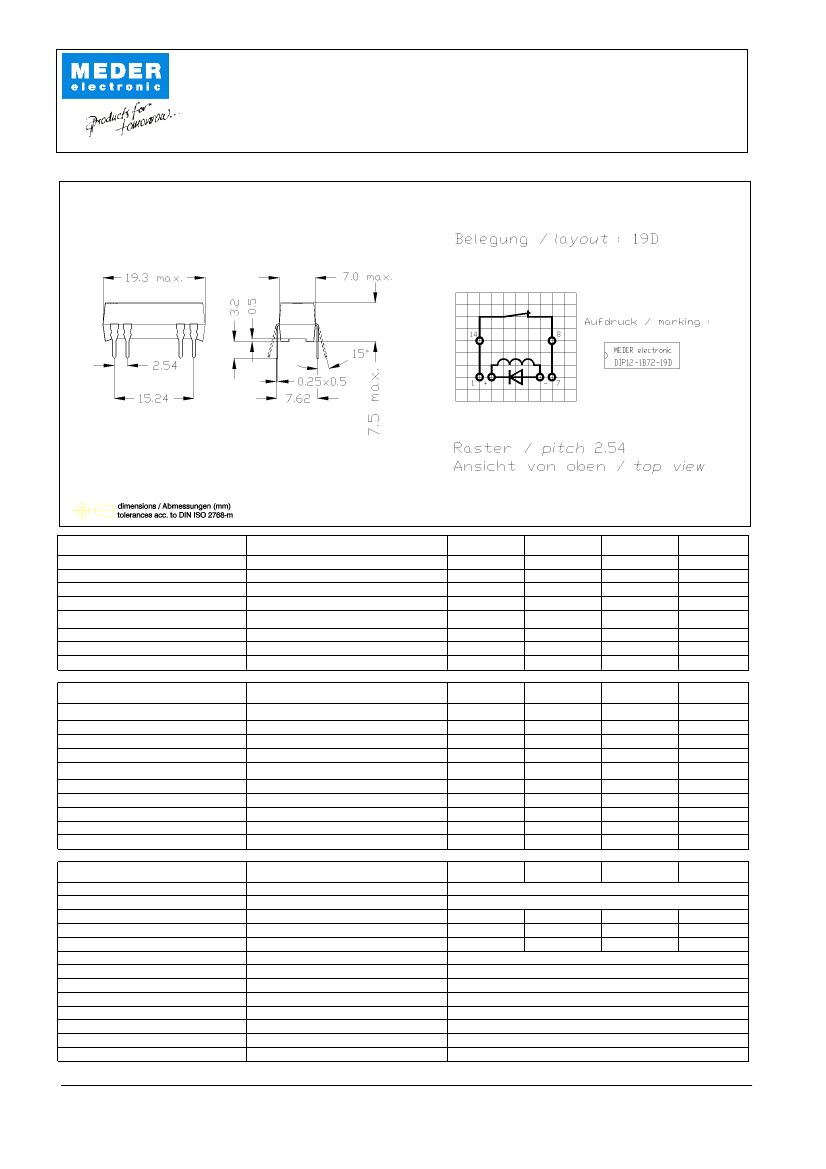

Preliminary Datasheet

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Coil current

Thermal resistance

Inductance

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

=

operating temperature + self heating

Contact data 66/3

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage ( > 20 AT )

Operate time incl. bounce

Release time

Capacity

Conditions

!" #$ $" "% &

not to exceed their individual max.'s

Min

Typ

Max

Unit

DC or Peak AC

( ) * +$

Start Value

'

.

/

)

0

, "- * $-

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Capacity Coil/Contact

Case colour

Housing material

Connection pins

Magnetic Shield

Reach / RoHS conformity

Approval

Remark

Conditions

according to IEC 255-5

40° 95% R.H.

C,

@ 10 kHz

Min

'

Typ

1

B - NC

Max

/

.

Unit

0

black

mineral filled epoxy

FeNi-alloy tinned

no

yes

UL File No. NRNT2.E156887

UL File No. NRNT8.E156887

attention coil polarity

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

27.04.04

26.08.09

Designed by:

Last Change by:

SCHELLHORN

KSCHIELENSKI

Approval at:
