3963S15R000

Description
Board Connector, 15 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Plug
CategoryThe connector    The connector
File Size85KB,2 Pages
ManufacturerLeoco USA Corp
Websitehttp://www.leoco.com.tw
Download Datasheet Parametric View All

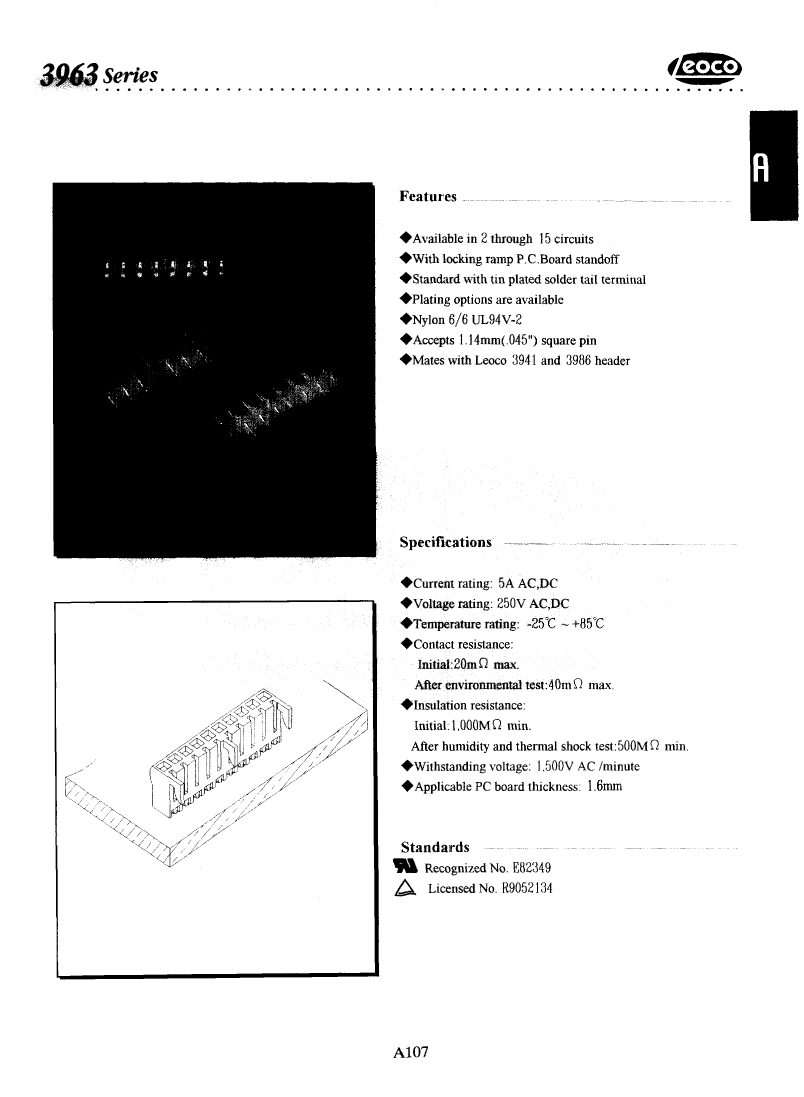

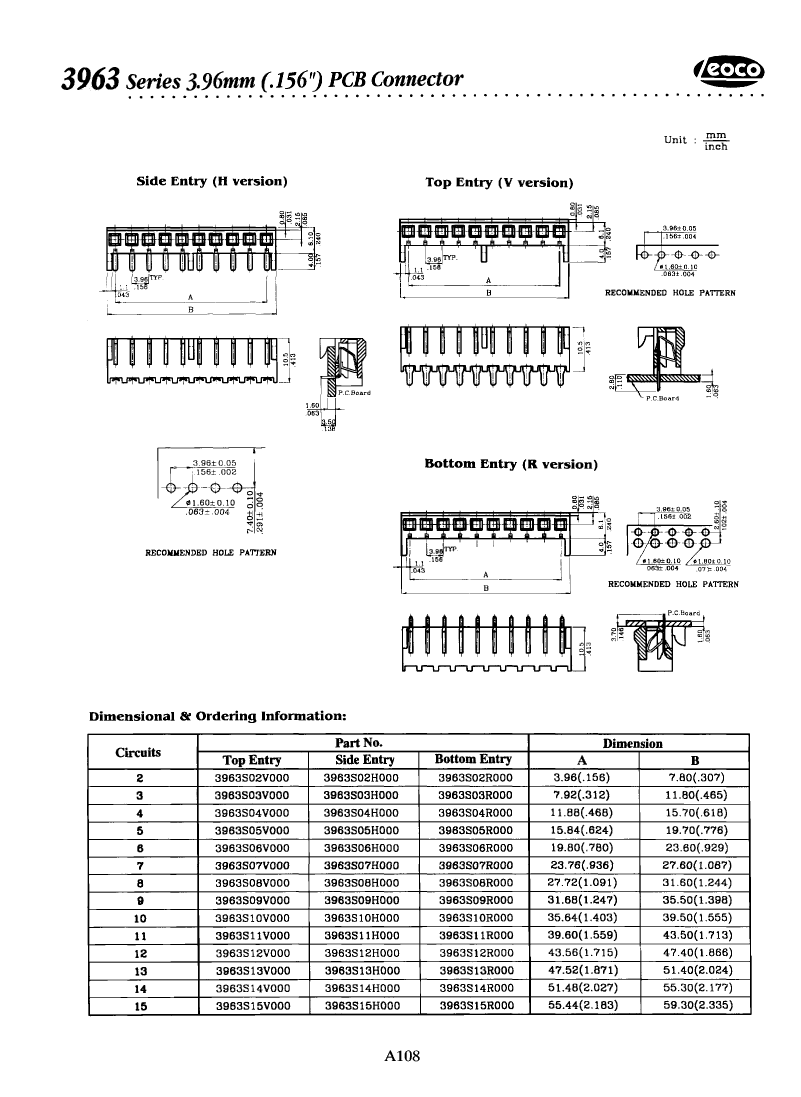

3963S15R000 Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Polarized Lck, Plug

3963S15R000 Parametric

Parameter NameAttribute value
MakerLeoco USA Corp
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresBOTTOM ENTRY
body width0.428 inch
subject depth0.413 inch
body length2.335 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number3963
Plug contact pitch0.156 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1POLARIZED LCK
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.146 inch
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-2
Base Number Matches1
