3252W-1-102M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3252W-1-102M

3252W-1-102M: Descriptiontrimmer resistors - through hole 1kohms 1/2" square sealed panel mount; CategoryPassive components The resistor; File Size116KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

3252W-1-102M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3252W-1-102M	-	-	View	Buy Now

3252W-1-102M Overview

trimmer resistors - through hole 1kohms 1/2" square sealed panel mount

3252W-1-102M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	PCB Mount, 5022
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	8 weeks 4 days
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Rectangular
gang number	1
JESD-609 code	e0
Lead diameter	0.71 mm
Lead length	13.34 mm
Installation features	PANEL MOUNT
Number of terminals	3
number of turns	25
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	12.7 mm
Package length	12.7 mm
Package form	Panel Mount
Package width	5.59 mm
method of packing	Tube
Rated power dissipation(P)	0.75 W
Rated temperature	85 °C
resistance	1000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	9000 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	400 V
Base Number Matches	1

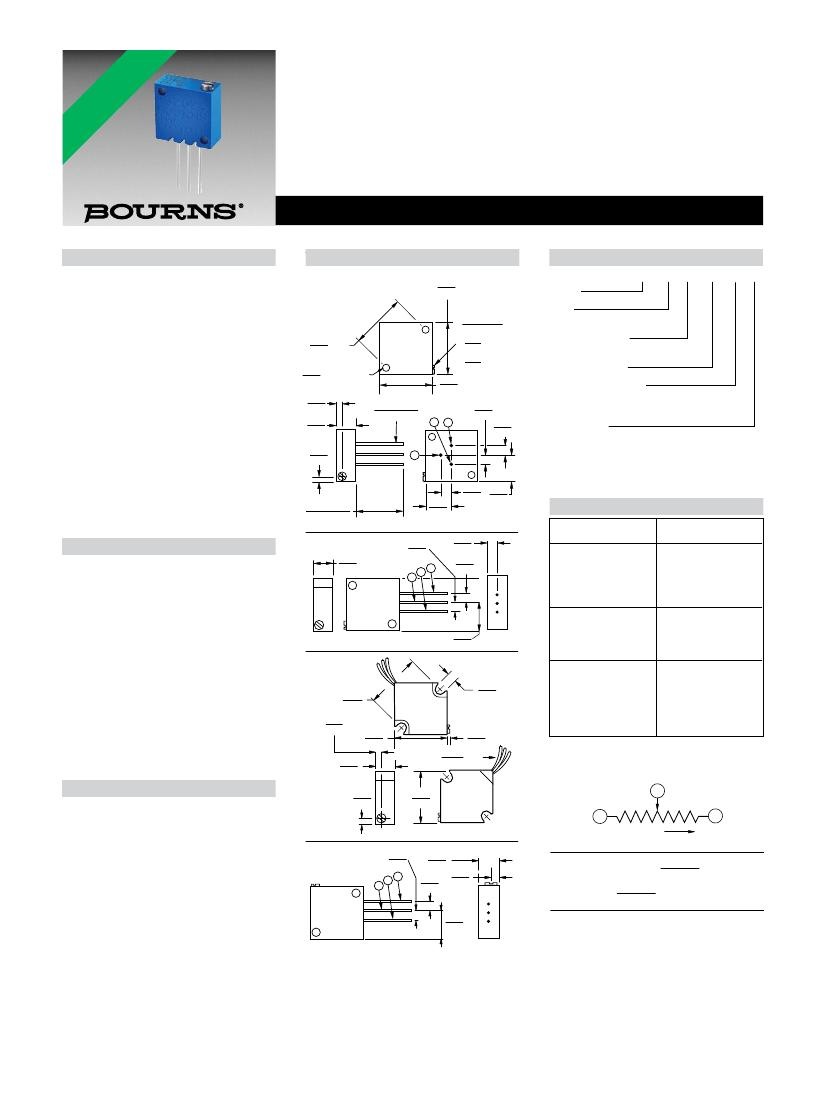

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

Multiturn / Cermet / Sealed

■

Listed on the QPL

for style RJ22 per

MIL-R-22097

■

Panel mount option available

■

RoHS compliant* version available

■

For trimmer applications/processing

guidelines,

click here

3252 - 1/2 ” Square Trimpot

Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

................................10 to 2 megohms

(see standard resistance table)

Resistance Tolerance ........... ±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance

........................... 1 % or 2 ohms max.

(whichever is greater)

Contact Resistance Variation

........................... 1 % or 2 ohms max.

(whichever is greater)

Adjustability

Voltage .................................. ±0.01 %

Resistance ............................ ±0.05 %

Resolution ................................... Inﬁnite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level............................. 1,000 vac

80,000 Feet ............................ 400 vac

Eﬀective Travel .................25 turns nom.

Environmental Characteristics

Power Rating @ 85 °C (400 volts max.)

............................................. 0.75 watt

Power Rating @ 150 °C ................ 0 watt

Temperature Range ... -65 °C to +150 °C

Temperature Coeﬃcient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

(pin styles only)

Humidity ......MIL-STD-202 Method 103;

96 hours (1 %

ΔTR;

100 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life ... 1,000 hours 0.75 watt @ 85 °C

..................(3 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life .......................200 cycles

(2 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Physical Characteristics

Torque............................. 5.0 oz-in. max.

Mechanical Stops ................. Wiper idles

Terminals Solderable printed circuit pins

Flexible leads ......(7 strands of 30 AWG)

Weight ..................................... 0.065 oz.

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Machine Screw Mounting

Torque.............................. 12 oz-in. max.

Marking.........Manufacturer’s trademark,

resistance code, wiring diagram,

date code, manufacturer’s model

number and style

Standard Packaging

X, P&W Styles ...........25 pcs. per tube

L Style ........................25 pcs. per bag

Adjustment Tool..............................H-90

Product Dimensions

3252P

Common Dimensions

(Pin Styles)

12.7

TYP.

(.500)

ADJ. SLOT

2.03 ± .38

DIA.

(.080 ± .015)

.64

WIDE

(.025)

.50

DEEP

(.020)

12.7

TYP.

(.500)

.71 ± .08

(.028 ± .003) DIA. TYP.

1 3

2.54

(.100)

How To Order

3252 L - 1 - 103 M LF

Model

Style

Standard or Modiﬁed

Product Indicator

-1 = Standard Product

Resistance Code

Optional Suﬃx Letter

M = Panel Mount

(Factory Installed)

Terminations

LF =

100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

13.21

TYP.

(.520)

1.98 DIA. THRU

(.078) (2 PLACES)

1.78

(.070)

5.59

(.220)

1.52

(.060)

TYP.

2.54

(.100)

13.34 ± .64

(.525 ± .025)

6.35

(.250)

2.54

6.35

(.100) (.250)

Standard Resistance Table

Resistance

(Ohms)

100

200

500

1,000

2,000

5,000

10,000

20,000

25,000

50,000

100,000

200,000

500,000

1,000,000

2,000,000

Resistance

Code

100

200

500

101

201

501

102

202

502

103

203

253

503

104

204

504

105

205

3252W

5.59

(.220)

2.54

(.100)

1 3

2.79

(.110)

2.54

(.100)

6.35

(.250)

3252L

2.36 TYP.

(.093)

13.21

(.520)

1.52

(.060)

12.70

(.500)

LENGTH

.89

TYP.

(.035)

152.4

MIN.

(6.00)

4.75

(.187)

1.52

(.060)

Popular values listed in boldface. Special

resistances available.

12.70

(.500)

RED

YELLOW

CCW

WIPER

CLOCKWISE

GREEN

3252X

2.54

(.100)

1 3

5.59

(.220)

2.54

(.100)

1.78

(.070)

DIMENSIONS:

TOLERANCES: ±

0.25

(.010)

(INCHES)

EXCEPT WHERE NOTED

6.35

(.250)

REV. 04/14

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

“Trimpot” is a registered trademark of Bourns, Inc.

†“Fluorinert” is a registered trademark of 3M Co.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.
