BF165-030-A-0320-0260-0127-L-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF165-030-A-0320-0260-0127-L-G

BF165-030-A-0320-0260-0127-L-G: DescriptionBoard Connector, 30 Contact(s), 3 Row(s), Male, Right Angle Reverse, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF165-030-A-0320-0260-0127-L-G Overview

Board Connector, 30 Contact(s), 3 Row(s), Male, Right Angle Reverse, 0.079 inch Pitch, Solder Terminal, Receptacle,

BF165-030-A-0320-0260-0127-L-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.236 inch
subject depth	0.079 inch
body length	0.787 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Manufacturer's serial number	BF165
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE REVERSE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

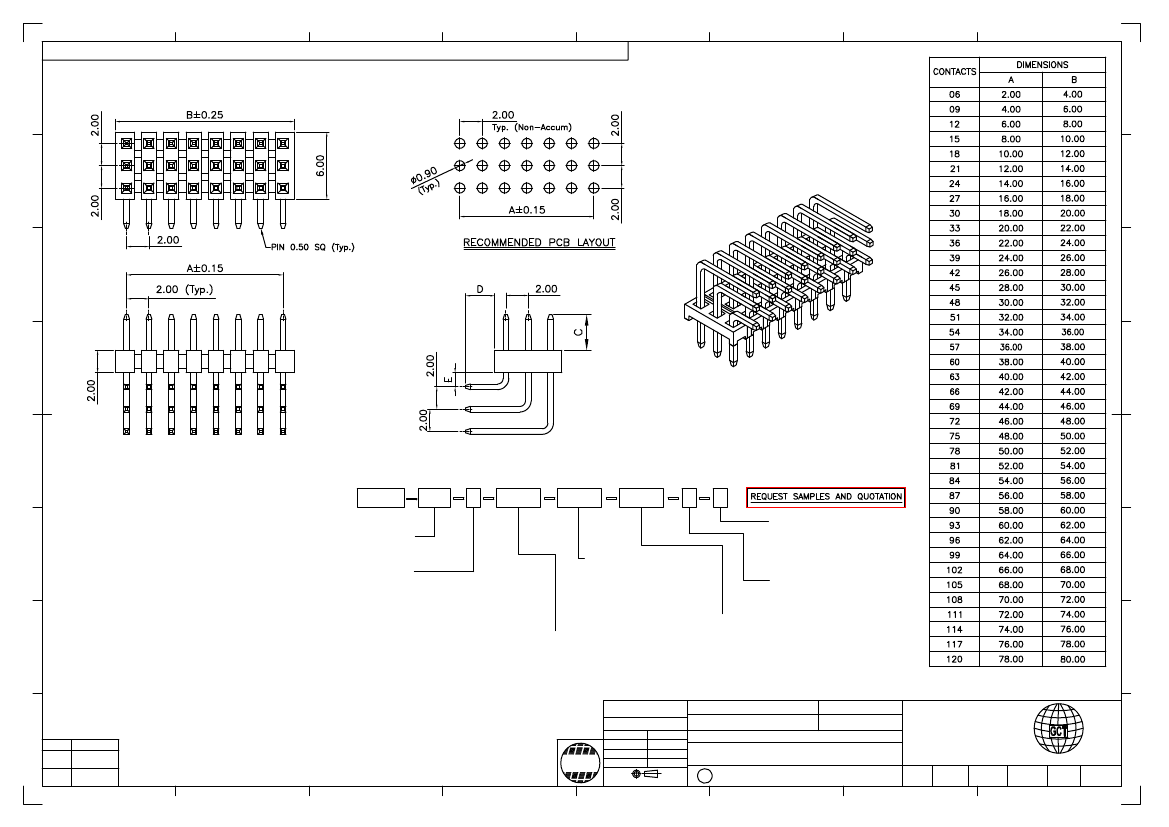

Global Connector Technology Ltd. - 2.00mm PITCH PIN HEADER, TRIPLE ROW, THROUGH HOLE, HORIZONTAL

Ordering Grid

BF165

No. of Contacts

06 to 120

XXX

XXXX

Packing

G = Plastic Box (Standard)

D = Tube

SPECIFICATIONS

规格

Contact Plating

CURRENT RATING

电流额定值

: 2 AMP

A = Gold Flash All Over

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

B = Selective Gold Flash Contact Area/

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

Tin On Tail

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

C = Tin All Over

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

G = 10µ" Gold Contact Area/Tin On Tail

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

I = 30µ" Gold Contact Area/Tin On Tail

INSULATOR MATERIAL

绝缘½物料

Standard = Gold Flash All Over

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BF155

BF160

DETAIL

REV

DATE

DRAWING

RELEASE

08/4/07

Dimension D (1/100mm)

(Edge of Insulator to Pin End)

Insulator Material

Standard - 2.60mm = 0260

L = LCP (Standard)

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension E (1/100mm)

Dimension C (1/100mm)

(Post Height)

Standard - 3.20mm = 0320

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Tolerances

(Except as noted)

(Bottom of Insulator to Pin Centre)

Standard - 1.27mm = 0127

Or specify Dimension E

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±3°

X.X ± 0.25

.XX°±2°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°±1°

X. ± 0.30

Third Angle Projection

BF165

Description:-

08 APR 07

RoHS

2.00mm PITCH PIN HEADER, TRIPLE ROW,

THROUGH HOLE, HORIZONTAL

Global

Connector

Technology

Scale

NTS

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by
