534195-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 534195-5

534195-5: Description70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size383KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

534195-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	534195-5	-	-	View	Buy Now

534195-5 Overview

70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

534195-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	POLARISED
Board mount options	HOLE .112-.124
body width	0.248 inch
subject depth	0.4 inch
body length	4.355 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLUE
insulator material	DIALLYL PHTHALATE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	534195
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal length	0.156 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	70
Base Number Matches	1

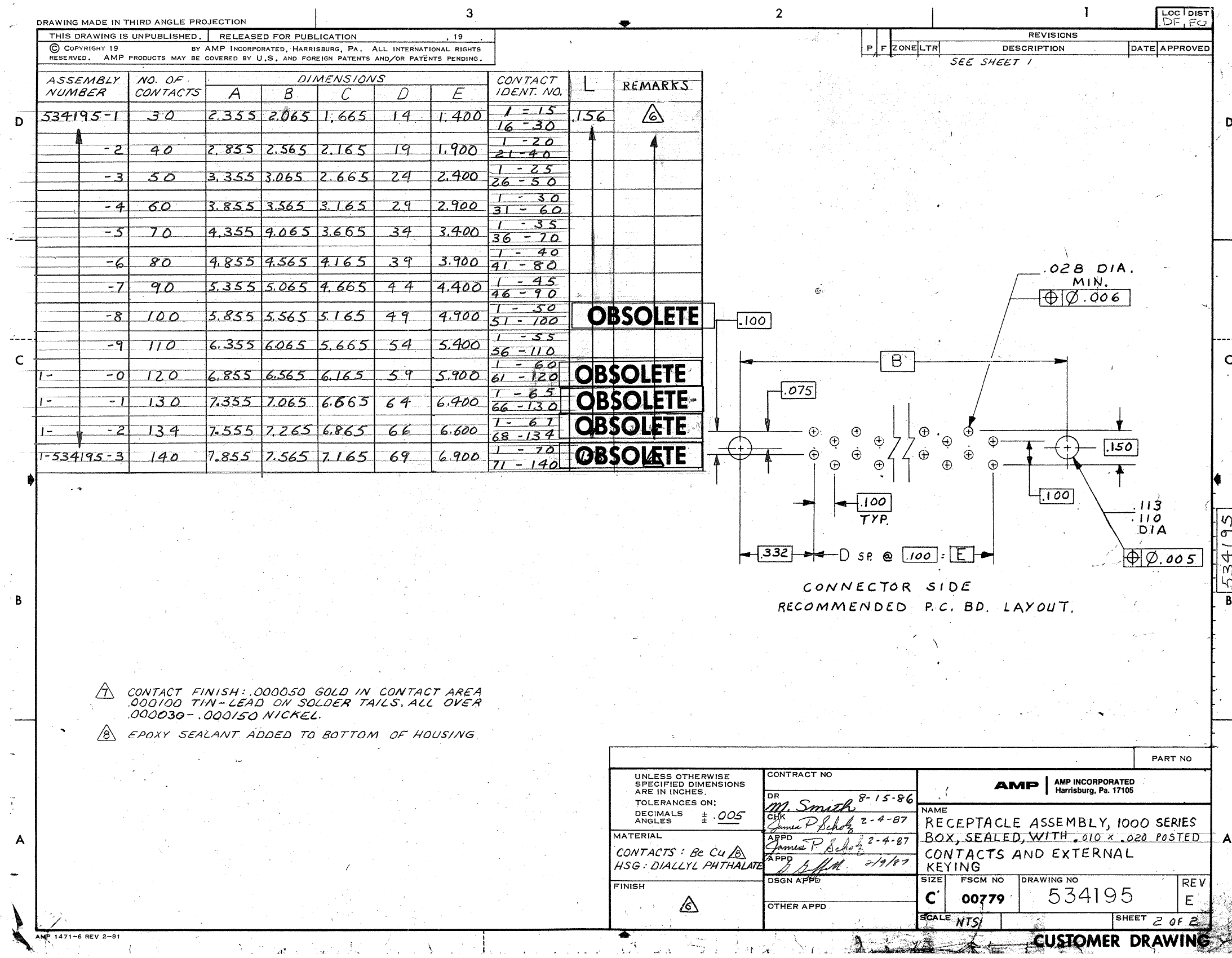

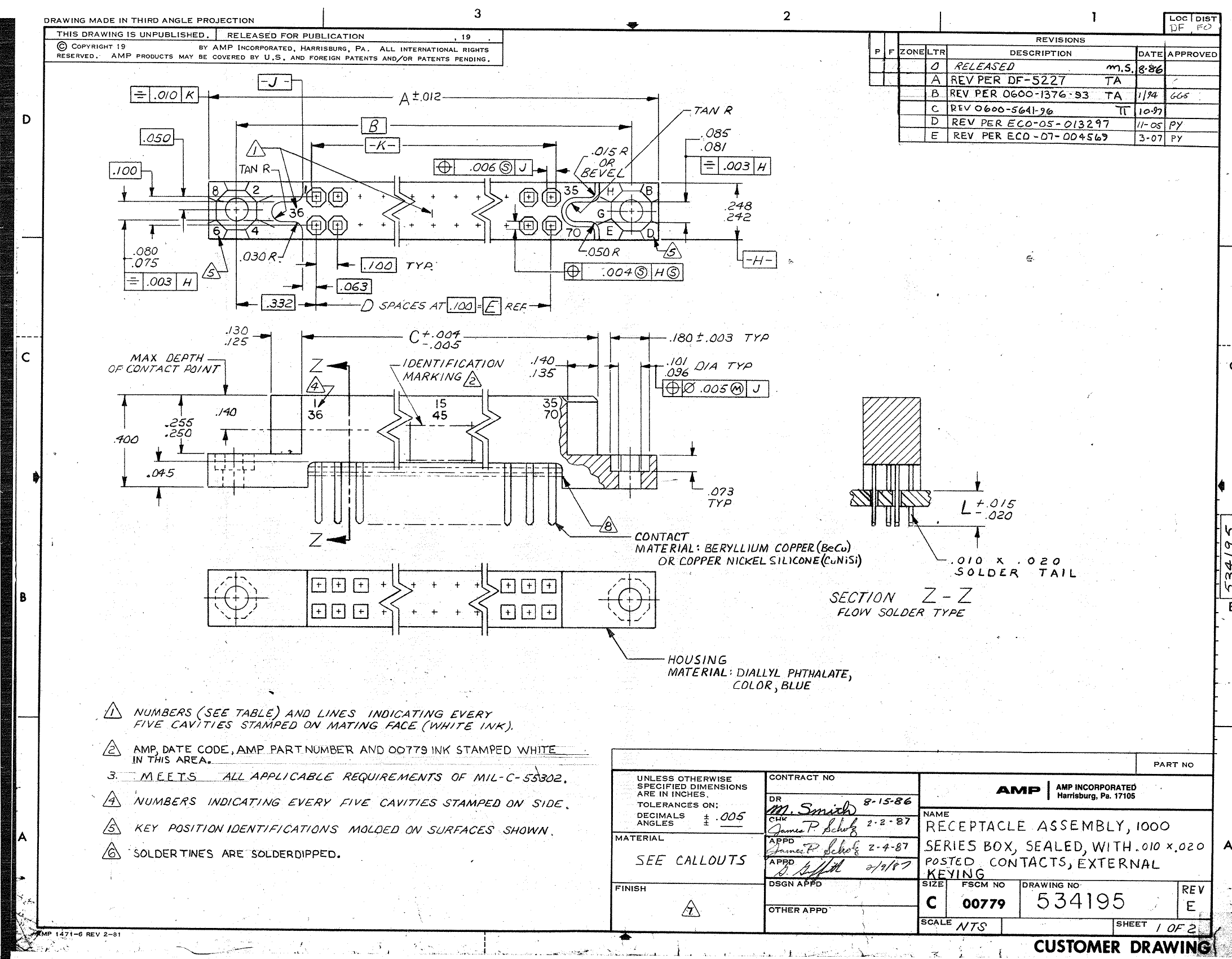

Preview

Download Datasheet

View All

534195-5 Related Products

	534195-5	534195-9	534195-6	534195-1	534195-7	534195-2	534195-3	534195-8	534195-4
Description	70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	80 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	30 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	90 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	40 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	50 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	100 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	60 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	unknown	compliant
Other features	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED	POLARISED
Board mount options	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
body width	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.248 inch
subject depth	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch
body length	4.355 inch	6.355 inch	4.855 inch	2.355 inch	5.355 inch	2.855 inch	3.355 inch	5.855 inch	3.855 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (50)	GOLD (50)	NOT SPECIFIED	NOT SPECIFIED	GOLD (50)	NOT SPECIFIED	AU ON NI	GOLD (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	534195	534195	534195	534195	534195	534195	534195	534195	534195
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4	4	4	4	4
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	70	110	80	30	90	40	50	100	60
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	-	Contains lead	-	-	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	-	12 weeks	-	12 weeks	-	12 weeks	-	12 weeks
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	-	-	TIN LEAD OVER NICKEL	-	GOLD	TIN LEAD OVER NICKEL
JESD-609 code	e0	e0	e0	-	-	e0	-	-	e0
Base Number Matches	1	1	1	1	1	1	-	1	1
