SLSTK3201A Overview

EFM32ZG - series ARM® Cortex®-M0+ MCU 32-位评估板 - 嵌入式

SLSTK3201A Parametric

Parameter Name	Attribute value
category
Maker	Silicon Labs
series	Zero Gecko
Package	box
\u96F6\u4EF6\u72B6\u6001	\u505C\u4EA7
Board type	Evaluation platform
type	MCU 32nd place
core processor	ARM® Cortex®-M0+
operating system	-
platform	-
IC/parts used	EFM32ZG
Installation type	fixed
内含物	boards, cables, accessories

Preview

Download Datasheet

View All

Hu m id it y /Te m p /O pti cal E VB UG

U MI D I T Y

/ T

EMPERATURE

PTICAL

ENSOR

X PA N S I O N

OARD

SER

’

UIDE

1. Introduction

The SLSTK3201A Zero Gecko Starter Kit includes a Humidity/Temp/Optical Expansion Board (BRD8001A) and a

EFM32ZG-STK3200 Zero Gecko STK. This document describes the Humidity/Temp/Optical Expansion Board and

a weather station demo based on it.

The Humidity/Temp/Optical Expansion Board is a hardware plug-in card for the EFM32 starter kits (STKs). It

contains the Si7013 humidity and temperature sensor as well as the Si1147 UV and proximity sensor. A weather

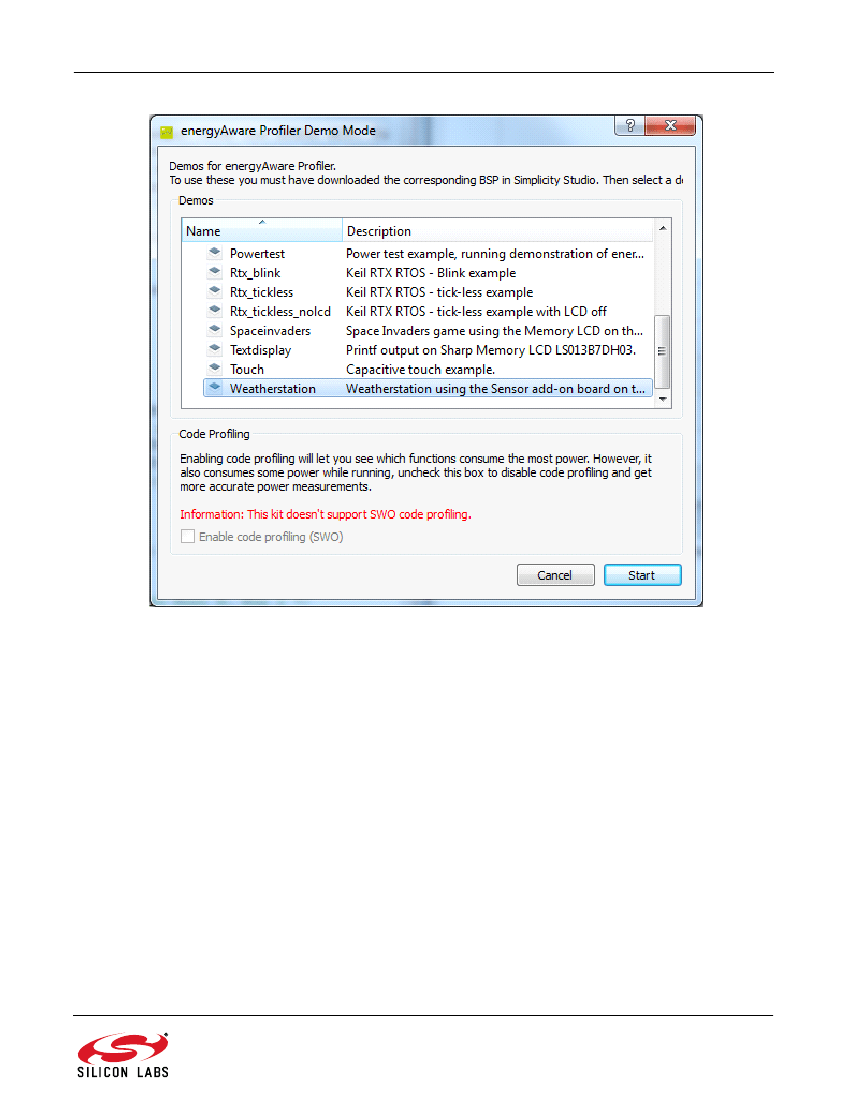

station software demo is available to download to the Zero or Tiny Gecko STK through simplicity studio. When

downloaded to the EFM32ZG-STK3200 Zero Gecko STK or the EFM32TG-STK3300 Tiny Gecko STK, the demo

displays humidity, temperature, and UV index and performs gesture detection. Right or left gestures move the

display type and, on the temperature screen, up or down gestures move the display between °C or °F.

1.1. Features



Si7013

Humidity and Temperature sensor



Si1147 proximity sensor



3 IR LEDs for gesture detection



20-pin expansion header



Battery operation with long battery life

1.2. Getting Started

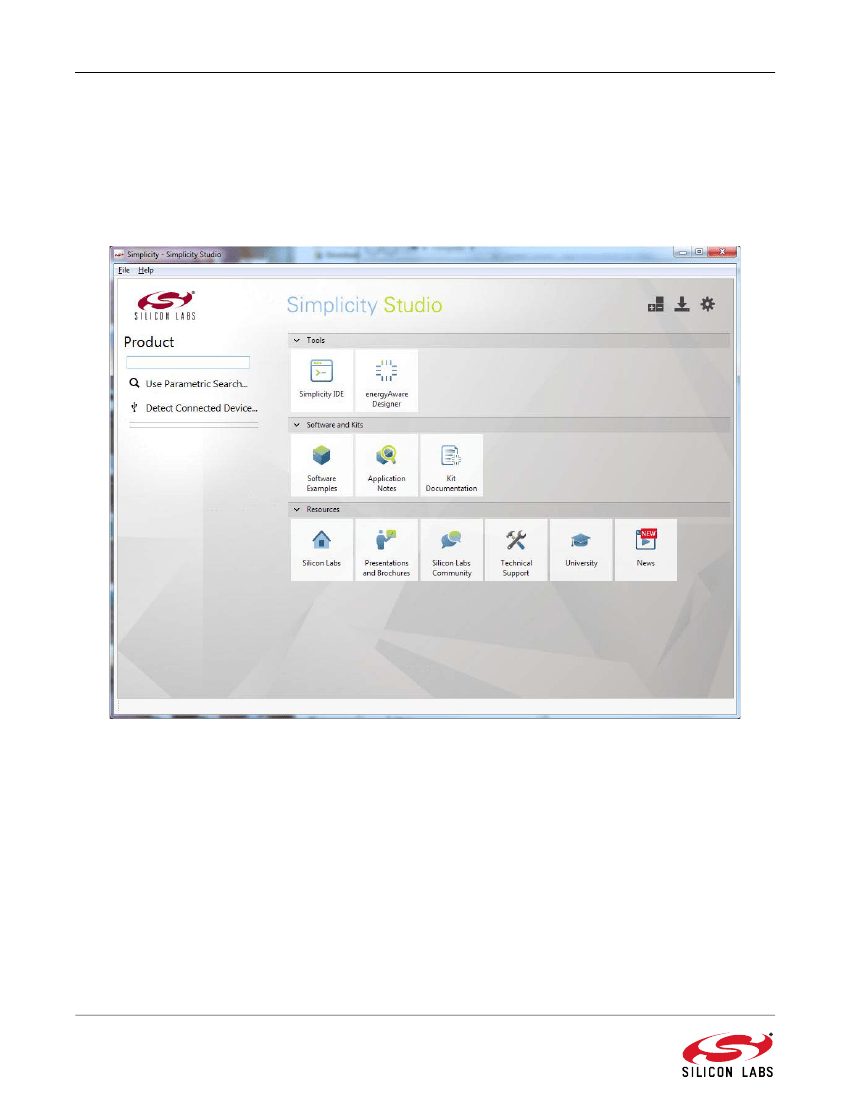

The first step to get started with your new Humidity/Temp/Optical Expansion board is to go to

www.silabs.com/

simplicity-studio.

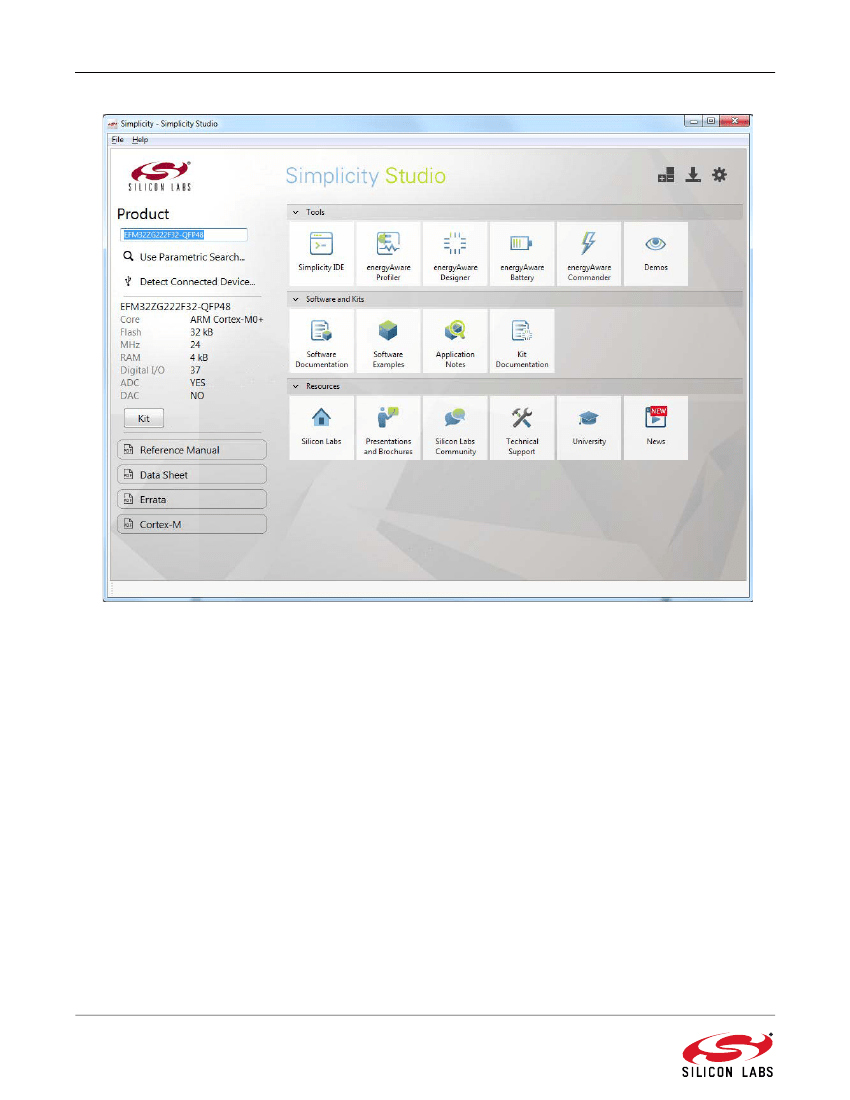

The simplicity studio software package contains all the tools, drivers, software examples and documentation

needed to use the Humidity/Temp/Optical Expansion board.

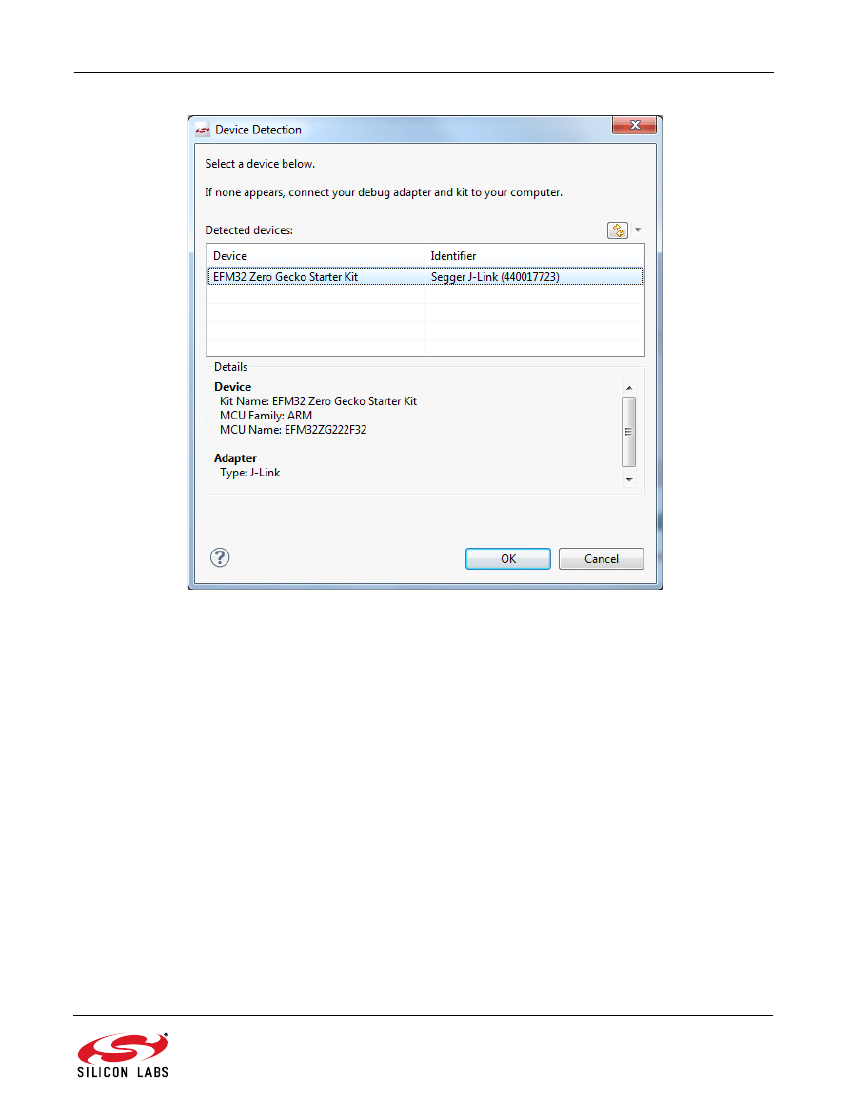

You will need to connect the Humidity/Temp/Optical Expansion board to the EFM32ZG-STK3200 Zero Gecko STK

or the EFM32TG-STK3300 Tiny Gecko STK. The demo code can be loaded using the USB cable and J-Link debug

interface.

Rev. 0.1 6/14

Humidity/Temp/Optical EVB UG
