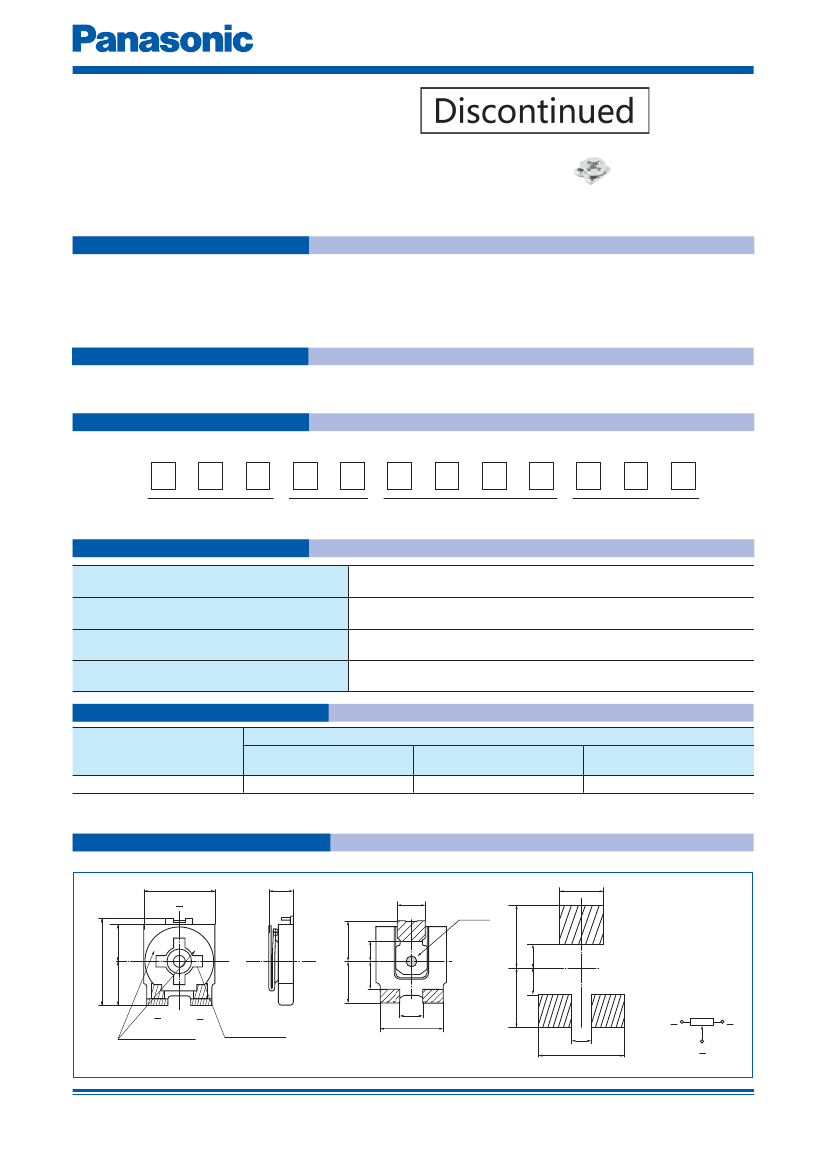

SMT Trimmer Potentiometers
3 mm Square Low-Profile
SMT Trimmer Potentiometers
(Cermet, Open Frame Type)
Type:
EVM3W
Features
●
Low-profile 0.95 mm (1.1 mm max.)
●
High reliability realized by cermet element
●
Excellent mountability
●
Conforms to JIS C5260-1:1999
●
RoHS compliant
Recommended Applications
●
Audio/visual, office, and communication
●
General electronic equipment
equipment
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
V
Product Code
M
3
W
S
X
8
0
B
5
2
Type/Structure
Packaging
Taper & Resistance
Example : B52=500
Ω
Specifications
Total Resistance Value
Resistance Tolerance
Power Rating
Limiting Element Voltage
Rotation Torque
Temperature Coefficient of Resistance
100
Ω
to 1 MΩ
±25 %
0.15 W
50 V
2 to 20 mN·m
±250
×
10
–6
/°C
Minimum Quantity/Packing Unit
Taping
Part Number
EVM3W
Quantity per reel
3,000
Packaging quantity
15,000
Dia. of reel
(mm)
0178
The standard packaging methods for a reel is
0178.
Please contact us, if you would like different packaging methods. (Bulk, Reel of
0330,
Reel of
0380)
Dimensions in mm (not to scale)
●
3-terminal/Low-profile
3.1
0.95
1.6
b
1.2
Resin
1.55
1.85
1.25 0.9
4
2.4
3.75
1.9
1.9
a
Resistance
c
Driver Slot
width 0.5
length 2.0
depth 0.25
1.0
2.8
0.8
3.2
(Recommended Land Pattern)
2.2
1.0
0.9
Mass (Weight) : 31 mg/pc.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
2
a
b
c
(Circuit diagram)
Jul. 2014
