C8051F534A-IT

Description
8051 series 微控制器 IC 8 位 25MHz 4KB(4K x 8) 闪存 20-TSSOP
Categorysemiconductor    The embedded processor and controller
File Size496KB,15 Pages
ManufacturerSilicon Labs
Websitehttps://www.silabs.com
Download Datasheet Parametric View All

C8051F534A-IT Online Shopping

Suppliers Part Number Price MOQ In stock
C8051F534A-IT - - View Buy Now

C8051F534A-IT Overview

8051 series 微控制器 IC 8 位 25MHz 4KB(4K x 8) 闪存 20-TSSOP

C8051F534A-IT Parametric

Parameter NameAttribute value
category
MakerSilicon Labs
seriesC8051F53x
PackagePipe fittings
\u96F6\u4EF6\u72B6\u6001\u5728\u552E
core processor8051
Kernel specifications8 bits
speed25MHz
ConnectivitySPI,UART/USART
PeripheralUndervoltage detection/reset, POR, PWM, temperature sensor, WDT
Program storage capacity4KB(4K x 8)
Program memory typeflash memory
EEPROM capacity-
RAM size256 x 8
Voltage - Power supply (Vcc/Vdd)1.8V ~ 5.25V
data converterA/D 16x12b
Oscillator typeinternal
Operating temperature-40°C ~ 125°C(TA)
Installation typesurface mount type
Package/casing20-TSSOP (0.173", 4.40mm wide)
Supplier device packaging20-TSSOP
Number of I/Os16
Basic product numberC8051F534
C8051F53x/52x
C8051F530A D
EVELOPMENT
K
I T
U
SER
S
G
UIDE
1. Relevant Devices
The C8051F530 Development Kit is intended as a development platform for microcontrollers in the C8051F53x/
52x MCU family. Code developed on the C8051F530 can be easily ported to the other members of this MCU
family.
2. Kit Contents
The C8051F530 Development Kit contains the following items:
Target Board

C8051Fxxx Development Kit Quick-Start Guide

AC to DC Power Adapter

USB Debug Adapter (USB to Debug Interface)

USB Cable
The development kit target board contains two C8051F530 microcontrollers that can communicate through an LIN
network. One of the C8051F530 (U2) can also be connected to a CP2102 USB to UART bridge and directly
connected to two analog signals and a Voltage Reference Signal Input.

C8051F530A
3. Hardware Setup Using a USB Debug Adapter

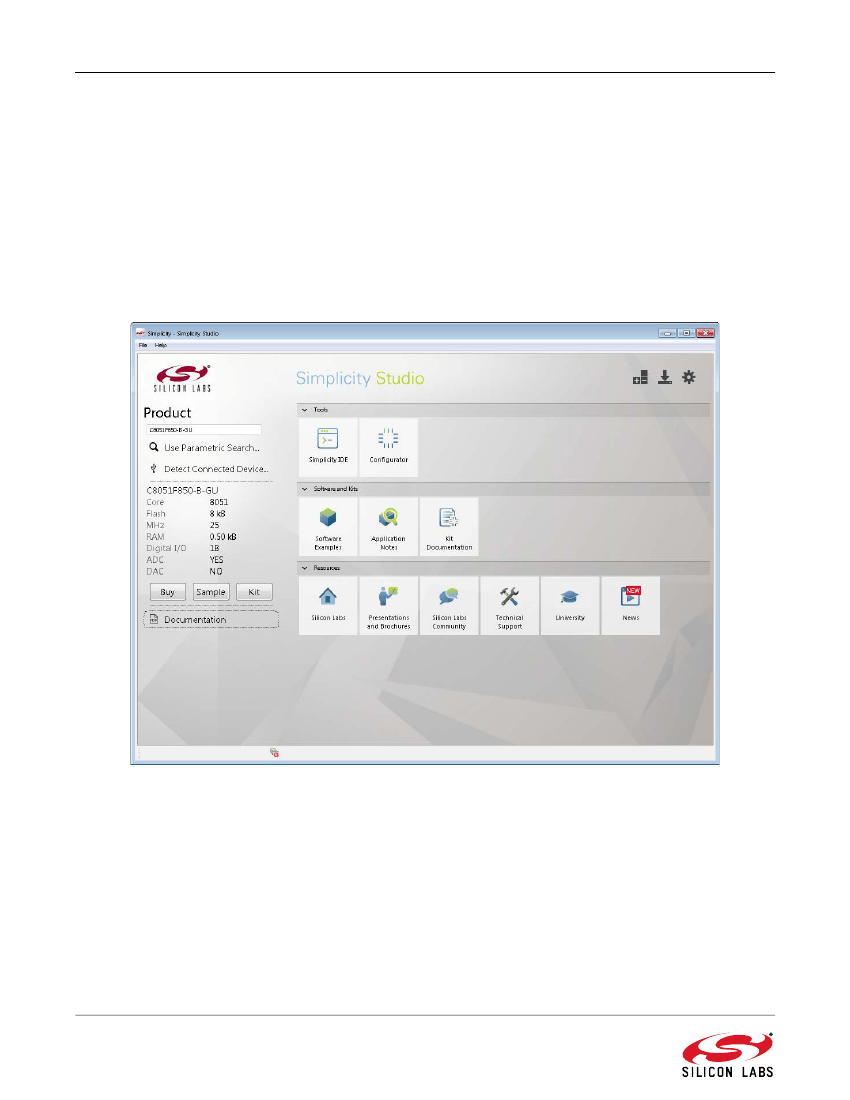

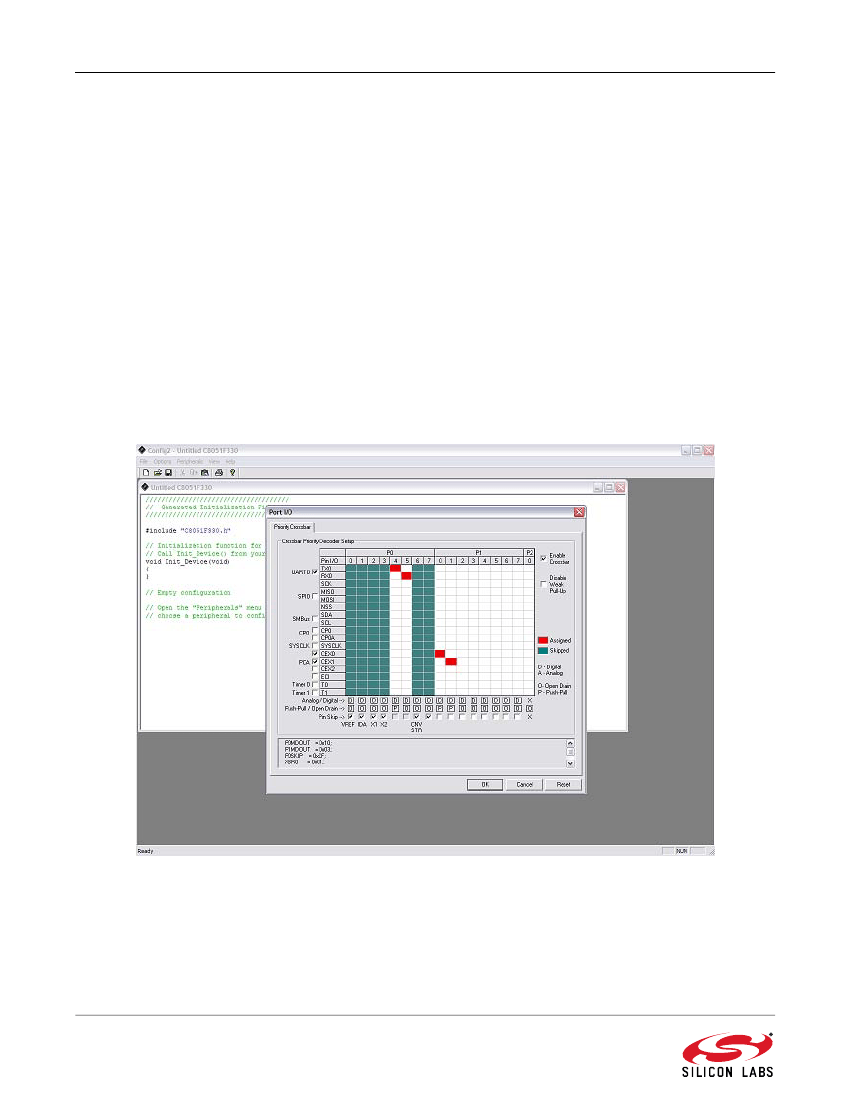

The target board is connected to a PC running the Silicon Laboratories IDE via the USB Debug Adapter as shown
in Figure 1.
1. Connect the USB Debug Adapter to one of the
DEBUG
connectors on the target board (HDR1 or
HDR2)
with the 10-pin ribbon cable. The recommended connection is to the
HDR2
(connected to U2) as this
microcontroller can be connected to the CP2102 USB to UART bridge.
2. Verify that shorting blocks are installed on J13 and J14 to supply power to the target devices.
3. Connect one end of the USB cable to the USB connector on the USB Debug Adapter.
4. Connect the other end of the USB cable to a USB Port on the PC.
5. Connect the ac/dc power adapter to power jack
P5
on the target board.
PC
J6
Target Board
J8
D2
“A” Side
RDH
4
P1.4_A
USB Debug Adapter
Power
C8051F530A TB
“B” Side
SILICON
LABORATORIES
J4 J3 J5
U1
HDR3
J14
U2
PWR
USB
Cable
DEBUG_A
P1
HDR2
P5
Reset_A
HDR1
Reset_B
AC/DC
Adapter
Figure 1. Hardware Setup using a USB Debug Adapter
Rev. 0.4 11/14
Copyright © 2014 by Silicon Laboratories
C8051F53x/52x
DEBUG_B
T2
U3
T1
P1.4_B
J13
D1
P0.0_B
P1.7_B
P1.6_B
Silicon Laboratories
USB DEBUG ADAPTER
Stop
Run
