FG1000AV80 datasheet, PDF - EEWORLD Datasheet

FG1000AV80: DescriptionGate Turn-Off SCR, 595000mA I(T), 4000V V(DRM), 1 Element, G8, 2 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size142KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

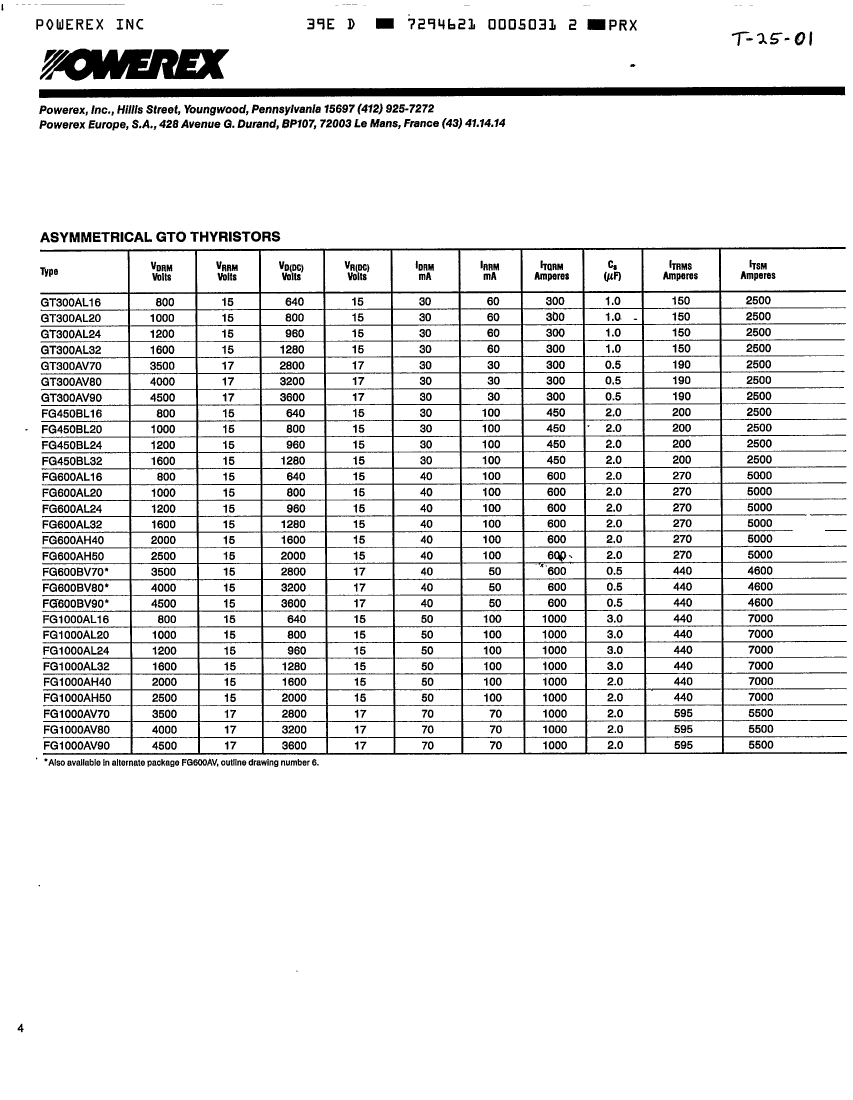

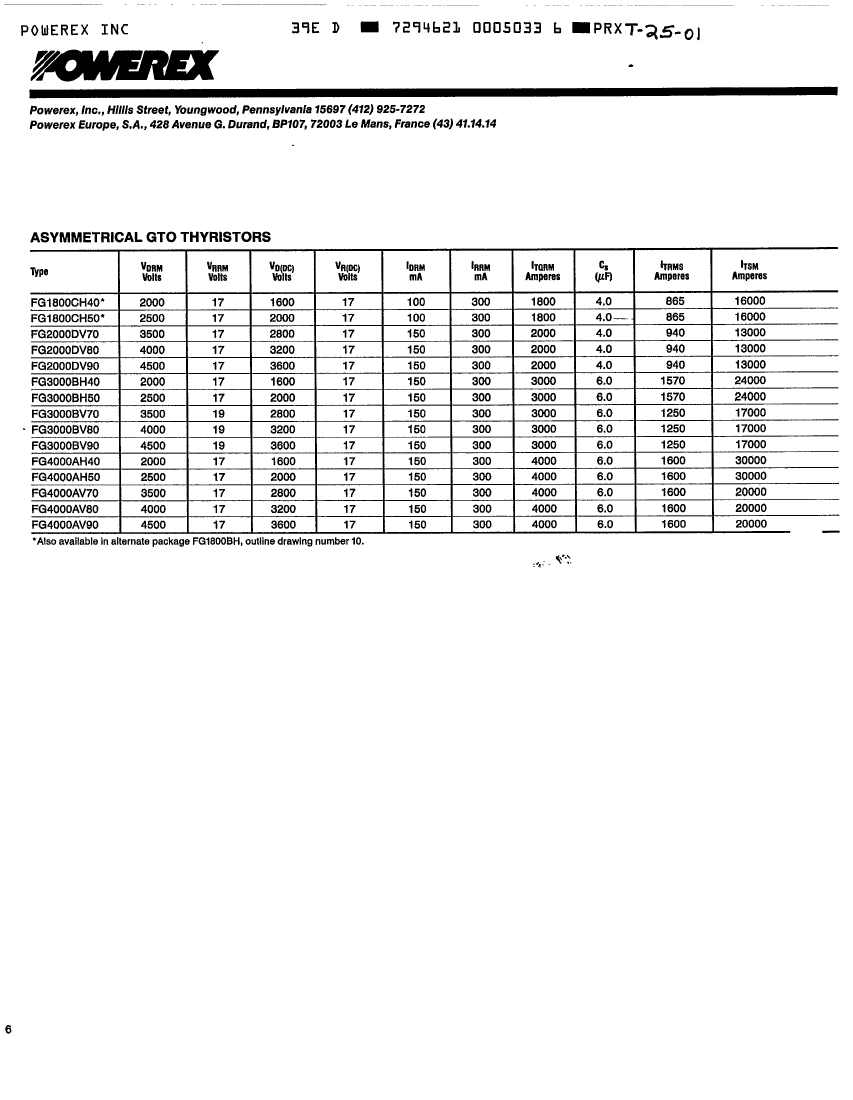

FG1000AV80 Overview

Gate Turn-Off SCR, 595000mA I(T), 4000V V(DRM), 1 Element, G8, 2 PIN

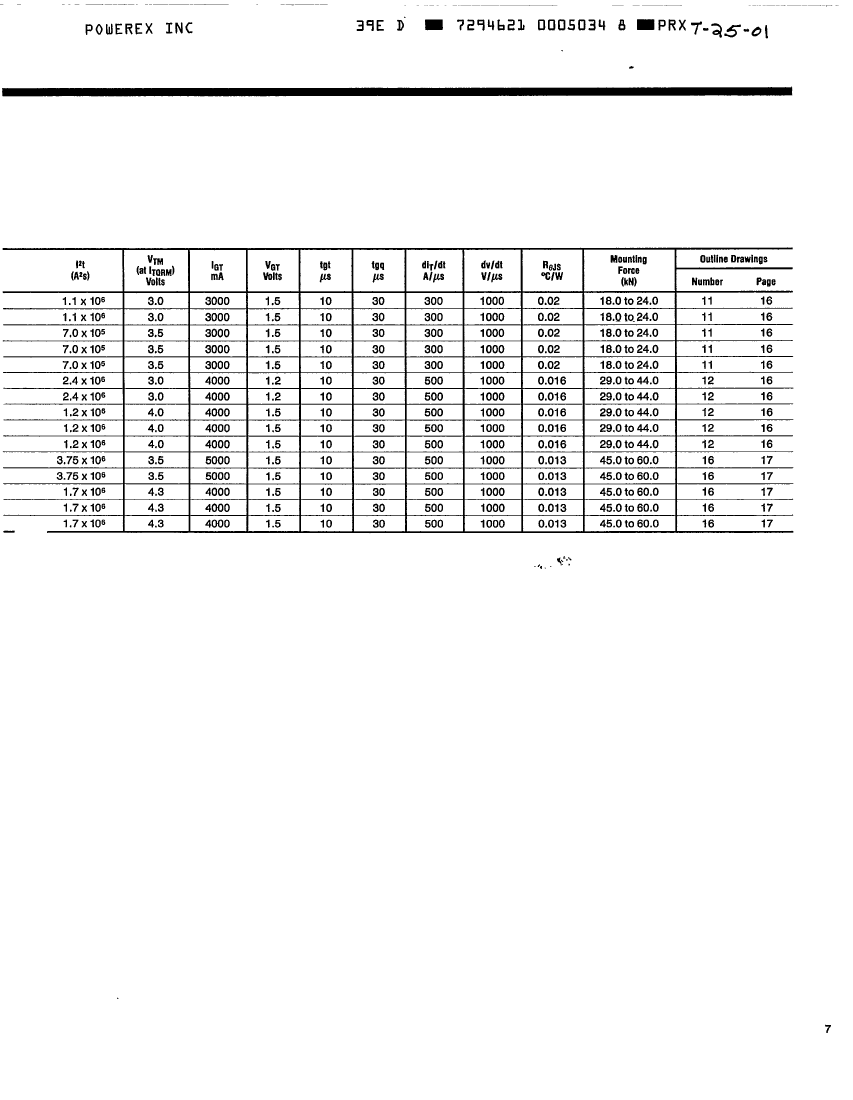

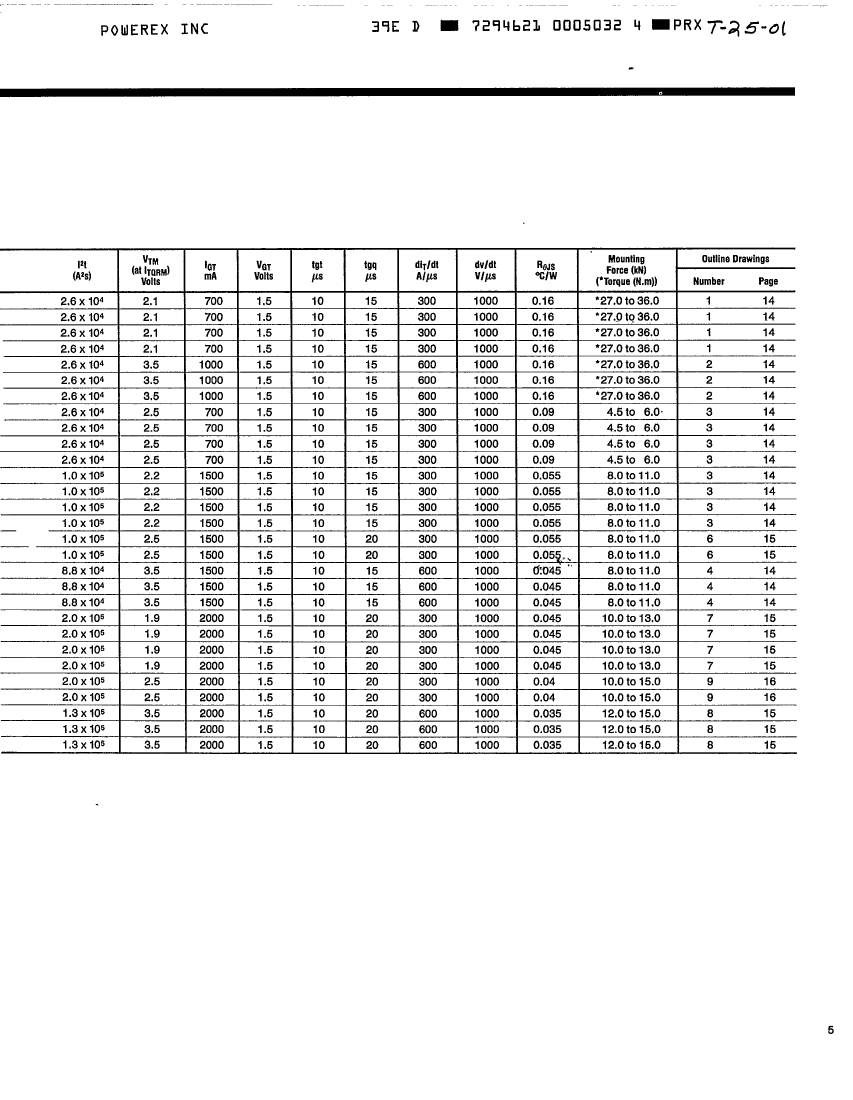

Parameter Name	Attribute value
package instruction	DISK BUTTON, O-CEDB-N2
Contacts	2
Reach Compliance Code	unknown
Other features	PEAK TURN-OFF CURRENT IS 1000 A
Configuration	SINGLE
Maximum DC gate trigger current	2000 mA
Maximum DC gate trigger voltage	1.5 V
JESD-30 code	O-CEDB-N2
Maximum leakage current	70 mA
On-state non-repetitive peak current	5500 A
Number of components	1
Number of terminals	2
Maximum on-state current	595000 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Off-state repetitive peak voltage	4000 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Trigger device type	GATE TURN-OFF SCR
Base Number Matches	1
