B2099: DescriptionTelecom Transformer; CategoryPower management transformer; File Size98KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B2099 Overview

Telecom Transformer

B2099 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO: 1:1
high	11.43 mm
length	11.81 mm
Manufacturer's serial number	B2099
Installation features	THROUGH HOLE MOUNTED
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	11.81mm X 9.4mm X 11.43mm
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	9.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

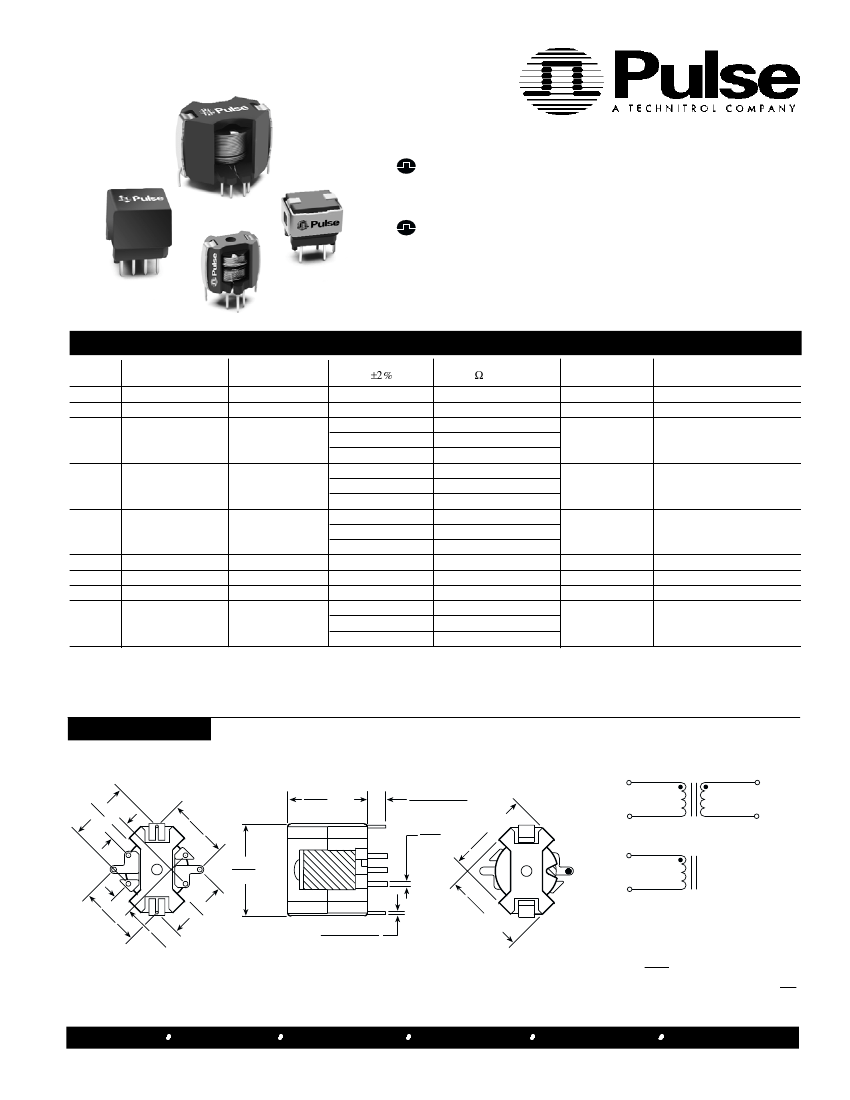

ADSL MAGNETICS

Transformers and Inductors for use with

Alcatel's Dynamite ADSL chipset

For Central Office and Customer

Premise Applications

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

B2061

B2062

B2090

1AB 01965 0027

1AB 01965 0026

1AB 01897 0017

(6-2) 282.5 ±5%

(6-2) 238.5 ±5%

(3-7) 7680 MIN

B2091

1AB 01897 0018

(3-7) 844 MIN

B2098

B2099

B2100

B2101

B2102

1

1AB 02126 0130

1AB 02363 0016

1

1AB 02363 0017

2

1AB 06932 0017

1AB 02126 0113

(2-12) 441.5 ±5%

(1-3) 500.5 ±5%

(1-3) 91.0 ±10%

(2-6) 96.0 ±5%

(2-12) 409.5 ±5%

2

1:1 ±2%

(2-6)/(3-7)=1.65

(3-7)/(4-8)=2.00

(2-1)/(1-6)=1.00

(2-6)/(3-7)=1.125

(3-7)/(4-8)=2.00

(1-6)/(3-7)=1.125

(2-12)/(8-6)=1.00

(2-11)/(1-12)=1.00

(8-5)/(7-6)=1.00

(4-6)/(1-3)=1.00

—

(2-12)/(8-6)=2.00

(2-11)/(1-12)=1.00

(8-5)/(7-6)=1.00

(6-2)=(3-5) 1.00

(6-2)=(3-5) 0.76

(1-6)=(2-1) 1.00

(3-7) 1.80

(4-8) 0.75

(1-6)=(2-1) 0.20

(3-7) 0.19

(4-8) 0.11

(2-11)=(1-12) 0.58

(8-5)=(7-6) 0.50

—

(4-6)=(1-3) 2.10

(4-6)=(1-3) 0.85

(2-6) 0.42

(2-11)=(1-12) 0.32

(8-5)=(7-6) 0.19

—

3

Formerly Alcatel part number 1AB 07111 0008

Formerly Alcatel part number 1AB 07111 0007

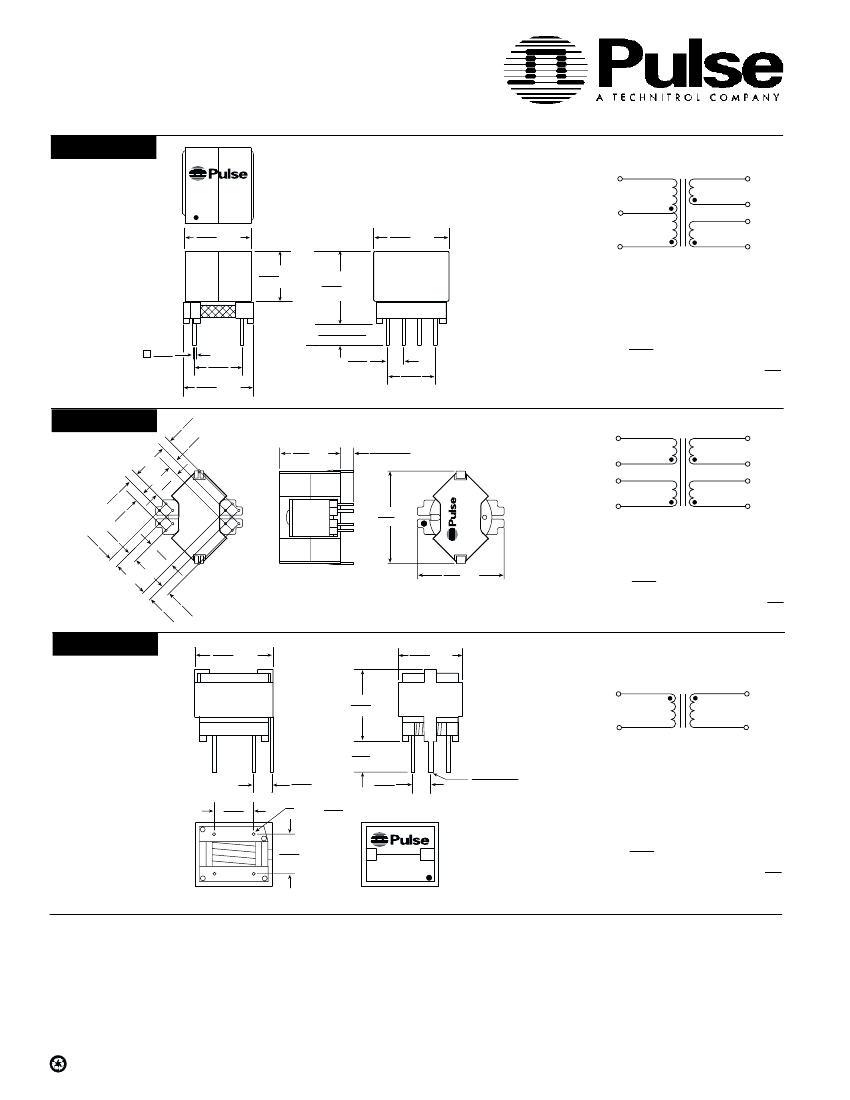

Mechanical

B2061/B2062/B2101

.413 MAX

10,50

.138 ± .020

3,50 ± 0,50

.020

0,50

.

11 445

,3

0M

AX

.512

13,00MAX

.012 x .028

0,30 x 0,70

PRELIMINARY B963.P (3/00)

·

U.S: 858 674 8100

U.K: 44 1483 401 700

France: 33 3 84 35 04 04

Singapore: 65 287 8998

W

%2±

Part

Number

Alcatel Part No.

Inductance

(µH)

Turns Ratio

(

)

(

DCR

MAX)

Hi-Pot

(Vac)

500

Application

Coupled Inductor - CPE

3

Coupled Inductor - CPE

Hybrid Transformer - CPE

500

Hybrid Transformer - CO

4

2000

500

2000

Transformer - CPE

Coupled Inductor - CO/CPE

Coupled Inductor - CO

Inductor - CO

Transformer - CO

4

CPE - Customer Premise Equipment

CO - Central Office

Schematic

B2061/B2062

6

00

.1 ,54

2

00

.3 ,62

7

3

5

B2101

2

6

2

00

.3 ,62

7

00

.3 ,62

7

AX

M

45

.4 ,30

11

00

.3 ,62

7

00

.1 ,54

2

Weight

. . . . . . . . . . . . . .2.5 grams

Tray

. . . . . . . . . . . . . . . . . . .75/tray

Inches

Dimensions:

mm

Unless otherwise specified, all tolerances are ±

.010

0,25

Taiwan: 886 2 2698 0228

http://www.pulseeng.com

B2099 Related Products

	B2099	B2098	B2101	B2102	B2061	B2062	B2090	B2091
Description	Telecom Transformer	Telecom Transformer	General Purpose Inductor, 96uH, 5%, 1 Element,	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Maker	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics	Pulse Electronics
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	B2099	B2098	B2101	B2102	B2061	B2062	B2090	B2091
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Other features	TURNS RATIO: 1:1	TURNS RATIO: 1:1	-	TURNS RATIO: 2:1:1	TURNS RATIO: 1:1	TURNS RATIO: 1:1	TURNS RATIO: 1.65:2:1	TURNS RATIO:1.125:2:1.125
high	11.43 mm	16.5 mm	-	16.5 mm	10.5 mm	10.5 mm	7.95 mm	7.95 mm
length	11.81 mm	25.5 mm	-	25.5 mm	13 mm	13 mm	11.81 mm	11.81 mm
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	-	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
method of packing	TRAY	TRAY	-	TRAY	TRAY	TRAY	TRAY	TRAY
physical size	11.81mm X 9.4mm X 11.43mm	25.5mm X 24.5mm X 16.5mm	-	25.5mm X 24.5mm X 16.5mm	13mm X 11.3mm X 10.5mm	13mm X 11.3mm X 10.5mm	11.81mm X 10.39mm X 7.95mm	L11.81XB10.39XH7.95 (mm)
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	-	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	9.4 mm	24.5 mm	-	24.5 mm	11.3 mm	11.3 mm	10.39 mm	10.39 mm

Recommended Resources

high frequency output amplifier

High quality and low noise servo power supply circuit diagram

Electromagnetic energy storage circuit

Flashing colored lights circuit diagram 2

Differential amplifier circuit with a bandwidth of 20MHZ

DUM23-48/300II AC power distribution unit electrical schematic diagram
