I7050-11.900-S: DescriptionSeries - Fundamental Quartz Crystal, 11.9MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size99KB，1 Pages; ManufacturerITTI Company Limited; Websitehttp://www.itti-co.com

Download Datasheet Parametric View All

I7050-11.900-S Overview

Series - Fundamental Quartz Crystal, 11.9MHz Nom, SMD, 4 PIN

I7050-11.900-S Parametric

Parameter Name	Attribute value
Maker	ITTI Company Limited
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
Installation features	SURFACE MOUNT
Nominal operating frequency	11.9 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.1 (mm)/L0.276XB0.197XH0.043 (inch)
Series resistance	70 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Halogen

Free

PRODUCTS

Typical Applications:

PCMCIA Cards

PCs

Handheld products

Disc drives

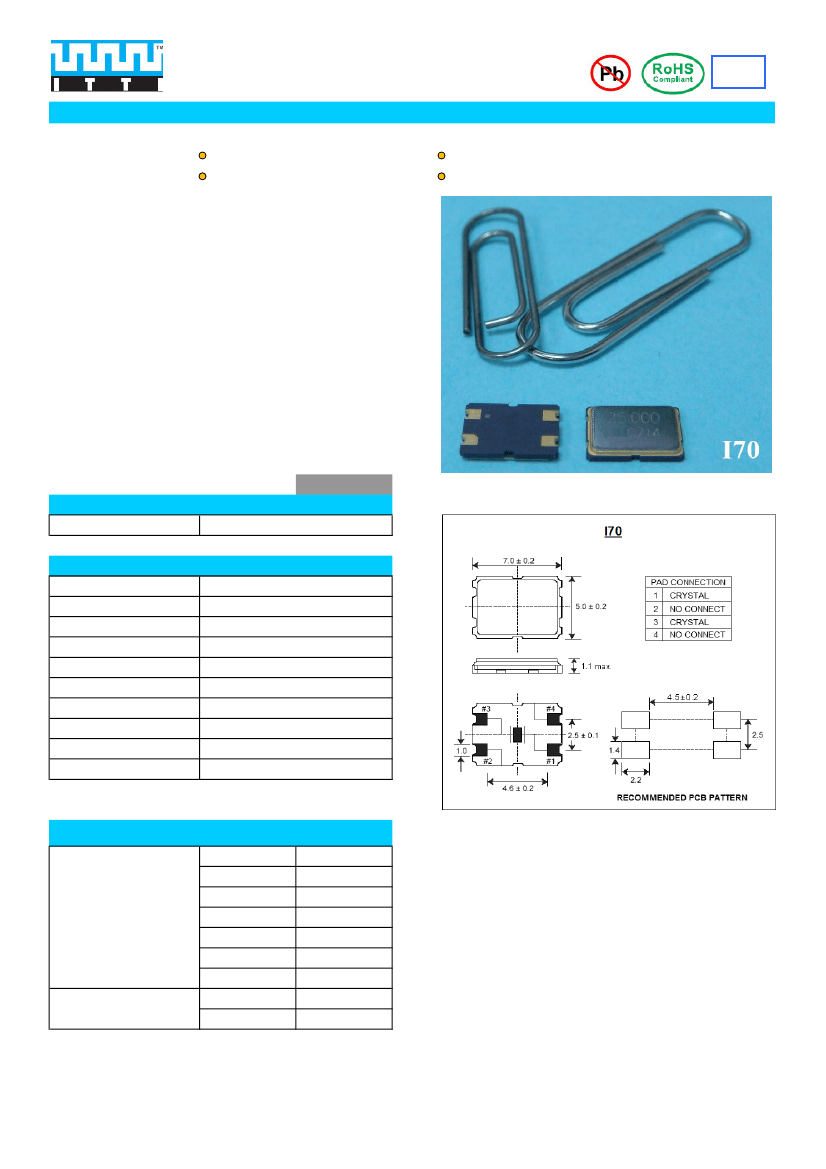

Crystal Unit (SMD)

I70

(Seam Welding Series)

Part Number: I70 (ppm) - Freq - CL

Example: I7015-24.000-18

■

Specification

Part No.

I70 (ppm) - Freq - CL

Example

I7015-24.000-18

I70

■

Dimension

(Unit: mm)

Specification

Frequency Range

Mode of Oscillation

Tolerance at 25°C

Temperature Stability

Operating Temperature Range

Load Capacitance

Storage Temperature Range

ESR

Drive Level

Aging

I70

6.0 to 100.0MHz

Fundamental / 3rd Overtone

±10 to ±50ppm

-10°C to +70°C / -40°C to +85°C

10 to 32pF / Series

-40°C to + 85°C / -55°C to +125°C

* See Table Below

100μW Max.

±5ppm/year Max.

* I70 ESR Table

Oscillation Mode

Frequency Range

(MHz)

6.0 to 7.9

8.0 to 8.9

9.0 to 9.9

Fundamental

10.0 to 10.9

11.0 to 11.9

12.0 to 15.9

16.0 to 39.9

3rd Overtone

40.0 to 83.9

84.0 to 100.0

ESR

(Ohm)

120 Max.

100 Max.

90 Max.

80 Max.

70 Max.

60 Max.

40 Max.

70 Max.

60 Max.

Recommended Resources

Intelligent control module and instrument interface

Schmitt circuit widely used for waveform shaping

555 light control switch circuit

KU250/750 universal grinder electrical schematic circuit

Circuit schematic

Simple FM transmitter diagram
