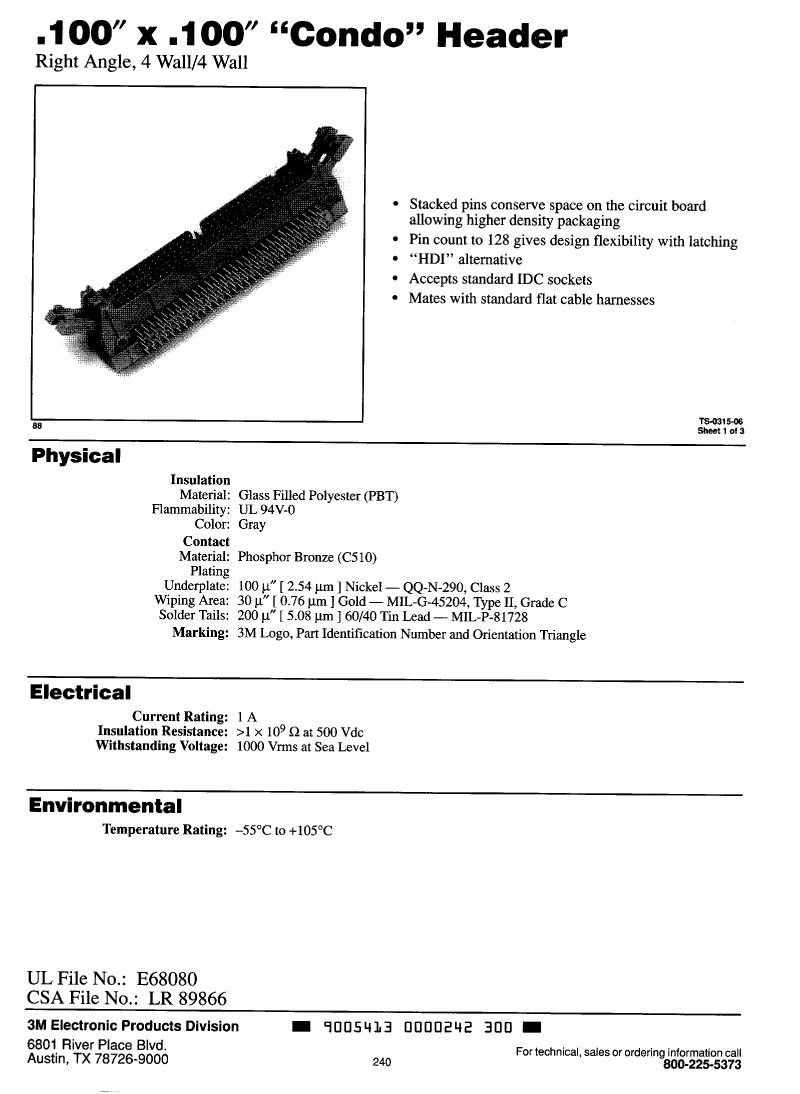

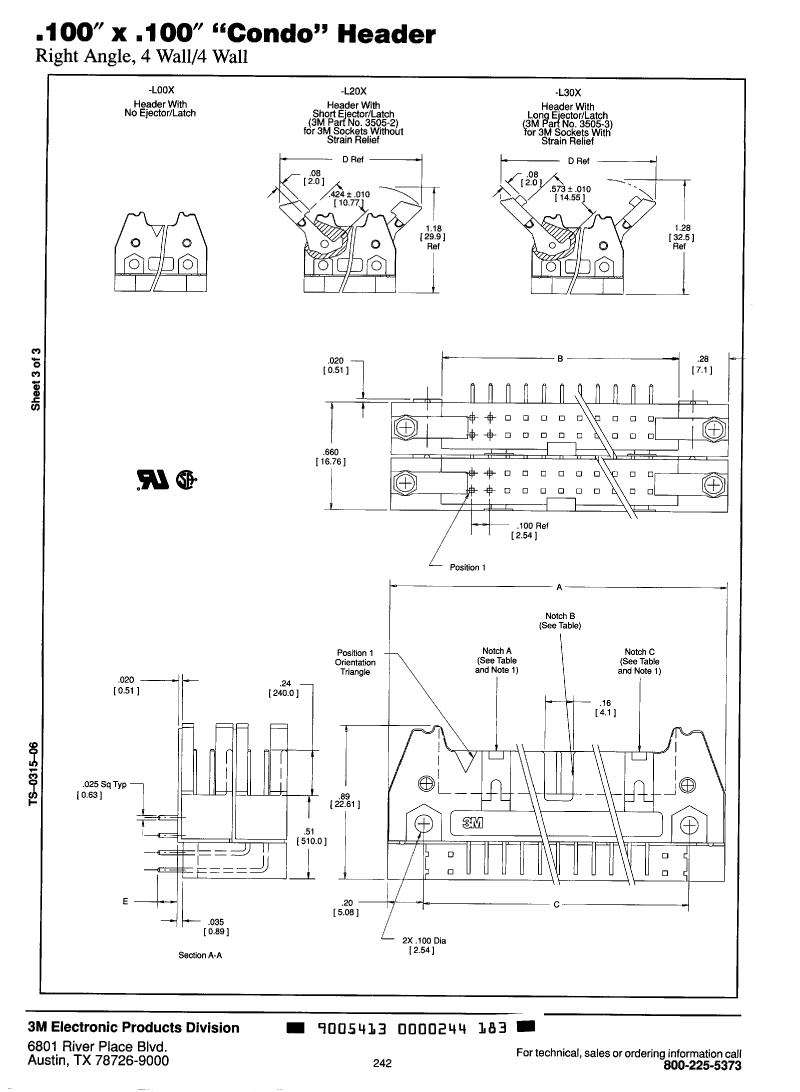

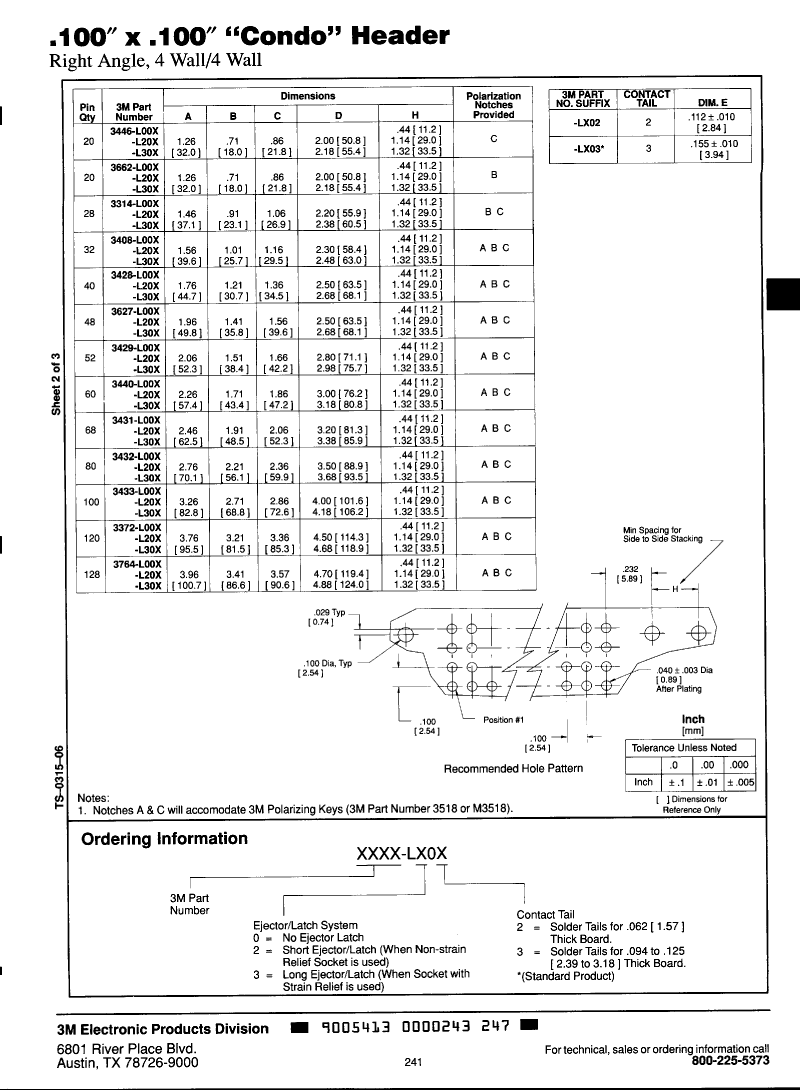

20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Maker | 3M |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | EJECTOR, LATCHED, POLARIZED |
| Board mount options | HOLE .099-.111 |
| body width | 0.62 inch |
| subject depth | 0.89 inch |
| body length | 1.26 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| insulator material | GLASS FILLED POLYESTER |
| MIL compliance | NO |
| Manufacturer's serial number | 3662 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH & EJECT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | TWO |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | TRIPOLARIZED |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.155 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 20 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 3662-L203 | 3446-L203 | 3446-L303 | CCN-7809-03-2183-B-D | 3662-L302 | |
|---|---|---|---|---|---|
| Description | 20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | 20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | 20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | Array/Network Resistor, Isolated, Tantalum Nitride/nickel Chrome, 0.1W, 218000ohm, 0.1% +/-Tol, -25,25ppm/Cel, 3535, | 20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER |
| Reach Compliance Code | unknown | unknown | unknown | compliant | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 150 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Maker | 3M | 3M | 3M | - | 3M |
| Other features | EJECTOR, LATCHED, POLARIZED | EJECTOR, LATCHED, POLARIZED | EJECTOR, LATCHED, POLARIZED | - | EJECTOR, LATCHED, POLARIZED |
| Board mount options | HOLE .099-.111 | HOLE .099-.111 | HOLE .099-.111 | - | HOLE .099-.111 |
| body width | 0.62 inch | 0.62 inch | 0.62 inch | - | 0.62 inch |
| subject depth | 0.89 inch | 0.89 inch | 0.89 inch | - | 0.89 inch |
| body length | 1.26 inch | 1.26 inch | 1.26 inch | - | 1.26 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | - | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR |
| Contact to complete cooperation | AU | AU | AU | - | AU |
| Contact completed and terminated | GOLD | GOLD | GOLD | - | GOLD |
| Contact point gender | MALE | MALE | MALE | - | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | - | NO |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | - | 1000VAC V |
| Filter function | NO | NO | NO | - | NO |
| IEC compliance | NO | NO | NO | - | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - | 1000000000 Ω |
| Insulator color | GRAY | GRAY | GRAY | - | GRAY |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER |
| MIL compliance | NO | NO | NO | - | NO |
| Manufacturer's serial number | 3662 | 3446 | 3446 | - | 3662 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Mixed contacts | NO | NO | NO | - | NO |
| Installation option 1 | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | - | LATCH & EJECT |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | - | BOARD |
| Number of connectors | TWO | TWO | TWO | - | TWO |
| PCB row number | 4 | 4 | 4 | - | 4 |
| Number of rows loaded | 4 | 4 | 4 | - | 4 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | 30u inch | - | 30u inch |
| polarization key | TRIPOLARIZED | TRIPOLARIZED | TRIPOLARIZED | - | TRIPOLARIZED |
| Rated current (signal) | 1 A | 1 A | 1 A | - | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | - | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.155 inch | 0.155 inch | 0.155 inch | - | 0.112 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | - | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | - | SOLDER |
| Total number of contacts | 20 | 20 | 20 | - | 20 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | - | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | - | - |
