35SCGQ060SCXA Overview

Rectifier Diode,

35SCGQ060SCXA Parametric

Parameter NameAttribute value
MakerInfineon
Reach Compliance Codecompliant
Diode typeRECTIFIER DIODE
Base Number Matches1

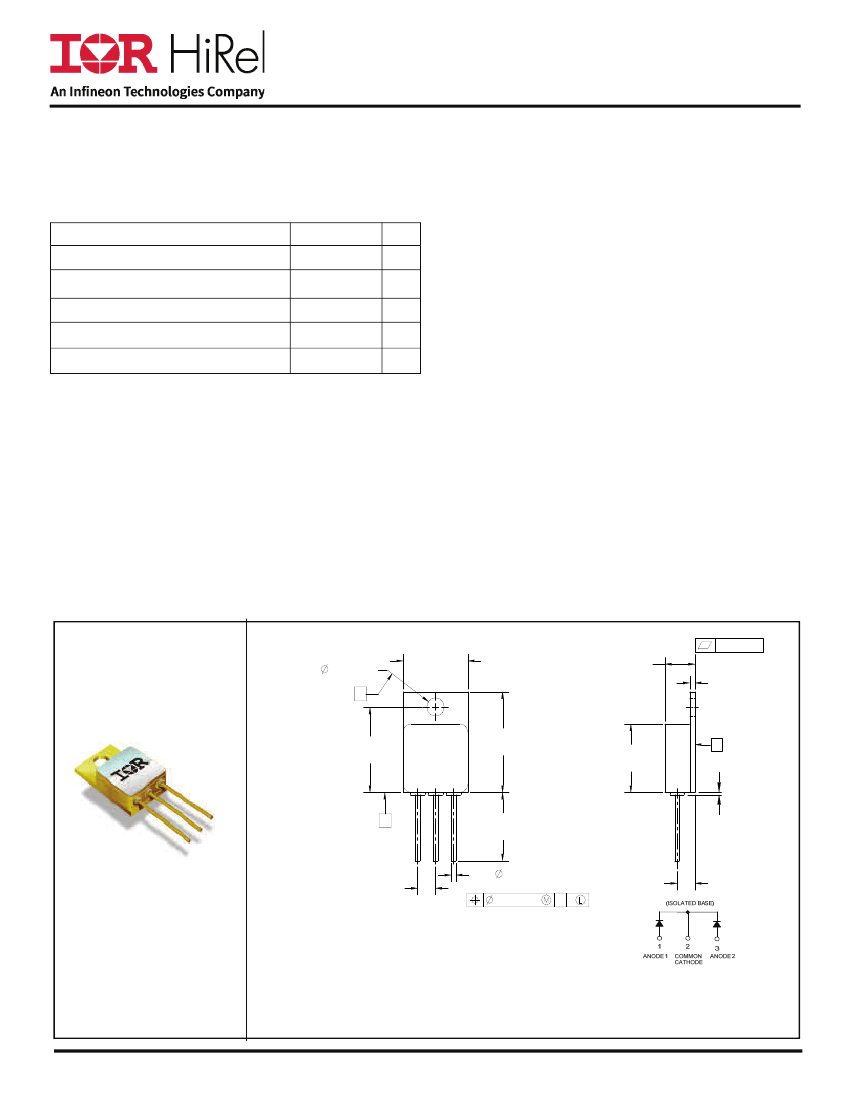

PD-94275C
35SCGQ060
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES

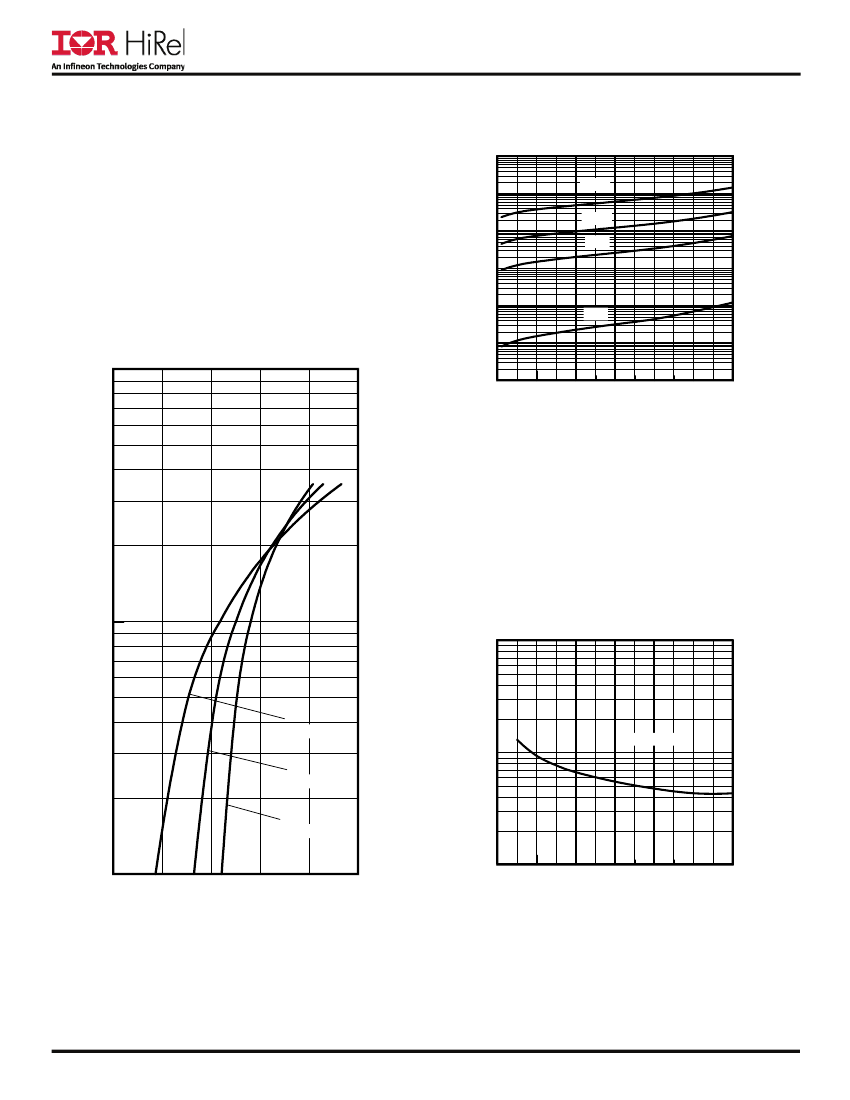

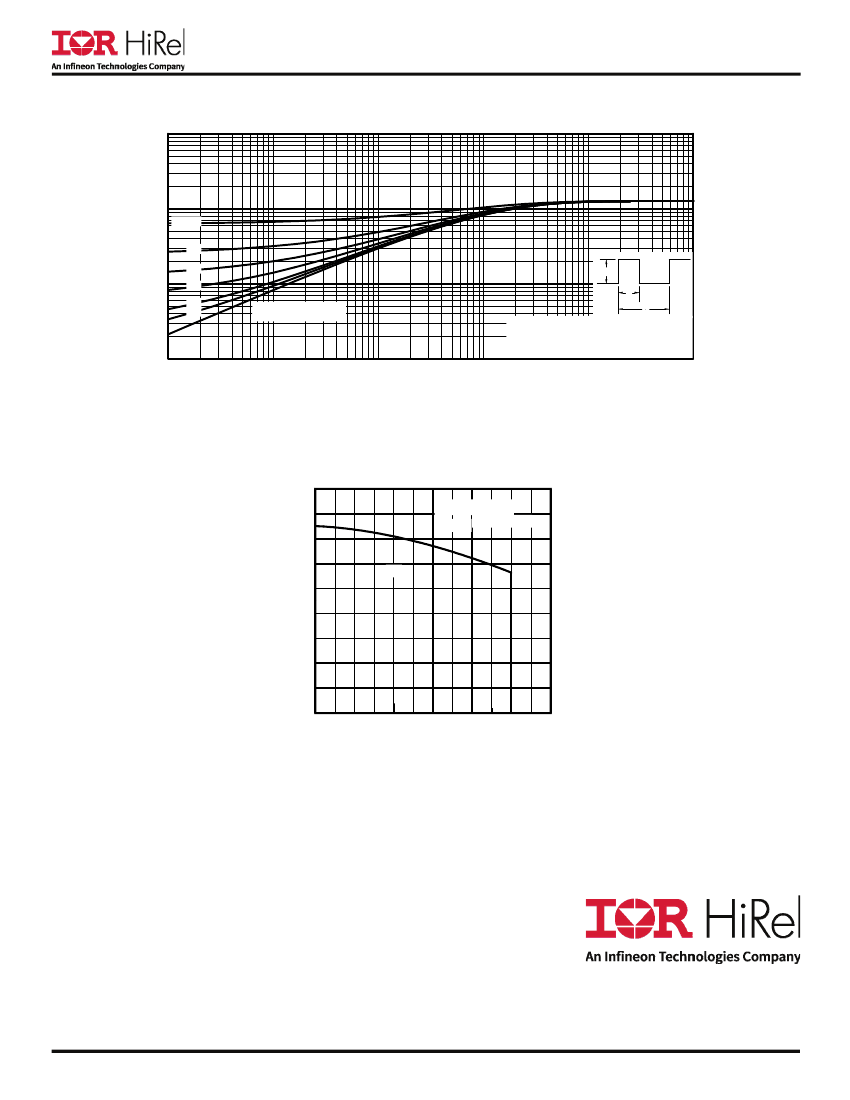

Major Ratings and Characteristics

Characteristics
I
F(AV)
V
RRM
(Per Leg)
I
FSM
@ tp = 8.3ms half–sine (Per Leg)
V
F
@ 17.5Apk, T
J
= 125°C (Per Leg)
T
J
, T
stg
Operating and storage
35SCGQ060 Units
35
60
400
0.61
-55 to 150
A
V
A
V
°C
35 Amp. 60V
Description/Features
The 35SCGQ060 center tap Schottky rectifier has
been expressly designed to meet the rigorous require-
ments of IR HiRel environments. It is packaged in the
hermetic isolated TO-254AA package. The device's
forward voltage drop and reverse leakage current are
optimized for the lowest power loss and the highest
circuit efficiency for typical high frequency switching
power supplies and resonant power converters. Full MIL-
PRF-19500 quality conformance testing is available on
source control drawings to TX, TXV and S quality
levels.
Hermetically Sealed
Center Tap
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and
Long term Reliability
Light Weight
CASE STYLE
3.78 [.149]
3.53 [.139]
A
13.84 [.545]
13.59 [.535]
0.12 [.005]
6.60 [.260]
6.32 [.249]
1.27 [.050]
1.02 [.040]
17.40 [.685]
16.89 [.665]
1
2
3
20.32 [.800]
20.07 [.790]
13.84 [.545]
13.59 [.535]
B
C
14.48 [.570]
12.95 [.510]
0.84 [.033]
MAX.
3X
3.81 [.150]
2X
NOTES:
1.14 [.045]
0.89 [.035]
0.36 [.014]
B A
3.81 [.150]
1.
2.
3.
4.
DIMENSIONING & TOLERANCING PER ASME Y14.5M-1994.
ALL DIMENSIONS ARE SHOWN IN MILLIMETERS [INCHES].
CONTROLLING DIMENSION: INCH.
CONFORMS TO JEDEC OUTLINE TO-254AA.

PIN ASSIGNMENTS
1 = DRAIN
2 = SOURCE
3 = GATE
Case Outline and Dimensions - TO-254AA
1
2016-09-21
