3.2x2.5mm Glass Seal Crystal
C3BG
(Former FX325BG Series)
DATASHEET
ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Temperature Range
Operating
(T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
0
)
Load Capacitance (C
L
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
RoHS/REACH Compliant
Frequency Range
(MHz)
12.000 ~ 16.000
>16.000 ~ 54.000
MAX
(unless otherwise noted)
12.000 ~ 54.000 MHz
(See options on page 2)
(See options below)
(See options below)
-40ºC ~ +85ºC
5 pF
(See options on page 2)
100.0 µW
±5 PPM
260ºC / 10 Seconds x 2
1
Au over Ni
Glass
Exempt (7c-i)
Yes
Max ESR
(Ω)
100
60

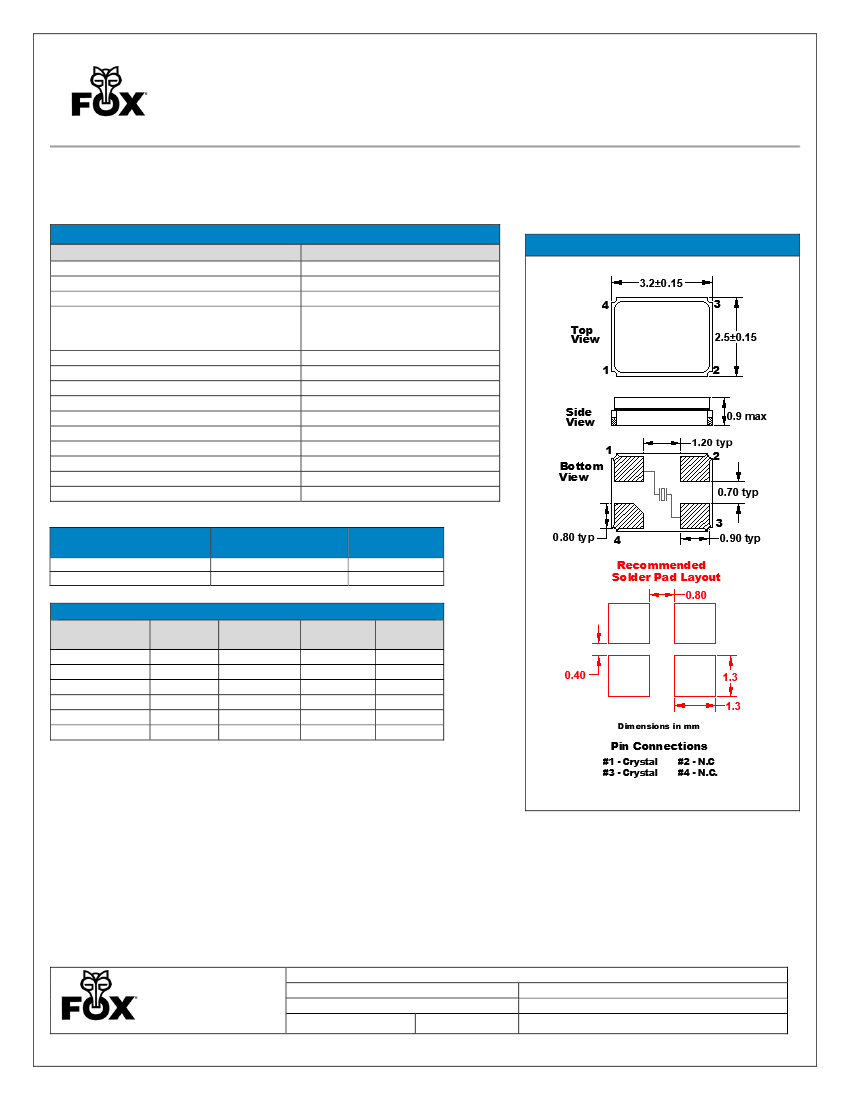

DIMENSIONS (mm)
Operating Mode
Fundamental
Fundamental
Available Operating Temperatures and Stabilities*
Operating
Temperature
0 ~ +70ºC
-10 ~ +60ºC
-10 ~ +70ºC
-20 ~ +70ºC
-30 ~ +85ºC
-40 ~ +85ºC
±20PPM
O
O
O
O
O
O
±25 PPM
O
O
O
O
O
O
±30 PPM
O
O
O
O
O
O
±50 PPM
O
O
O
O
O
O
Key: O=Available, X=Not Available, ∆=Consult Fox Technical Support
*Does not imply a stocked part.
Note: Dimensional drawing is for reference to critical
specifications defined by size measurements. Certain non-
critical visual attributes, such as side castellations, etc. may
vary.
Copyright 2019Fox Electronics. All rights reserved
Title/Description:
C3BG Series Standard Specifications
Drawing Number:
C3BG-DOC-1
Size:
A
Part Number:
Cage:
61429
Draftsperson:
MAJ
Approved:
BEC
Revision Date:
05/29/2019
Page 1 of 2
3.2x2.5mm Glass Seal Crystal

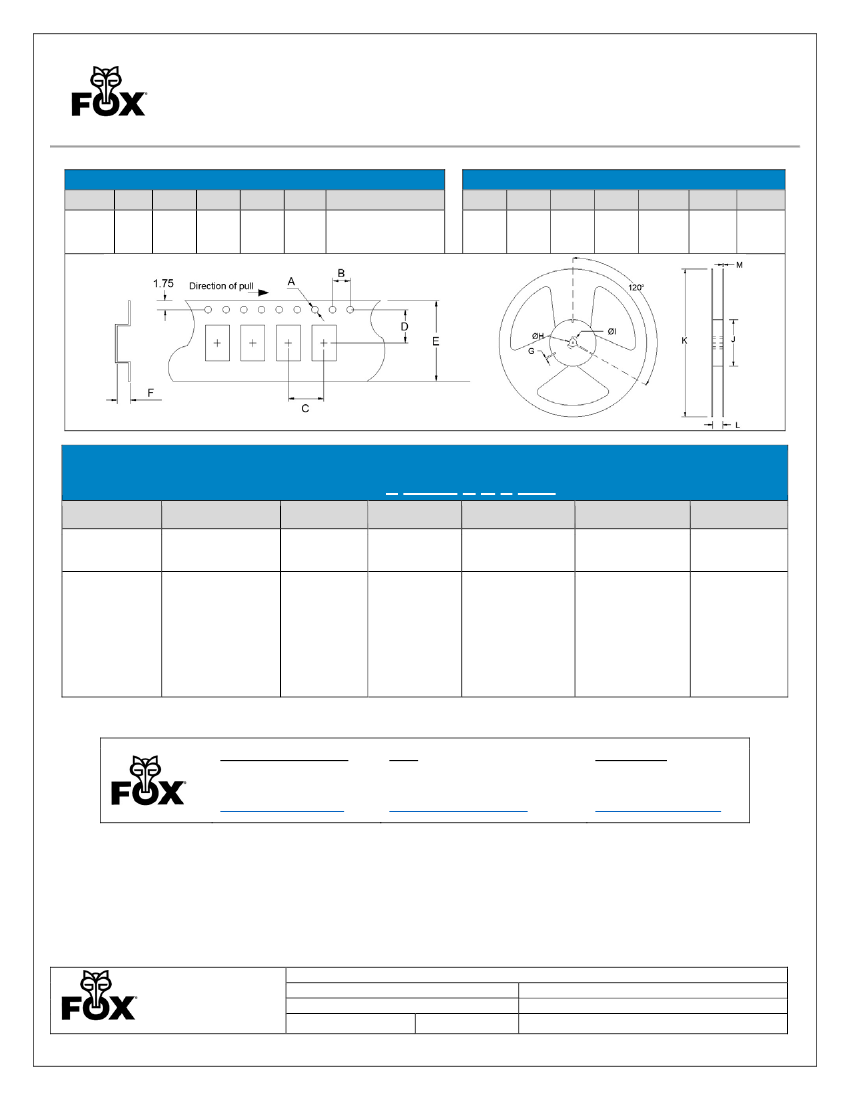

TAPE SPECIFICATIONS (mm)
A
Ø1.55
C3BG
(Former FX325BG Series)
DATASHEET
REEL SPECIFICATIONS (mm)
Reel Qty
-T3=3,000 Default
-T2 = 2,000
-T1 = 1,000
B
4.0
C
4.0
D
3.5
E
8.0
F
1.4
G
2.0
H
Ø13
I
Ø21
J
Ø60
K
Ø180
L
17.5
M
2.0
AVAILABLE OPTIONS & PART IDENTIFICATION
1
Example: F C3BG E C L 40.0
F
Fox
C3BG
Model Number
E
Tolerance
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
C
Stability
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
L
Load
Capacitance
2
V=7pF
D=8pF
W=9pF
E=10pF
G=12pF
J=15pF
K=16pF
L=18pF
M=20pF
M
Operating
Temperature
C = 0 to +70ºC
D = -10 to +60ºC
E = -10 to +70ºC
F = -20 to +70ºC
K = -30 to +85ºC
M = -40 to +85ºC
40.0
Frequency
(MHz)
1
2
Not all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact Fox Technical Support for assistance
