REVISION U
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAX. CUT FLASH: .015[.38]; NO FLASH ALLOWED IN OR AROUND
SURFACE MOUNT TAIL AREA.
3. MINIMUM PUSHOUT FORCE: 1 LB.
4. MAX. PIN VARIANCE : .005[.13].
5. SHEAR TAILS TO DIMENSION SHOWN, .003 [.08] MAX BURR.
6. COPLANARITY TO BE WITHIN .004 WHEN AT POSITION 05-25 AND
BE WITHIN .006 WHEN AT POSITION 26-50.
7. PINS 1 AND 2 TO BE FLUSH TO .0030 ABOVE LINE MADE BY THE BODY.
8. ENDWALL TO BE .008 MIN.
9. STRAIGHTNESS TO INCLUDED BODY.

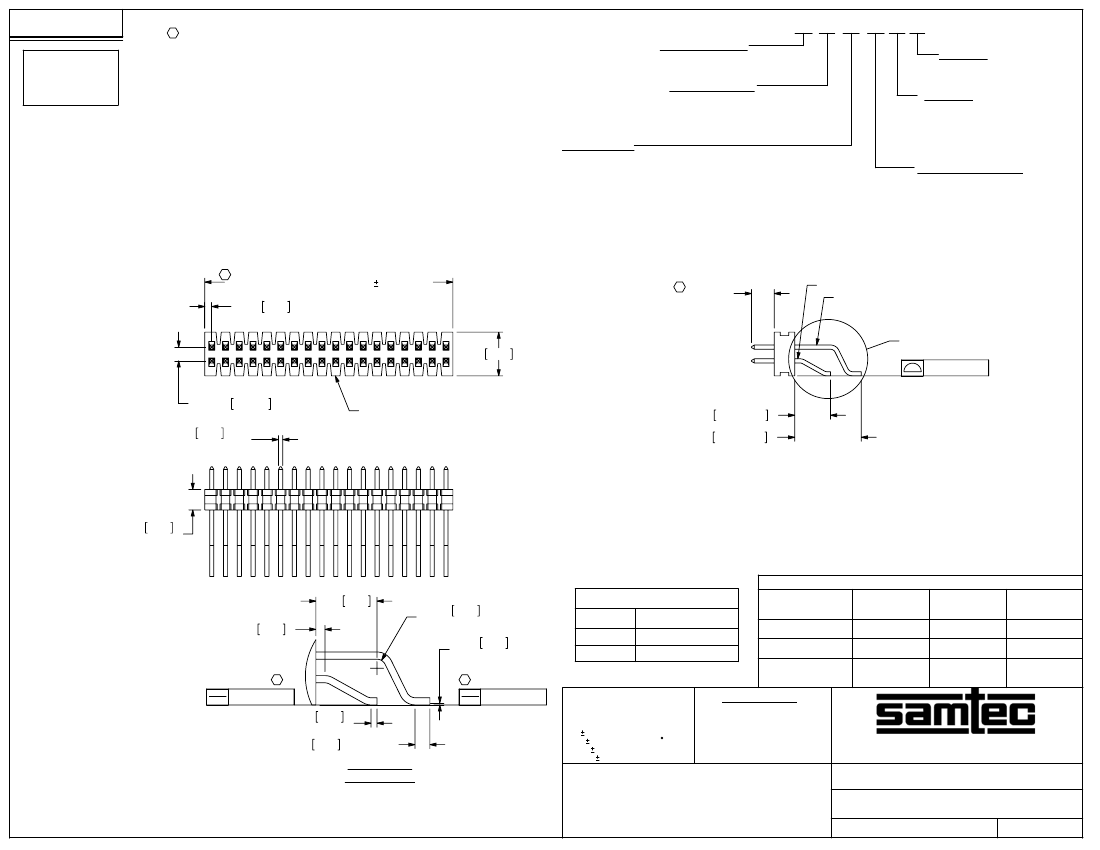

FTMH-1XX-XX-XX-DH-X-XX
No OF POSITIONS
-05 THRU -50
( PER ROW)
LEAD STYLE SPEC
-03: .065 POST
(USE T-1S16-01-X-2)
-02: .075 POST
( USE T-1S16-01-X-2)
PLATING SPEC
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
C
"A"
(SEE NOTE 4)
OPTION 2
-TR: TAPE & REEL
PACKAGING
OPTION 1
-K: POLYIMIDE FILM PAD
(-05 THRU -50 POSITIONS ONLY)
ROW SPECIFICATION
-DH: DOUBLE HORIZONTAL
(USE FTMH-75-D)
C
No. OF POS x .03937[1.000]
.020 0.50 REF
.010[.25]
100
.125 3.18 REF
T-1S16-01-XX-2 (PIN 1)
T-1S16-01-XX-2 (PIN 2)
02
'A'
SEE TABLE 2
01
.03937 1.0000 REF
.012 0.30 SQ
REF (TYP)
FTMH-XX-D
99
.102±.010 2.59±0.25
.190±.010 4.83±0.25
.059 1.49
REF
.102 2.59
.015 0.38
R.015 0.38
(4 PLCS)
.003 0.08 MAX
(SEE NOTE 7)
C
TABLE 1
LEAD STYLE
-02
-03
"A"
.075 [1.91]
.065 [1.65]
TABLE 2
NO OF POS
5-25
26-50
75 (SUB
ASSEMBLY ONLY)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
COPLANARITY STRAIGHTNESS STRAIGHTNESS
ROW 1
ROW 2
.004 [0.10]
.006 [0.15]
.008[0.20]
.004 [0.10]
.006 [0.15]
.008[0.20]
.004 [0.10]
.006 [0.15]
.008[0.20]
C
SEE TABLE 2
(SEE NOTE 9)
.010 0.25
MIN FLAT
.025 0.63 MIN FLAT
SEE TABLE 2
(SEE NOTE 9)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
.X: .1[2.5]
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
DECIMALS
ANGLES
2
DETAIL 'A'
SCALE 6 : 1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
MATERIAL:
BODY: LCP, UL 94 V0, COLOR: BLACK
TERMINAL: PHOS BRONZE, 510
1MM X 1MM HORIZONTAL SMT TERMINAL STRIP
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DH-X-XX -MKT.SLDDRW
BY:
D. PURVIS
FTMH-1XX-XX-XX-DH-X-XX
10/13/1998
SHEET
1
OF
2
REVISION U
"P"
"M"
.105±.005 2.67±0.13
(SEE NOTE 5)
.224±.005 5.69±0.13
(SEE NOTE 5)

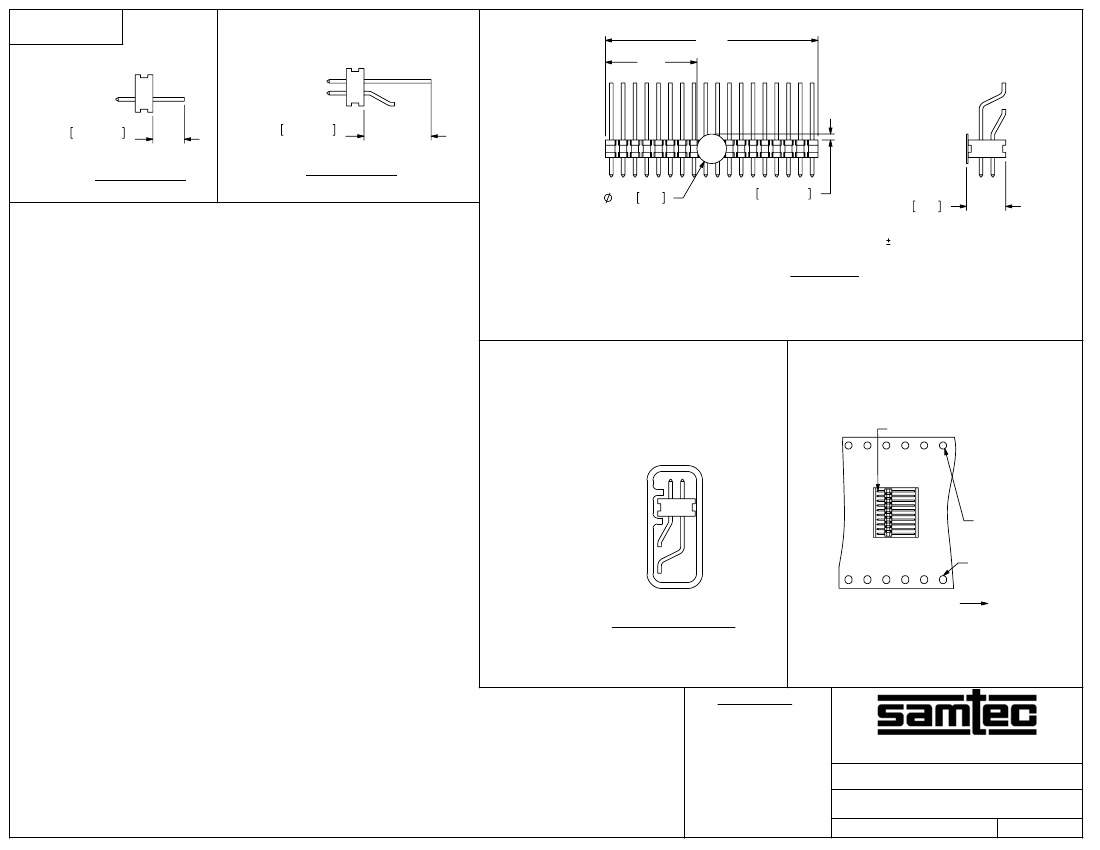

IN-PROCESS 1
IN-PROCESS 2
.098 2.49
.020±.010 0.50±0.25
.131 3.31
NOTE: "M" = USE MEASURED DIMENSION (REF)
"P" = (( "M" - .098 [2.50]) / 2) .020 [.51])
POLYIMIDE FILM PAD
(AVAILABLE ON -05 THRU -50 POS ONLY)
-K OPTION
TUBE:
PT-FTMH001-DH
PLUG:
TP-24
PIN 01
ROUND
HOLES
OBLONG
HOLES
STYLE -02 & -03
UNWINDING DIRECTION
PACKAGING VIEW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
1MM X 1MM HORIZONTAL SMT TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DH-X-XX -MKT.SLDDRW
BY:
D. PURVIS
FTMH-1XX-XX-XX-DH-X-XX
10/13/1998
SHEET
2
OF
2
