L5965SQ-V0T

Description
汽车级 PMIC 48-VFQFPN(7x7)
Categorysemiconductor    Power management
File Size1MB,85 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Download Datasheet Download user manual Parametric View All

L5965SQ-V0T Online Shopping

Suppliers Part Number Price MOQ In stock
L5965SQ-V0T - - View Buy Now

L5965SQ-V0T Overview

汽车级 PMIC 48-VFQFPN(7x7)

L5965SQ-V0T Parametric

Parameter NameAttribute value
category
MakerSTMicroelectronics
seriesAutomotive, AEC-Q100
Package卷带(TR)剪切带(CT)Digi-Reel®
applicationAutomotive grade
Current - power supply-
Voltage - Power supply-
Operating temperature-40°C ~ 105°C(TA)
Installation typesurface mount type
Package/casing48-TFQFN 裸露焊盘
Supplier device packaging48-VFQFPN(7x7)
Basic product numberL5965
L5965
Datasheet
Power management for automotive vision and radar systems
Features
VFQFPN-48 (7x7 mm)
GAPGPS03203
Packing
Tray
Product status link
L5965
Product summary
Order code
L5965SQ-V0Y
L5965SQ-V0T
VFQFPN-48
Package
AEC-Q100 qualified
Pre SMPS BUCK1 regulator controller, adjustable via OTP to 0.8 V, 1.0 V, 1.1 V,
1.2 V, 1.8 V, 3.3 V, 3.8 V, 5.0 V @ 0.4 MHz
Pre SMPS BUCK2 regulator, adjustable via OTP to 1.0 V, 1.1 V, 1.2 V, 1.35 V,
1.5 V, 3.3 V, 3.6 V, 5.0 V @ 1.35/2.6 A min peak current limit, 0.4/2.4 MHz
Post SMPS BUCK3 regulator, adjustable via OTP to 1.0 V, 1.2 V, 1.35 V, 1.8 V,
2.0 V, 2.3 V, 2.5 V, 3.3 V @ 1.4 A min peak current limit, 2.4 MHz
Post SMPS BUCK4 regulator, adjustable via OTP to 1.1 V, 1.12 V, 1.2 V, 1.25 V,
1.3 V, 1.35 V, 1.8 V, 3.3 V @ 1 A min peak current limit, 2.4 MHz
Post SMPS BOOST regulator, adjustable via OTP to 5.0 V @ 0.3 A max load
current, 7.0 V @ 0.2 A max load current, 2.4 MHz
Post Linear regulator LDO, adjustable via OTP to 1.2 V, 1.25 V, 1.3 V, 1.8 V,
2.5 V, 2.8 V, 3.3 V, 5.0 V @ 300/600 mA max load current
Precise Voltage reference, adjustable via OTP to 1.8 V, 2.5 V, 3.3 V,
4.1 V @ 20 mA max load current
SPI interface with CRC
Programmable slew rate/soft start
Voltage supervisors
Spread frequency spectrum
Reset and reset activation list
Adjustable window watchdog supervisors
Power up phase programmable via OTP
Short circuit protected outputs and Fault detection pin to Microcontroller
Low external components number
Thermal shutdown junction temperature 175 °C
Description

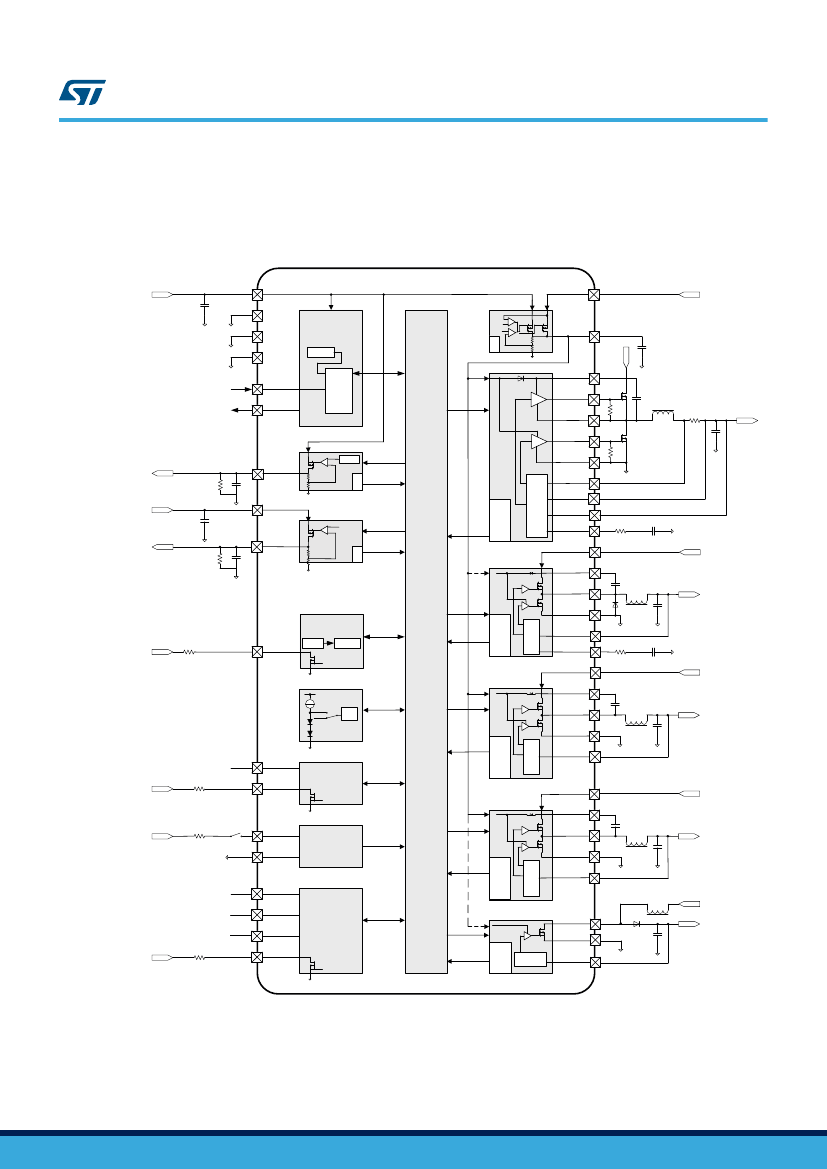

L5965 is a multiple voltage regulator composed by two battery compatible BUCK pre-
regulators (one of which is a controller), two BUCK post regulators with internal
compensation, one BOOST, one LDO and a precise voltage reference regulator. All
the regulators, except the BUCK1 pre-regulator, have internal power switches.
OTP (One Time Programmable) cells are used for the main device parameters
programming (output voltages and currents, switching frequencies) and to configure
power up sequence.
An SPI interface can be used to enable or disable the single voltage regulators, for
diagnostic information and to program internal blocks parameters (monitor and
Power Good thresholds, slew rate, etc.).
The device offers a set of features to support applications that need to fulfill functional
safety requirements as defined by Automotive Safety Integrity Level (ASIL) A-B-C-D.
Tape and
reel
DS12567
-
Rev 2
-
May 2019
For further information contact your local STMicroelectronics sales office.
www.st.com
