BO154F0224M--: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 160V, 0.22uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size52KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

BO154F0224M-- Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 160V, 0.22uF, THROUGH HOLE MOUNT, RADIAL LEADED

BO154F0224M-- Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: CECC300000
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	20%
Rated (AC) voltage (URac)	100 V
Rated (DC) voltage (URdc)	160 V
surface mount	NO
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

BO 07/10/15/27

CPM-50 — 7.5/10/15/27.5 Radial Leads

40/63/160/250/400 V-

APPLICATIONS

Non-inductive, capacitor for professional use with radial

leads. Insulated thermoplastic casing, epoxy resin sealed

with stand-offs.

Schematic Cross Section

Schoop

Metallized film

Some examples of use:

Oscillating circuit, LF filter, coupling and decoupling, frequency

discriminator.

0.4 (0.016) min

STANDARDIZATION

Generic specifications:

CEI 384-1/CECC 30000/UTE 83100

Sectional specifications:

CEI 384-2/CECC 30400/UTE 83151

On the LNZ 44-04 list:

Complies with type CPM50

On the GAM-T1 list:

ARIANE qualified

---- for case* in table page 25

DIMENSIONS:

Size

Code

millimeters (inches)

H max.

10.0

(0.394)

10.0

(0.394)

10.5 ... 16.5

(0.413 ... 0.650)

15.0 ... 30.0

(0.591 ... 1.181)

L max.

10.1

(0.398)

12.5

(0.492)

17.5

(0.689)

31.25

(1.230)

e max.

5.0

(0.197)

5.0

(0.197)

5.0 ... 10.0

(0.197 ... 0.394)

7.5 ... 17.5

(0.295 ... 0.689)

LS ±0.4

7.5

(0.295)

10.0

(0.394)

15.0

(0.591)

27.5

(1.083)

-0.05

+10%

Observations

1nF

≤

8.2nF

0.6

(0.024)

0.6

(0.024)

0.8

(0.031)

0.8

(0.031)

4.7nF

≤

220nF

15nF

≤

2.2µF

150nF

≤

22µF

HOW TO ORDER

BO 15

0104

––

Type

Class

Voltage

Capacitance Value

Tolerance

Suffix

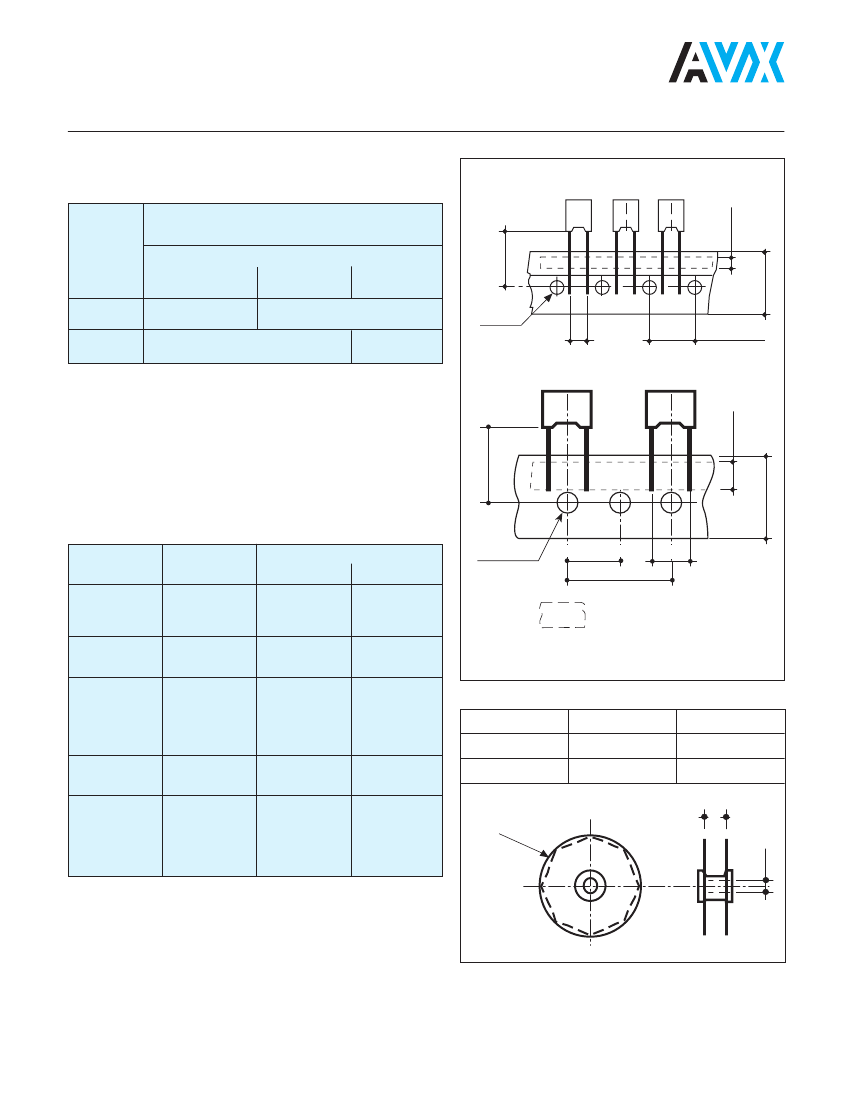

Tape and Reel

See page 27

PERFORMANCE CHARACTERISTICS

Climatic category:

Capacitance range:

Tolerances on C

(assoc. series)

Nominal voltages:

55/125/56 - Performance Class 1

1 nF to 2.2 µF

±5%, ±10%, ±20% (E6)

(other values on request)

R–

40/63/160/250/400 V

25/40/100/180/200 V

Category voltage:

= 0.5 V

R-

at 125°C

Test voltage:

= 1.6 V

R-

Tangent of loss angle: D.F. (see page 4)

Insulation resistance: IR (see page 5)

MARKING

Logo - CPM50B

Date of manufacture

Capacitance and tolerance 2 letter code

(CEI 62 code)

(year - month) according

Nominal voltage

to CEI 62

TPC

6 (0.236)

– 1 (0.039)

+ 0 (0.000)
