Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
LMK325BJ226MM-P
Features
Item Summary
22uF±20%, 10V,
X5R/B, 1210/3225 (EIA/JIS)
Lifecycle Stage
Non-preferred
Standard packaging quantity (minimum)
Taping Embossed 1000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
500 MΩ·μF
Yes
Yes
Yes
Reflow
22 uF ± 20 %
1210/3225
10 V
5%
X5R
-55 to +85 ℃
B
-25 to +85 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.30 mm
2.5 ±0.20 mm
2.5 ±0.20 mm
0.60 ±0.30 mm
2018.11.07
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

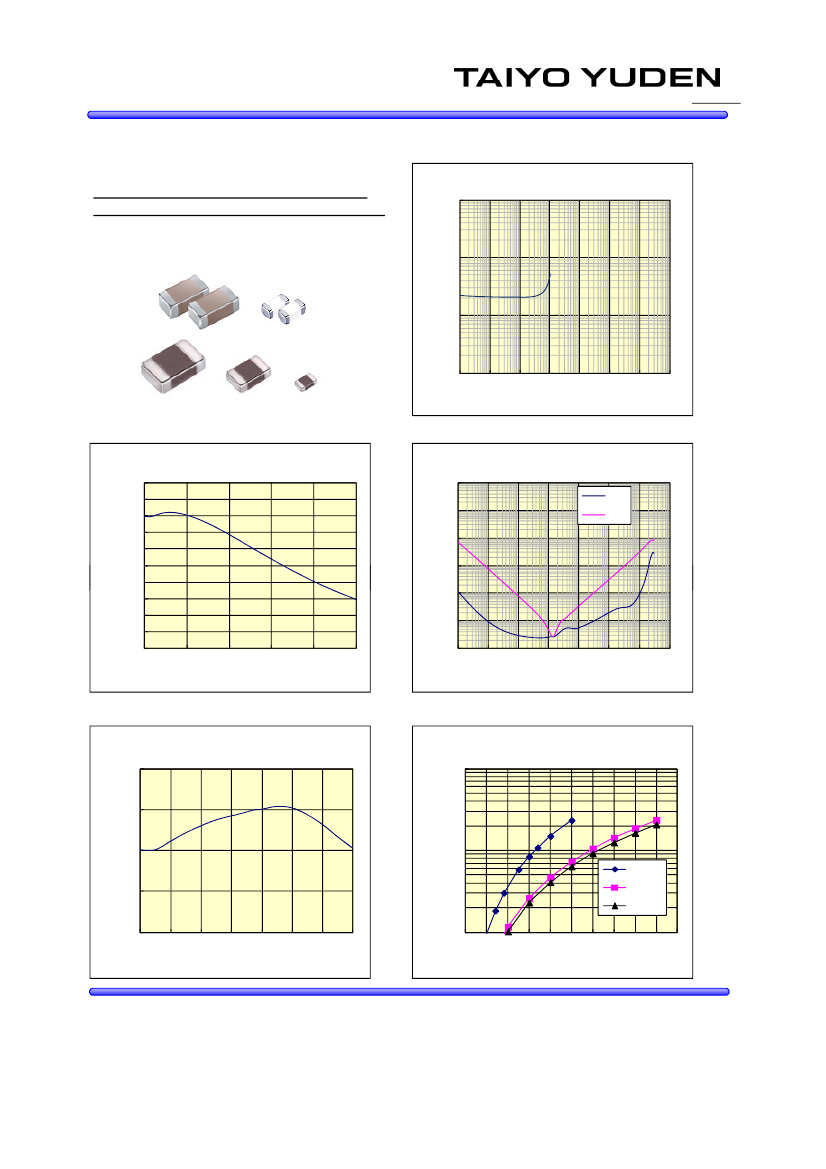

Multi Layer Ceramic Capacitor
○LMK325BJ226MM
10V 3225 B/X5R 22uF +/- 20% t=2.7mmMAX
10V 1210 B/X5R 22uF +/- 20% t=0.106inchMAX
1000
-Electrical Characteristics Data-
16HB03
RoHS compliance product
LMK325BJ226MM
Ca pacita nce Freq.
Capacitance[uF]
100
10
1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
2
LMK325BJ226MM
DC Bias Char.
1000
100
LMK325BJ226MM
Impedance,ESR Freq.
ESR
Z
Z,ESR[O
Z,ESR[OHM]
4
6
8
DC Bias Voltage[V]
10
10
1
dC/C
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
LMK325BJ226MM
Capacitance Temp.
10
100
LMK325BJ226MM
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
Ripple Current[Arms]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
