3GSR62G-C-100N-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GSR62G-C-100N-FREQ

3GSR62G-C-100N-FREQ: DescriptionSine Output Oscillator, 10MHz Min, 30MHz Max, ROHS COMPLIANT, SMD, 6 PIN; CategoryPassive components oscillator; File Size95KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

3GSR62G-C-100N-FREQ Overview

Sine Output Oscillator, 10MHz Min, 30MHz Max, ROHS COMPLIANT, SMD, 6 PIN

3GSR62G-C-100N-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	100%
Installation features	SURFACE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	11.4mm x 9.6mm x 2.5mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

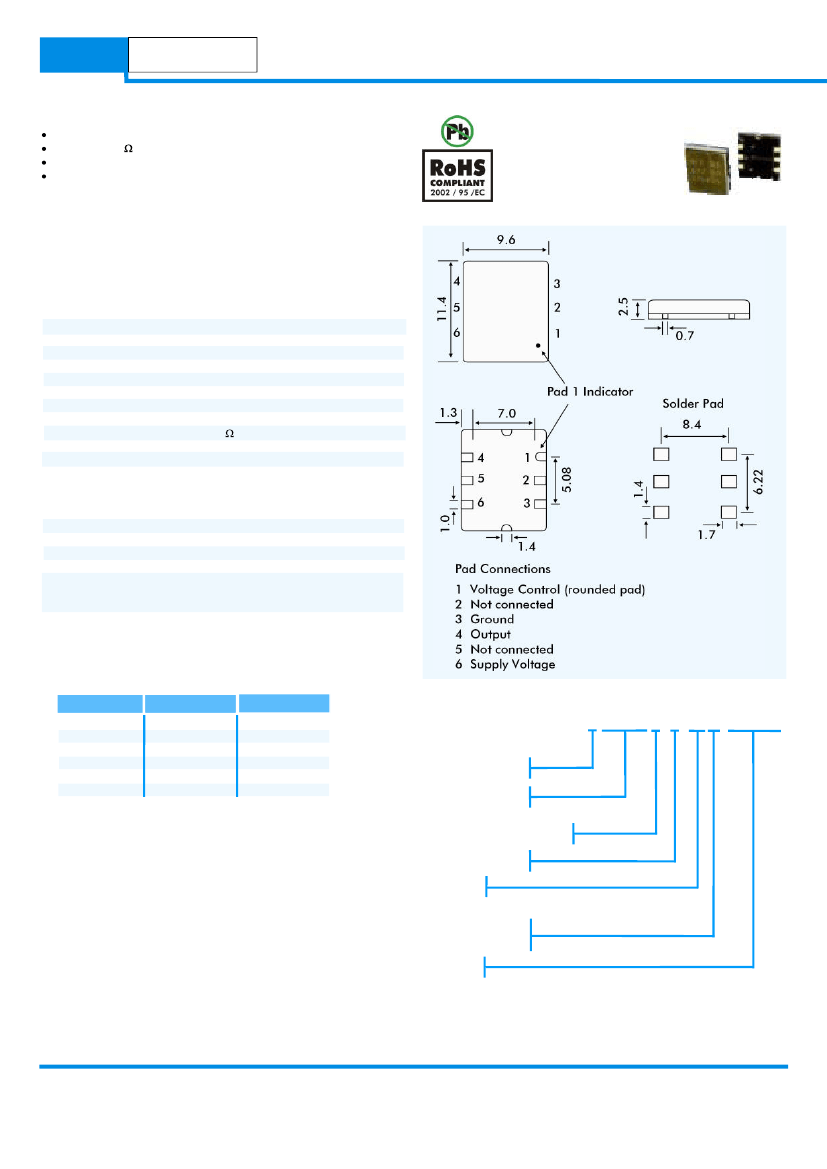

Preview

Download Datasheet

View All

EURO

QUARTZ

FEATURES

Sine Wave output VCXO

Output 10k //10pF load, 1.0V p-p

Harmonics < 25dBc

Low current consumption

DESCRIPTION

GSR62 sine wave VCXOs provide a true sine wave out output. The

VCXOs are packaged in the industry-standard, 6 pad 11.4 x 9.6mm

SMD package. The VCXO is produced to close tolerances and has low

current consumption.

GSR62 Sine Wave VCXOs

11.4 x 9.6 x 2.5mm SMD Sine Wave VCXO

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Input Voltage:

Frequency Stability:

Control Voltage Centre:

Initial Frequency Accuracy:

Control Voltage Range:

Frequency Deviation Range:

Output Wave Form:

Output Level:

Harmonics:

Phase Noise:

Current Consumption

Supply = 2.8V:

Supply = 3.3V:

Supply = 5.0V:

Start-up Time:

Storage Temperature:

Sub-Harmonics:

Ageing:

Enable/Disable:

10.0MHz to 30.0MHz

+2.8V, +3.3V±5% or +5.0VDC ±5%

See table

+2.5 VDC

±15ppm with Conrol V at +2.5VDC

+0.5V to +4.5VDC

±100ppm typical*

True Sine Wave

10k //10pF load, 1.0V p-p

<-25dBc

-130dBc/Hz at 1kHz offset

1.0mA

1.1mA

1.2mA

2.0ms typical

-50° to +125°C

None

±5ppm per year maximum

Output is high impedance (disabled)

when E/D pad/pin is taken LOW.

Disable time is 150ns maximum

Fully compliant

RoHS Status:

* Wider pulling range available

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

PART NUMBERING

Example:

Supply Voltage

3 = 3.3 Volts

5 = 5.0 Volts

Series Designation

GSR62

RoHS Status

G = compliant

Blank = non-compliant

Frequency Stability

See table

Pull Range

±ppm

Pull Range Code

M = Maximum

N = Minimum

T = Typical

Frequency

MHz

3GSR62G-A-80N-25.000

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
