FT3CVHFP25.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> FT3CVHFP25.0

FT3CVHFP25.0: DescriptionClipped Sine Output Oscillator,; CategoryPassive components oscillator; File Size180KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FT3CVHFP25.0 Overview

Clipped Sine Output Oscillator,

FT3CVHFP25.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Maximum control voltage	2.25 V
Minimum control voltage	0.25 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	15 ppm
frequency stability	15%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	3.2mm x 2.5mm x 1.0mm
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

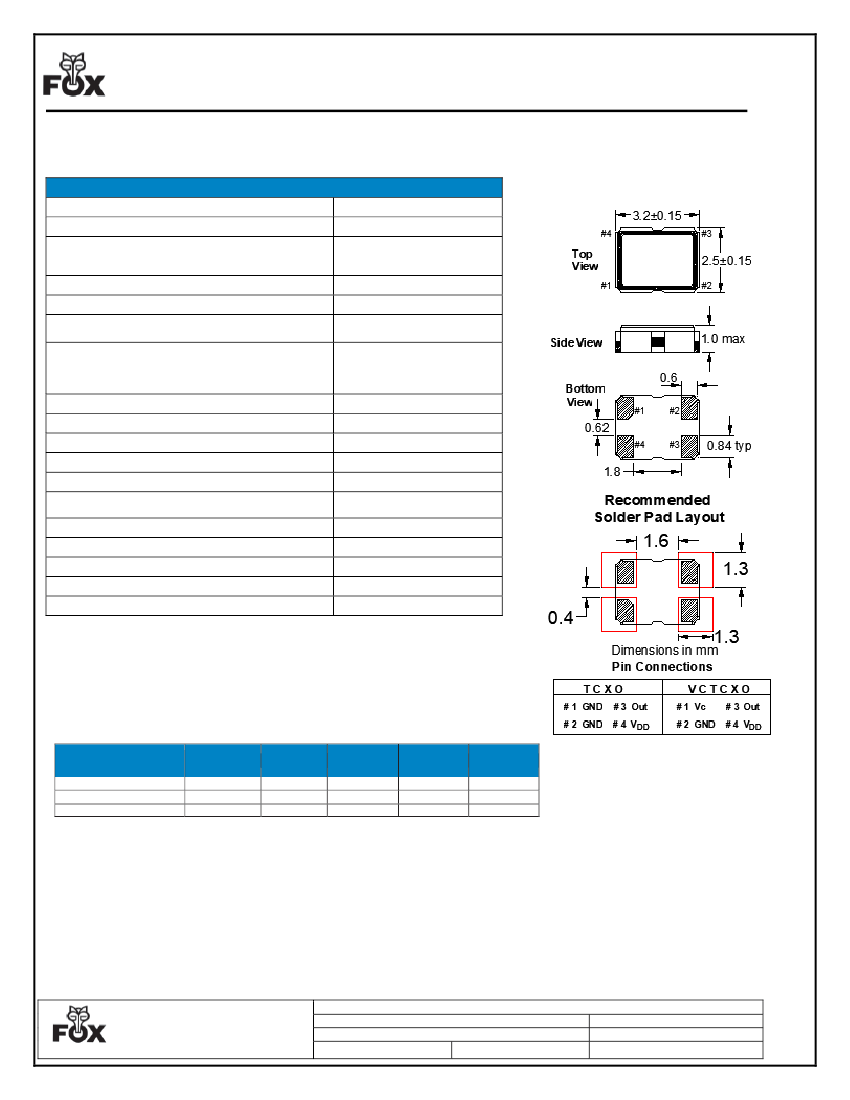

3.2x2.5mm C-Sine TCXO/VCTCXO



Digital Temperature Compensation

T3CN/T3CV

(former FOX923 Series)

DATASHEET

ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range (MHz)

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Supply Voltage

)

Input Current

)

Initial Frequency Tolerance @ 25°C (after reflow)

(T3CV: Vc = V

/2)

Frequency Stability

Over Temperature Range

Over Supply Voltage Change (V

±5%)

Over Load Change [10kΩ//10pF]+-10%

Output Voltage Level

Output Load

Pullability (T3CV: Vc = V

±1.0V)

Aging per year

Startup Time

)

Phase Noise

@ 1kHz offset

Reflow Soldering Temp

Moisture Sensitivity Level (MSL)

Termination Finish

Lead-Free

RoHS/REACH Compliant

MAX

(unless otherwise noted)

8.0 ~ 40.000

See table below

-40°C ~ +90°C

2.5V; 2.7V; 2.8V; 3.0V; 3.3V

2.0mA

±2.0 PPM

See table below

±0.3 PPM

0.8Vp-p min

[10kΩ//10pF]+-10%

±3 ~ ±15 PPM

±1.0 PPM

3.0mS

-130 dBc/Hz Typical

260ºC / 10 Seconds x 2

Au over Ni

Yes

Operating Temperature

±1 PPM

±1.5 PPM

±2 PPM

±2.5 PPM

±15 PPM

-30 ~+85ºC

-40 ~+85ºC



-40 ~+105ºC

Key: O=Available, X=Not Available, NA=Not

Applicable,



= Consult Fox Engineering

For proper operation, a control voltage (Vc) must be applied to pin 1 of VCTCXO’s.

All specifications subject to change without notice.

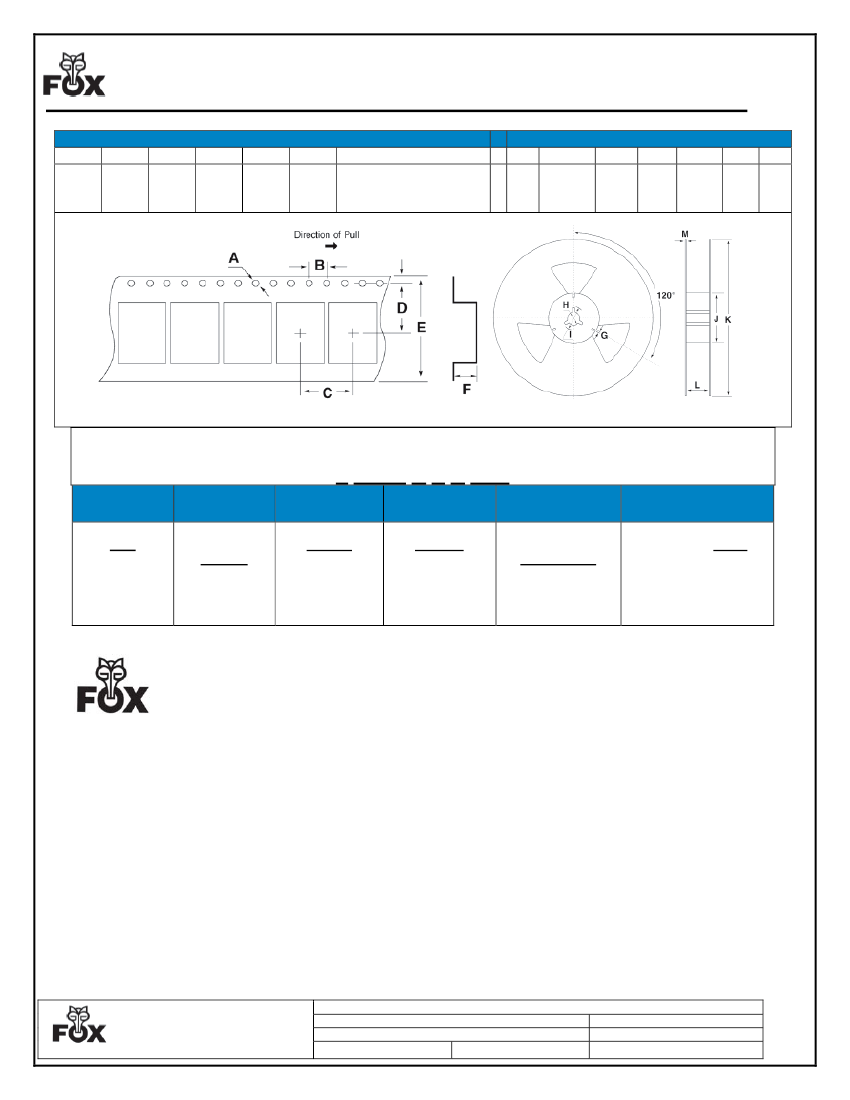

Page 1 of 2

Title / Description:

T3CN/TC3V SERIES STANDARD SPECIFICATIONS

Drawing Number: T3CN-TC3V-DOC-2

Size: A

Part Number:

Cage:

61429

Draftsperson: MAJ

Approved: BEC

Revision Date: 06/06/2019
