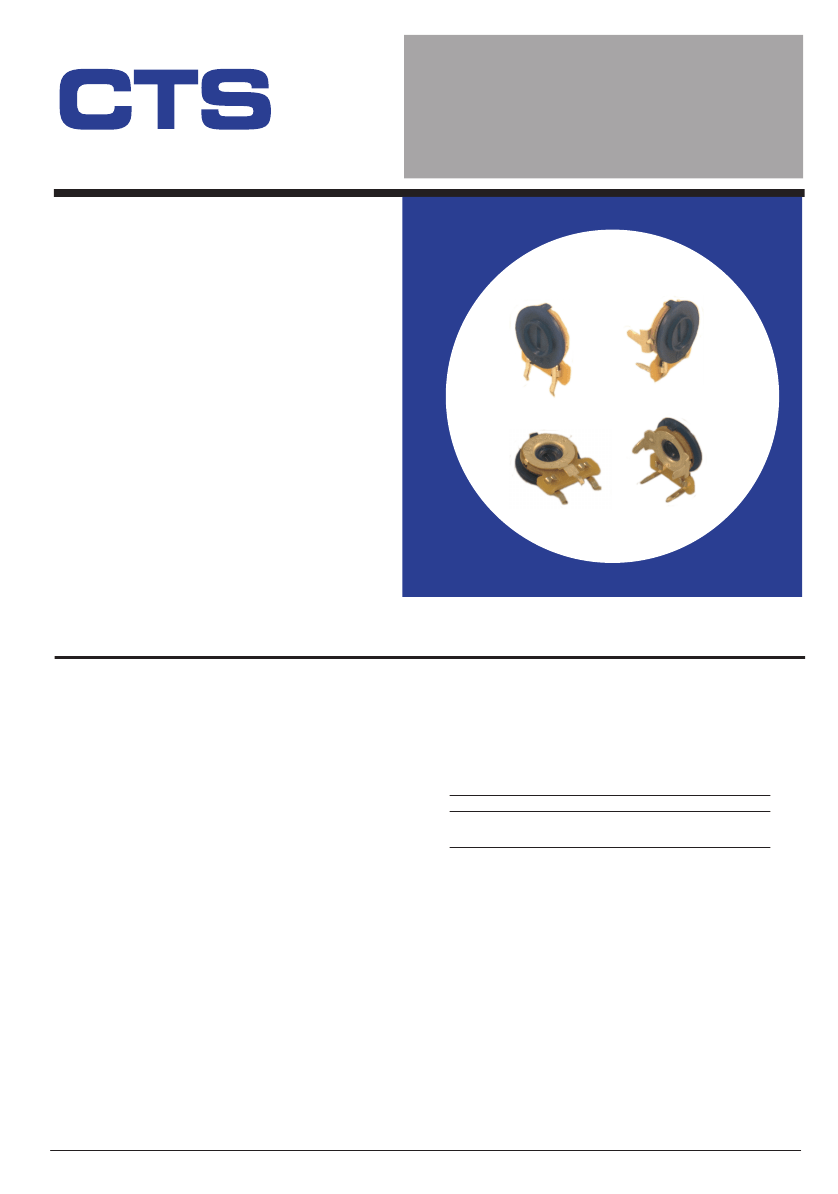

Electrocomponents
®
Series 201
Data Sheet
Trimmer Potentiometer
Commercial
15 mm Diameter
Carbon Composition
Trimmer Potentiometer
Features
• Miniature size — knob 19/32" (15.08mm)
diameter
• Printed circuit mounting with knob parallel
or perpendicular to printed circuit board
• Wide resistance range
• Knob slotted for screwdriver adjustment
• Reliable CTS composition resistance element
• Low cost
• RoHS compliant
Electrical and Mechanical Specifications
Resistance Range
500Ω through 5 Megohms
Fixed resistor available
Resistance Tolerance
±30%, ±20%, ±10%
Power Rating, Watts
1
/
4
watt @ 55°C
( resistance up to 5000Ω )
°
1
/
5
Stop Strength
2
1
/
2
in-lb (2.9 kgf-cm min.)
Adjusting Knob Information
Diameter: 19/32" (15.08mm)
Trim:
Knob Periphery
Knob Adjustmeent
Slotted — front or rear screwdriver adjust
CTS Type
201 R
Standard:
Smooth round
Standard Color:
Blue
watt @ 55°C
( resistance above 5000Ω )
Voltage Rating
350 VDC
Angle of Rotation
260°
Turning Torque
Standard: 3/4 to 6 in-oz (54 – 432 gf-cm)
Special : 2 to 7 in-oz (144 – 505 gf-cm)
Operating Temperature
-35°C
~
85°C
Mounting Information
Type 201U for mounting control with knob parallel to printed
circuit board.
Type 201X for mounting control with knob perpendicular to
printed circuit board.
1-2
CTS
Electrocomponents
©
2013 CTS Corporation. All rights reserved. Information subject to change.
11/13/13
www.ctscorp.com
