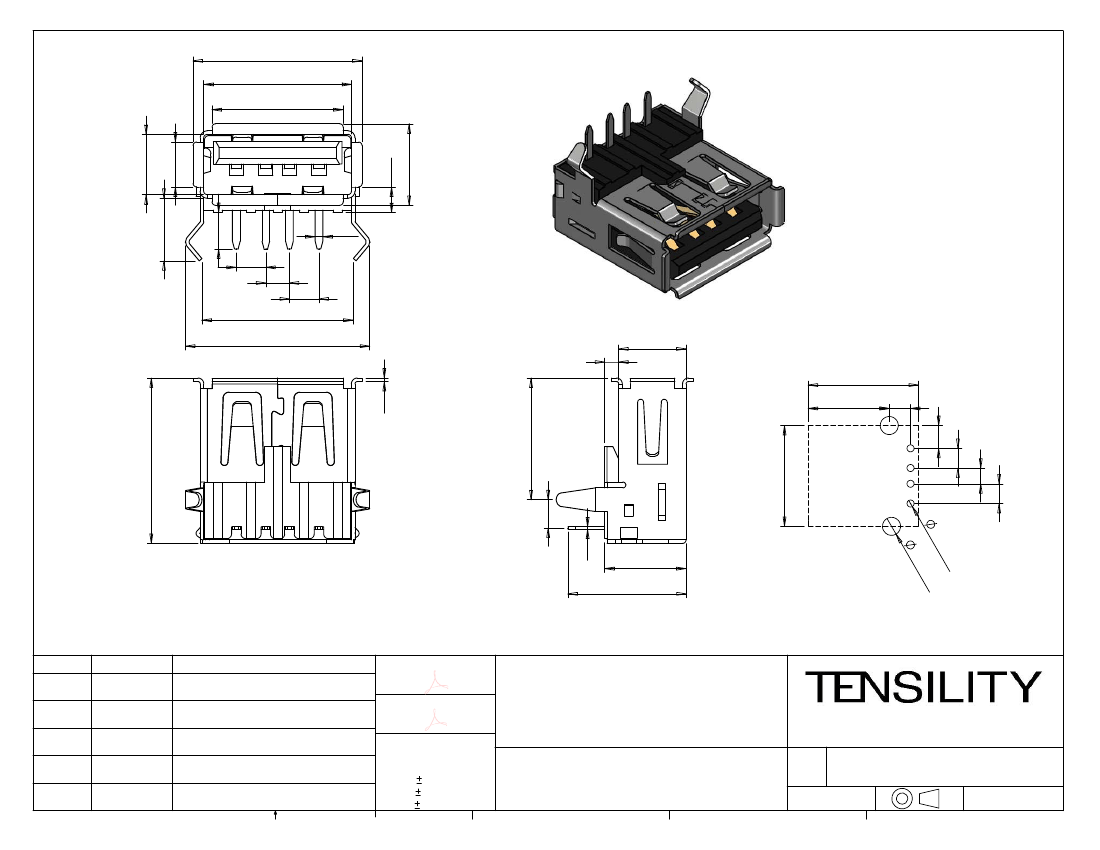

USB A jack 90° PCB mount
To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com
5.1
3.8
5.2 ±0.20
3.1
0.65
2.5
2
2.5
12.8 ±0.5
15.8 ±0.50
1.3
0.3
5.7
14
10.3
10.3
2.5
2.9
2.5
2
800
web
2.2
7.1
1
2
3
4
14
1
2
3
4
PCB Layout
12.8
2.5
0.2
7
10.1
Revision:
A
A1
Date:
09/28/2015
07/24/2018
Description:
Initial release
Corrected operating temp range
Prepared:
GL
Notes:
Digitally signed by GL
Date: 2018.08.06
09:26:39 -07'00'
RS
Verified:
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB A jack PCB mount, 90°, nickel shell,
board lock, black insulator, tray
3
2
tel
fax
Digitally signed by RS
Date: 2018.08.09
09:44:03 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
877.670.7118
tensility.com
Size:
A
Scale:
54-00001
2:1
1
Sheet 1 of 2
2.5
0. 9
(x4
)
2. 3
(x2
)
Electrical
Rated voltage: 30 Vdc
Rated current: 3 A
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 500 MΩ @ 500 Vdc
Contact resistance: 50 mΩ or less
Mechanical
Insertion force: 3.5 kgf maximum
Withdrawal force: 1.0 kgf minimum
Durability: 1500 cycle minimum life; less than 100 mΩ
contact resistance, minimum 100 MΩ insulation
resistance
Terminal strength: 0.3 kgf in any direction for 15
seconds without damage or looseness
Soldering
Solderability: 75% minimum coverage when terminals
dipped 2 mm in 245 ±5 °C solder bath for 3 ±0.5
seconds
Solder bath durability: no deformation when immersed
in 255 ±5 °C up to surface of the board for 5 seconds
or less
Solder iron durability: no deformation when exposed to
350 ±10 °C for 3 ±0.5 seconds
Environmental
Cold test: -40 ±3 °C for 48 hours without deformation
Heat test: 85 ±2 °C for 48 hours without deformation
Humidity test: 40 ±2 °C and humidity between 90 and
98 % for 48 hours without deformation
Operating range
-40 ~ 85 °C
PCB Layout
2. 3
1
2
Tin plating
3
14
Gold plating
10.3
2.5
2.9
Revision:
A
A1
Date:
09/28/2015
07/24/2018
Description:
Initial release
Corrected operating temp range
Prepared:
GL
RS
Notes:
Digitally signed by GL
Date: 2018.08.06
09:26:57 -07'00'
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB A jack PCB mount, 90°, nickel shell,
board lock, black insulator, tray
3
2
tel
fax
Verified:
Digitally signed by RS
Date: 2018.08.09 09:43:44
-07'00'
Dimensions are in
millimeters.
Tolerances:
0.5 mm
X:
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
800
web
877.670.7118
tensility.com
Size:
A
Scale:
54-00001
2:1
1
Sheet 2 of 2
2.5
Pin plating detail
2
3
4
12.8
2.5
1
To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com

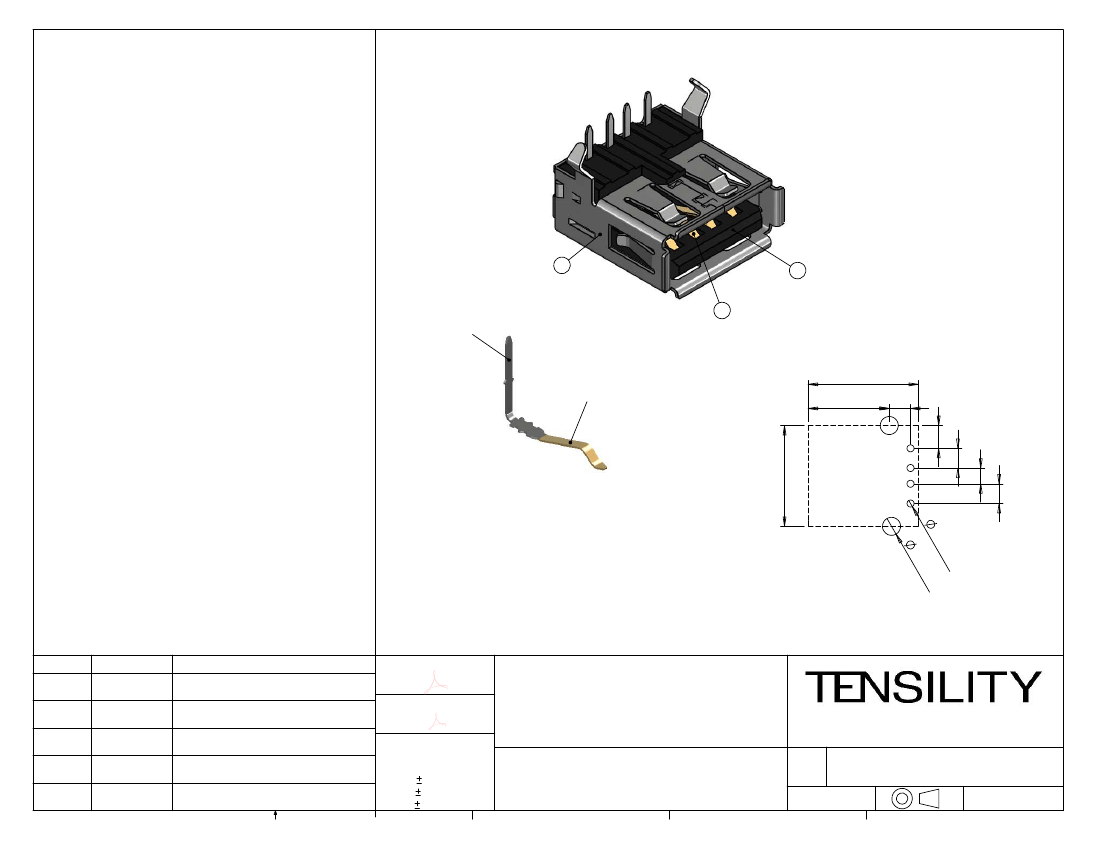

Materials
1. Shell, steel, nickel plated
2. Pins, brass, 5
μ"
gold and tin plating
3. Insulator, PBT, black
USB A jack 90° PCB mount
