12.9
9.2

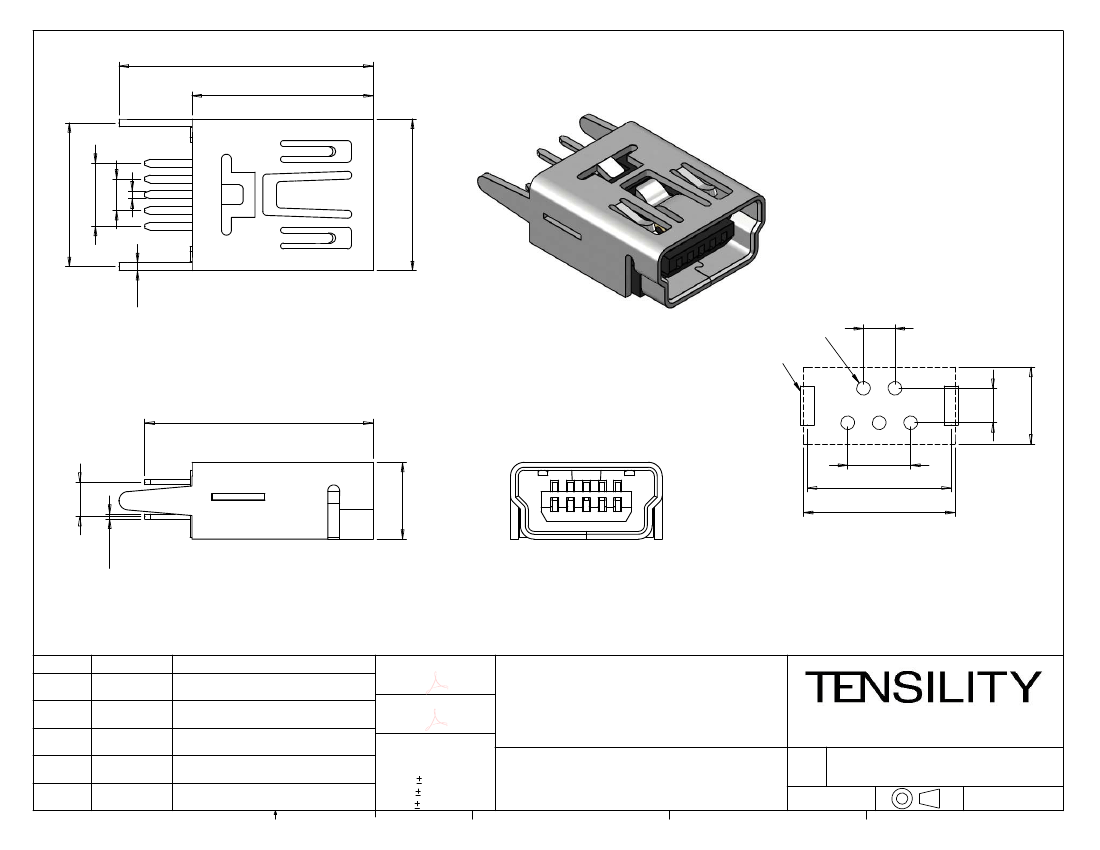

USB mini B jack 180° PCB mount
To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com
7.3
3.2
0.4
1.6
0.4
7.7
1.6
Ø 0.7 (x5)
2.0 x 0.7 (x2)
1
2
3
4
1.75
800
web
11.5
5
3.2
7.3
1.75
3.9
7.7
PCB Layout
0.25
Revision:
A
A1
Date:
09/28/2015
07/30/2018
Description:
Initial release
Corrected operating temp range
Prepared:
GL
Notes:
Digitally signed by GL
Date: 2018.08.06
11:10:52 -07'00'
RS
Verified:
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB mini B Jack, PCB mount, 180°, nickel
shell, DIP, black insulator, tray
3
2
tel
fax
Digitally signed by RS
Date: 2018.08.09
11:13:38 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
877.670.7118
tensility.com
Size:
A
Scale:
54-00023
5:1
1
Sheet 1 of 2
3.9
Materials
1. Shell, phosphor bronze, nickel plated
2. Pins, phosphor bronze, 5
μ"
gold and tin plating
3. Insulator, Nylon 46, black
Electrical
Rated voltage: 30 Vdc
Rated current: 2 A
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 50 mΩ or less
Mechanical
Insertion force: 3.5 kgf maximum
Withdrawal force: 0.7 kgf minimum
Durability: 5000 cycle minimum life; less than 100 mΩ
contact resistance, minimum 50 MΩ insulation
resistance
Terminal strength: 0.3 kgf in any direction for 15
seconds without damage or looseness
Soldering
Solderability: 75% minimum coverage when terminals
dipped 2 mm in 255 ±5 °C solder bath for 3 ±0.5
seconds
Solder bath durability: no deformation when immersed
in 260 ±5 °C up to surface of the board for 10
seconds
or less
Solder iron durability: no deformation when exposed to
350 ±10 °C for 3 ±0.5 seconds
Environmental
Cold test: -40 ±3 °C for 48 hours without deformation
Heat test: 85 ±2 °C for 48 hours without deformation
Humidity test: 40 ±2 °C and humidity between 90 and
98 % for 48 hours without deformation
Operating range
-40 ~ 85 °C
1
2

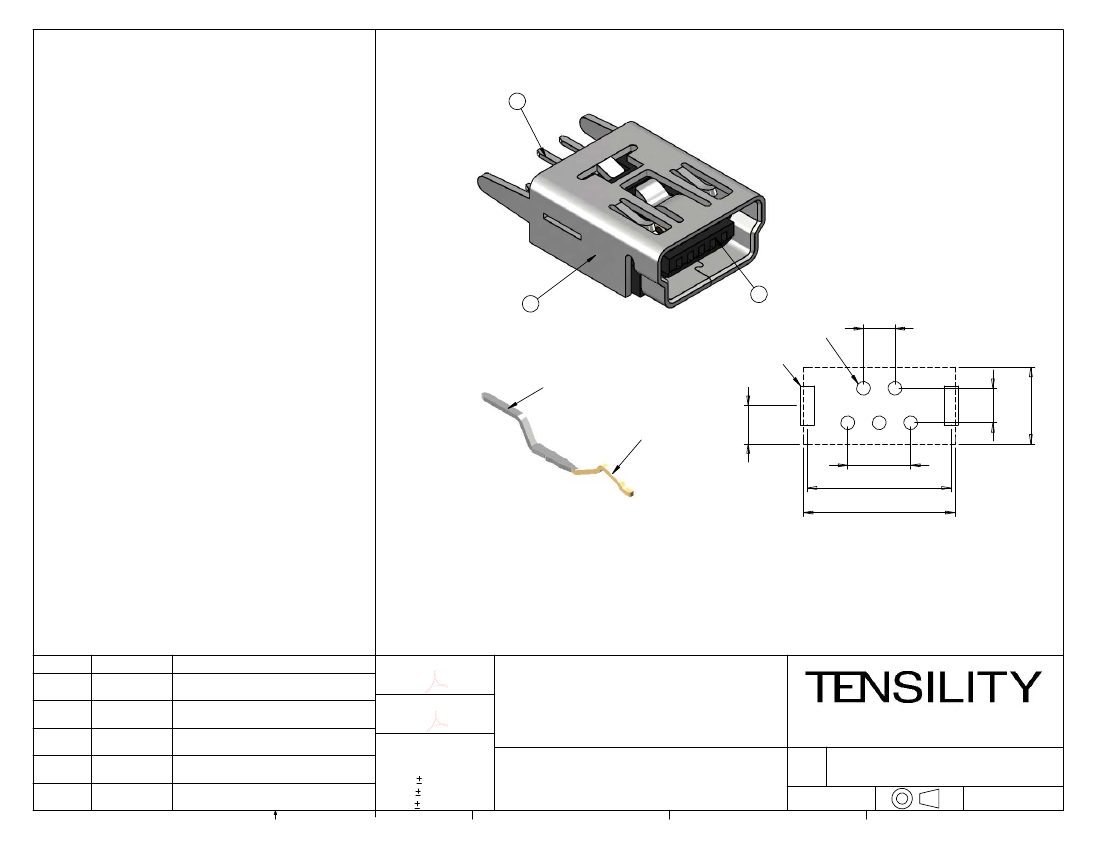

USB mini B jack 180° PCB mount
3
1.6
Ø 0.7 (x5)
2.0 x 0.7 (x2)
Tin
1.95
1
3
5
2
4
1.75
800
web
Gold
3.2
7.3
Pin plating detail
7.7
PCB Layout
Revision:
A
A1
Date:
09/28/2015
07/30/2018
Description:
Initial release
Corrected operating temp range
Prepared:
GL
Notes:
Digitally signed by GL
Date: 2018.08.06
11:11:09 -07'00'
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Connector, USB mini B Jack, PCB mount, 180°, nickel
shell, DIP, black insulator, tray
3
2
tel
fax
RS
Verified:
Digitally signed by RS
Date: 2018.08.09
11:14:05 -07'00'
Dimensions are in
millimeters.
Tolerances:
0.5 mm
X:
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
877.670.7118
tensility.com
Size:
A
Scale:
54-00023
5:1
1
Sheet 2 of 2
3.9
