8-1393222-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8-1393222-6

8-1393222-6: Description通用继电器 SPDT（1 Form C） 9VDC 线圈通孔; CategoryMechanical and electronic products relay; File Size274KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

8-1393222-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-1393222-6	-	-	View	Buy Now

8-1393222-6 Overview

通用继电器 SPDT（1 Form C） 9VDC 线圈通孔

8-1393222-6 Parametric

Parameter Name	Attribute value
category
Maker	TE Connectivity
series	MSR, SCHRACK
Package	Pipe fittings
Installation type	Through hole
coil voltage	9VDC
Contact shape	SPDT（1 Form C）
Rated contact (current)	8 A
switching voltage	400VAC - Max
coil current	24.7 mA
Coil type	No latch
characteristic	-
Termination style	PC pin
Sealing level	Sealed - All
coil insulation	Class A
Must pull in voltage	6.1 VDC
Voltage must be released	0.9 VDC
operating hours	10 ms
release time	5 ms
Operating temperature	-40°C ~ 85°C
Contact material	Silver Cadmium Oxide (AgCdO)
Relay type	Universal
Coil resistance	364 Ohms

Preview

Download Datasheet

View All

General Purpose

Low Power PCB Relays

Miniature Power PCB Relay MSR V23061

SCHRACK

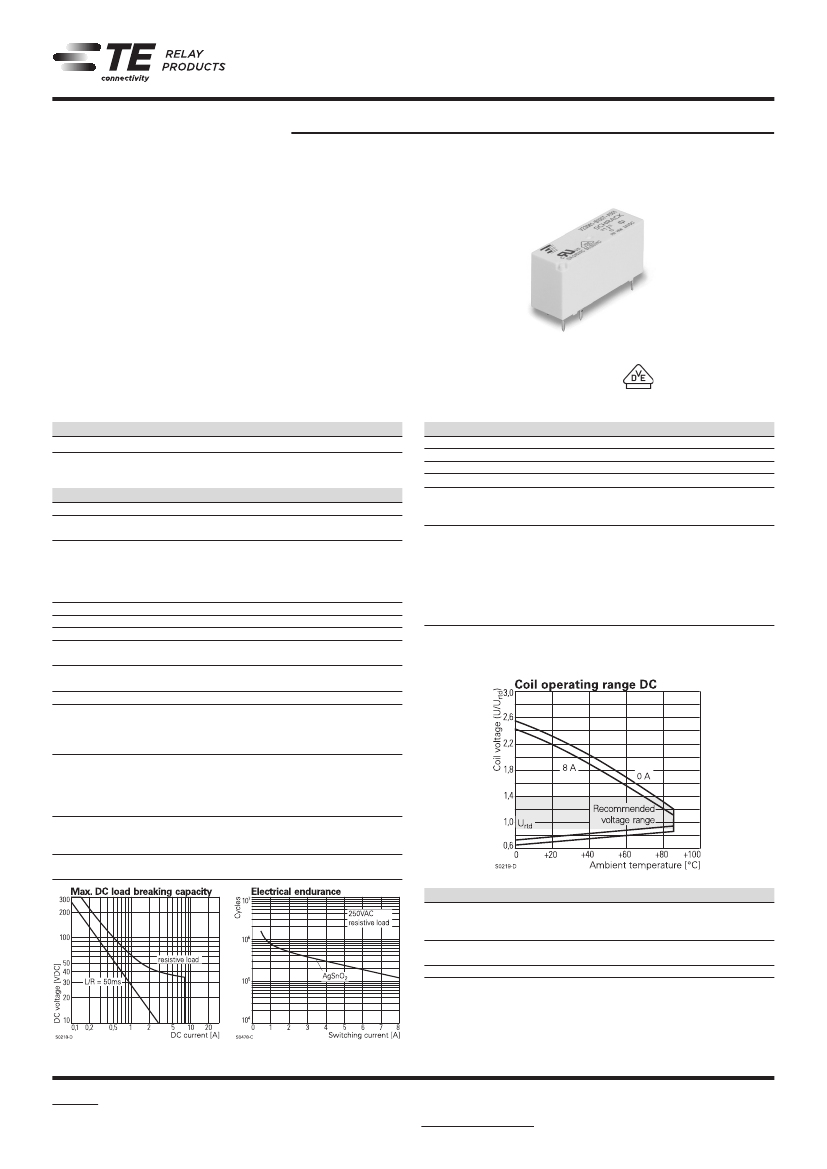

1 pole 8/10A, 1form C (CO) or 1 form A (NO) contact

High inrush currents with AgSnO

contacts (TV4 0 65A)

4kV/8mm coil-contact

Reinforced insulation (protection class II)

Ambient temperature up to 85°C at 8A

Plastic materials according to IEC 60335-1 (domestic appliances)

Typical applications

HVAC, interface technology. PLC’s, power supplies, TV-/monitor control,

domestic appliances, Hi-Fi products, timers.

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil insulation system according UL

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

001

2.1

002

3.4

003

4.1

004

6.1

005

8.2

007

16.3

009

32.6

010

40.8

3 to 60VDC

classA or classF

Release

voltage

VDC

0.3

0.5

0.6

0.9

1.2

2.4

4.8

6.0

Coil

resistance

Ω±10%

118

165

364

652

2270

8790

15265

Rated coil

power

225

212

218

223

221

254

262

236

Approvals

VDE Cert. No. 40017849, UL E214025

Technical data of approved types on request.

Contact Data

Contact arrangement

1 form C (CO) or 1 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

versions A,B

versions C, D

10A

Limiting making current, max 4s, df 10%

15A

version A302, max 20ms

65A

Breaking capacity max.

2000VA

Contact material

AgSnO

, AgNi90/10

Frequency of operation, with/without load

6/1200min-1

Operate/release time max.

10/5ms

Bounce time max., form A/form B

3/10ms

Contact ratings

Type

IEC 61810

V23061-A1***-A302

V23061-C2***-A802

UL 508

V23061-A1***-A302

V23061-C2***-A802

EN60730-1

V23061-A1***-A302

V23061-C2***-A802

Contact Load

A (NO)

8A, 250VAC, cosφ=1, 85°C

10A, 250VAC, cosφ=1, 85°C

5A, 250VAC, cosφ=1, 105°C

TV4, Tungsten, 120VAC, 40°C

Pilot duty, A300, 40°C

10A, 240VAC,

general purpose ,40°C

2(2)A, 250VAC, 85°C

4(4)A, 250VAC, 85°C

10x10

operations

Cycles

100x10

25x10

6x10

30x10

100x10

1) Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Other coil voltages on request.

Mechanical endurance, DC coil

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

Clearance/creepage

between contact and coil

Material group of insulation parts

1000V

rms

4000V

rms

≥8/8mm

IIIa

06-2018, Rev. 0618

www.te.com

a TE Connectivity Ltd. company.

Catalog and product specification according

to IEC 61810-1 and to be used only together

with the ‘Definitions’ section.

Catalog and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

application notes and all specifications are

subject to change.

Recommended Resources

Flashing alarm circuit 02

High-precision adjustable voltage stabilized power supply circuit diagram

Ring current alarm circuit

Clever use of LM386 as a small power positive and negative voltage stabilized power supply circuit diagram

Field effect transistor flyback switching power supply circuit diagram

subwoofer circuit
