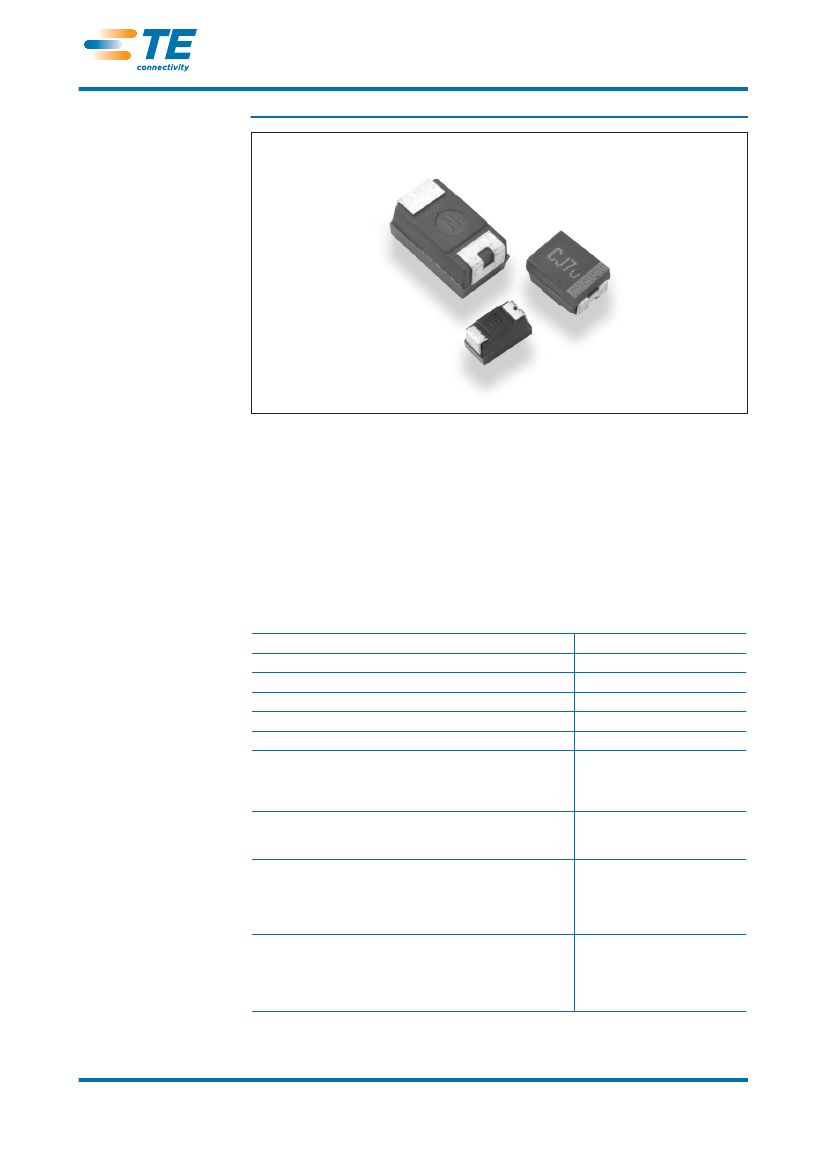

Low ESR Tantalum Capacitors
Type TYTR Series
Key Features
I
I
I
I
I
I
Suitable for High
Frequency Applications
Excellent Impedance
Characteristics
P, A, B, C & D
Case Sizes
4V to 50V Ratings
10% or 20% Tolerance
RoHS Compliant
Product Specifications
Product Specifications:
O
-55°C ~ +125°C
DC4 ~ 50V
DC5 ~ 65V
DC2.5 ~ 33V
0.1 ~ 470μF
±10% or 20%
0.01 CV or less
P Case 1000 ~ 6000mΩ
MAX
A Case 500 ~ 4000mΩ
MAX
B Case 500 ~ 2000mΩ
MAX
C Case 200 ~ 500mΩ
MAX
D Case 100 ~ 350mΩ
MAX
P Case
A Case
B Case
C Case
D Case
120 ~ 300mA
rmsMAX
150 ~ 440mA
rmsMAX
220 ~ 400mA
rmsMAX
400 ~ 700mA
rmsMAX
500 ~ 1000mA
rmsMAX
LE
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
The TYT series of moulded solid Tantalum chip capacitors is designed for high solder heat
resistance and ease of automatic placement. The product is provided with both excellent
frequency and impedance characteristics.
The four different product types cover the majority of requirements for this product series.
TYTS series is the standard type used in many industries and TYTM series extends this
product range by applying advanced manufacturing technology, thereby allowing reduced
sizes and extended value range. TYTP series allows even further miniaturisation offering many
values in an 0805 package size. The series is completed with the TYTR series whch offers a
comprehensive range of low ESR products.
T
B
S
Operating Temp. Range:
Rated Voltage:
Surge Voltage:
Derated Voltage:
Capacitance:
O
Capacitance Tolerance:
Leakage Current:
ESR (100kHz):
Maximum Permitted Ripple
Current (100kHz, 20°C):
1773296 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
E
Test Conditions JIS C5101-3(1998)
85°C
85°C
125°C
Measuring Frequency:120Hz ±10%,
Measurement Circuit: Equivalent
Series Circuit: Measuring Voltage
Max.: 0.5Vrms,+1.5Vdc.
Series Protective Resistor:1000Ω
Measuring Voltage: Rated voltage
Measuring Time: 5 minutes
Measuring Frequency: 100kHz
100kHz, 20°C
