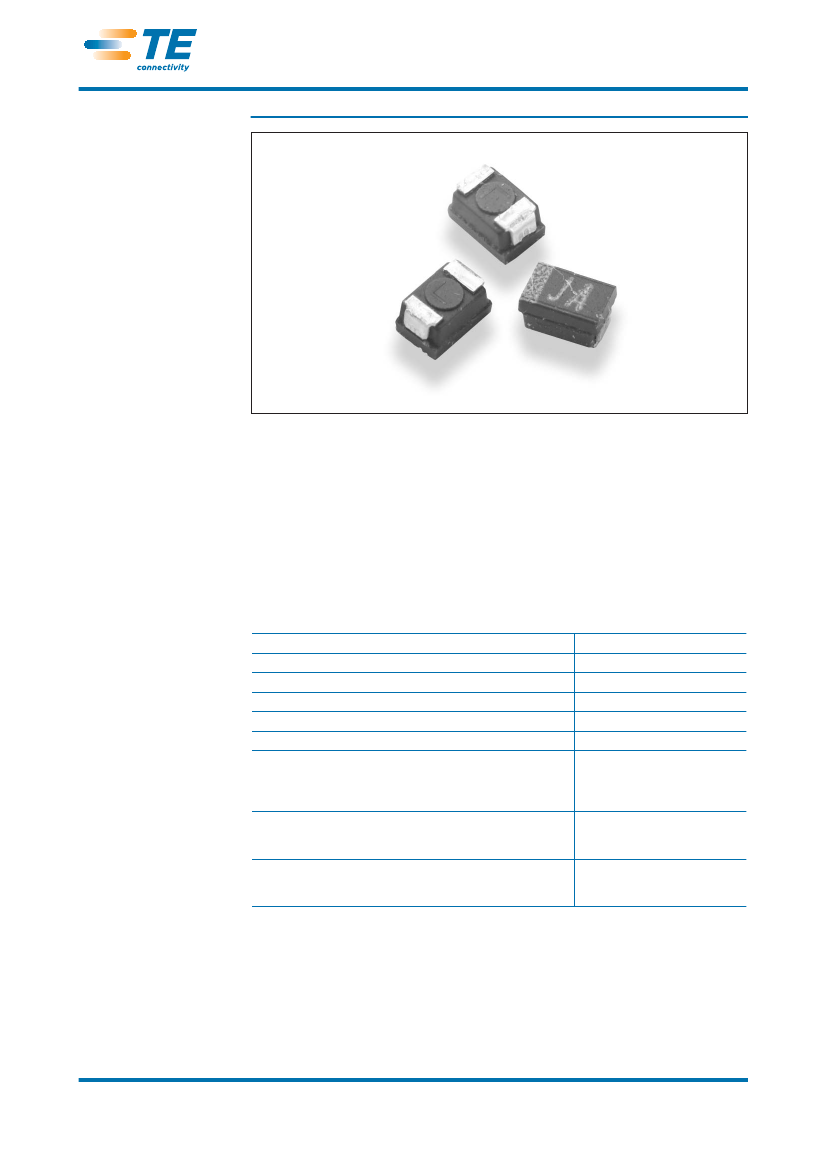

0805 Size Tantalum Capacitors
Type TYTP Series
Key Features
I
I
I
I
I
I
I
Excellent Frequency
Characteristics
Excellent Impedance
Characteristics
Super Compact Size
Suitable for High Density
Packaging
2.5V to 20V Ratings
10% or 20% Tolerance
RoHS Compliant
Product Specifications
Product Specifications
O
-55°C ~ +125°C
DC2.5 ~ 20V
DC3.2 ~ 26V
DC1.6 ~ 13V
0.1 ~ 10μF
±10% or 20%
Refer to standard product table
ΔC/C ±10% or less
tan∂ Specified initial value or less
LC
Specified initial value or less
LE
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
The TYT series of moulded solid Tantalum chip capacitors is designed for high solder heat
resistance and ease of automatic placement. The product is provided with both excellent
frequency and impedance characteristics.
The four different product types cover the majority of requirements for this product series.
TYTS series is the standard type used in many industries and TYTM series extends this
product range by applying advanced manufacturing technology, thereby allowing reduced
sizes and extended value range.
TYTP series allows even further miniaturisation offering many values in an 0805 package size.
The series is completed with the TYTR series whch offers a comprehensive range of low ESR
products.
T
B
S
Operating Temp. Range:
Rated Voltage:
Surge Voltage:
Derated Voltage:
Capacitance:
O
Capacitance Tolerance:
Leakage Current:
Surge Withstanding Voltage:
1773295 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
E
Test Conditions JIS C5101-3(1998)
85°C
85°C
125°C
Measuring Frequency:120Hz ±10%,
Measurement Circuit: Equivalent
Series Circuit: Measuring Voltage
Max.: 0.5Vrms,+1.5Vdc.
Series Protective Resistor:1000Ω
Measuring Voltage: Rated voltage
Measuring Time: 5 minutes
