1-6450862-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Backplane connector> 1-6450862-6

1-6450862-6: Description26 连接器插座，母插口和片状插口通孔黑色多束; CategoryThe connector Backplane connector; File Size1001KB，9 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-6450862-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-6450862-6	-	-	View	Buy Now

1-6450862-6 Overview

26 连接器插座，母插口和片状插口通孔黑色多束

1-6450862-6 Parametric

Parameter Name	Attribute value
category
Maker	TE Connectivity
series	MULTI-BEAM XLE
Package	Bulk
Connector usage	-
Connector type	Sockets, female sockets and blade sockets
Connector style	多束
Number of needles	26
加载的针位数	all
spacing	0.100"（2.54mm）
Number of rows	4
Number of columns	-
Installation type	Through hole
Termination	Press fit
触头布局，典型	20 signals, 6 power
characteristic	guide pin
触头表面处理	-
触头表面处理厚度	-
color	black
Rated current (amps)	-
Material flammability rating	UL94 V-0
Operating temperature	-20°C ~ 105°C
Rated voltage	-

Preview

Download Datasheet

View All

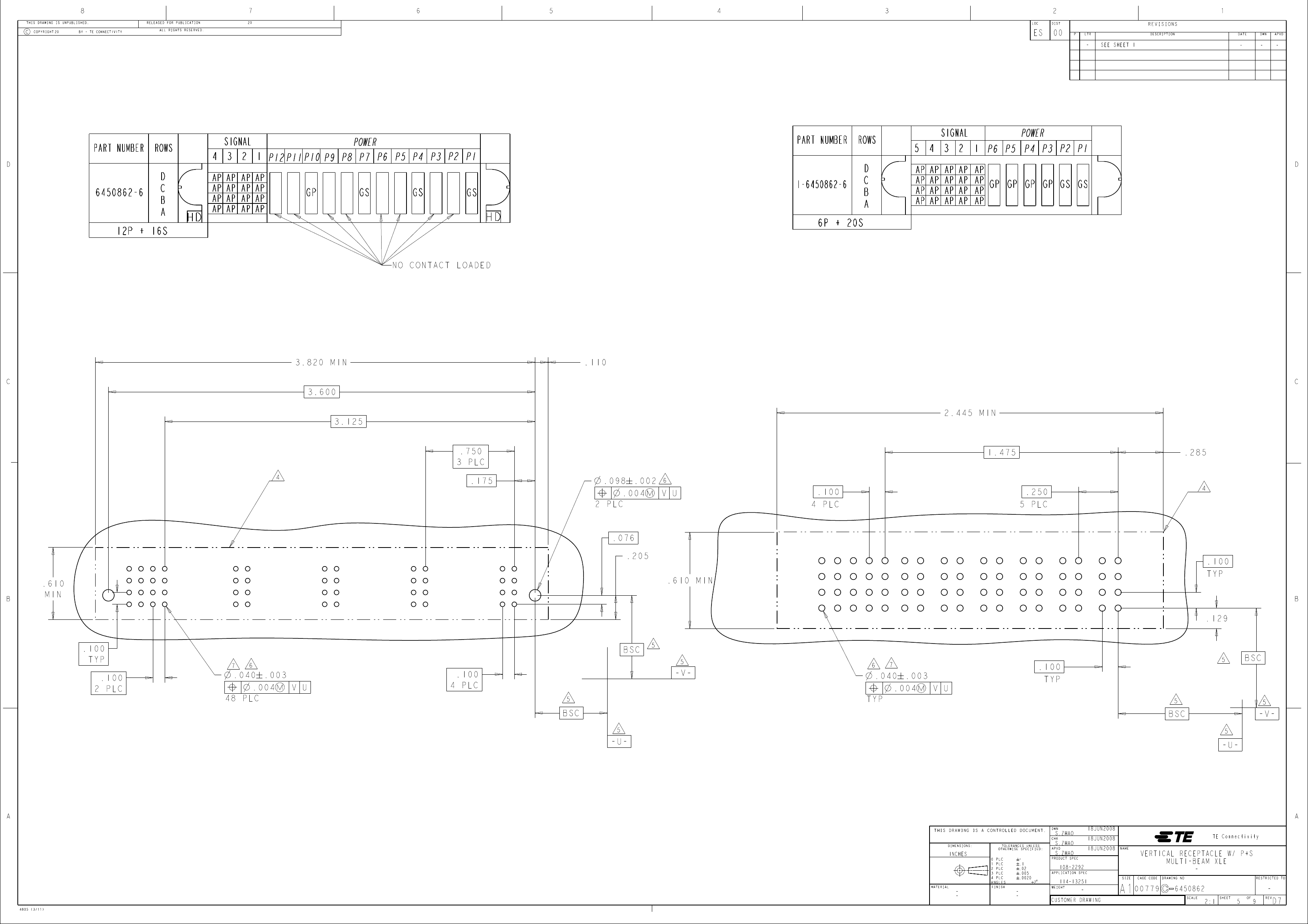

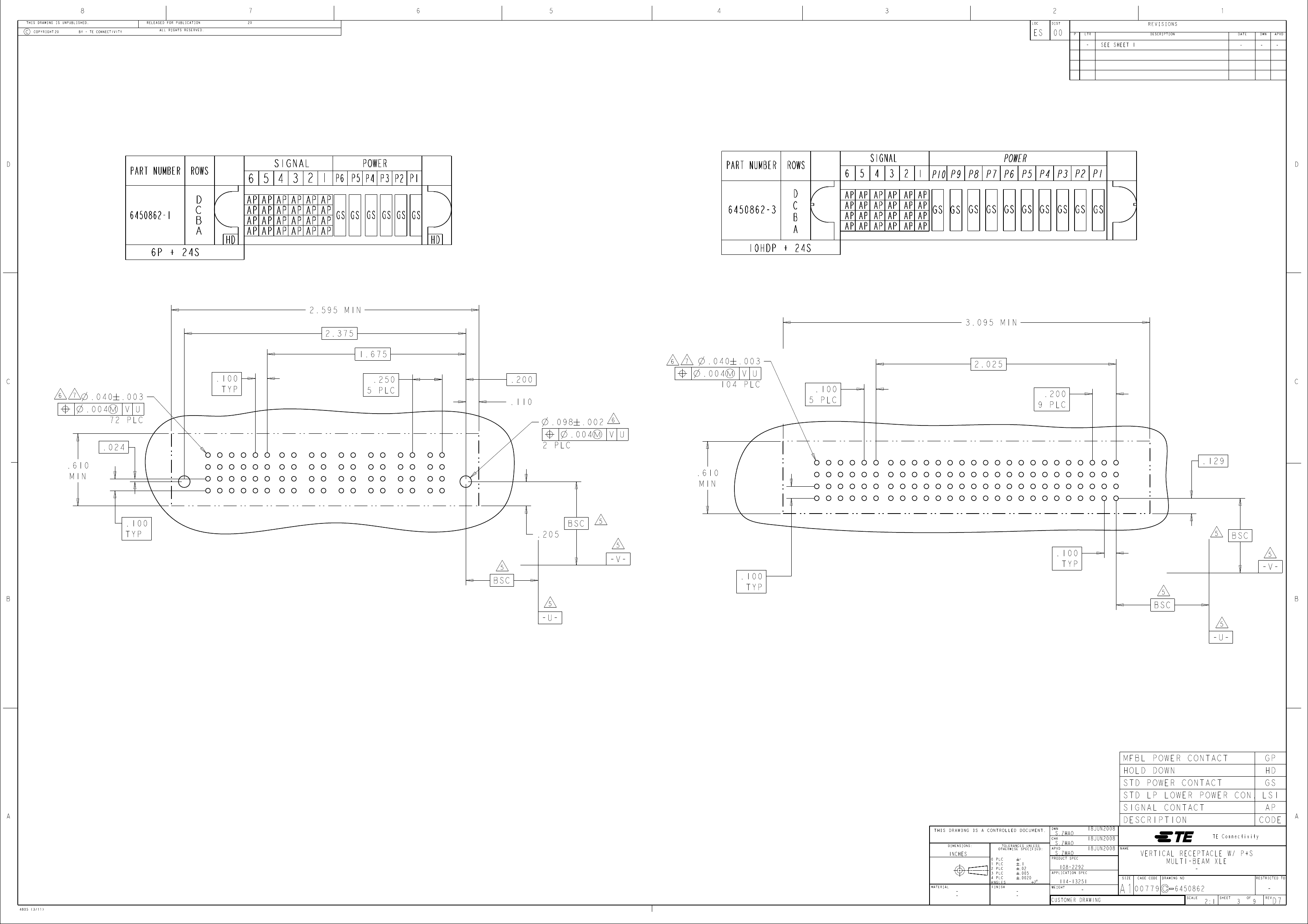

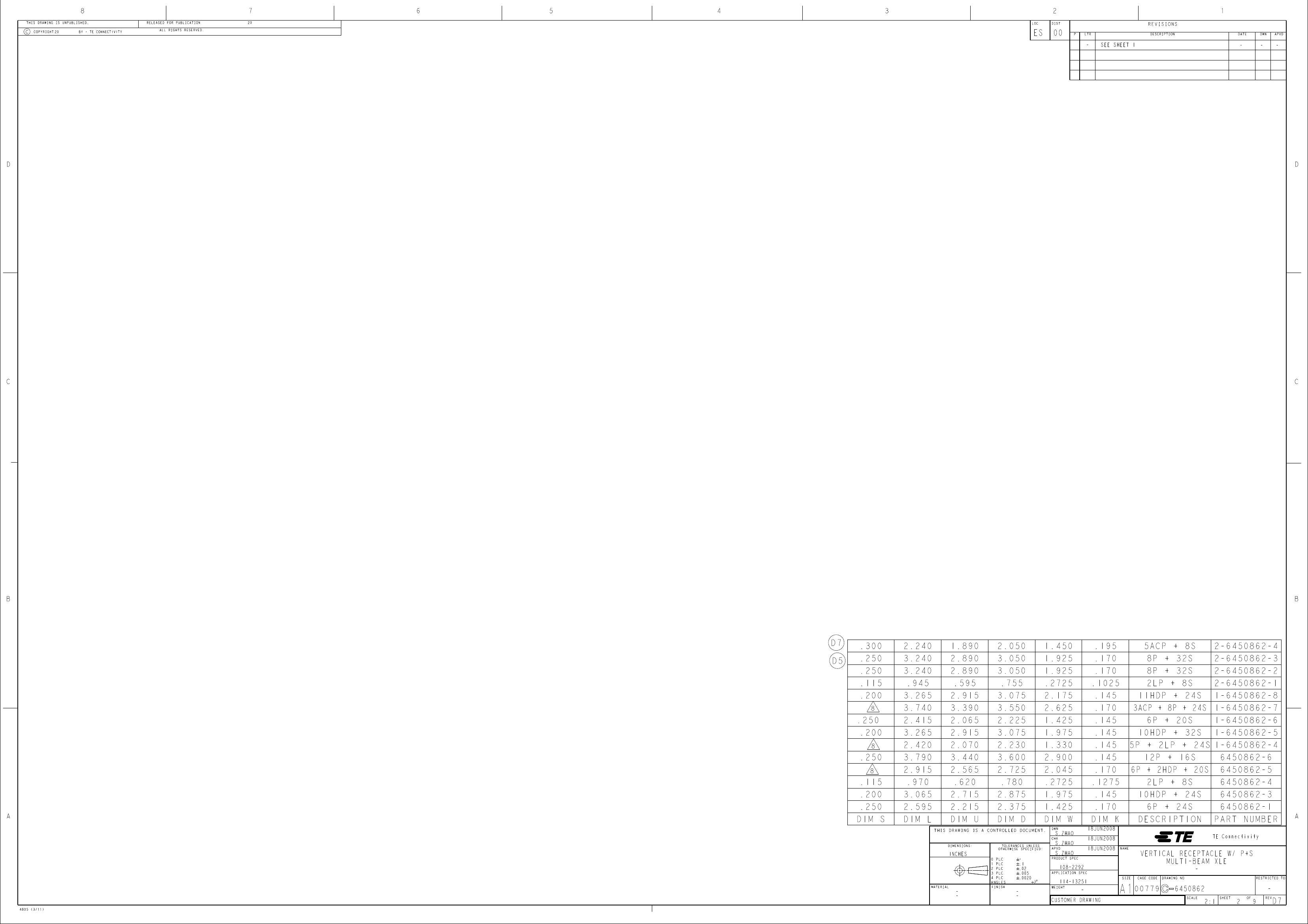

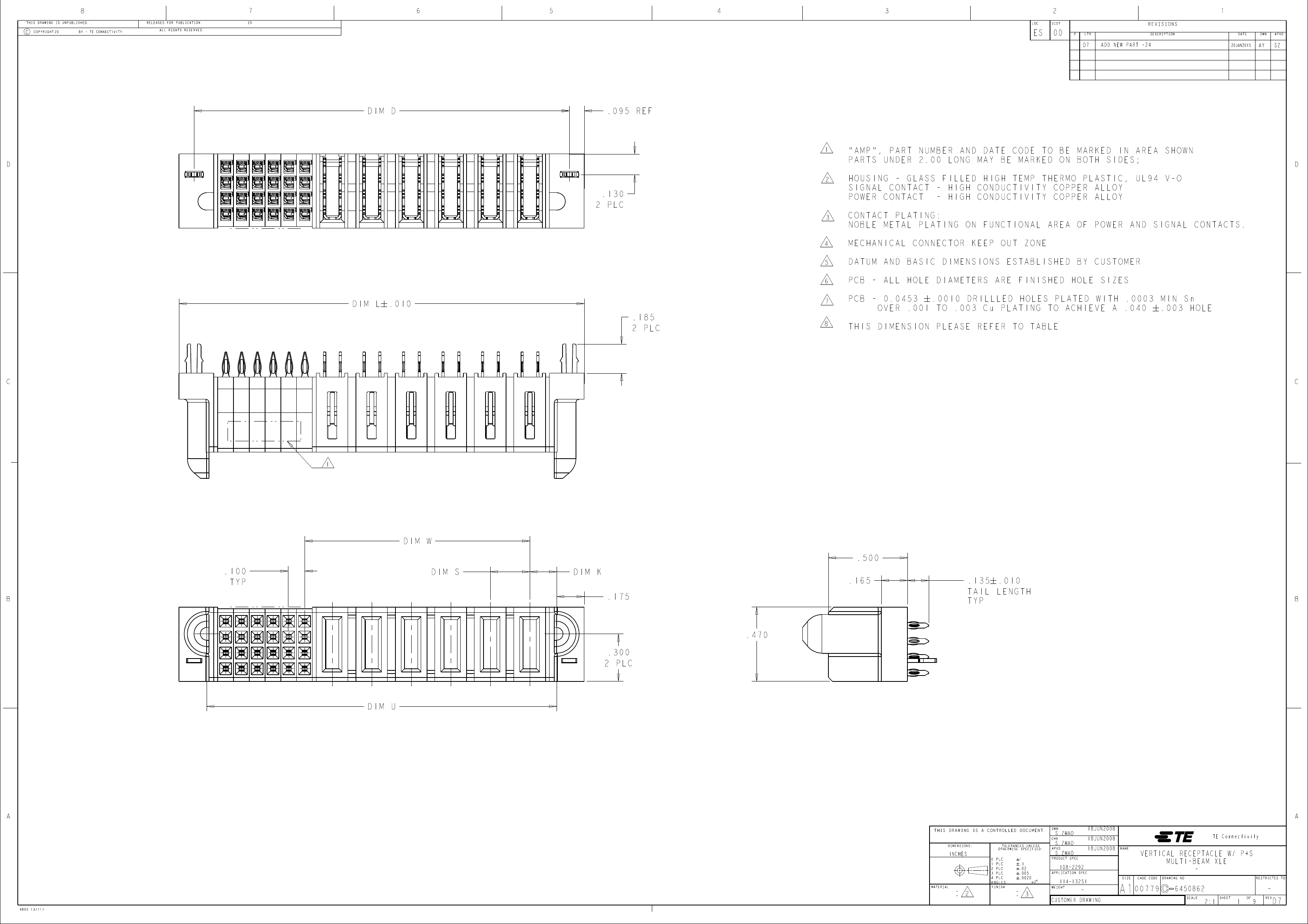

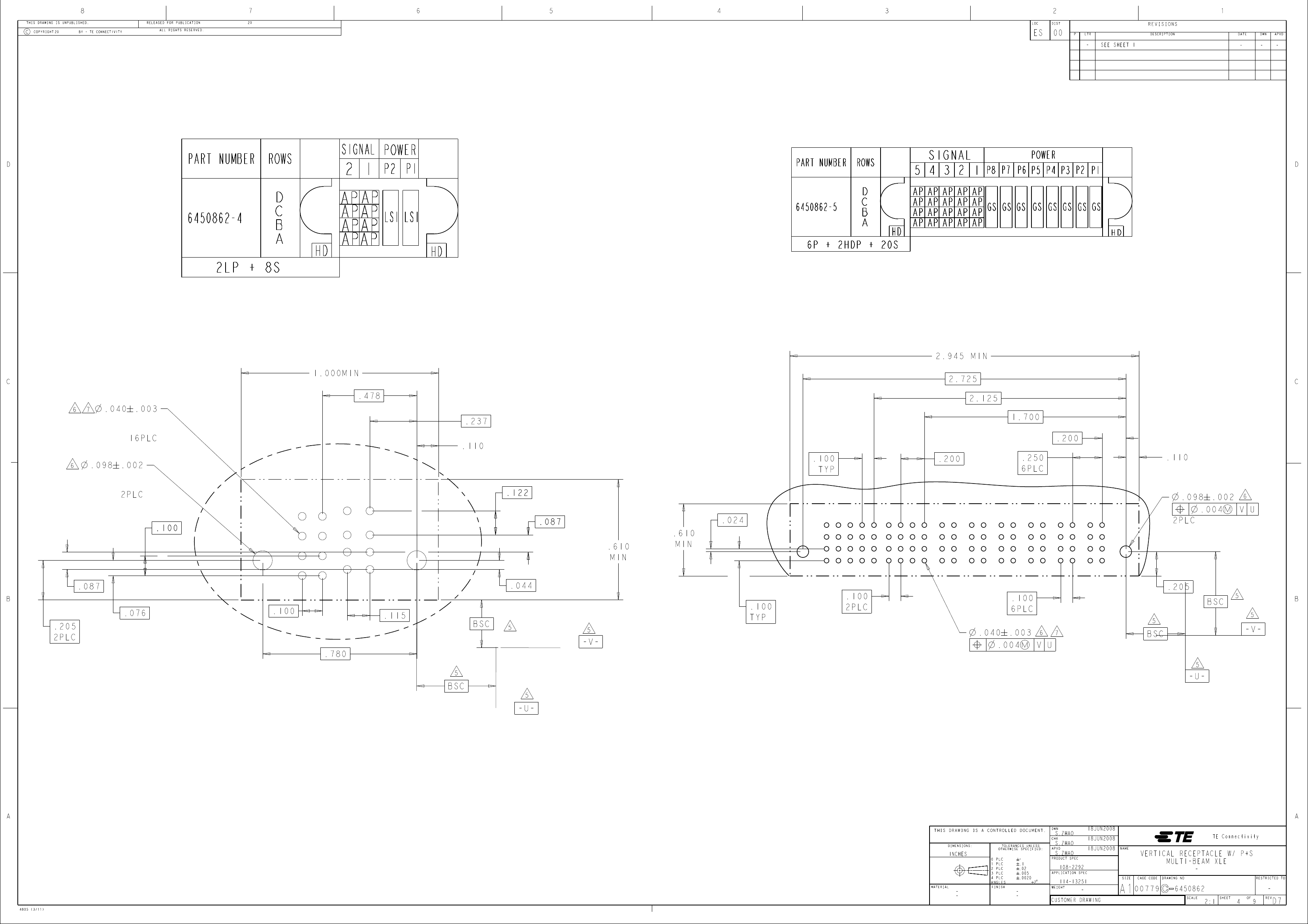

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY - TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADD NEW PART -24

20JAN2015

DIM D

.095

REF

"AMP", PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES;

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

CONTACT PLATING:

NOBLE METAL PLATING ON FUNCTIONAL AREA OF POWER AND SIGNAL CONTACTS.

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - 0.0453 # .0010 DRILLLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 # .003 HOLE

THIS DIMENSION PLEASE REFER TO TABLE

.130

2 PLC

DIM L # .010

.185

2 PLC

DIM W

.100

TYP

.500

DIM S

DIM K

.175

.165

.135 .010

TAIL LENGTH

TYP

.470

.300

2 PLC

DIM U

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

S.ZHAO

18JUN2008

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

.02

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

FINISH

2 $

WEIGHT

114-13251

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

VERTICAL RECEPTACLE W/ P+S

MULTI-BEAM XLE

DRAWING NO

RESTRICTED TO

6450862

SCALE

4805 (3/11)

2:1

SHEET

REV
