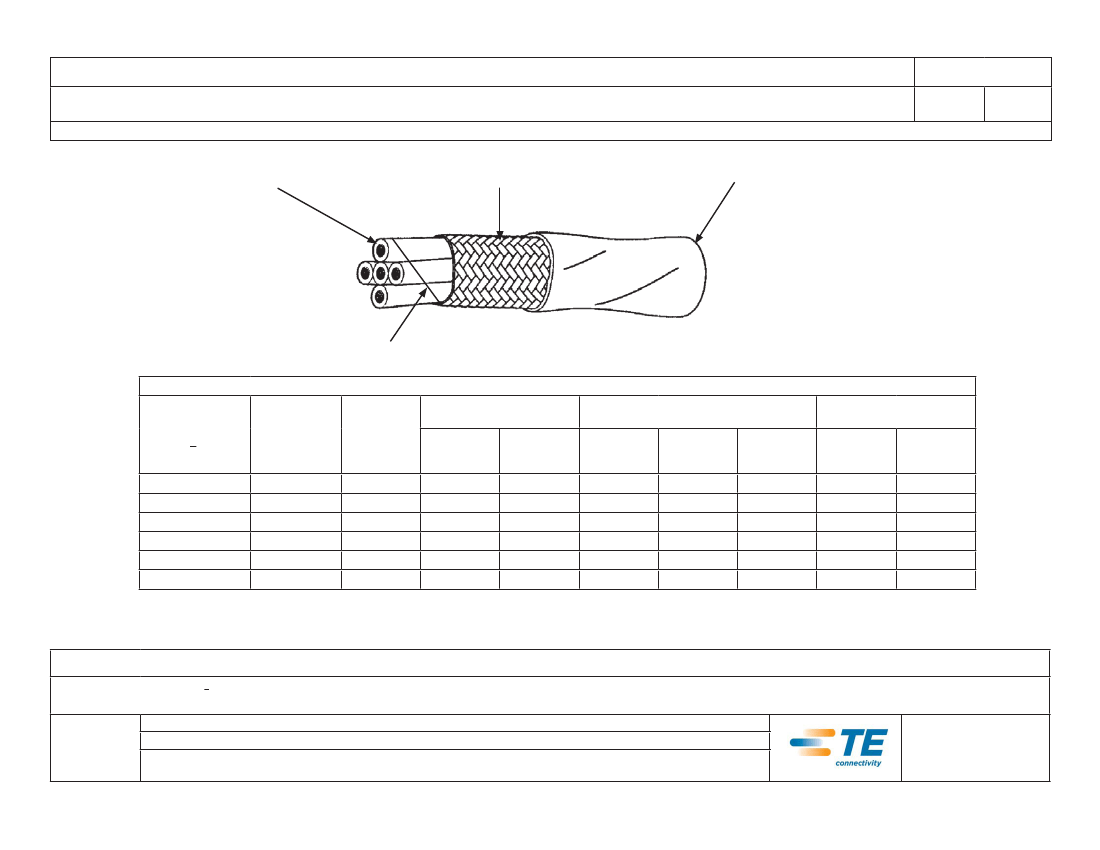

SPECIFICATION CONTROL DRAWING
TITLE
55PC6155
Date
FIVE CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55PC.
10-28-11
Revision
B
COMPONENT WIRES - 55PC0116
SHIELD - NICKEL-COATED COPPER
JACKET -
RADIATION-CROSSLINKED,
MODIFIED ETFE
FILAMENT BINDER AS REQUIRED
CONSTRUCTION DETAILS
CONDUCTOR
SIZE
(AWG)
26
24
22
20
18
16
SHIELD
STRAND
THICKNESS
(± .0004)
.0015
.0015
.0015
.0015
.0015
.0015
JACKET THICKNESS
( in. )
LOWER
SPEC
LIMIT
.0065
.0070
.0070
.0075
.0075
.0080
TARGET
WALL
.0085
.0090
.0090
.0095
.0095
.0100
LOWER
SPEC
LIMIT
.100
.109
.125
.147
.172
.192
OUTSIDE DIAMETER
( in. )
TARGET
VALUE
.111
.123
.140
.164
.191
.213
UPPER
SPEC
LIMIT
.121
.137
.155
.181
.209
.233
WEIGHT
( lbs/1000 ft. )
TARGET
VALUE
10.54
14.25
19.52
28.00
40.27
50.38
UPPER
SPEC
LIMIT
11.25
15.10
20.45
29.17
41.77
52.12
PART NUMBER
1/
55PC6155-26-*
55PC6155-24-*
55PC6155-22-*
55PC6155-20-*
55PC6155-18-*
55PC6155-16-*
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/
COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES
AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2011 Tyco Electronics Corporation,. All rights reserved.
Page 1 of 2
DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
Revision
SCD
SPECIFICATION CONTROL DRAWING
Page 2 of 2
B
55PC6155
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 200°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
CROSSLINK VERIFICATION: 300 ± 3°C for 1 hour
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
JACKET COLOR: White preferred
JACKET ELONGATION AND TENSILE STRENGTH:
Elongation, 50% (minimum)
Tensile Strength, 5000 lbf/in² (minimum)
JACKET FLAWS:
Spark Test, 1000 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
SHIELD COVERAGE: 85% (minimum)
VOLTAGE WITHSTAND (Post Environmental):
1000 volts (rms), 60 Hz, 1 minute
PART NUMBER:
The "*" in the part numbers on page 1 shall be replaced by color code designators with
a slash separating the component wire colors and a dash separating the component
wire colors from the jacket color. Colors shown do not necessarily reflect the sequence
of manufacturing.
1/
Example: AWG 22, black, red, yellow, blue, and green component wires; white jacket:
55PC6155-22-0/2/4/6/5-9
1/
See footer section on page 1
