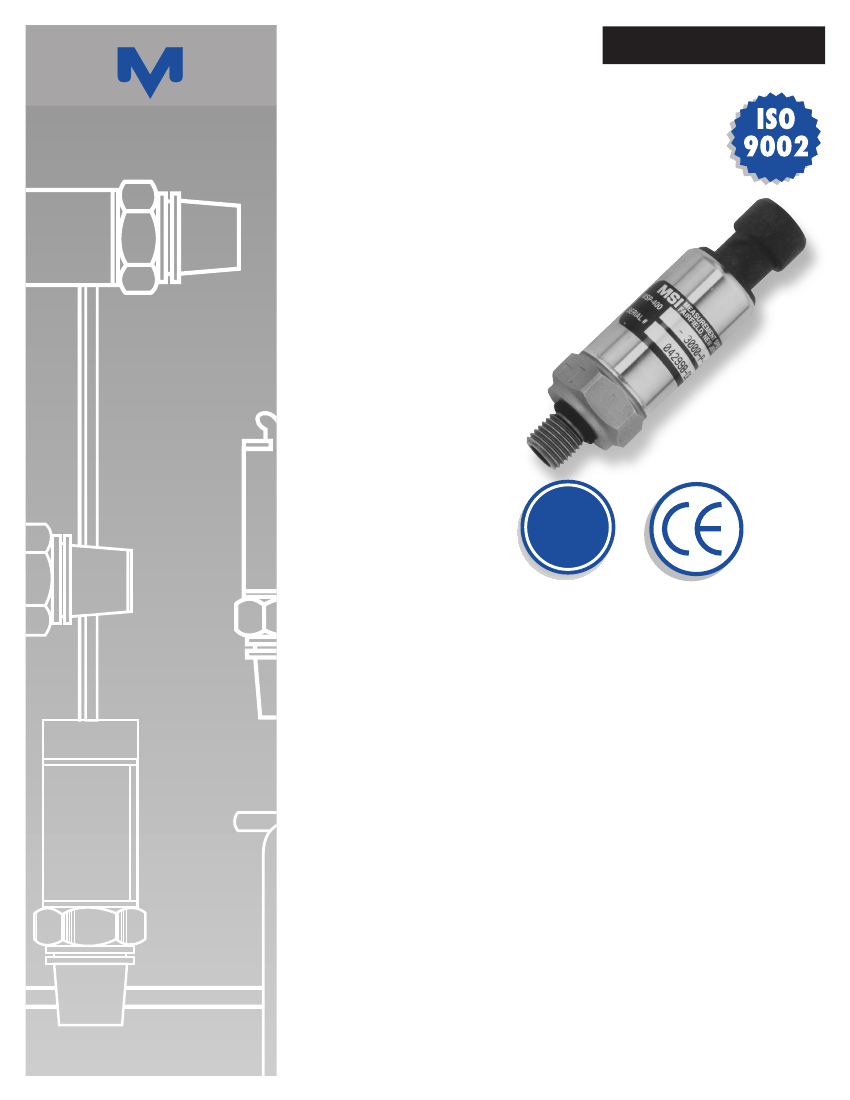

MSP-400
EMI/RFI Protected Stainless Steel
Isolated Pressure Transducer
s
s
Low Cost OEM
100% Leak Proof
Features
No Leaks
s
No Welds
s
No “O” Rings
s
No Silicone Oil
s
One-piece Stainless Steel Construction
Ranges up to 10,000 PSI or 700 BAR
Amplified Outputs
Excellent Accuracy
Wide Operating Temperature Range
Applications
Pumps and Compressors
Hydraulic/Pneumatic Systems
Off Road
Energy and Water Management
Pressure Instrumentation
Refrigeration Equipment
Agriculture Equipment
Train Braking Systems
LISTED
UL
Description
T
he MSP series pressure transducers set a new price-performance standard
for low cost, high volume, commercial and industrial applications. This
series is suitable for measurement of liquid or gas pressure, even for difficult
media such as contaminated water, steam, and mildly corrosive fluids or
gases.
The transducer pressure cavity is machined from a solid piece of 17-4 PH
stainless steel. The standard version includes a
1
/
4
NPT pipe thread allowing
a leak-proof, all metal sealed system. There are no o-rings, welds or organics
exposed to the pressure media. The durability is excellent.
Measurement Specialties proprietary Microfused technology, derived from
demanding aerospace applications, employs micromachined silicon
piezoresistive strain gages, fused with high temperature glass to a stainless
steel diaphragm. This approach achieves media compatibility simply and
elegantly providing an exceptionally stable sensor without the p-n junctions
of conventional micromachined sensors.
This product is geared to the OEM customer using medium to high
volumes. The standard version is suitable for many applications, but the
dedicated design team at our Transducer Engineering Center stands ready to
provide a semi-custom design where the volume and application warrants.

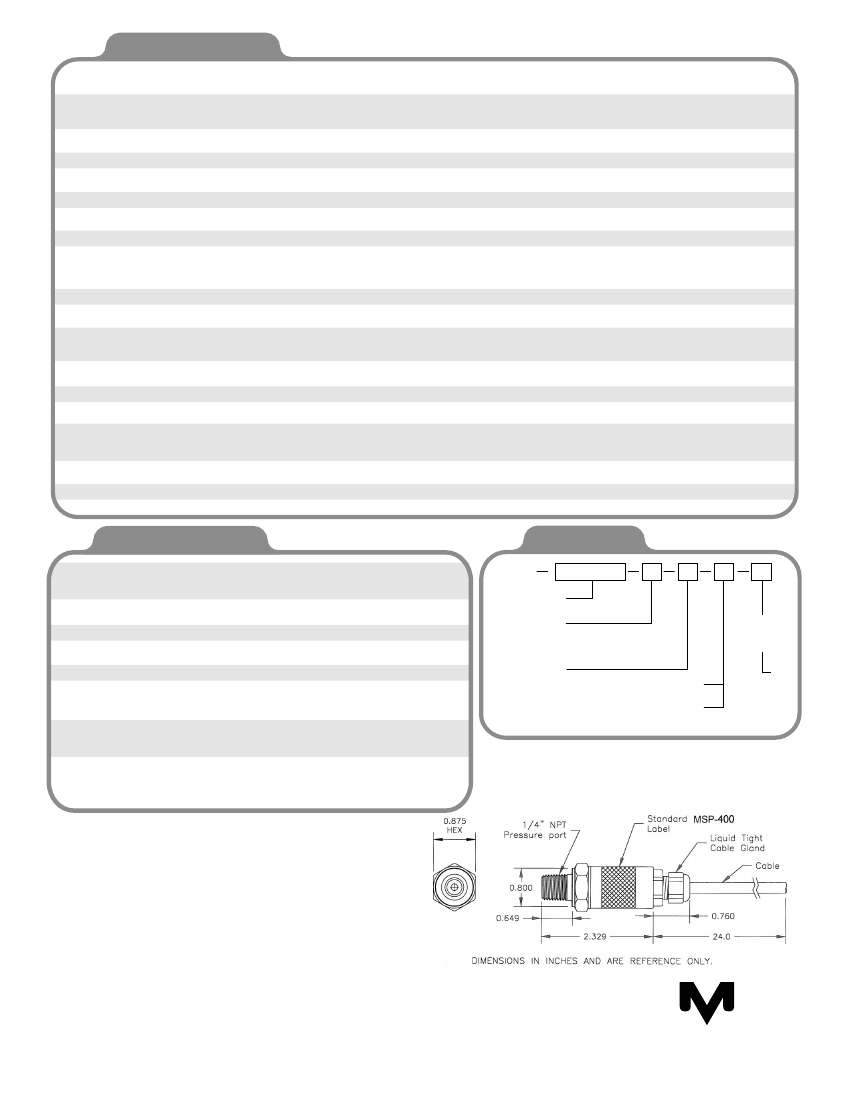

SPECIFICATIONS
Performance at 77˚F (25˚C):
Pressure range
Accuracy (combined linearity, hysteresis and repeatability)
Media compatibility
Pressure ports
Pressure cycles
Pressure overload
Burst pressure
Long term stability (1 year)
0 to 100, 250, 500, 1000, 2500, 5000, 10000 PSI (consult factory for compound ranges)
(0 to 7, 17, 35, 70, 175, 350, 700 BAR)
±
.5% of FS Span (for higher accuracy consult factory)
17-4 PH stainless steel (for other material consult factory)
1/4” NPT (for other ports consult factory)
>10
8
full pressure cycles
2X rated pressure
5X or 20000PSI whichever is less
±
0.25% FS Span (typical)
10-30VDC
<15mA
1-5VDC, fixed (4)
0.5 - 4.5VDC, ratiometric to supply (3)
4-20mA two wire (5)
2 ft PVC jacketed cable (for other options consult factory)
±
2% of FS Span (for tighter tolerances consult factory)
±
2% of FS Span (for tighter tolerances consult factory)
5K Ohm (min) for high level voltage
0 Ohms @ 10V (1100 Ohms @ 32V) for 4-20mA
< 2mVRMS
DC to 1KHz (Typical)
5VDC
<10mA
Electrical:
Supply voltage
Supply current
Outputs
Interface
Zero offset
Span tolerance
Output load
Noise
Bandwidth (-3dB)
ENVIRONM ENTAL
Operating temperature range
Compensated temperature range
Zero thermal error
Span thermal error
Storage temperature range
Shock
Vibration
EMI/RFI Immunity
-40˚ to 185˚F (-40 to 85˚C), (For other
temperature ranges consult factory)
30 to 158˚F (0 to 70˚C)
<
±
1.5% of FS Span
<
±
1.5% of FS Span
-40 to 212˚F (-40 to 100˚C)
50g, 11msec half sine shock per MIL standard
202F, method 213B, condition A
±20g
MIL-STD-810C, Procedure 514.2,
Figure 514.2-2, curve L
EN 50081-2
EN 50082-2 (10V/M, 26-1000MHz)
EN 61326 (Effective July 1, 2001)
MSP400
ORDERI NG
Pressure Range
P = PSI
B = BAR
Outputs
3 = 0.5 - 4.5VDC
4 = 1- 5VDC
5 = 4-20mA two wire
1= 2 ft.
cable
N = 1/4 NPT
*
* for others consult factory
*
Electrical Connections:
Outputs:
Red
Black
White
3/4
+Supply
Ground
Output
5
Red
Black
+Supply
Output
UNITED STATES
Measurement Specialties, Inc.
PO Box 799
Valley Forge, PA 19482
Tel: (610) 650-1500 Fax: (610) 650-1509
Email: sensors@msiusa.com
Web site: www.msiusa.com
P/N: 2001315 10/00
