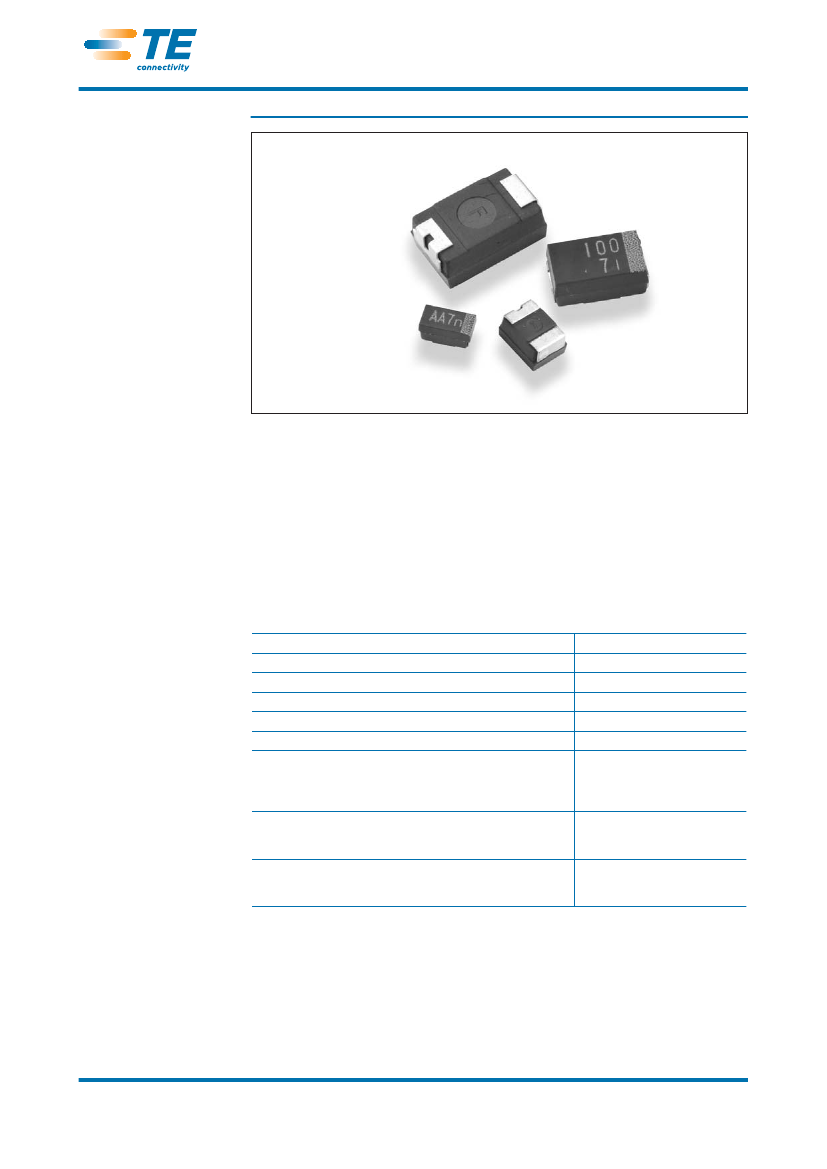

Extended Range Tantalum Capacitors
Type TYTM Series
Key Features
I
I
I
I
I
I
I
Excellent Frequency
Characteristics
Excellent Impedance
Characteristics
Super Compact Size
A, B, C & D Case Sizes
2.5V to 50V Ratings
10% or 20% Tolerance
RoHS Compliant
Product Specifications
Product Specifications
O
LE
-55°C ~ +125°C
DC2.5 ~ 50V
DC3.2 ~ 65V
DC1.6 ~ 33V
0.1 ~ 470μF
±10% or 20%
The TYT series of moulded solid Tantalum chip capacitors is designed for high solder heat
resistance and ease of automatic placement. The product is provided with both excellent
frequency and impedance characteristics.
The four different product types cover the majority of requirements for this product series.
TYTS series is the standard type used in many industries and TYTM series extends this
product range by applying advanced manufacturing technology, thereby allowing
reduced sizes and extended value range.
TYTP series allows even further miniaturisation offering many values in an 0805 package
size. The series is completed with the TYTR series whch offers a comprehensive range of
low ESR products.
S
Rated Voltage:
Operating Temperature Range:
T
B
Surge Voltage:
Derated Voltage:
Capacitance:
Capacitance Tolerance:
O
Leakage Current:
Refer to standard product table
Surge Withstanding Voltage:
ΔC/C ±5% or less
tan∂ Specified initial value or less
LC
Specified initial value or less
1773293 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
E
85°C
85°C
125°C
Test Conditions JIS C5101-3(1998)
Measuring Frequency:120Hz ±10%,
Measurement Circuit: Equivalent
Series Circuit: Measuring voltage
max.: 0.5Vrms,+1.5Vdc.
Series Protective Resistor:1000Ω
Measuring Voltage: Rated voltage
Measuring Time: 5 minutes
