TECHNICAL DATA SHEET
TE Document:
Issue:
Date:
TTDS-108
6
July 2014
HX – LFH Heat Shrink
Marker Sleeve
HX Low Fire Hazard (LFH) marker sleeves for the identification of wires
and cables. Presented as cut sleeves organised in a ladder format.
Manufactured using a specially developed radiation cross-linked
material. Formulated to give
Low Fire Hazard
properties, which allow
this product to be used in locations where fire may pose a risk to
human life, and property. Typical installations include rail, mass transit,
and heavy industrial.
HX (LFH) marker sleeves are available as part of a complete printing
system. The system comprises specific printers, thermal transfer
ribbons and WINTOTAL software.
KEY FEATURES
Zero Halogen
Low Toxic Fumes
Low Smoke
Self-extinguishing, non-flame propagating
Low heat release rate
Resistant to key industrial and rail fluids
(defined by RW-2072)
Excellent resistance to burning
- typical LOI 39%
Sleeve diameters from 2.4mm to 38.1mm
Shrink ratio 2:1
TEMPERATURE RATING
Operating Temperature Range -55°C to 105°C (-40°F to 221°F)
ENVIRONMENTAL
Does not contain any declarable or prohibited substances from the
UNIFE Railway Industry Substances List
No Halogens, Sulphur, Nitrogen, Phosphorus and Cadmium sources
above trace level. The flame retardant used in this product does not
contain melamine cyanurate.
Does not promote mould growth (ASTM G21 – zero rating)
Further information and a downloadable declaration covering RoHS
and REACH compliance can be found at the ‘TE Product Compliance
Support Centre’:
http://www.te.com/en/resources/product-compliance.html
APPLICATIONS
SPECIFICATIONS / APPROVALS
Pre-termination Cable Identification
Particularly suitable for locations with a fire
risk to human life or equipment
Mass transit, Rail, Aerospace, Marine and
Industrial
TE Connectivity Standard
RW-2072
London Underground 1-085, Fire Safety Performance of
Materials ‘Limited, dispersed usage’
Registered for London Underground Product Acceptance and
Registration, revision S1011 A2:
http://www.lu-apr.co.uk
EN45545-2 ‘Hazard Classification 3’ Requirement Set
R22/R23 – unlimited use for railcar design and operation
category
BS6853 ‘Vehicle Category Ia’
Interior minor use materials of mass 100g to 500g
NF F 16-101 Railway rolling stock, fire behaviour, choice of
materials: Classification A1
Industrial
PART DESCRIPTION
HX-SCE -1K
-4.8 -50
-S1 -4
Color
Scoring (optional)
Sleeve length (mm)
Expanded inside diameter (inches)
Pack Size
Product Family
Where possible, TE have tested product as a finished item, including the print. Operational tests are followed by an assessment of
mark adherence to validate fit form and function. Further details can be found in TE standard RW-2072.
©2014 Tyco Electronics Corporation, a TE Connectivity Ltd.
Company. All Rights Reserved.
| Indicates Change
Class I Data Classification - See Policy TEC-02-04
Page 1 of 2
TECHNICAL DATA SHEET
TE Document:
Issue:
Date:
TTDS-108
6
July 2014

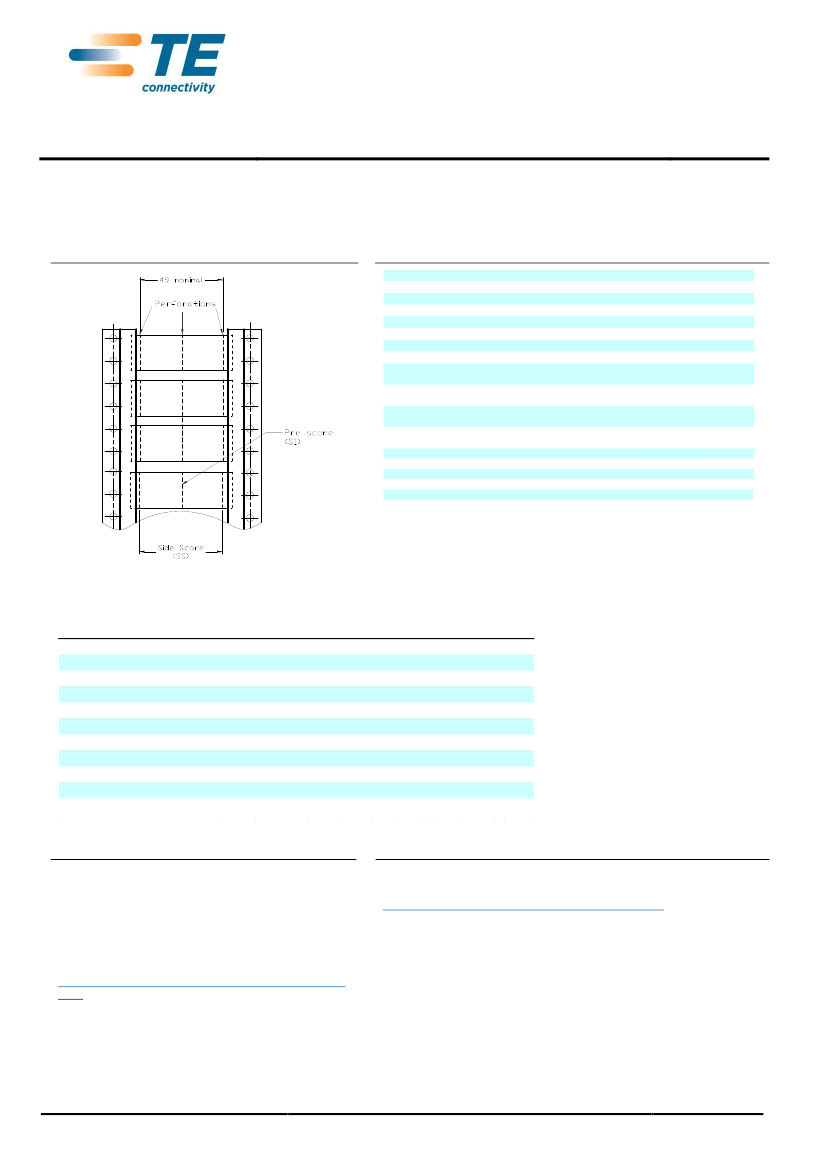

ORDERING INFORMATION
AVAILABLE FORMAT
HX – LFH Heat Shrink
Marker Sleeve
OPTIONS
Perforated score to produce multiple marker sleeves from each HX-SCE sleeve.
Standard
Not scored
Code
Blank
Non standard Side scored
Code
SS
Sided scored w ith one pre score Code
SS1
1 Prescore
Code
S1
2 Prescores
Code
S2
3 Prescores
Code
S3
Packaging sizes
1000 piece packages available
Standard
1K -
for all HX-SCE sizes upto to 25.4
2500 pieces available for 4.8 and
Non Standard 2.5k -
6.4 HX-SCE sizes up to 25.4
5000 pieces available for 2.4 and 3.2
5k -
HX-SCE sizes
250 piece package available for all
<no number>
HX-SCE sizes
Colors
Standard
Yellow
White
Code
4
9
Non standard Red
Green
Blue
Orange
Code
2
5
6
3
Prescoring
Specify product name, pack size, sleeve size, sleeve length (always
50) pre-score (blank if not required) and colour.
Ordering example: HX-SCE-1K-4.8-50-S1-4
Inside diameter
Ordering description
As supplied
(minimum)
mm
HX-SCE-1K-2.4-50-<score>-<color>
HX-SCE-1K-3.2-50-<score>-<color>
HX-SCE-1K-4.8-50-<score>-<color>
HX-SCE-1K-6.4-50-<score>-<color>
HX-SCE-1K-9.5-50-<score>-<color>
HX-SCE-1K-12.7-50-<score>-<color>
HX-SCE-1K-19.0-50-<score>-<color>
HX-SCE-1K-25.4-50-<score>-<color>
HX-SCE-38.1-50-<score>-<color>
2.4
3.2
4.8
6.4
9.5
12.7
19.0
25.4
38.1
inches
0.094
0.126
0.189
0.250
0.375
0.500
0.730
1.000
1.500
After
recovery
(Maximum)
mm
1.19
1.58
2.36
3.18
4.75
6.35
9.53
12.70
19.05
inches
0.047
0.060
0.090
0.125
0.187
0.250
0.375
0.500
0.750
Recommended w ire diameter
use range
mm
1.27 - 1.90
1.77 - 2.66
2.54 - 4.06
3.81 - 5.46
5.59 - 8.12
6.99 - 10.79
10.16 - 16.25
14.29 - 21.59
20.95 - 33.02
inches
0.050 - 0.075
0.069 - 0.105
0.100 - 0.160
0.150 - 0.215
0.220 - 0.320
0.275 - 0.425
0.400 - 0.640
0.563 - 0.850
0.825 - 1.300
Standard pack size for 38.1 is 250 pieces
PRINTER INFORMATION
Print Quality and Print Performance can only be
guaranteed when specific TE printer and ribbons are used.
The current list of printers and ribbons can be found in TE
document 411-121005 ‘Identification
Printer Product
Ribbon Matrix’
This document can be found at the TE document centre:
http://www.te.com/commerce/DocumentDelivery/DDECont
roller
SOFTWARE
Cable Markers are fully supported by WINTOTAL and PrintEasy label
printing software, available from the TE product store:
http://www.te.com/en/general/label-printing-software.html
Contact a TE representative for further information
While TE has made every reasonable effort to ensure the accuracy of the information in this document, TE does not guarantee that it is error-free, nor does TE
make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any
adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained
herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this document are for
reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and
design specifications.
*Trademark. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their
respective owners.
©2014 Tyco Electronics Corporation, a TE Connectivity Ltd.
Company. All Rights Reserved.
| Indicates Change
Class I Data Classification - See Policy TEC-02-04
Page 2 of 2
