Instruction Sheet
Adapter Kits for GREENERD Manual
Frame Assemblies 3A and 3B
18 Mar 11 Rev C
408-- 9027
GREENERD Manual
Frame Assembly
Counterbalance Kit 58176-- 1
(Counterbalance, 2 Screws,
and 2 Nuts)
Ram Adapter Assembly Kit 58177-- 1 or - 2
(Ram Adapter, Magnet, Dowel Pin, and
1¢4-- or 1¢6-- in. Push Block)
Board Support Plate Kit 58175-- 1
(Board Support Plate, Nut,
Screw, and Washer)

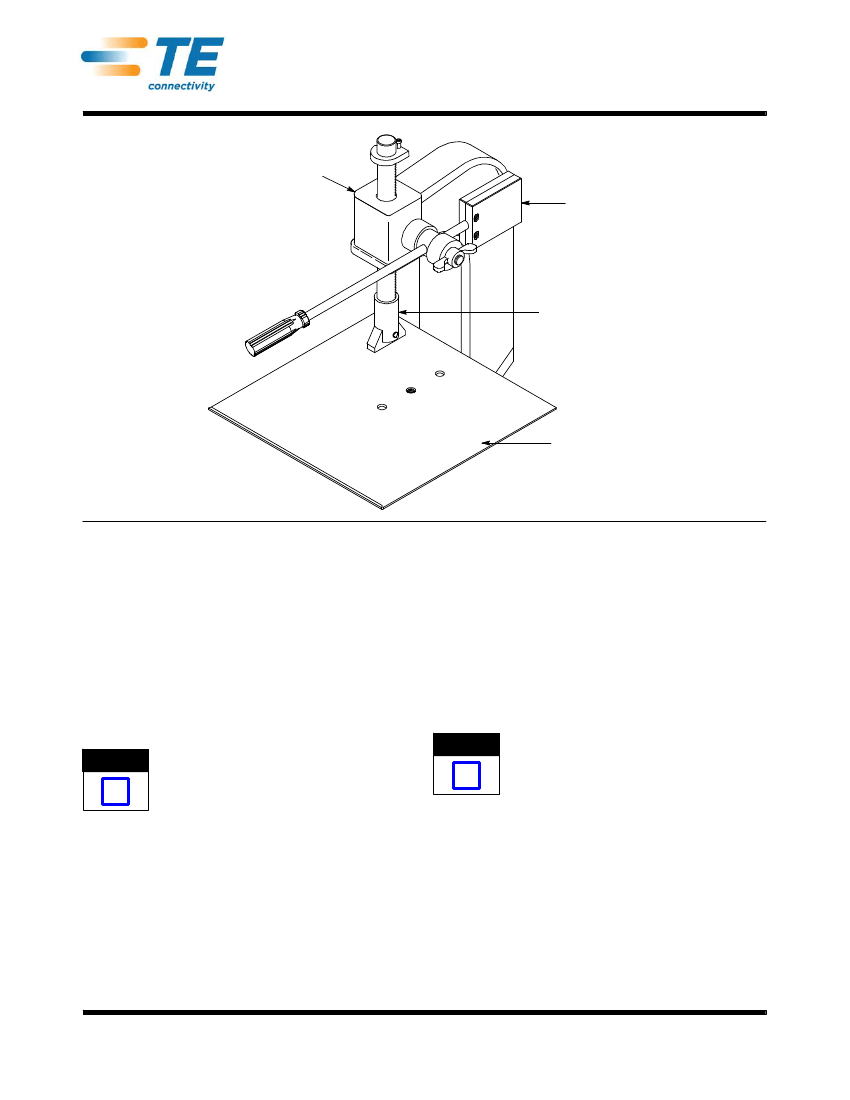

Figure 1
1. INTRODUCTION
Counterbalance Kit 58176--1, Ram Adapter Assembly
Kit 58177--1 or 58177--2, and Board Support Plate Kit
58175--1 are designed to be installed onto
GREENERD Manual Frame Assemblies 3A and 3B.
These kits are used to adapt the frame assembly for
seating connectors with ACTION PIN* contacts onto
a (pc) printed circuit board.
Read these instructions thoroughly before using the
kits.
NOTE
Dimensions in this instruction sheet are in
millimeters [with inches in brackets]. Figures are
not drawn to scale.
3. INSTALLATION
Refer to Figure 1, and install the adapter kits as
follows:
1. Install the counterbalance onto the handle of the
frame assembly. Secure with the hardware.
2. Install the board support plate onto the base
plate of the frame assembly. Insert the screw
through the hole from the top of the plate. Secure
with the hardware.
NOTE
The board support plate can be installed in one of
three positions. Choose the position that best
supports the size of the pc board being used.
i
i
Reasons for reissue of this instruction sheet are
provided in Section 5, REVISION SUMMARY.
2. DESCRIPTION
When properly assembled onto the frame assembly,
the counterbalance kit balances the handle and ram,
the board support plate kit supports the pc board
during connector seating, and the ram adapter
assembly kit prevents damage to the connector
during seating.
3. Insert the push block from the ram adapter
assembly kit onto the ram adapter, making sure
that the magnet in the ram adapter holds the push
block. Install the ram adapter onto the ram of the
frame assembly. Insert the dowel pin through the
hole in the ram adapter.
4. REPLACEMENT AND REPAIR
Customer--replaceable parts are listed in Figure 2.
A complete inventory should be stocked and
controlled to prevent lost time when replacement of
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
E2011
Tyco Electronics Corporation, a TE Connectivity Ltd. Company
TOOLING ASSISTANCE CENTER 1--800--722--1111
All Rights Reserved
PRODUCT INFORMATION 1--800--522--6752
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.
*Trademark. Other logos, product and/or Company names may be trademarks of their respective owners.
1
of 2
LOC B
408- 9027
parts is necessary. Parts other than those listed
should be replaced by TE to ensure quality and
reliability. Order replacement parts through your
representative, or call 1--800--526--5142, or send a
facsimile of your purchase order to 717--986--7605, or
write to:
CUSTOMER SERVICE (038--035)
TYCO ELECTRONICS CORPORATION
PO BOX 3608
HARRISBURG PA 17105--3608
For customer repair service, call 1--800--526--5136.
5. REVISION SUMMARY
Revisions to this instruction sheet include:
S
Updated document to corporate requirements
Counterbalance Kit
127+1.52
[5+.060]
162+1.52
[6.38+.060]
Board Support Plate Kit
457+1.52 [18+.060]
9.53
[.375]
Ram Adapter Assembly Kit
8
9
12
(Inside)
4
5
457+1.52
[18+.060]
11
10
1
2
3
7
21.8 [.86]
6
REPLACEMENT PARTS
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
PART NUMBER
1--21018--5
2--21001--2
312750--1
1--21018--5
5--21003--1
21055--9
312749--1
3--21000--4
20908--1
6--21030--8
312751--1
312751--2
312752--1
NUT, Hex,
5
/
16
--18
SCREW, Socket Head Cap,
5
/
16
--18¢1.50 L
COUNTERBALANCE
NUT, Hex,
5
/
16
--18
SCREW, Socket Head Cap,
5
/
16
--18¢1.75 L
WASHER, Flat,
5
/
16
PLATE, Board Support
SCREW, Socket Head Cap, 10--32¢.38 L
MAGNET, 1.38 D¢1.19 L
PIN, Dowel, .50 D¢2.25 L
PUSH BLOCK, 25.4¢102 [1¢4] (Included with Kit 58177--1)
PUSH BLOCK, 25.4¢152 [1¢6] (Included with Kit 58177--2)
ADAPTER, Ram
Figure 2
DESCRIPTION
QTY PER KIT
2
2
2
1
1
1
1
1
1
1
1
1
1
2
of 2
Rev
C
