ANTI-ROTATIONAL
SET SCREW
7
CODE 21 - BRAID TAIL BACKSHELL
206M016-19B08
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
ENTRY SIZE (TABLE 2)
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:

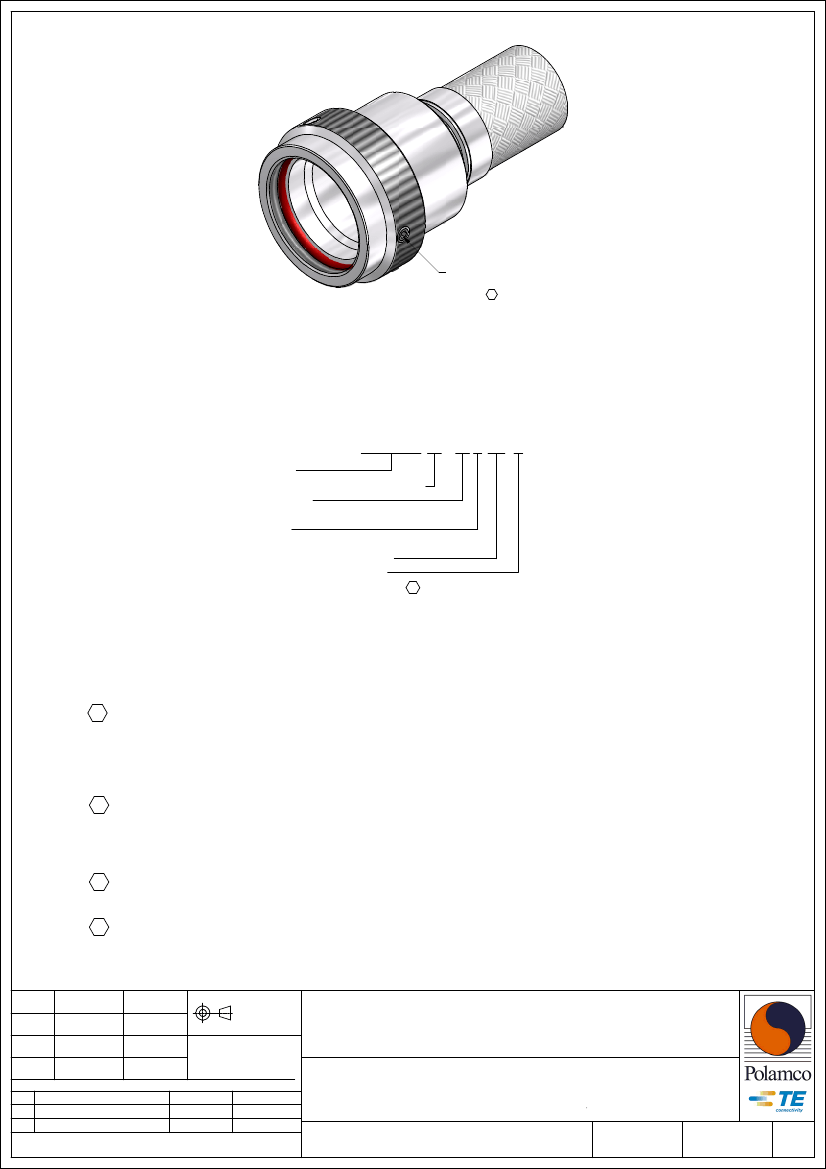

1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-206M016-19B08).
4. WHEN ENTRY SIZE EXCEEDS "MAX ENTRY", A 2 PIECE BACKSHELL (TYPE 2) IS SUPPLIED.
5. BRAID TERMINATION RING MAY BE SUPPLIED AS TINEL-LOCK SHAPE MEMORY
RING AT MANUFACTURERS OPTION.
6. BACKSHELL MATES TO MIL-DTL-26482 SERIES I, MS3110, MS3116, MS3120, MS3126
CLASS E AND F CONNECTORS.
7. ANTI-ROTATIONAL SET SCREW, 3 THREADED HOLES 120° ± 5° APART, SINGLE
MATING SET SCREW SUPPLIED.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
19/02/2015
19/02/2015
24/02/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL (CODE 21)
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
L
REVISED PER ECO-15-003575
M REVISED PER ECO-15-013980
DA TE
06/03/2015
01/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES I
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
206M0XX
M
1
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2

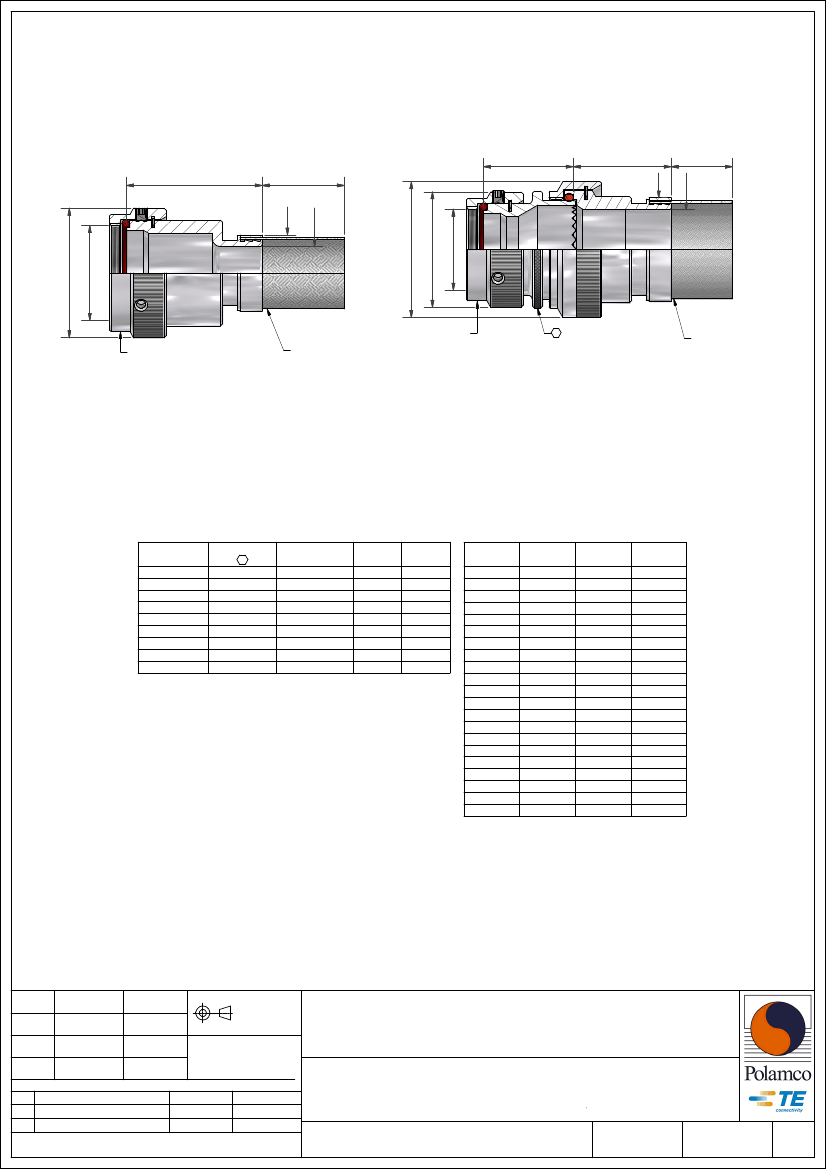

21,50
`
0,50
32,50
`
0,50
152,40 MIN
23,50 MAX
ØY
152,40 MIN
ØZ
ØY
ØZ
A THREAD
ØB
A THREAD
XXXX
ØK
XXXX
ØB
PART MARK
HERE
TINNED COPPER
SHIELD
PART MARK
HERE
4
TINNED COPPER
SHIELD
STRAIGHT BACKSHELL - TYPE 1
STRAIGHT BACKSHELL - TYPE 2
TABLE 1
ORDER
NUMBER
08
10
12
14
16
18
20
22
24
SHELL SIZE
6
8
10
12
14
16
18
20
22
24
A THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
18,05
21,55
24,65
27,65
31,05
34,35
37,55
40,55
43,55
MAX
ENTRY
04
06
08
10
12
13
15
17
18
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
20
21
22
24
28
ØK
MAX
NA
NA
21,0
21,0
21,0
24,5
24,5
29,0
32,5
32,5
35,5
35,5
37,0
37,0
40,0
40,0
43,5
48,5
48,5
52,1
58,5
ØZ
REF
4,77
6,35
7,92
9,52
11,12
12,70
14,27
15,87
17,47
19,05
20,62
22,23
23,82
25,40
26,98
28,60
31,80
33,34
35,00
38,10
44,45
ØY
REF
13,1
13,1
13,1
17,9
17,9
17,9
17,9
24,2
24,2
24,2
24,2
30,6
30,6
30,6
33,2
33,2
42,0
42,0
42,0
42,0
49,0
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
19/02/2015
19/02/2015
24/02/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL (CODE 21)
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
L
REVISED PER ECO-15-003575
M REVISED PER ECO-15-013980
DA TE
06/03/2015
01/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-26482 SERIES I
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
206M0XX
M
2
