TECHNICAL DATA SHEET
TE Document:
Issue:
Date:
TTDS-025
2
March 2014

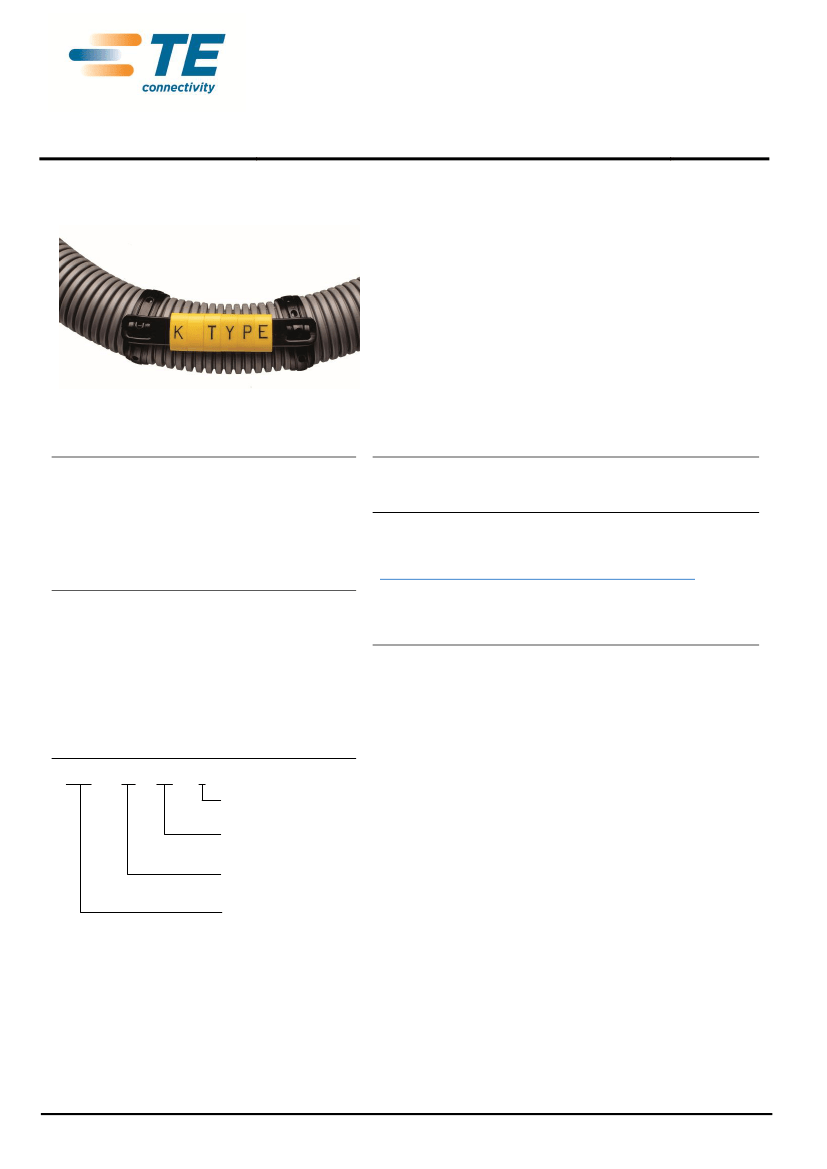

K-Type Cable Markers
K-Type markers are used to identify wire bundles, cables, pipes
and conduits. The oval shaped profile has been designed to allow
markers to be accurately positioned onto a carrier strip. The
marker and carrier strip assembly is attached to the substrate
using cable ties. K-Type markers are ideal for post termination
applications or where retrofitting is required.
Markers are supplied as internationally color coded yellow with
pre-printed black legends. K-Type markers come in one standard
size to fit carrier strips that can hold from 7 to 18 markers and are
made from a plasticized PVC material. Suitable for industrial
applications.
KEY FEATURES
Self-extinguishing
Resistant to key Industrial fluids, including
those used in Mass transit, aviation and
military (defined by RW-2535)
TEMPERATURE RATING
Operating Temperature Range -45°C to 70°C (-40°F to 158°F)
ENVIRONMENTAL
Information and a downloadable declaration covering RoHS and
REACH compliance can be found at the ‘TE Product Compliance
Support Centre’:
http://www.te.com/en/resources/product-compliance.html
APPLICATIONS
Post termination cable identification
Identification of large cables, wire bundles,
pipework and conduit.
Installation friendly – easy to replace, ideal
for retrofitting and repairs. Only cable ties
are needed.
Electric and Electronic Equipment, Light
industrial
SPECIFICATIONS / APPROVALS
TE Connectivity Standard
RW-2535
PART DESCRIPTION
1361
1
4
01
Legend code
Color code
Packaging Code
Product size code
Industrial
BS 6746C:1993 Colour chart for insulation and sheath of
electric cables
IEC 60304 Standard Colours for Insulation for Low
Frequency Cables and Wires
Where possible, TE have tested product as a finished item, including the print. Operational tests are followed by an
assessment of mark adherence to validate fit form and function. Further details can be found in TE standard
RW-2535.
©2014 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
| Indicates Change
Class I Data Classification - See Policy TEC-02-04
Page 1 of 2
TECHNICAL DATA SHEET
TE Document:
Issue:
Date:
TTDS-025
2
March 2014
ORDERING INFORMATION
AVAILABLE FORMAT
5.8
K-Type Cable Markers
Length
10

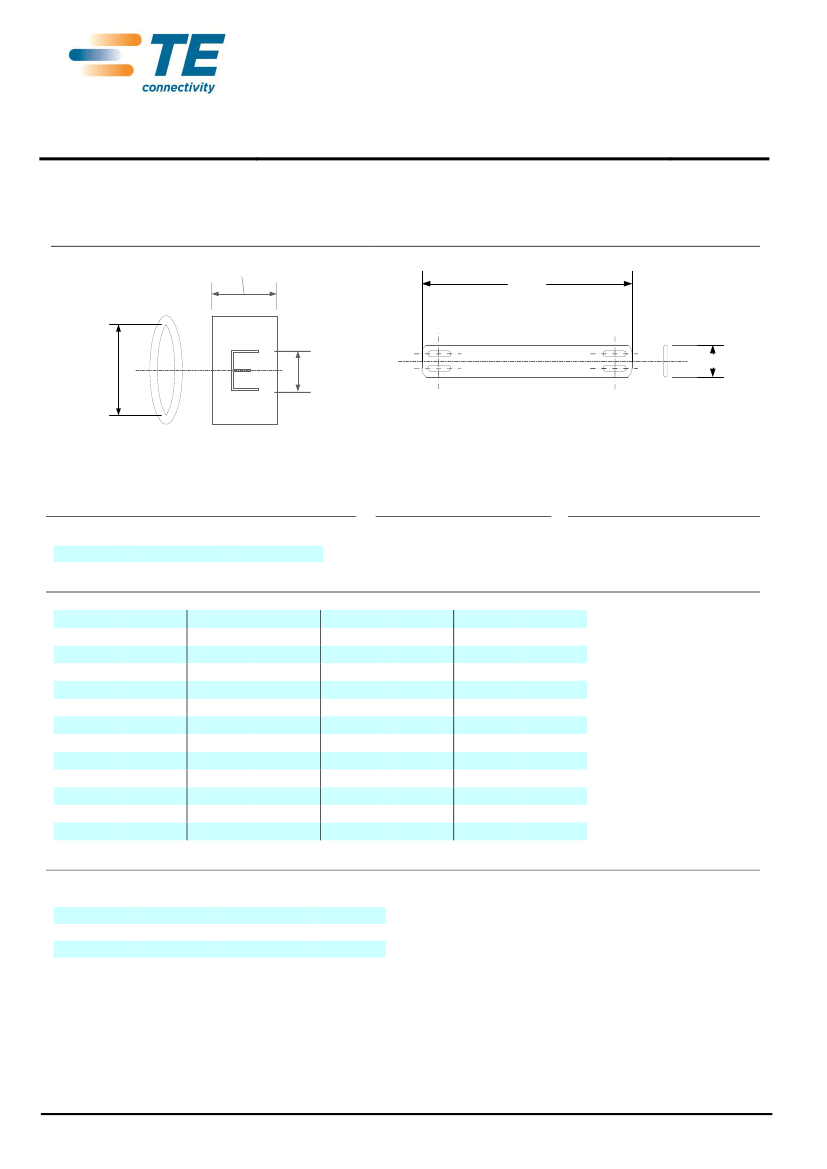

Marker detail
Dimensions in mm
4
9.5mm
Carrier strip detail
MARKER
Size code
1361
Marker size
65
Reel Quantity
500
PACKAGING CODE
1 (Reel)
COLOR CODE
4 (Yellow)
LEGEND CODE
Legend
0
1
2
3
4
5
6
7
8
9
A
B
Code
00
01
02
03
04
05
06
07
08
09
10
11
Legend
C
D
E
F
G
H
I
J
K
L
M
N
Code
12
13
14
15
16
17
18
19
20
21
22
23
Legend
O
P
Q
R
S
T
U
V
W
X
Y
Z
Code
24
25
26
27
28
29
30
31
32
33
34
35
Legend
+
-
/
~
Earth
)
Blank
:
,
<
>
=
.
Code
36
37
38
39
40
41
42
43
44
45
46
47
48
CARRIER STRIP
Order
code
11320000
11310000
11300000
Carrier length
mm (inches)
66 (2.59)
97 (3.81)
134 (5.27)
Marker
Capacity
7 Markers
12 Markers
18 Markers
Quantity
500
500
250
Note all carrier strips are supplied in Black PVC
