Surface Mount Shielded Power Inductors
TYPE 3632 SERIES
KEY FEATURES

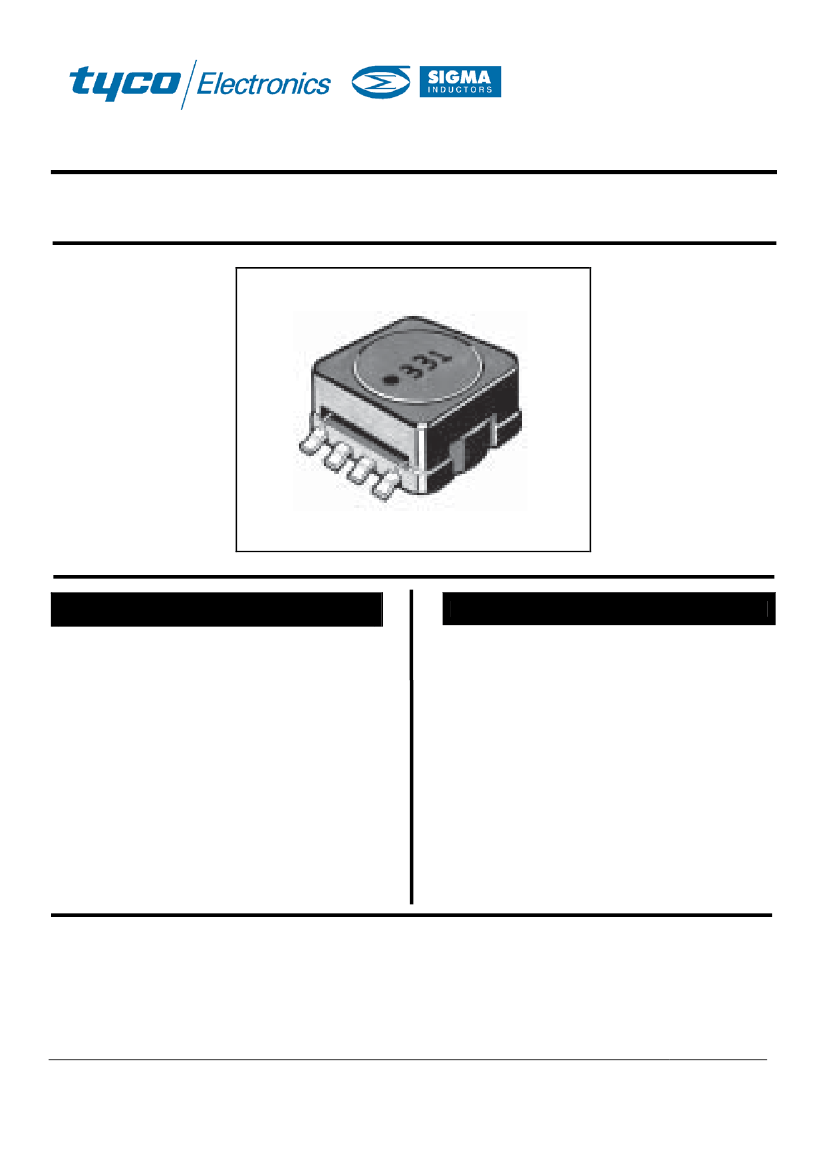

A modern range of high current inductors,
designed in low profile packages for a range of
industrial applications. Offered in values from
10µH to 15000µH with tolerances of ±15% or
±20% as shown and in two popular sizes.
These inductors are frequently chosen for new
applications in power supplies.
•
•
•
•
•
•
•
•
High Current Capability
Values up to
15000µH
Ferrite Core
Handles up to 3.0 Amps
Only 9.0mm x 8.00mm Maximum
Taped and Reeled
High Reliability
Two Circuit Styles
STOCKISTS:
This product is available from Farnell.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 3
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3632 SERIES

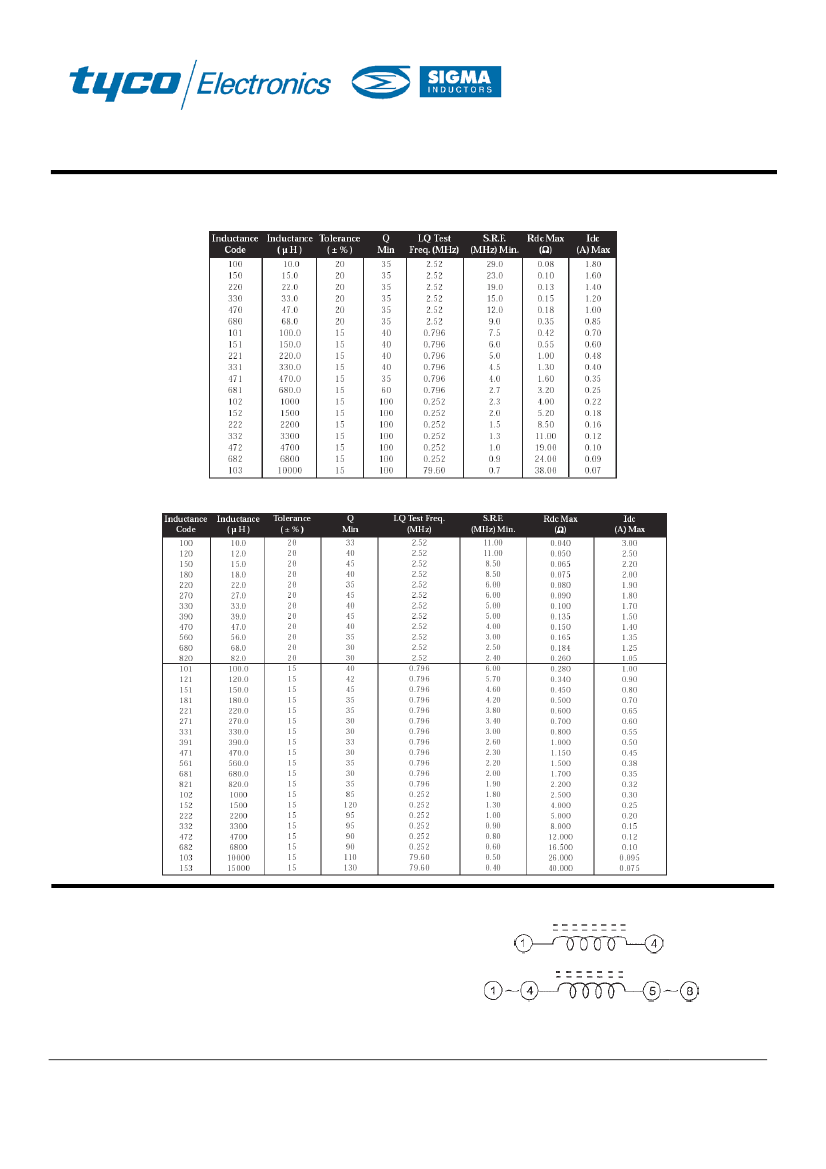

ELECTRICAL - A Type
1
st
April 2003
ISSUE 2
ELECTRICAL - B Type
SCHEMATIC
3632A / 3632B (100µH~15000µH)
3632B (10µH~82µH)
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 2 of 3
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3632 SERIES
1
st
April 2003
ISSUE 2
TEMPERATURE
Temperature Rise:
Storage Temperature:
Operating Temperature:
Resistance To Solder Heat:
40°C maximum
-25°C to +85°C Base on Temperature Rise &
∆L/LOA
=10% maximum
-20°C to +85°C
260°C for 10 seconds maximum
PACKAGING
A Style ~ 600 pieces per 13" Reel
B Style ~ 400 pieces per 13" Reel
MARKING

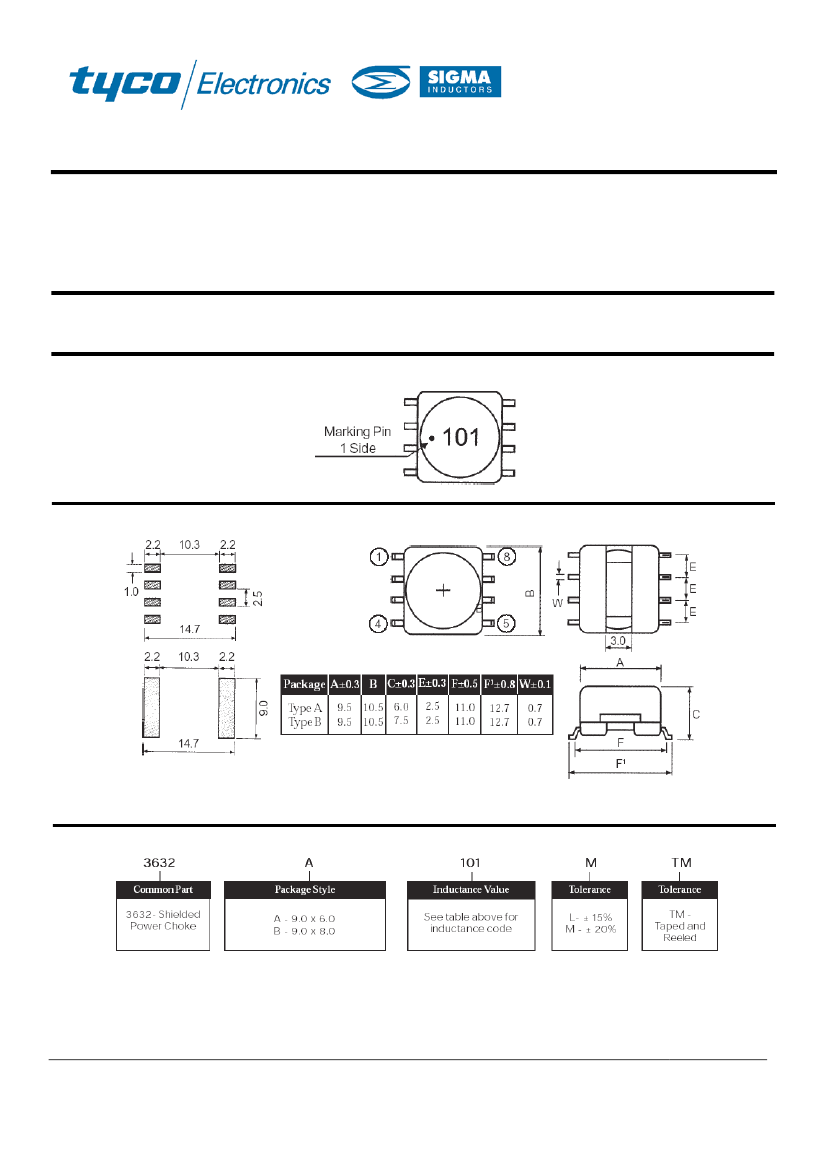

DIMENSIONS
All Dimensions are
Nominal and in mm
Do Not Scale
HOW TO ORDER
This publication is issued to provide outline information only and (unless specifically agreed to the contrary by the Company in writing) is not to form part of any order or be
regarded as a representation relating to the products or service concerned. We reserve the right to alter without notice the specification, design, price or conditions of
supply of any product or service. Whilst Tyco Electronics Components products are of the very highest quality and reliability, all electronic components can occasionally
be subject to failure. Where failure of a Tyco Electronics Components product could result in life threatening consequences, then the circuit and application must
be discussed with the Company. Such areas might include ECG, respiratory and other medical and nuclear applications and any non fail-safe applications circuit.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 3 of 3
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
