W25X40CL
2.5/3/3.3 V 4M-BIT
SERIAL FLASH MEMORY WITH
4KB SECTORS AND DUAL I/O SPI
-1-
Publication Release Date: March 25, 2014
Revision F
W25X40CL
Table of Contents
1.
2.
3.
4.
5.
6.
GENERAL DESCRIPTION ......................................................................................................... 4
FEATURES ................................................................................................................................. 4
PIN CONFIGURATION SOIC 208-MIL, SOIC 150-MIL AND VSOP 150-MIL ............................ 5
PAD CONFIGURATION WSON 6X5-MM AND USON 2X3-MM ................................................ 5
PIN CONFIGURATION PDIP 300-MIL ....................................................................................... 6
PIN DESCRIPTION SOIC, VSOP, WSON, USON AND PDIP ................................................... 6
6.1
Package Types ............................................................................................................... 7
6.2
Chip Select (/CS) ............................................................................................................ 7
6.3
Serial Data Input, Output and IOs (DI, DO, IO0 and IO1) .............................................. 7
6.4
Write Protect (/WP) ......................................................................................................... 7
6.5
HOLD (/HOLD)................................................................................................................ 7
6.6
Serial Clock (CLK) .......................................................................................................... 7
BLOCK DIAGRAM ...................................................................................................................... 8
7.1
SPI OPERATIONS.......................................................................................................... 9
7.1.1
7.1.2
7.1.3
Standard SPI Instructions ................................................................................................. 9
Dual SPI Instructions ........................................................................................................ 9
Hold Function ................................................................................................................... 9
Write Protect Features.................................................................................................... 10
7.
7.2
8.
WRITE PROTECTION .................................................................................................. 10
7.2.1
CONTROL AND STATUS REGISTERS ................................................................................... 11
8.1
STATUS REGISTER .................................................................................................... 11
8.1.1
8.1.2
8.1.3
8.1.4
8.1.5
8.1.6
8.1.7
BUSY.............................................................................................................................. 11
Write Enable Latch (WEL) .............................................................................................. 11
Block Protect Bits (BP2, BP1, BP0) ................................................................................ 11
Top/Bottom Block Protect (TB) ....................................................................................... 11
Reserved Bits ................................................................................................................. 12
Status Register Protect (SRP) ........................................................................................ 12
Status Register Memory Protection ................................................................................ 13
Manufacturer and Device Identification .......................................................................... 14
Instruction Set
(1)
............................................................................................................. 15
Write Enable (06h).......................................................................................................... 16
Write Enable for Volatile Status Register (50h) .............................................................. 16
Write Disable (04h) ......................................................................................................... 17
Read Status Register (05h) ............................................................................................ 17
Write Status Register (01h) ............................................................................................ 18
Read Data (03h) ............................................................................................................. 19
Fast Read (0Bh) ............................................................................................................. 20
Fast Read Dual Output (3Bh) ....................................................................................... 21
Fast Read Dual I/O (BBh) ............................................................................................. 22
Continuous Read Mode Bits (M7-0) ............................................................................. 24
Continuous Read Mode Reset (FFFFh) ....................................................................... 24
Page Program (02h) ..................................................................................................... 25
Sector Erase (20h) ....................................................................................................... 26
8.2
INSTRUCTIONS ........................................................................................................... 14
8.2.1
8.2.2
8.2.3
8.2.4
8.2.5
8.2.6
8.2.7
8.2.8
8.2.9
8.2.10
8.2.11
8.2.12
8.2.13
8.2.14
8.2.15
-2-
Publication Release Date: March 25, 2014
Revision F
W25X40CL
8.2.16
8.2.17
8.2.18
8.2.19
8.2.20
8.2.21
8.2.22
8.2.23
8.2.24
32KB Block Erase (52h) ............................................................................................... 27
Block Erase (D8h) ........................................................................................................ 28
Chip Erase (C7h or 60h) ............................................................................................... 29
Power-down (B9h) ........................................................................................................ 30
Release Power-down / Device ID (ABh) ....................................................................... 31
Read Manufacturer / Device ID (90h) ........................................................................... 33
Read Manufacturer / Device ID Dual I/O (92h) ............................................................. 34
Read Unique ID Number (4Bh) .................................................................................... 35
JEDEC ID (9Fh)............................................................................................................ 36
9.
ELECTRICAL CHARACTERISTICS ......................................................................................... 37
9.1
Absolute Maximum Rating (1) ...................................................................................... 37
9.2
Operating Ranges ......................................................................................................... 37
9.3
Power-up Timing and Write Inhibit Threshold .............................................................. 38
9.4
DC Electrical Characteristics ........................................................................................ 39
9.5
AC Measurement Conditions ........................................................................................ 40
9.6
AC Electrical Characteristics ........................................................................................ 41
AC Electrical Characteristics (cont’d) ........................................................................................ 42
9.7
Serial Output Timing ..................................................................................................... 43
9.8
Serial Input Timing ........................................................................................................ 43
9.9
HOLD Timing ................................................................................................................ 43
9.10 WP Timing .................................................................................................................... 43
PACKAGE SPECIFICATION .................................................................................................... 44
10.1 8-Pin SOIC 150-mil (Package Code SN) ...................................................................... 44
10.2 8-Pin VSOP8 150-mil (Package Code SV) ................................................................... 45
10.3 8-Pin SOIC 208-mil (Package Code SS) ...................................................................... 46
10.4 8-Pad 6x5mm WSON (Package Code ZP) .................................................................. 47
10.5 8-Pad WSON 6x5mm Cont’d. ....................................................................................... 48
10.6 8-Pad USON 2x3-mm (Package Code UX) .................................................................. 49
10.7 8-pin PDIP 300-mil (Package Code DA) ...................................................................... 50
ORDERING INFORMATION
(1)
.................................................................................................. 51
11.1 Valid Part Numbers and Top Side Marking .................................................................. 52
REVISION HISTORY ................................................................................................................ 53
10.
11.
12.
-3-
Publication Release Date: March 25, 2014
Revision F
W25X40CL
1.
GENERAL DESCRIPTION
The W25X40CL (4M-bit) Serial Flash memories provides a storage solution for systems with limited
space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial
Flash devices. They are ideal for code download applications as well as storing voice, text and data.
The devices operate on a single 2.3V to 3.6V power supply with current consumption as low as 1mA
active and 1µA for power-down. All devices are offered in space-saving packages.
The W25X40CL arrays are organized into 2048 programmable pages of 256-bytes each. Up to 256
bytes can be programmed at a time. The W25X40CL have 128 erasable sectors, 16 erasable 32KB
blocks and 8 erasable 64KB blocks respectively. The small 4KB sectors allow for greater flexibility in
applications that require data and parameter storage. (See figure 2.)
The W25X40CL support the standard Serial Peripheral Interface (SPI), and a high performance dual
output as well as Dual I/O SPI: Serial Clock, Chip Select, Serial Data DI (I/O0), DO (I/O1). SPI clock
frequencies up to 104MHz are supported allowing equivalent clock rates of 208MHz when using the
Fast Read Dual Output instruction. These transfer rates are comparable to those of 8 and 16-bit
Parallel Flash memories. The Continuous Read Mode allows for efficient memory access with as few
as 16-clocks of instruction-overhead to read a 24-bit address, allowing true XIP (execute in place)
operation.
A Hold pin, Write Protect pin and programmable write protect, with top or bottom array control
features, provide further control flexibility. Additionally, the device supports JEDEC standard
manufacturer and device identification with a 64-bit Unique Serial Number.
2.
FEATURES
Flexible Architecture with 4KB sectors
– Uniform Sector/Block Erase (4/32/64-kbytes)
– Page program up to 256 bytes <1ms
– More than 100,000 erase/write cycles
– More than 20-year data retention
Low Power, Wide Temperature Range
– Single 2.3V to 3.6V supply
– 1mA active current, <1µA Power-down(typ.)
– -40° to +85°C operating range
Space Efficient Packaging
– 8-pin SOIC 150-mil / VSOP 150-mil
– 8-pin SOIC 208-mil
– 8-pin PDIP 300-mil
– 8-pad WSON 6x5-mm
– 8-pad USON 2x3-mm
– 8-pin PDIP 300-mil
– Contact Winbond for KGD and other options
Family of Serial Flash Memories
– W25X40CL: 4M-bit/512K-byte (524,288)
– 256-bytes per programmable page
– Uniform erasable 4KB, 32KB & 64KB regions.
SPI with Single / Dual Outputs / I/O
– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
Data Transfer up to 208M-bits / second
– Clock operation to 104MHz
–208MHz equivalent Dual SPI
– Auto-increment Read capability
Efficient “Continuous Read Mode”
– Low Instruction overhead
– Continuous Read
– As few as 16 clocks to address memory
– Allows true XIP (execute in place) operation
-4-
Publication Release Date: March 25, 2014
Revision F
W25X40CL
3. PIN CONFIGURATION SOIC 208-MIL, SOIC 150-MIL AND VSOP 150-MIL

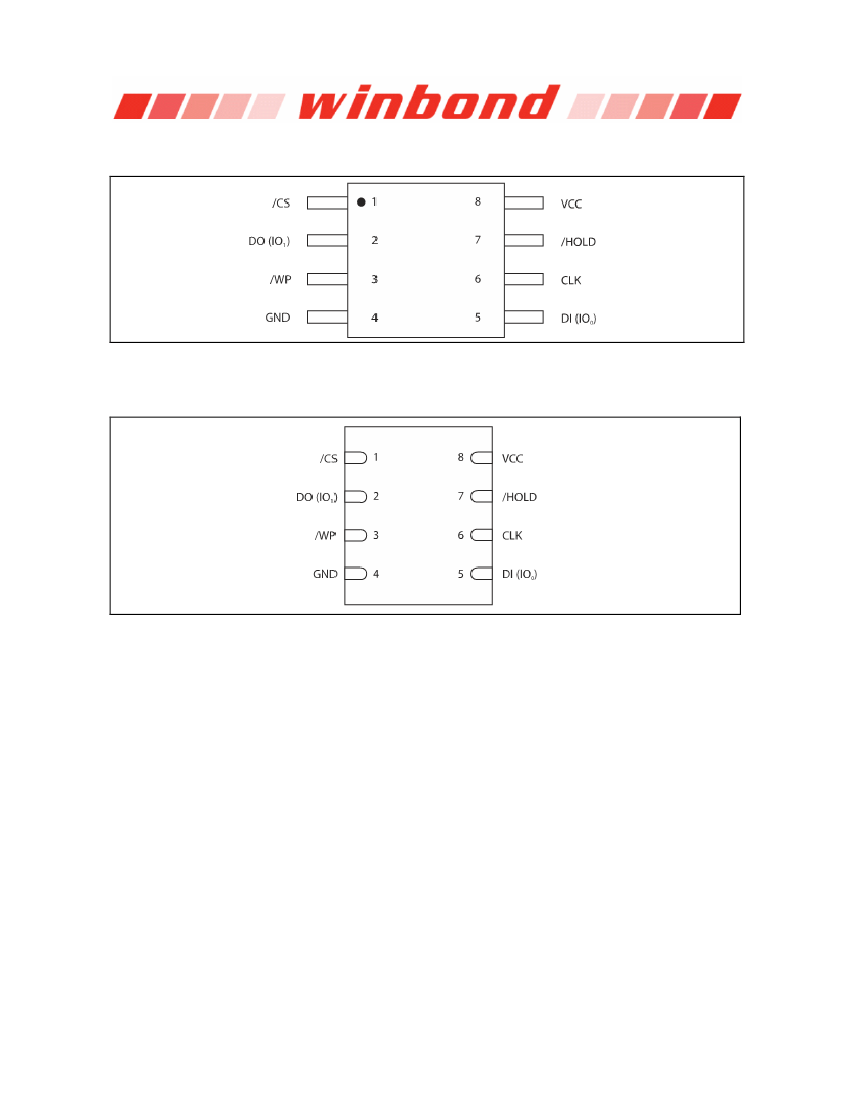

Figure 1a. W25X40CL Pin Assignments, 8-pin SOIC 208-mil, SOIC 150-mil and VSOP 150-mil (Package Code SS, SN & SV)
4.
PAD CONFIGURATION WSON 6X5-MM AND USON 2X3-MM
Figure 1b. W25X40CL Pad Assignments, 8-pad WSON 6x8-MM and USON 2x3-MM (Package Code ZP & UX)
-5-
Publication Release Date: March 25, 2014
Revision F
