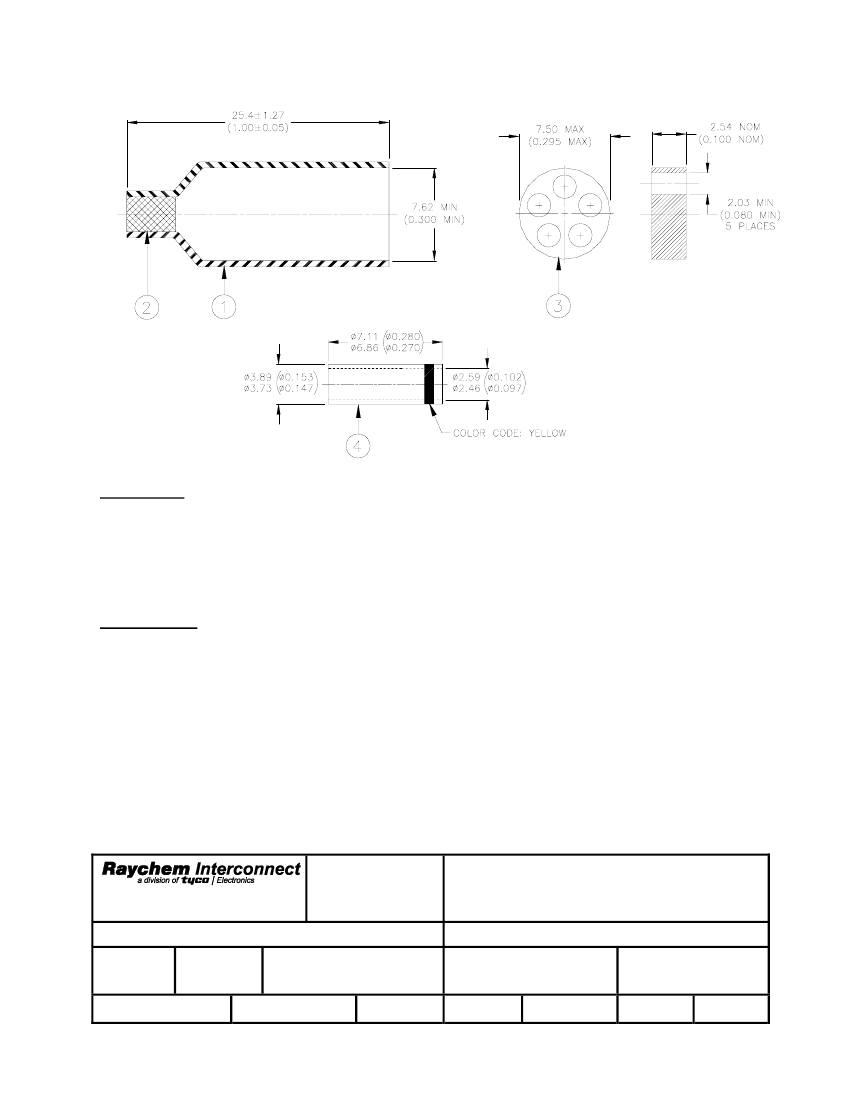

SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene
fluoride.
2. TOP SEAL: Low outgassing thermoplastic, color-blue.
3. MULTI-CONDUCTOR SEAL: Low outgassing thermoplastic, color-natural.
4. CRIMP SPLICE: Base Metal: Copper Alloy 102 per ASTM B-75.
Plating: Tin per MIL-T-10727, Type 1.
CMA Range: 1900 - 6755
APPLICATION
1. This part is designed to make an immersion resistant stub splice in wires having insulations rated for at least
135°C.
2. Wire Accomodation:
Jacket O.D.: 2.01 (0.079) max
Gauge
16
18
20
22
CMA
2426
1919
1216
754
Number
2
2–3
2–5
3-5
3. Parts will meet performance requirements of MIL-S-81824/1.
TITLE :
300 Constitution Drive
Menlo Park, CA 94025, USA
THERMOFIT
DEVICES
(5 at 2.03 (0.080)
STUB SPLICE SEALING SYSTEM,
16/12 SPLICE
DOCUMENT NO.:
DCR NUMBER:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
Raychem reserves the right to amend this
ANGLES: N/A
TOLERANCES:
drawing at any time. Users should
0.00 N/A
evaluate the suitability of the product for
ROUGHNESS IN
0.0 N/A
their application.
MICRON
0 N/A
D-436-0127
REPLACES:
D001279
SCALE:
None
SIZE:
A
N/A
SHEET:
1 of 1
DRAWN BY:
DATE:
PROD. REV.
DOC ISSUE:
M. FORONDA
14-Nov.-00
C
1
If this document is printed it becomes uncontrolled. Check for the latest revision.
