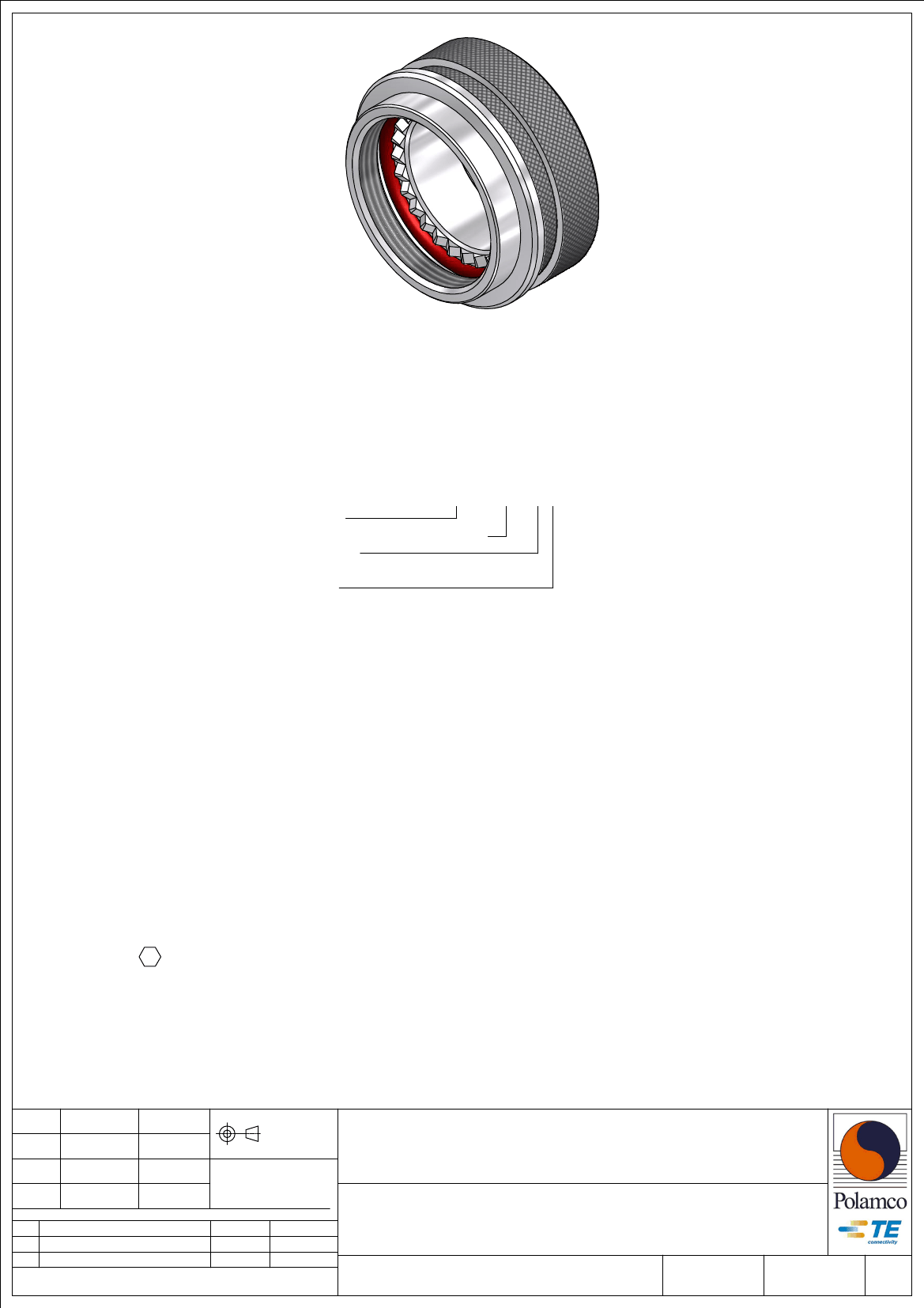

CODE 40 - LOW PROFILE HEAT SHRINK BOOT BACKSHELL
209M312-19B
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANETLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-209M312-19B).
4. KNURL INSIDE BOOT GROOVE MAY BE SUPPLIED AT MANUFACTURER'S OPTION.
5. BACKSHELL MATES TO MIL-C-38999 SERIES III & IV, CLASS C, F, K AND W, D38999/20,
/24, /26, /40, /46, /47 CONNECTORS AND WHEN SO MATED SHALL PROVIDE
A WATER-TIGHT SEAL MEETING THE REQUIREMENTS OF MIL-C-85049, PAR. 3.5.7.
DRAWN
CHECKED
W.RUST
DATE
14/09/2015
14/09/2015
09/10/2015
14/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
TITLE:
APPROVED
K.SHEPPARD
APPROVED
LOW PROFILE HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
F REVISED PER ECO-15-003649
G
REVISED PER ECO-15-013980
DATE
03/06/15
14/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
209M3XX
G
1

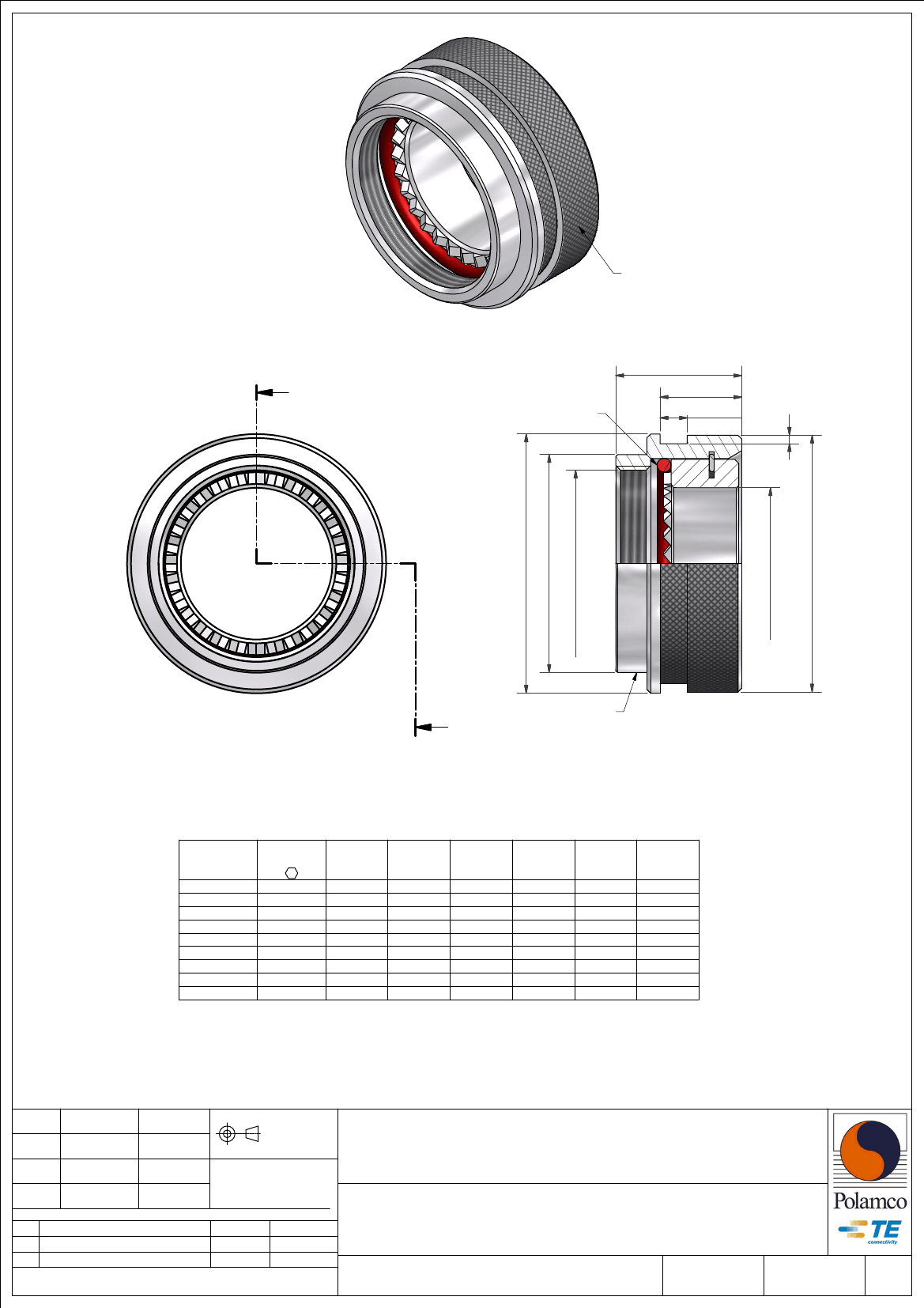

MEDIUM DIAMOND
KNURL
A-A
16,20
A
SILICONE
O-RING
10,50
3,50
0,10
A THREAD
C
B
X
XXXX
Z
0,15
6,8
10,3
13,1
16,3
19,5
21,9
25,1
28,3
31,5
A
PART MARK
HERE
TABLE 1
BASE PART
NUMBER
209M308
209M310
209M312
209M314
209M316
209M318
209M320
209M322
209M324
SHELL SIZE
COM'L / MIL
5
9/A
11 / B
13 / C
15 / D
17 / E
19 / F
21 / G
23 / H
25 / J
A
THREAD
M12 x 1.0
M15 x 1.0
M18 x 1.0
M22 x 1.0
M25 x 1.0
M28 x 1.0
M31 x 1.0
M34 x 1.0
M37 x 1.0
B
MAX
19,1
22,3
25,4
30,3
33,3
36,5
38,1
41,3
44,5
C
MAX
15,0
18,0
21,0
25,0
28,0
31,0
34,0
37,0
40,0
X
MIN
1,1
1,1
1,1
1,1
1,1
1,1
1,7
1,7
1,7
Y
+0/-0,40
17,5
20,7
23,9
28,7
33,0
35,0
36,5
39,8
43,0
DRAWN
CHECKED
W.RUST
DATE
14/09/2015
14/09/2015
09/10/2015
14/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
TITLE:
APPROVED
K.SHEPPARD
APPROVED
LOW PROFILE HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
F REVISED PER ECO-15-003649
G
REVISED PER ECO-15-013980
DATE
03/06/15
14/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
Y
Z
SHT
209M3XX
G
2
