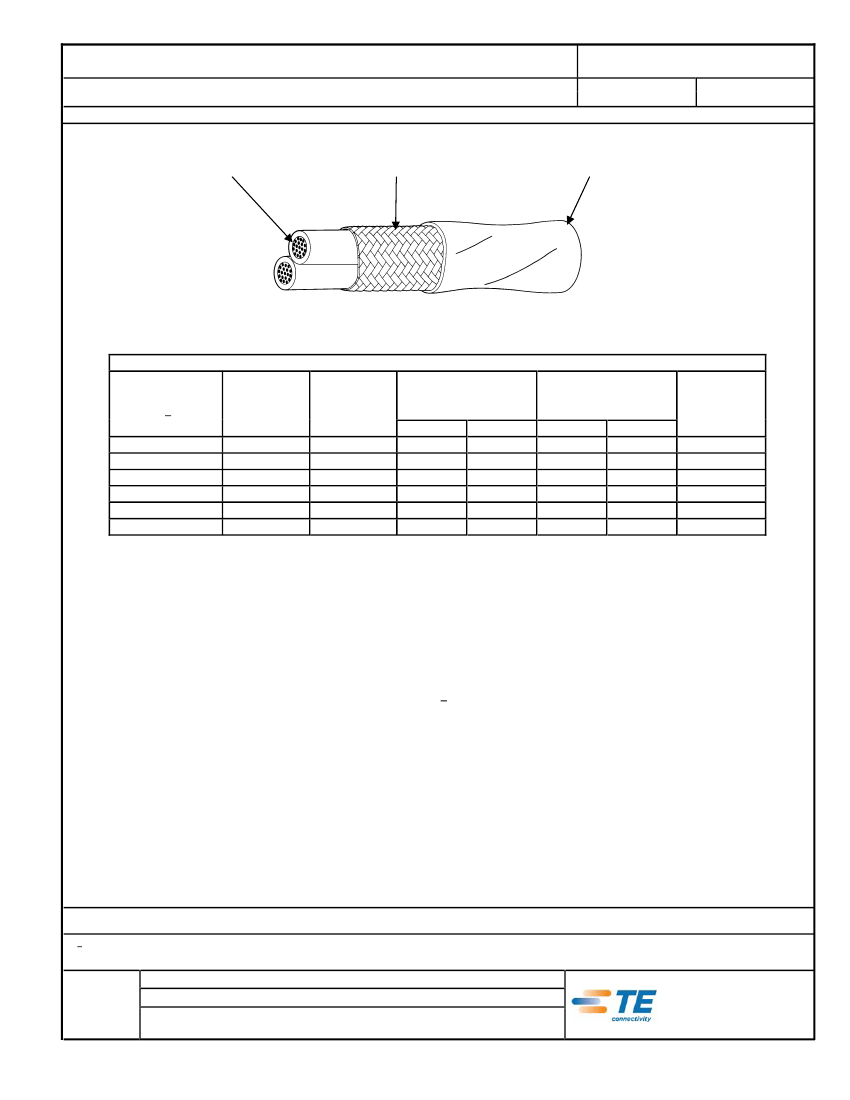

SPECIFICATION CONTROL DRAWING
Title
Date
TWO CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED,
2-18-14
OUTER SPACE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 55/.
55/2122
Revision
C
COMPONENT WIRES - 55/0112
SHIELD - SILVER-COATED COPPER
JACKET - LOW OUTGASSING,
RADIATION-CROSSLINKED,
MODIFIED ETFE
CABLE CONSTRUCTION DETIALS
PART NUMBER
1/
55/2122-26-*
55/2122-24-*
55/2122-22-*
55/2122-20-*
55/2122-18-*
55/2122-16-*
CONDUCTOR
SIZE
(AWG)
26
24
22
20
18
16
SHIELD
STRAND
THICKNESS
(± .0004 inch)
.0015
.0015
.0015
.0015
.0015
.0015
JACKET THICKNESS
(inch)
MINIMUM
.006
.006
.006
.006
.006
.006
NOMINAL
.008
.008
.008
.008
.008
.008
OUTSIDE DIAMETER
(inch)
NOMINAL
.087
.097
.109
.123
.143
.159
MAXIMUM
.092
.102
.114
.129
.150
.167
MAXIMUM
WEIGHT
(lbs/1000 ft.)
6.0
7.7
9.8
13.5
18.8
23.2
CABLE RATINGS AND ADDITIONAL REQUIREMENTS
TEMPERATURE RATING: 200°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
CROSSLINKED VERIFICATION: 300 ± 3°C for 1 hour
DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz
JACKET COLOR: White preferred
JACKET ELONGATION: 50% (minimum)
JACKT FLAWS:
Spark Test, 1000 volts (rms)
Impulse Dielectric Test, 6.0 kV (peak)
RADIATION RESISTANCE: 500 megarads
SHIELD COVERAGE: 85% (minimum)
VACUUM STABILITY:
Total Mass Loss (TML), 1.00% (maximum)
Volatile Condensable Material (VCM), 0.10% (maximum)
VOLTAGE WITHSTAND (Pose Environmental):
1500 volts (rms), 60 Hz, 1 minute
1/ PART NUMBER:
The "*" in the part numbers above shall be replaced by color
code designators with a slash separating the component wire
colors and a dash separating the component wire colors from
the jacket color.
Example: AWG 20, black and brown component wires;
white jacket: 55/2122-20-0/1-9
NOTE: Nominal values are for information only.
Nominal values are not requirements.
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics Corporation
also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,
AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: "901/902..." MAY BE REPLACED BY "Axxx".) OTHER CODES AND
SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-227-8816
Fax: 1-650-361-6297
© 2011-2014 Tyco Electronics Corporation. All rights reserved.
Page 1 of 1
DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
