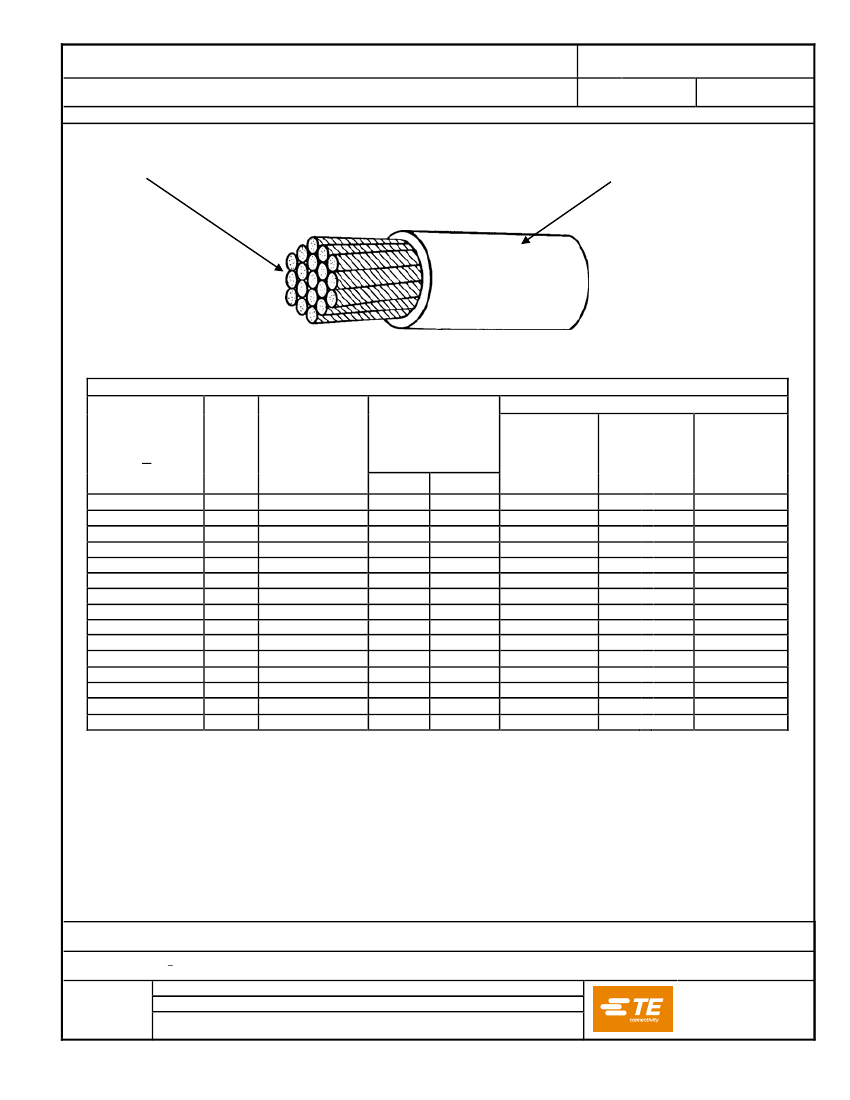

SPECIFICATION CONTROL DRAWING
SCD
82A0112
Revision
Date
WIRE, RADIATION-CROSSLINKED, MODIFIED FLEXIBLE
04-12-21
ETFE-INSULATED, LIGHTWEIGHT, GENERAL PURPOSE, 600 VOLT
This specification sheet forms a part of the latest issue of Raychem Specification 80.
R
CONDUCTOR - SILVER-COATED COPPER
INSULATION- RADIATION-CROSSLINKED,
MODIFIED FLEXIBLE ETFE
TABLE I. CONSTRUCTION DETAILS
DIAMETER OF
STRANDED
CONDUCTOR
(in.)
MINIMUM
.013
.017
.023
.029
.037
.047
.061
.078
.096
.126
.157
.192
.265
.325
.435
MAXIMUM
.017
.021
.027
.033
.043
.053
.067
.086
.106
.140
.173
.208
.285
.345
.465
FINISHED WIRE
MAXIMUM
RESISTANCE
AT 20° C
(ohms/1000 ft.)
75.5
46.9
28.2
19.2
11.7
7.14
4.62
2.96
1.89
1.12
.714
.490
.326
.204
.133
PART NUMBER
1/
WIRE
SIZE
(AWG)
CONDUCTOR
STRANDING
(number x AWG)
DIAMETER
(inch)
.029
.033
.037
.043
.053
.064
.079
.099
.121
.157
.195
.236
.318
.385
.516
± .003
± .003
± .003
± .003
± .004
± .004
± .004
± .005
± .006
± .009
± .010
± . 011
± .013
± .014
± .020
MAXIMUM
WEIGHT
(lb/1000 ft)
1.2
1.4
2.1
2.9
4.2
6.7
10.2
16.5
24.8
42.2
66.3
102.
168.
253.
405.
82A0112-28-*
82A0112-26-*
82A0112-24-*
82A0112-22-*
82A0112-20-*
82A0112-18-*
82A0112-16-*
82A0112-14-*
82A0112-12-*
82A0112-10-*
82A0112- 8-*
82A0112- 6-*
82A0112- 4-*
82A0112- 2-*
82A0112- 0-*
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
42 x 44
63 x 44
105 x 44
154 x 44
154 x 42
259 x 42
259 x 40
665 x 42
665 x 40
665 x 38
665 x 36
1045 x 36
1665 x 36
1665 x 34
2660 x 34
Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.
TE Connectivity also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.
1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. OTHER CODES AND SUFFIXES MAY BE
ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.
Raychem, TE Connectivity, and TE connectivity (logo) are trademarks.
Raychem Wire & Cable
501 Oakside Avenue
Redwood City, CA 94063-3800
Phone: 1-800-522-6752
Page 1 of 2
DIMENSIONS ARE IN INCHES AND, UNLESS OTHERWISE DESIGNATED, ARE NOMINAL.
THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
© 2004-2021 TE Connectivity Ltd. family of companies. All Rights Reserved.
Page
Revision
SCD
SPECIFICATION CONTROL DRAWING
2 of 2
R
82A0112
TABLE II. PERFORMANCE DETAILS
BEND TESTING
PART NUMBER
1/
82A0112-28-*
82A0112-26-*
82A0112-24-*
82A0112-22-*
82A0112-20-*
82A0112-18-*
82A0112-16-*
82A0112-14-*
82A0112-12-*
82A0112-10-*
82A0112- 8-*
82A0112- 6-*
82A0112- 4-*
82A0112- 2-*
82A0112- 0-*
MANDREL DIAMETER
(inch) (± 3%)
CROSSLINKING PROOF TEST
.250
.375
.375
.500
.500
.500
.750
1.00
1.50
2.00
3.00
3.00
4.00
6.00
8.00
WEIGHT
(lb) (± 3%)
CROSSLINKING PROOF TEST
.125
.125
.250
.375
.500
.500
.750
1.00
1.50
1.50
2.00
2.00
2.50
3.00
4.00
WIRE RATINS AND ADDITIONAL REQUIRMENTS
TEMPERATURE RATING: 150°C
Maximum continuous conductor temperature
VOLTAGE RATING: 600 volts (rms) at sea level
COLOR: White preferred
CONCENTRICITY: 70% (minimum)
CROSSLINKING PROOF TEST: 300 ± 3°C,
30 minutes for AWG 28 - 14, 1 hour for AWG 12 - 0
IDENTIFICATION AND COLOR STRIPING DURABILITY:
125 cycles (250 strokes) (minimum), 500 g weight
INSULATION ELONGATION AND TENSILE STRENGTH:
AWG 28-26, Elongation, 75% (minimum)
Tensile Strength, 3000 lbf/in² (minimum)
AWG 24-10, Elongation, 75% (minimum)
Tensile Strength, 3500 lbf/in² (minimum)
AWG 8-0, Elongation 125% (minimum )
Tensile Strength, 3000 lbf/in² (minimum)
INSULATION FLAWS:
Spark Test: 1.5 kV (rms) at 3 kHz
Impulse Dielectric Test, 6.0 kV (peak)
INSULATION THICKNESS:
AWG 28-16, .004 in. (minimum)
AWG 14-10 .006 in. (minimum)
AWG 8-0
.012 in. (minimum)
SECANT MODULUS: (Test per ASTM D882)
AWG 28-10, 5.0 x 10⁴ lbf/in² (maximum),
AWG 8-0,
4.0 x 10⁴ lbf/in² (maximum),
2% strain, 2 inch jaw separation, 0.2 inch/minute,
SHRINKAGE: 150 ± 3°C for 6 hours,
AWG 28-10, 0.13 inch (maximum) in 12 inches
AWG 8- 0, 0.25 inch (maximum) in 12 inches
VOLTAGE WITHSTAND (Post Environmental):
2500 volts (rms), 60 Hz
1/ PART NUMBER:
The “*” in the part numbers in Tables I and II shall be replaced by
color code designators.
Example: AWG 22, white: 82A0112-22-9
AWG 22, white with black stripe: 82A0112-22-90
