TECHNICAL DATA SHEET
TE Document:
Issue:
Date:
TTDS-026
2
March 2014
Z-Type Markers

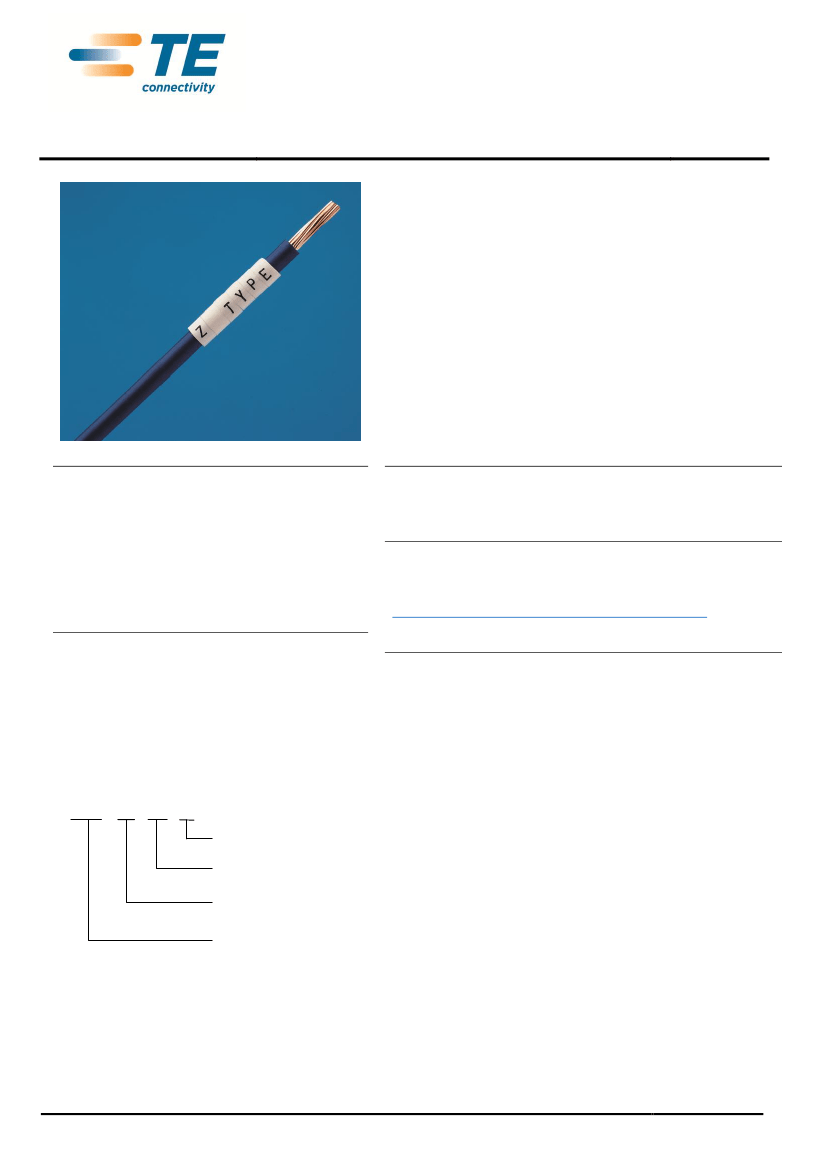

Z-Type markers are individual push-on markers used to identify
wires and small cables permanently. The markers are manufactured
using PVC and designed with an expanding profile, enabling each
marker to accommodate a wide range of wire/cable sizes.
Z-Type markers are a simple, cost-effective solution for many
commercial wire identification applications. The markers are supplied
either straight cut or chevron cut. The chevron cut option ensures
the markers remain aligned. Standard Z-Type markers are yellow or
white with black legends and can be supplied as loose pieces
packed in boxes, or on reels. Color coded markers are also
available. Suitable for industrial applications.
KEY FEATURES
Self-extinguishing.
Resistant to key Industrial fluids, including
those used in Mass transit, Aviation and
Military (defined by RW-2535).
Nine sizes covering wire diameters from
1.5mm to 12.7mm (0.06 inches to 0.5
inches).
TEMPERATURE RATING
Operating Temperature Range -45°C to 70°C (-40°F to 158°F)
ENVIRONMENTAL
Information and a downloadable declaration covering RoHS and
REACH compliance can be found at the ‘TE Product Compliance
Support Centre’:
http://www.te.com/en/resources/product-compliance.html
APPLICATIONS
Pre-termination cable identification.
Identification of small wires and cables.
Applicator wands available for easy marker
installation.
Electrical and Electronic Equipment,
Industrial
SPECIFICATIONS / APPROVALS
TE Connectivity Standard
RW-2535
Industrial
BS 6746C:1993 Colour chart for insulation and sheath of
electric cables
IEC 60304 Standard Colours for Insulation for Low
Frequency Cables and Wires
PART DESCRIPTION
0616 1
4
00
Legend code
Color code
Packaging Code
Product size code
Where possible, TE have tested product as a finished item, including the print. Operational tests are followed by an
assessment of mark adherence to validate fit form and function. Further details can be found in TE standard RW-2535.
©2014 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
Class I Data Classification - See Policy TEC-02-04
Page 1 of 3

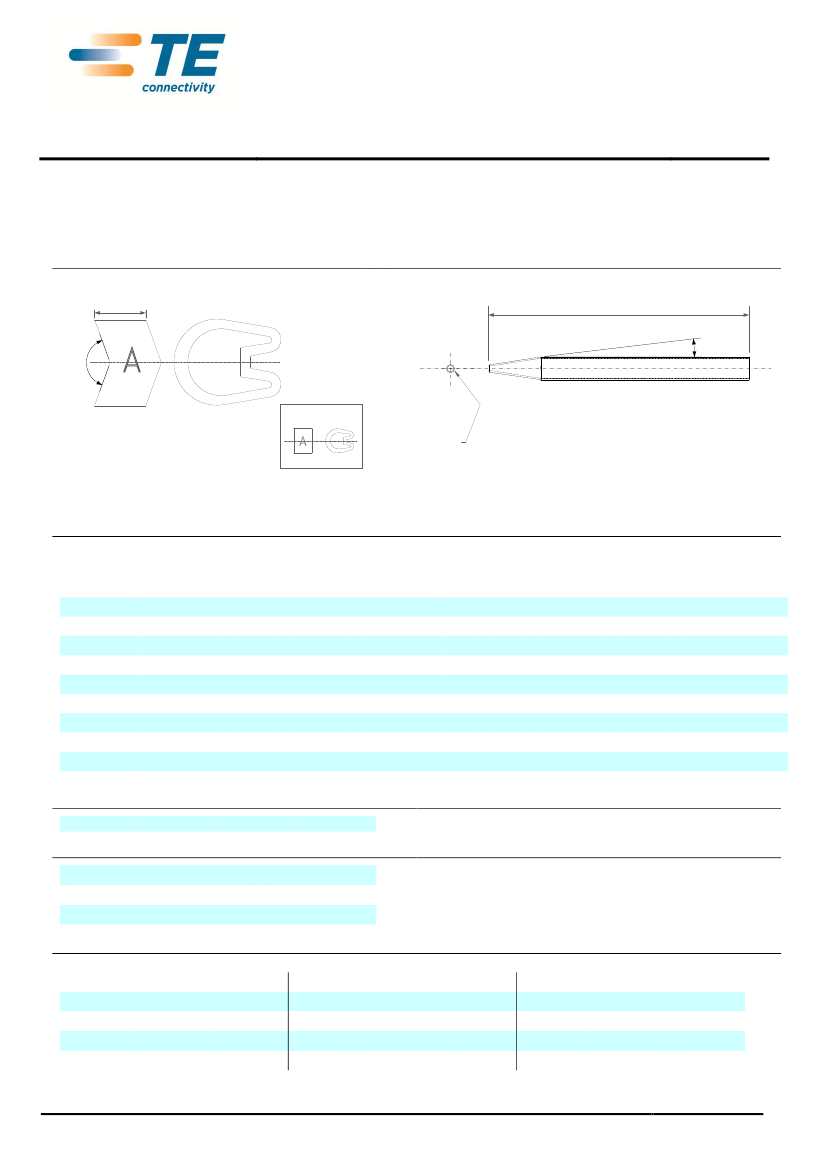

TECHNICAL DATA SHEET
TE Document:
Issue:
Date:
TTDS-026
2
March 2014
Z-Type Markers
LEGEND CODE
Legend
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
Code
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
Legend
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
+
-
Code
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Legend
/
~
Earth
)
Blank
:
,
<
>
=
.
Code
38
39
40
41
42
43
44
45
46
47
48
Order example 06161400: Z-type marker, size 11, yellow, black mark, character O, boxed
