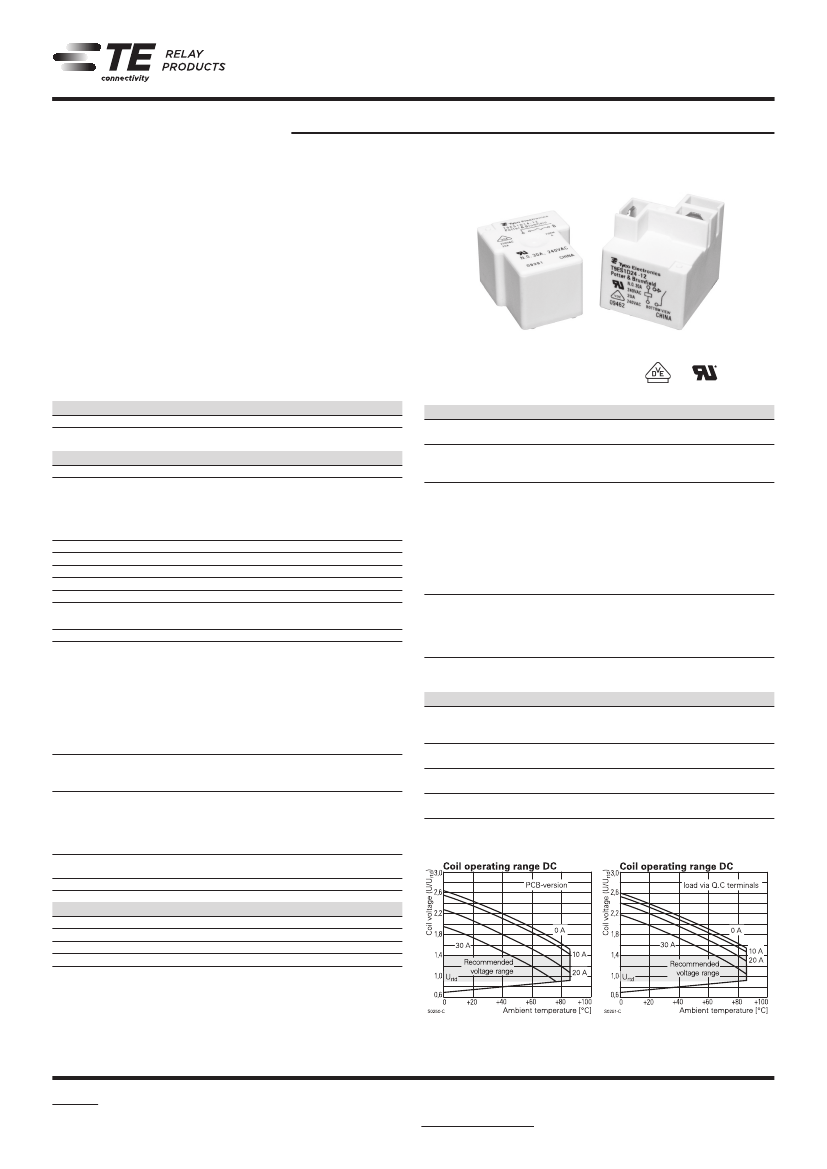

General Purpose
High Power PCB Relays
Power PCB Relay T9E
n
n
n
n
n
n
Potter & Brumfield
1 pole 30A, 1 formA(NO) or 1 formC(CO)
High breaking capacity 7500 VA
PCB and PCB/quick connect terminals
UL class F insulation as standard
Ambient temperature up to 105°C
Plastic materials according to IEC60335-1
Typical applications
HVAC, power supplies, domestic appliances, measurement and control.
Approvals
VDE 40027903, UL E58304
Technical data of approved types on request.
Coil Data
(continued)
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
Code D (1W) coil
6
6
4.5
9
9
6.75
12
12
9
18
18
13.5
22
22
16.5
24
24
18
48
48
36.2
110
110
82.5
Code L (900mW) coil
6
6
4.5
12
12
9
18
18
13.5
24
24
18
Release
voltage
VDC
0.6
0.9
1.2
1.8
2.2
2.4
4.8
11
0.6
1.2
1.8
2.4
Coil
resistance
Ω±10%
36
81
144
324
484
576
2304
12100
40
155
380
660
Rated coil
power
W
1
1
1
1
1
1
1
1
.9
.9
.9
.9
Contact Data
Contact arrangement
1 form A (NO)
1 form C (CO)
Rated voltage
240VAC
Max. switching voltage
250VAC (VDE); 300VAC (UL)
Rated current
30A
20A/10A
Limiting continuous current
30A
Breaking capacity max.
7500VA
5000/2500VA
Contact material
AgSnOInO (AgCdO optional)
Min. recommended contact load
1A, 5VDC or 12VAC
Initial contact resistance
75 mΩ at 1A at 5VDC or 12VAC
Frequency of operation, with/without load
6/120min
-1
Operate/release time max., including bounce
15/15ms
Contact ratings
Type Contact
IEC 61810
AgSnOInO, 1W coil
1
NO
1
NO
2
NO
1, 2
CO
AgSnOInO, 900mW coil
1
NO
1
NO
EN 60730-1
AgSnOInO, 1W coil
1
NO
UL 508
1)
AgSnOInO, 1W coil
1, 2
NO
AgSnOInO, 900mW coil
1, 2
NO
Mechanical endurance
Load
30A, 250VAC, cosj=1, 60°C
20A, 250VAC, cosj=1, 85°C
20A, 250VAC, cosj=1, 70°C
20A / 10A, 250VAC, cosj=1, 60°C
17A, 250VAC, cosj=1, 105°C
20A, 250VAC, cosj=1, 85°C
12(12)A, 240VAC, 60°C
30A, 240VAC, general purpose, 25°C
TV-8, 125VAC, 25°C
Cycles
20x10
3
100x10
3
100x10
3
20x10
3
100x10
3
100x10
3
100x10
3
100x10
3
25x10
3
10x10
6
ops.
6 to 110VDC
110% of nominal
155°C
Class F
All figures are given for coil without preenergization, at ambient temperature +23°C.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Initial surge withstand voltage
between contact and coil
Initial insulation resistance
between insulated elements
Clearance/creepage
between contact and coil
1500V
rms
2500V
rms
6kV (1.2μs/50μs impulse wave)
1x10
9
Ω
≥3mm/4mm
1) Additional UL 508 ratings are available.
Coil Data
Coil voltage range
Max. coil power
Max. coil temperature
Coil insulation system according UL
Coil operating ranges shown above are for 1W coils.
02-2014, Rev. 0214
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1
General Purpose
High Power PCB Relays
Power PCB Relay T9E
(Continued)
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
DC coil
-40ºC to 85ºC / 105°C
Category of environmental protection
IEC 61810
RTII - flux proof (T9EV)
RTIII - wash tight (T9ES)
Vibration resistance (functional)
1.5mm, 10-55 Hz
Shock resistance (functional)
10g for 11msec
Shock resistance (destructive)
100g
Potter & Brumfield
Other Data
(Continued)
Terminal type
connect
Weight
PCB-tht and PCB-tht + quick
26g mounting code 1
33g mounting codes 2 and 5
260°C
tray/50 pcs., box/250 pcs.
Resistance to soldering heat THT
IEC 60068-2-20
Packaging/unit

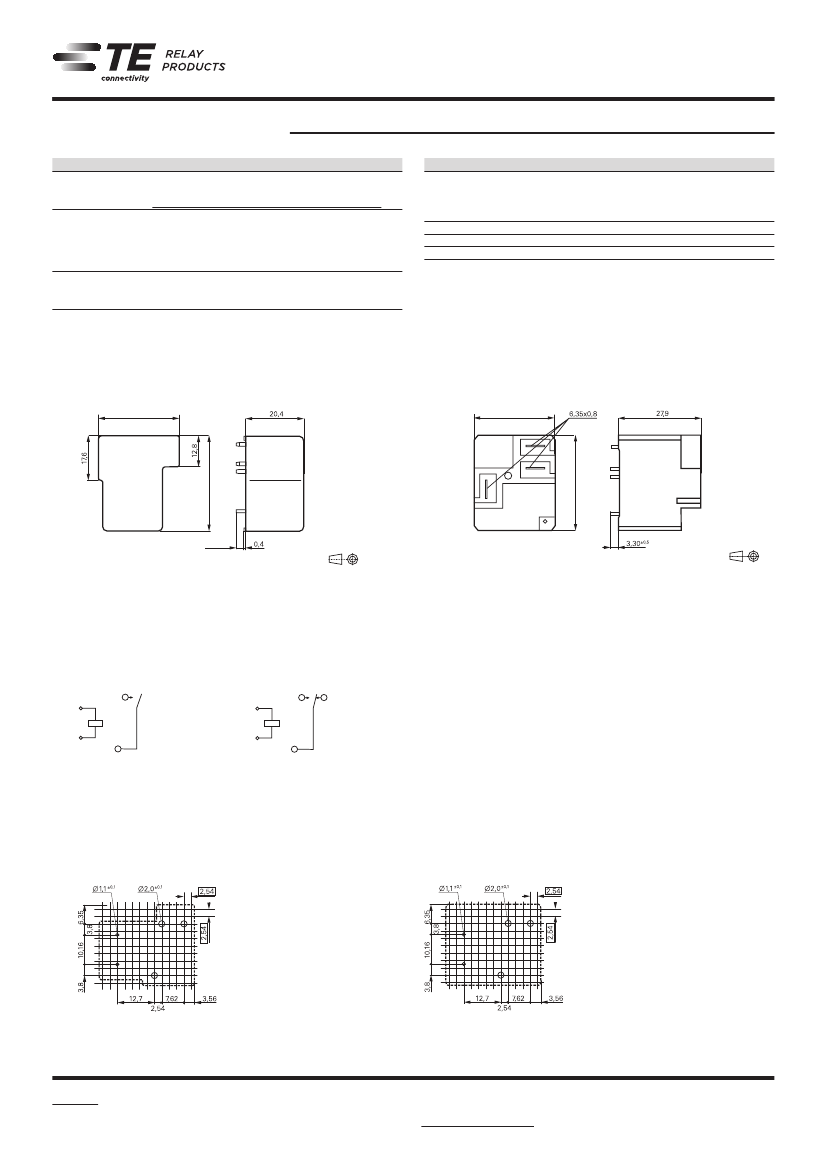

Dimensions
PCB version
27,4 MAX.
PCB/quick connect version
27,4 MAX.
32,5 MAX.
S0289-A
S0290-A
3,3
+,41
–,25
Terminal assignment
Bottom view on pins
1 form A
1 form C
PCB layout
Bottom view on pins
PCB version
PCB/quick connect version
32,5 MAX.
Only necessary terminals are
present on single throw models.
Consequently, some holes will
be unnecessary for single throw
models.
S0261-AA
S0261-AH
Only necessary terminals are
present on single throw models.
Consequently, some holes will
be unnecessary for single throw
models.
2
02-2014, Rev. 0214
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
General Purpose
High Power PCB Relays
Power PCB Relay T9E
(Continued)
Product code structure
Type
Typical product code
Potter & Brumfield
T9E
S
1
D
1
4
-24
T9E
Power PCB relay T9E
Enclosure
S
Wash-tight plastic case with knock off nib
V
Flux-proof plastic case
Contact arrangement
1
1 form A (1 NO)
5
1 form C (1 CO)
Coil Input
D
DC voltage, 1W
L
DC voltage, 900mW
Mounting and termination
1
PCB mounting; PCB terminals for coil and contacts
2
PCB mounting; PCB terminals for coil and contacts; 6.35mm (.250in) QC for contacts
Contact material
4
AgSnOInO
2
AgCdO – optionally available. Contact Product Engineering for availbaility and ratings.
Coil voltage
Coil code: please refer to coil versions table
Product Code
T9ES1L14-18
T9ES1D14-12
T9ES1D14-24
T9ES1D12-12
T9ES1D24-12
T9ES1D22-12
T9ES5D14-12
T9ES5D12-24
T9ES5D24-12
T9EV1D14-22
Enclosure
wash tight
Mounting
PCB terminals
Contact material
AgSnOInO
Contacts
1 form A, 1 NO
Coil version
900mW
1W
Coil voltage Part number
18VDC
12VDC
24VDC
12VDC
12VDC
12VDC
12VDC
24VDC
12VDC
22VDC
1-2027234-8
2027234-2
2027234-7
1-2027234-0
2027234-8
1-2027243-3
2027234-6
2027234-4
2027234-9
2027234-5
PCB + quick connect
PCB terminals
PCB + quick connect
PCB terminals
AgCdO
AgSnOInO
AgCdO
AgSnOInO
AgCdO
AgSnOInO
1 form C, 1 CO
flux proof
1 form A, 1 NO
