SENSITRON
SEMICONDUCTOR
Data Sheet 2599, Rev. -
ZM4731A-ZM4764A
ZM4731A-ZM4764A
ZENER DIODES
FEATURE
For use stabilizing and clipping circuits with high
power rating.
Silicon Planar Power Zener Diodes.
Standard Zener voltage tolerance is ±10%.Add
suffix “A” for ±5% tolerance. Other Zener voltages
and tolerances are available upon request.
These diodes are also available in DO-41 case with
the type designation 1N4728… 1N4764.
MECHANICAL DATA
Case: MELF Glass Case
Weight:approx.0.25g
!
# $%
&
''(
$
%
%
θ
1.0
150
&' (150
170
2
!
"
#
•

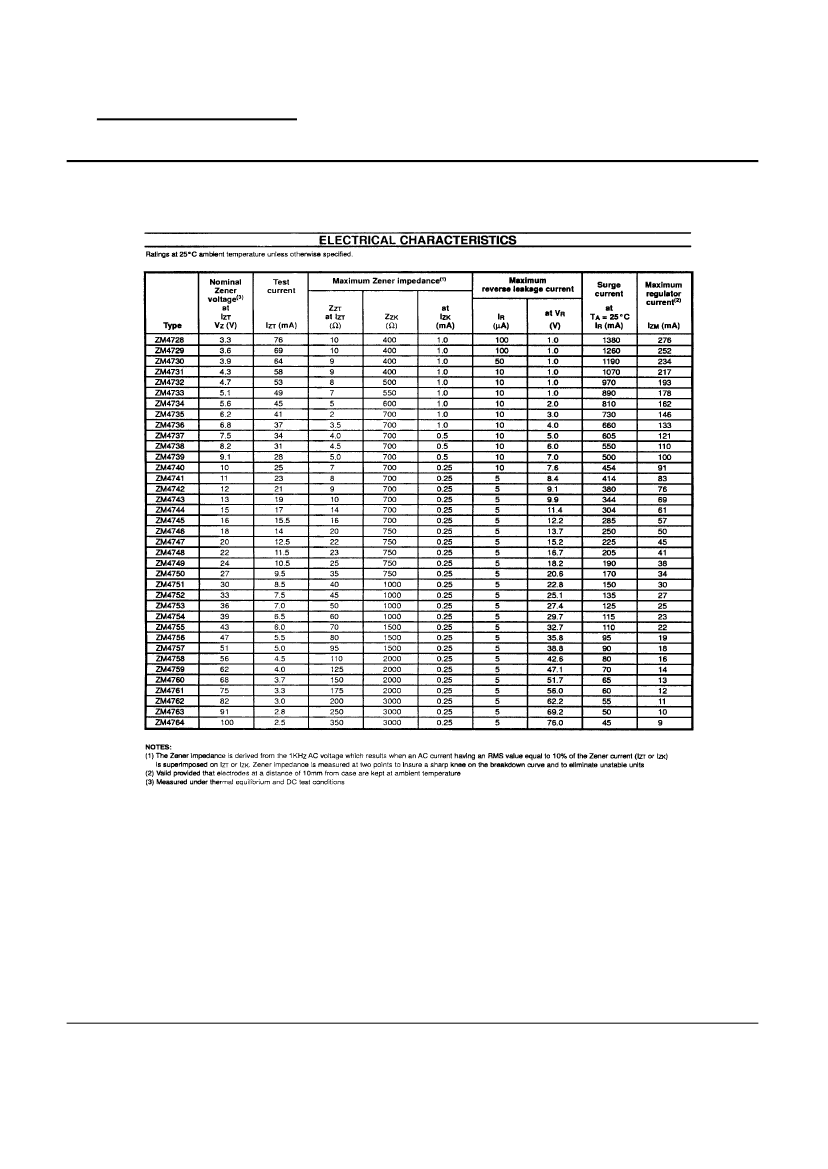

221 West Industry Court
3
Deer Park, NY 11729-4681
3
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version
of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment, and safety equipment), safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement.
3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual
property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from
use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
Sensitron Semiconductor.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
