3-796598-5

Description
15 电路 0.325"(8.26mm) 隔板接线座 连接器 螺钉,带紧固板
CategoryThe connector    connection terminal
File Size84KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com

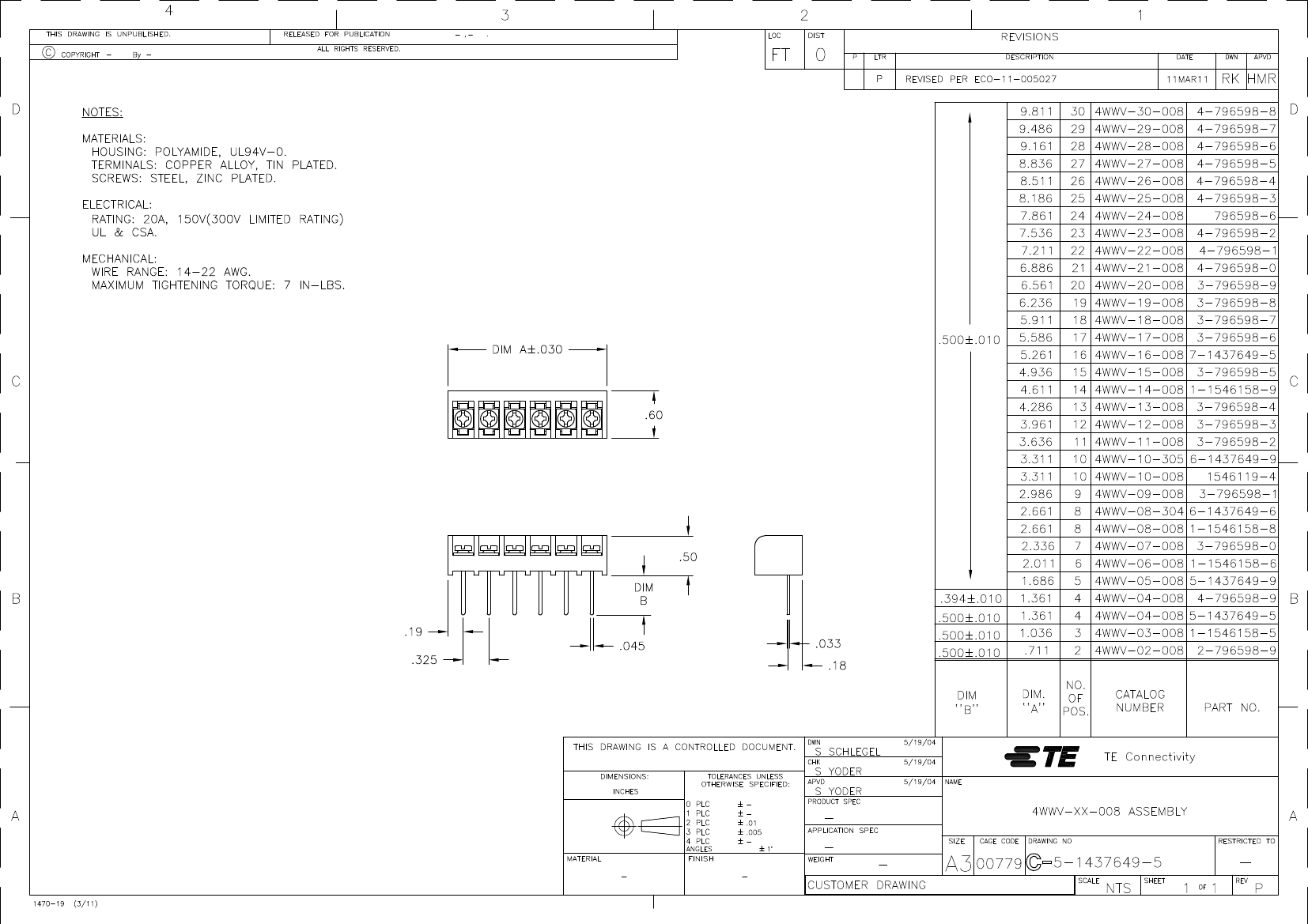

Download Datasheet Parametric View All

3-796598-5 Online Shopping

Suppliers Part Number Price MOQ In stock
3-796598-5 - - View Buy Now

3-796598-5 Overview

15 电路 0.325"(8.26mm) 隔板接线座 连接器 螺钉,带紧固板

3-796598-5 Parametric

Parameter NameAttribute value
category
MakerTE Connectivity
series#4, Buchanan
PackageBulk
Terminal block typeBulkhead terminal block
Number of circuits15
Number of incoming lines15
spacing0.325"(8.26mm)
Number of rows1
Rated current (amps)20A
Rated voltage150V
Wire gauge14-22 AWG
top terminationscrews with fastening plate
bottom terminationWire wrap
Partition typeThree walls (3)
characteristic-
colorblack
Terminal thread materialsteel
端子螺纹表面处理zinc
Installation typeThrough hole
Operating temperature105°C
Material - InsulationPolyamide (PA), nylon
Material flammability ratingUL94 V-0
Basic product number796598
