General Purpose Relays
Accessories
Accessories Power Relay RM
n
SCHRACK
For RM 2 and 3 pole with plain cover and 4,8 mm terminals
F0237-B

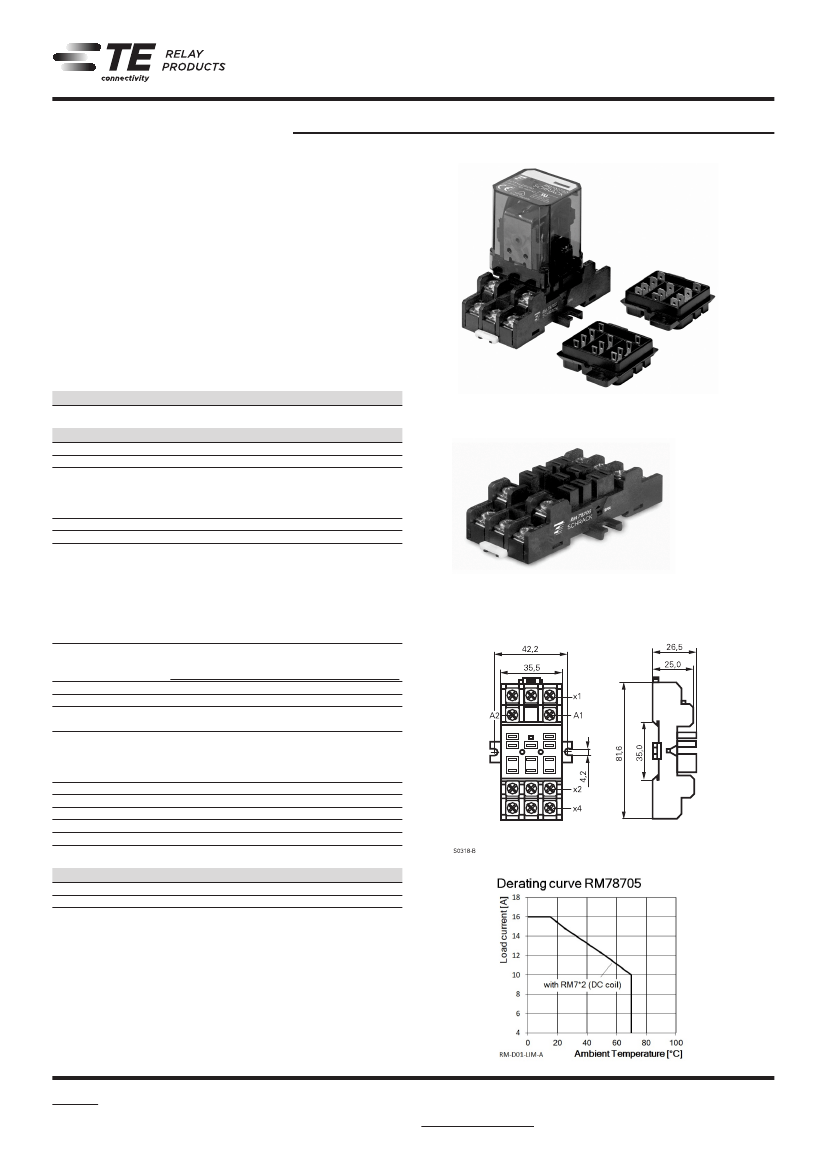

RM Socket with screw-type terminals RM 78 705
Technical data
Rated voltage
250 VAC
Rated current
16 A
Dielectric strength
coil-contact circuit
2500 V
rms
open contact circuit
1500 V
rms
adjacent contact circuits
2500 V
rms
Clearance / creepage coil-contact circuit
≥ 4.0/14.9 mm
Material group of insulation parts
IIIa
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
basic
open contact circuit
functional
adjacent contact circuits
basic
Rated insulation voltage
250 V
Pollution degree
2
Rated voltage system
230/400 V
Overvoltage category
III
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature range
-40…+40˚C
Terminals
screw
Terminal screw torque acc. IEC 61984
0.8 Nm
max.
1.2 Nm
Wire cross section
single wire
2 x 2.5 mm
2
fine wire
2 x 2.5 mm
2
with bootlace crimp (DIN 46228/1)
2 x 1.5 mm
2
Insertion cycles
A (10)
Max. Insertion Force total
100 N
Mounting distance
≥ 0 mm, dense packing
Weight
66 g
Packaging unit
100 pcs
F0114-B
Socket with screw-type terminals
Type
RM 78 705
Socket with screw-type terminals
Part Number
2-1393844-5
02-2019, Rev. 0219
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Accessories
Accessories Power Relay RM
(Continued)

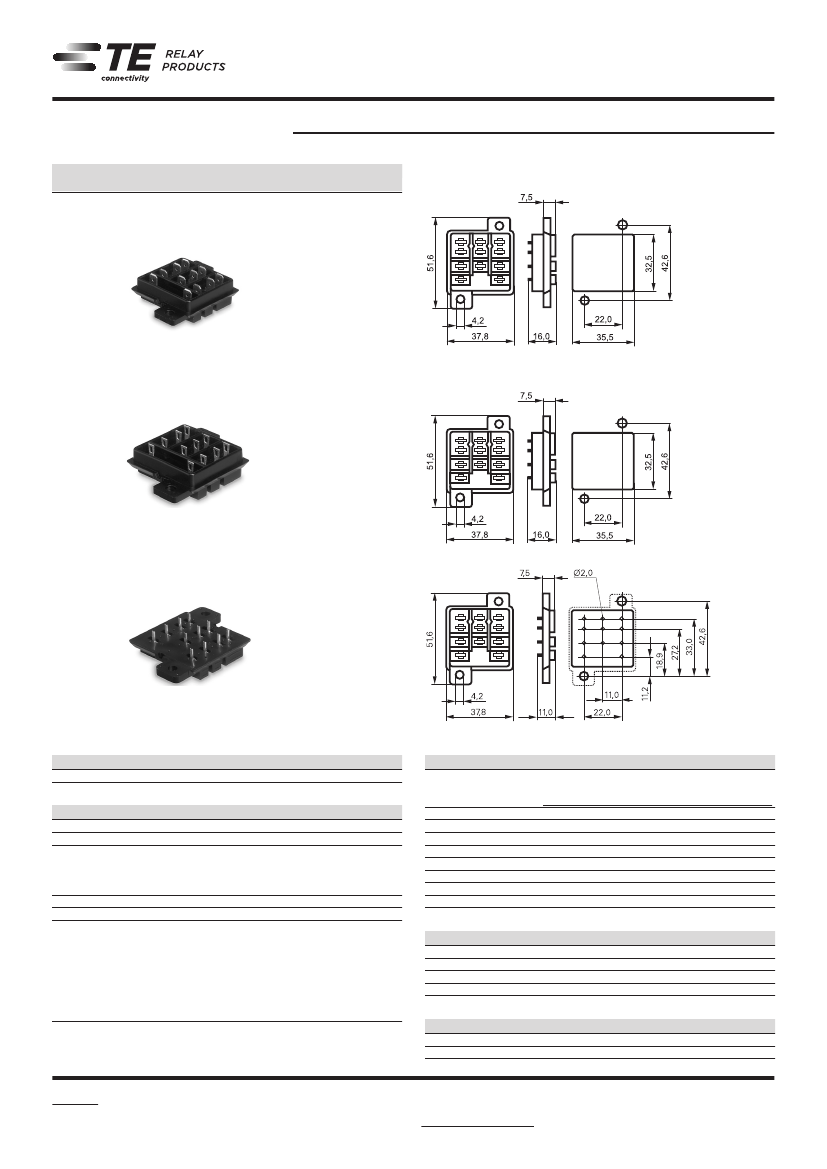

RM sockets for PCB and with solder terminals
RM 78 700/701/702
RM 78 700,
socket with quick connect terminals
SCHRACK
Chassis cut-out
F0110-A
Z
b
S0319-AA
RM 78 701,
socket with solder terminals
Chassis cut-out
F0111-A
Z
b
S0319-AA
RM 78 702,
socket with PCB terminals
F0112-A
Z
b
S0319-AB
Approvals
UL E135149, CSA 700955
Technical data
(continued)
Technical data
Rated voltage
Rated current
Dielectric strength
coil-contact circuit
open contact circuit
adjacent contact circuits
Clearance / creepage coil-contact circuit
Material group of insulation parts
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
adjacent contact circuits
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
RM 78 700/701/702
240 VAC
10 A
2500 V
rms
1500 V
rms
2500 V
rms
≥ 4.0/6.3 mm
IIIa
basic
functional
basic
250 V
2
230/400 V
III
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature range
-40…+40˚C
Terminals
pcb, solder terminals
Insertion cycles
A (10)
Max. Insertion Force total
100 N
Mounting distance
≥ 0 mm, dense packing
Resistance to soldering heat
270°C/10 s
Weight
9g
Packaging unit
25 pcs
RM 78 700/701/702
Sockets
Type
RM 78 700
RM 78 701
RM 78 702
Socket with quick connect terminals
Socket with solder terminals
Socket with PCB terminals
Part Number
1419118-6
4-1393149-9
2-1393844-3
Accessories for RM 78 700, RM 78 701, RM 78 702
Type
RM 28 802
Metal retaining clip RM
Part Number
1419118-5
2
02-2019, Rev. 0219
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
